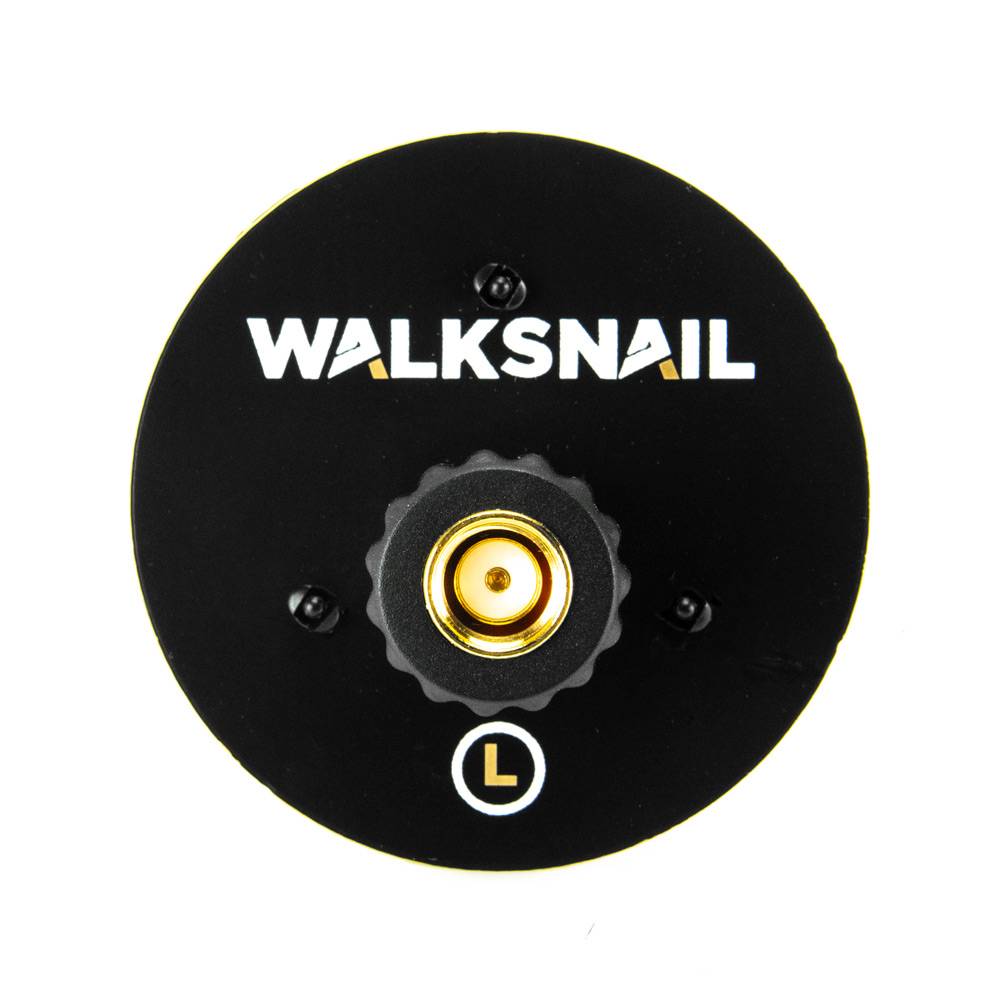

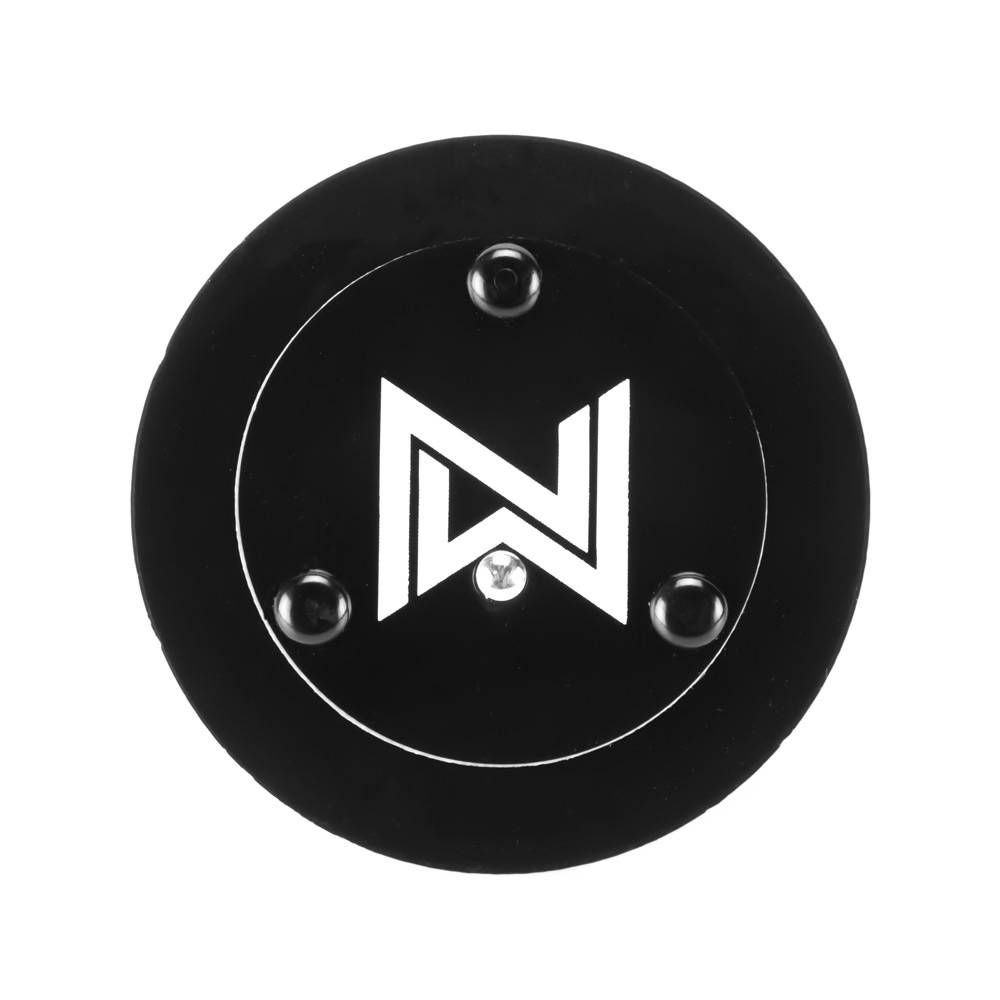

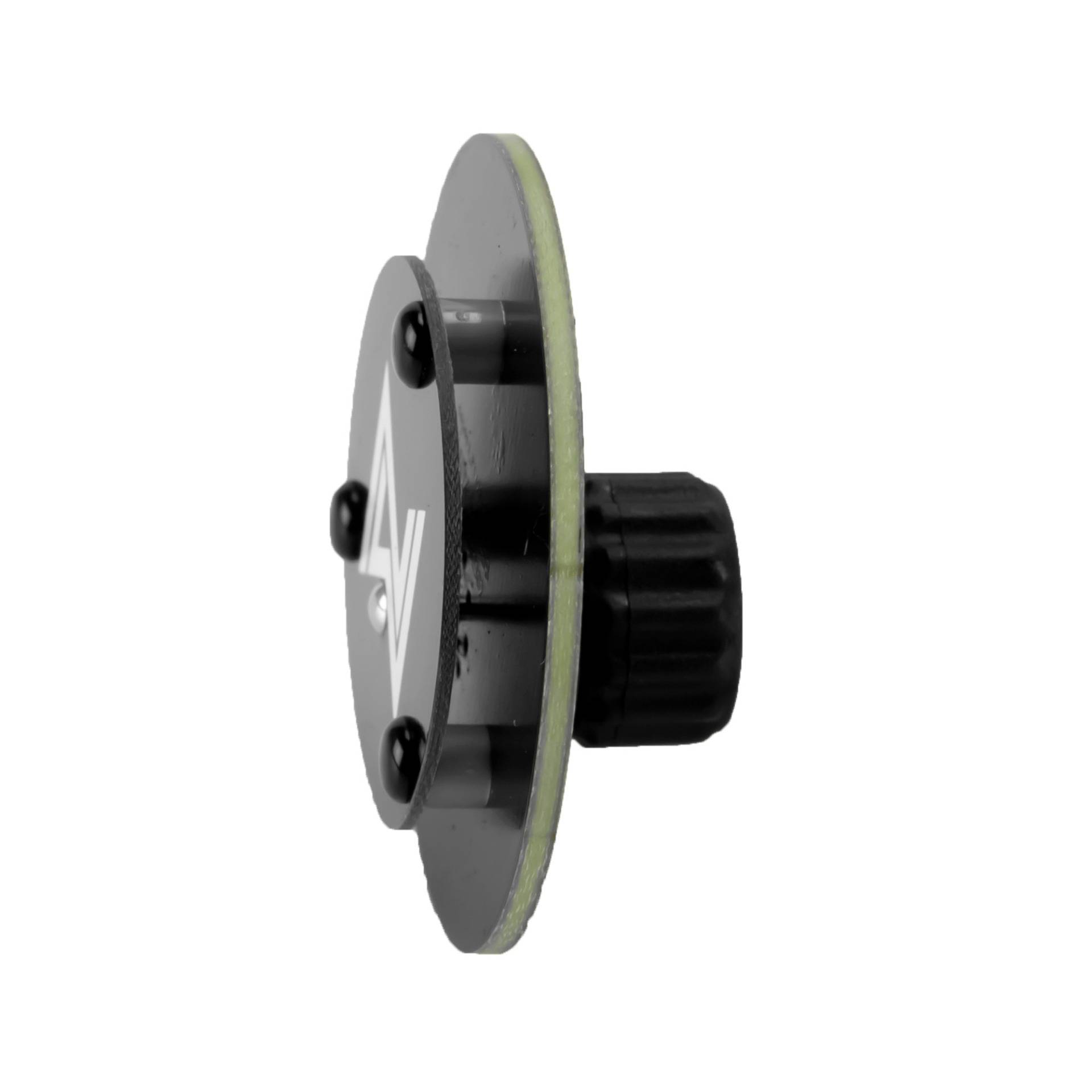

Walksnail Avatar 5.8GHz Patch Antenna (Set of 2)

The Walksnail Avatar Patch Antennas are 5.8GHz goggle antennas that feature an 8dBi, 10W power capacity, and LHCP polarization with an RP-SMA connector.

• Customizable Fit with Optional Faceplate Pad Accessories
• Red Bird LHCP 5.8GHz Goggle Antennas
• HD Video Output via USB-C Connector
• Supports Betaflight Canvas Mode
• Walksnail Avatar Patch Antennas
• Adjustable Anti-Fog Ventilation
• On/Off Power Button
• Integrated HD DVR
• Focus Adjustment
• 46° FOV

• Frequency range (MHz): 5725-5875
• Ambient temperature (℃): -40+60
• HPBW: 75°H-plane75°E-plane
• Front to back ratio (dB): >10
• Input Impedance (Ω): 50
• Power Capacity (W): 10
• Interface: RP-SMA
• Polarization: LHCP
• Gain (dBi): 8
• VSWR: <1.5

• 2x Walksnail Avatar Patch Antenna
