The TCMMRC Avenger 225HD – The wheelbase is 225mm and supports up to 5.1-inch blades. It continues the design style of the classic Avenger series and is streamlined and improved. It supports high definition image transmission systems, provides sky-side installation prints and uniquely designed DJI antenna fixings, and supports the fixation of 915 antennas and 2.4G receiver antennas. The fuselage of the Avenger 225HD is supported by a 20mm aluminium column, with a low centre of gravity and sufficient and compact fuselage space. The two-tower design of the flight control holes is suitable for M2 * 20 * 20 / 30.5 * 30.5. The camera’s side panel provides multi-angle adjustments and supports external cameras. Classic oversized design prevents lens from seeing blades, Motor: (mounting hole: M3 16×16) ESC: M2 * 20 * 20 / M3 * 30.5 * 30.5 compatible holes Camera: DJI HD 20mm camera Flight control: compatible holes M2 * 20 * 20 / M3 * 30.5 * 30.5 Paddle: 5-5.1 inch paddle Wheelbase: 225mm
Specifications of Avenger 225HD Freestyle Frame
- Material – 3K Carbon Fiber

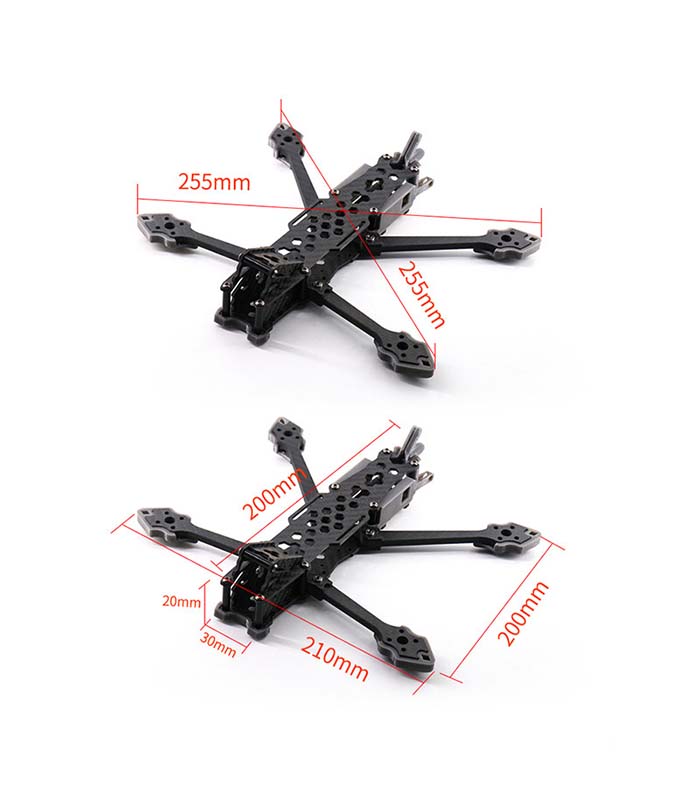

- Wheelbase – 225mm
- Motor Options – M3x16x16mm M3x19x19mm
- FC Options – M3x30.5×30.5 | M2x20x20
- Camera Hole Position – M2-DJI-20MM
- Space Height – 20mm
- Prop Size – 5.1″
- Top Plate Thickness – 2.25mm
- Bottom Plate Thickness – 3.25mm
- Arm Thickness – 5.25mm
- Side Camera Mount Thickness – 2.25mm
- Total Net Weight – 132g (estimated)

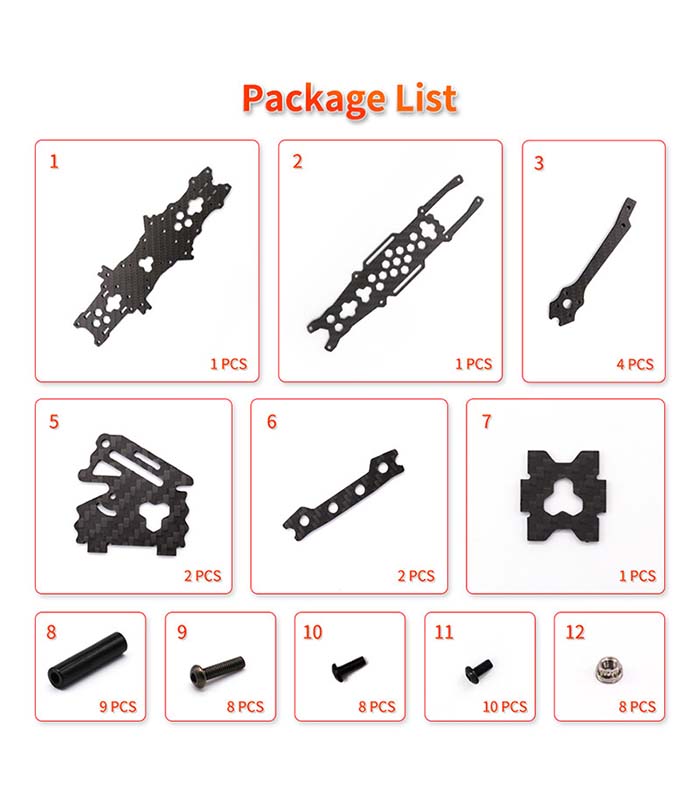

- Includes Gray TPU DJI Mount, Antenna Mount, Front Guard, Arm Guards
