T-Motor F45A V2 3-6S BLHeli_32 4-in-1 ESC

Updated to new layout with pin harness on the heatsink side. LED is also now included like as in the F55A Pro II.

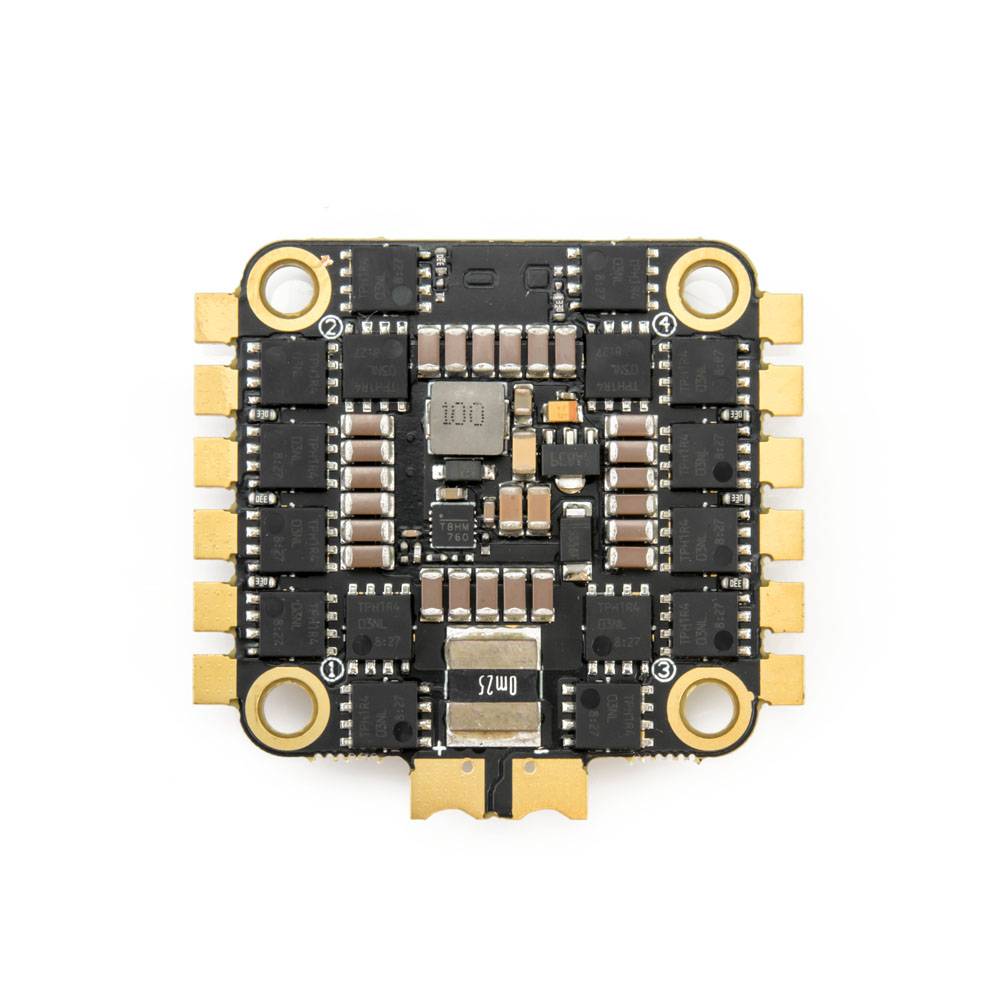

This ESC is T-Motor’s 4-in-1 version of their popular F45A ESC. This 4-in-1 ESC packs 45A into an industrialized PCB layout made with premium features such as a 32bit main control chip, BLHeli_32 firmware, and 6s support.

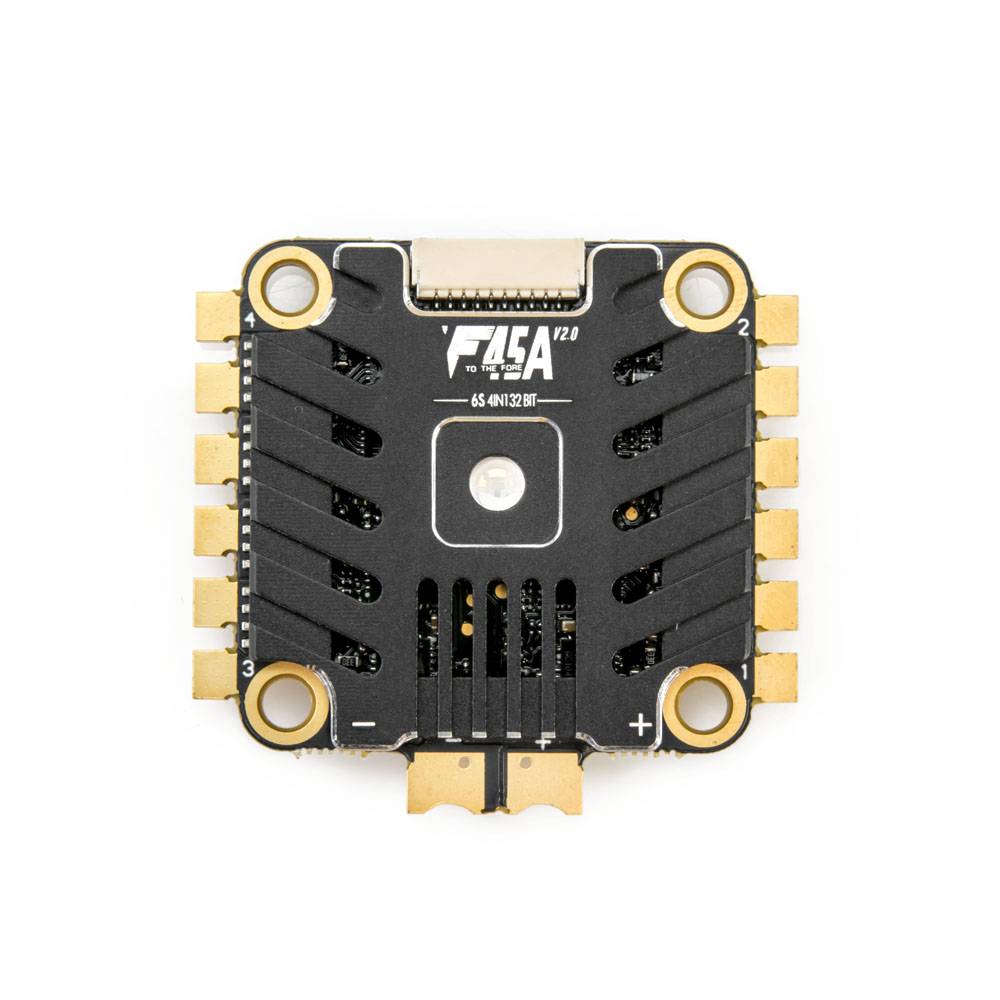

The F45A 4-in-1 comes with a heatsink attached to keep heat away from sensitive electronics.

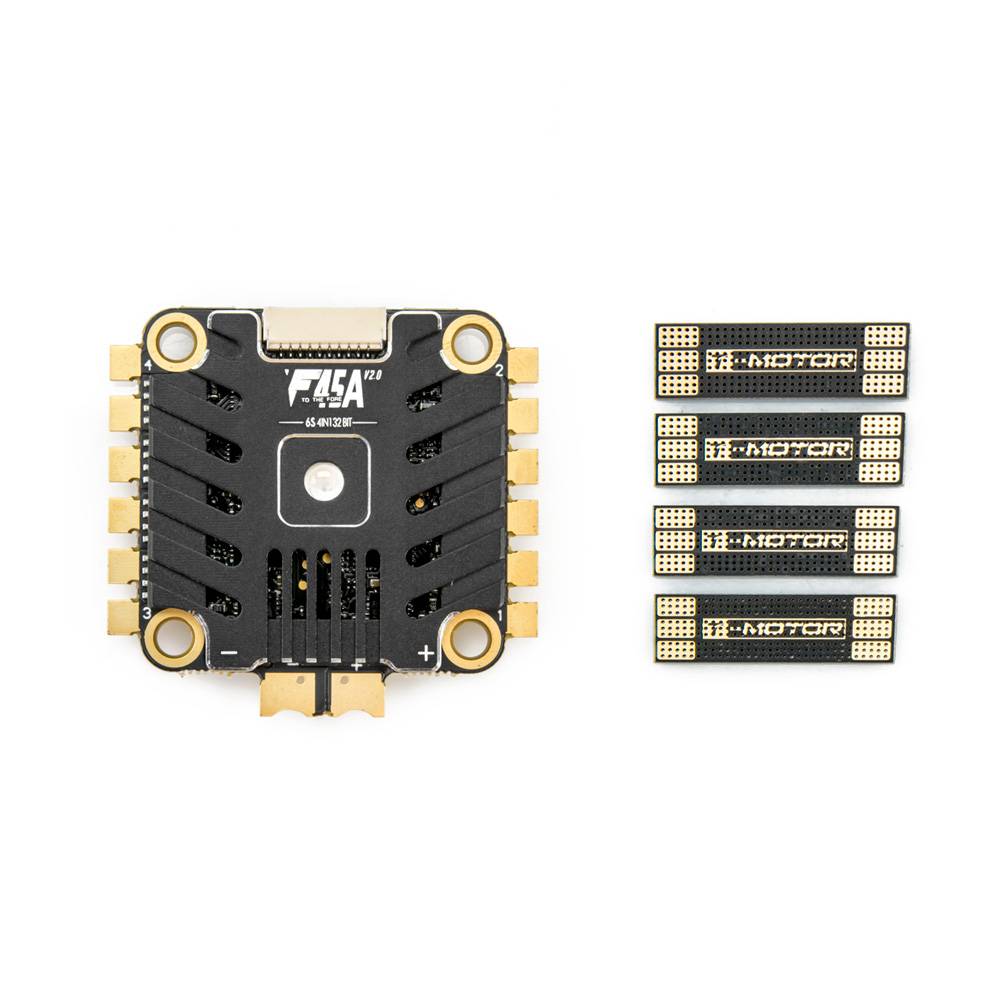

Another small bonus is the 4 x motor wire PCBs that come with this ESC. These go on your quad arms and help prevent damage to your motor wires from prop strikes or other damage. A neat little touch to include them.

Features

• 32bit Main Control Chip: Compared with traditional MCU of 8 bit, 32bit stm32f051 main control chip enjoys the advantage of fast computing speed and multiple functions.
• Fast Response Speed: Prompt and accurate response on throttle signal receiving for the euphoria from zero lag operation.
• Original BLHeli_32 Firmware: Original BLHeli_32 firmware with powerful performance and diverse functions capable of ESC parameter setting and firmware upgrading makes the ESC far more reliable and efficient.

Specifications

• Model No: F45A V2.0 32 bit 4-IN-1 1-6S
• Con. Current: 4*45A
• Peak Current (10S): 4*55A
• Lipo: 3-6S
• Weight: 17.5g
• Size: 45 x 41 x 7.3mm
• Mounting Hole: 30.5*30.5

Includes

• 1 x T-Motor F45A 3-6S 4-in-1 ESC
• 4 x Damping Rubbers
• 4 x Motor Wire PCB
• 2 x 8pin wiring harness (1x 70mm, 1x 30mm)
• 2 x 35v 470uf Capacitor
