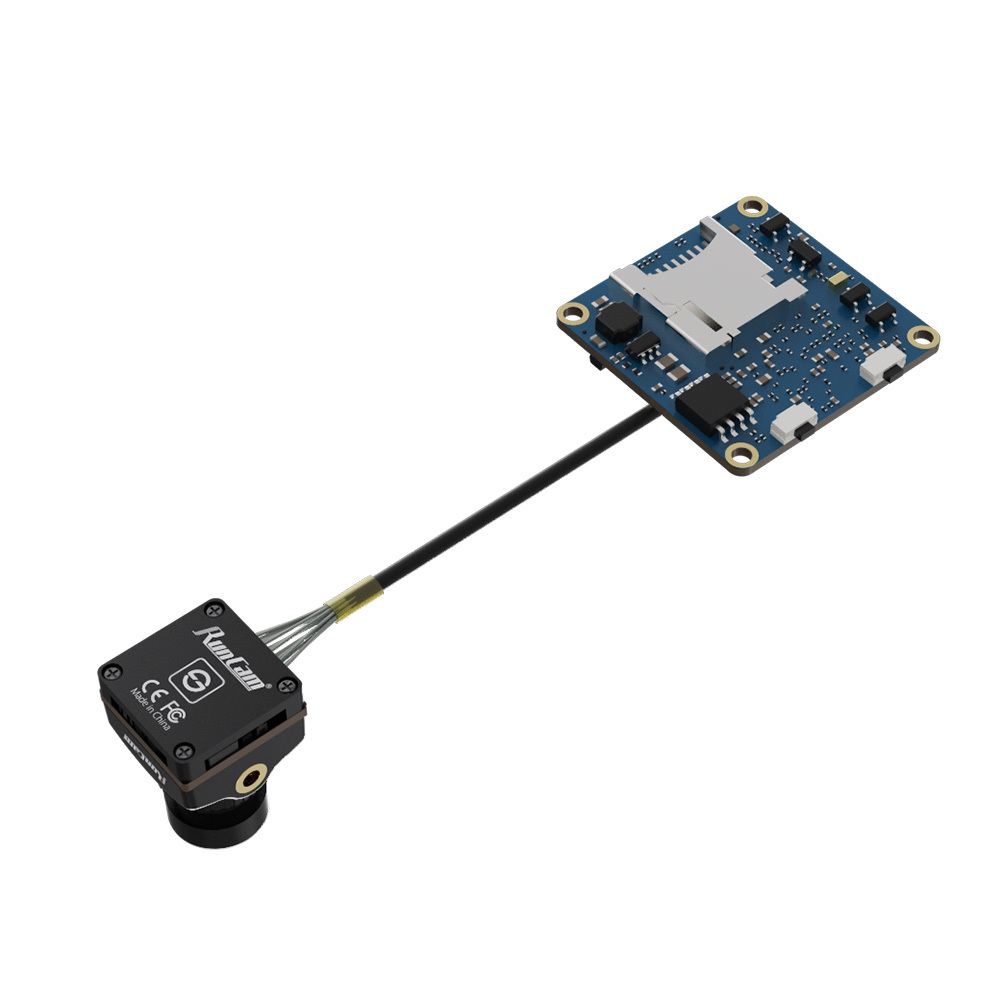

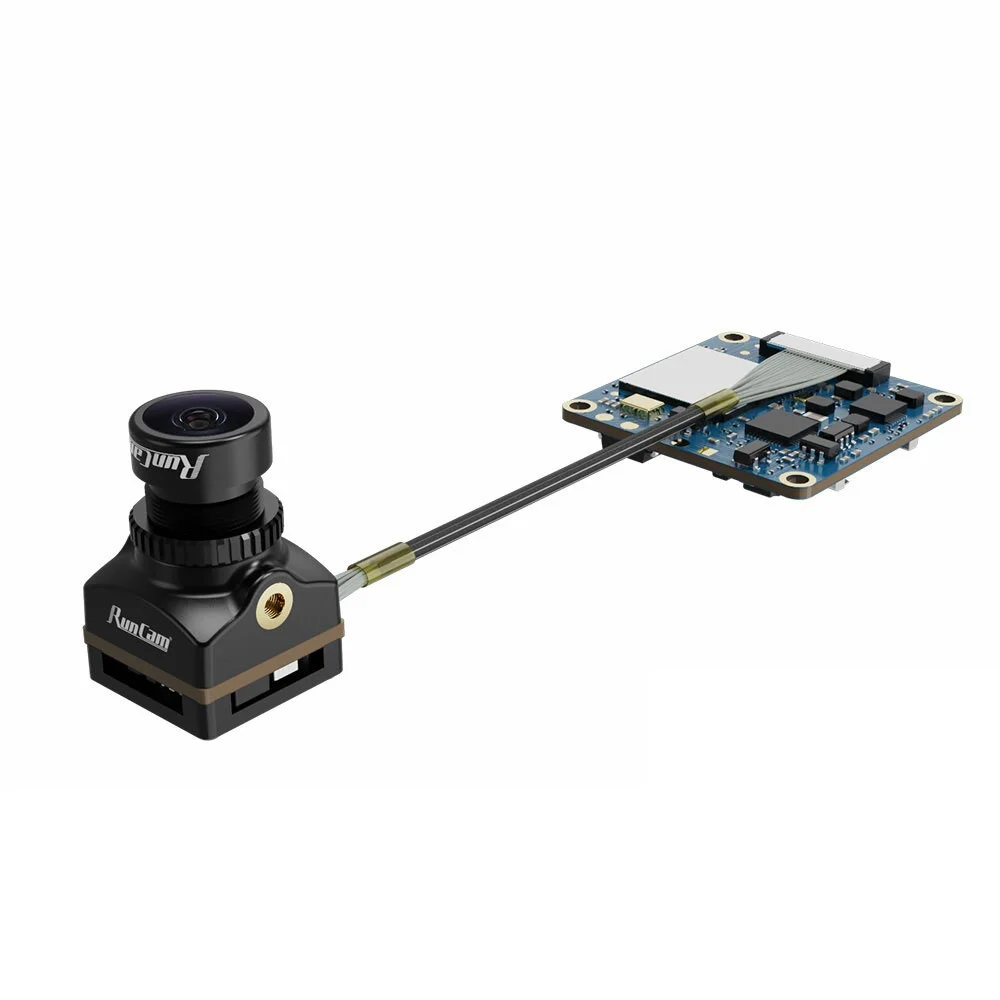

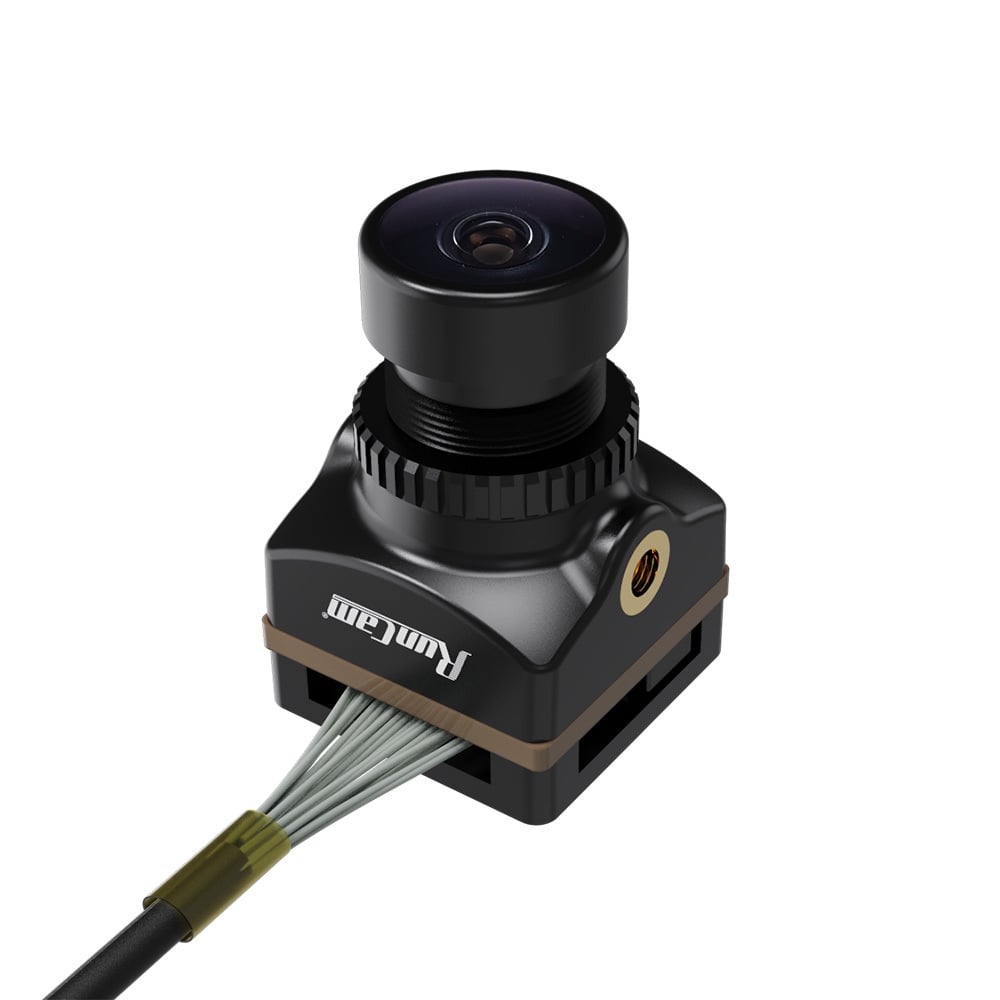

The Runcam Split 4 is an HD camera capable of recording 4K videos, designed to be mounted in tiny whoops or “toothpick” micro drones. I managed to install it in a 65mm whoop, possibly the smallest 4K FPV drone.
Features:
- 4K 30FPS 2.7K 60 FPS & FPV Camera
- Low latency (average 55MS)
- 5-20V wide voltage
- FPV aspect ratio 16:9/4:3 switchable
- Power-off protection for video files
- UART control
- Field of View(FOV): 140°
- TV Mode: NTSC (720*480)/PAL (720*576) Switchable
- Power Input: DC 5-20V (Non-direct power supply from the battery, Powered directly with the battery will generate surges and burn the camera.)
- Lens Module Size: 14*14mm
- Mounting Hole Distance: 25.5*25.5mm
- PCB Size: 29*29mm
- Easy Installation
Package Includes :
1 x Runcam Split 4 Camera
1 x 14 to 19 bracket
1 x 3PIN Cable
1 x Set of M2 screws
1 x Manual
FPV aspect ratio 16:9/4:3 switchable / Power-off protection for video files / UART control
Hole Distance of PCB Installation (25.5*25.5mm)
Dimensions & Installation
Parameters
Model | Split 4 |
Image Sensor | SONY 13MP |
Field of View(FOV) | 140° |
Video Resolution | 4K@30fps/2.7K@60fps/2.7K@50fps/1080P@60fps |
Video File Format | MP4 |
TV Mode | NTSC (720*480)/PAL (720*576) Switchable |
Interface | UART |
Max Micro SD Card Supported | Max. 128GB SAMSUNG 128GB U3 recommended (2.7K60/2.7K50/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is exfat, otherwise, it will easily cause errors. |
Power Input | DC 5-20V (Non-direct power supply from battery,Powered direcly with battery will generate surges and burn the camera.) |
Lens Module Size | 14*14mm |
Mounting Hole Distance | 25.5*25.5mm |
PCB Size | 29*29mm |
Working Current | MAX 450mA @5V |
Weight | 10.2g |
