RUNCAM LINK Digital FPV VTX

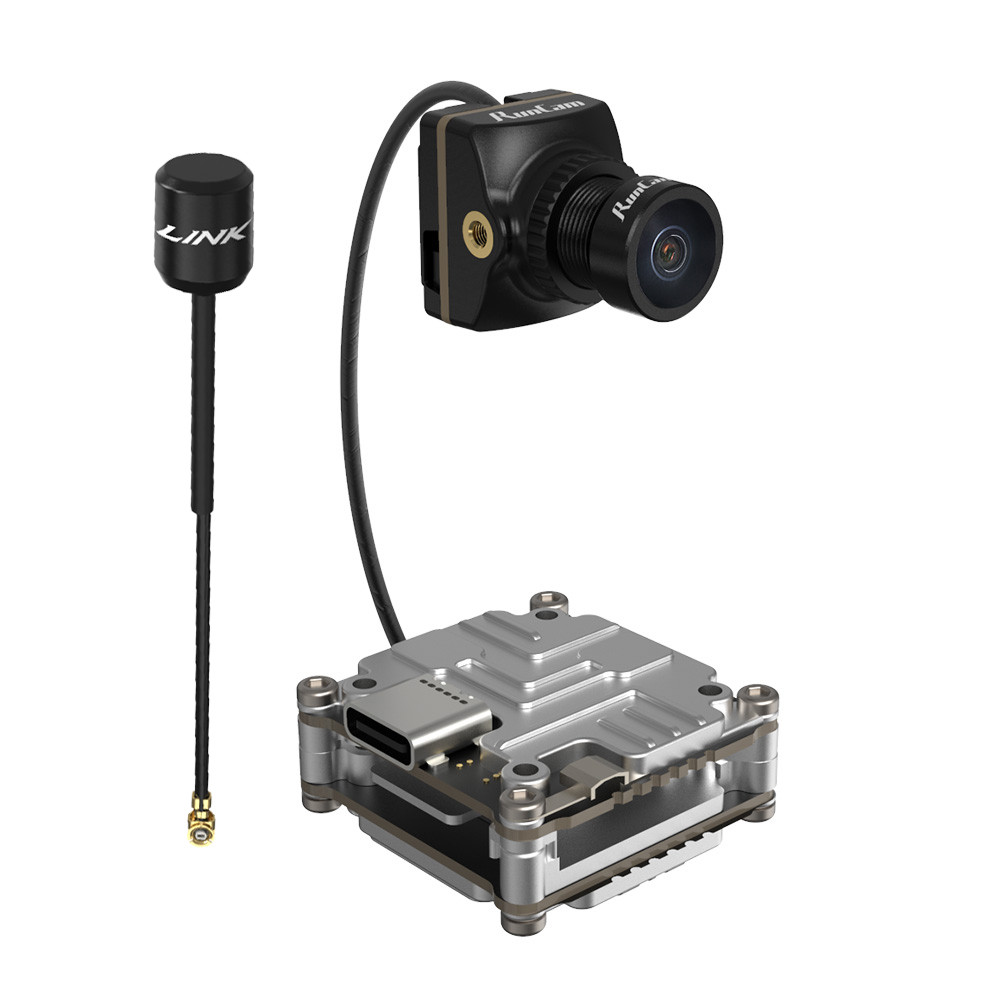

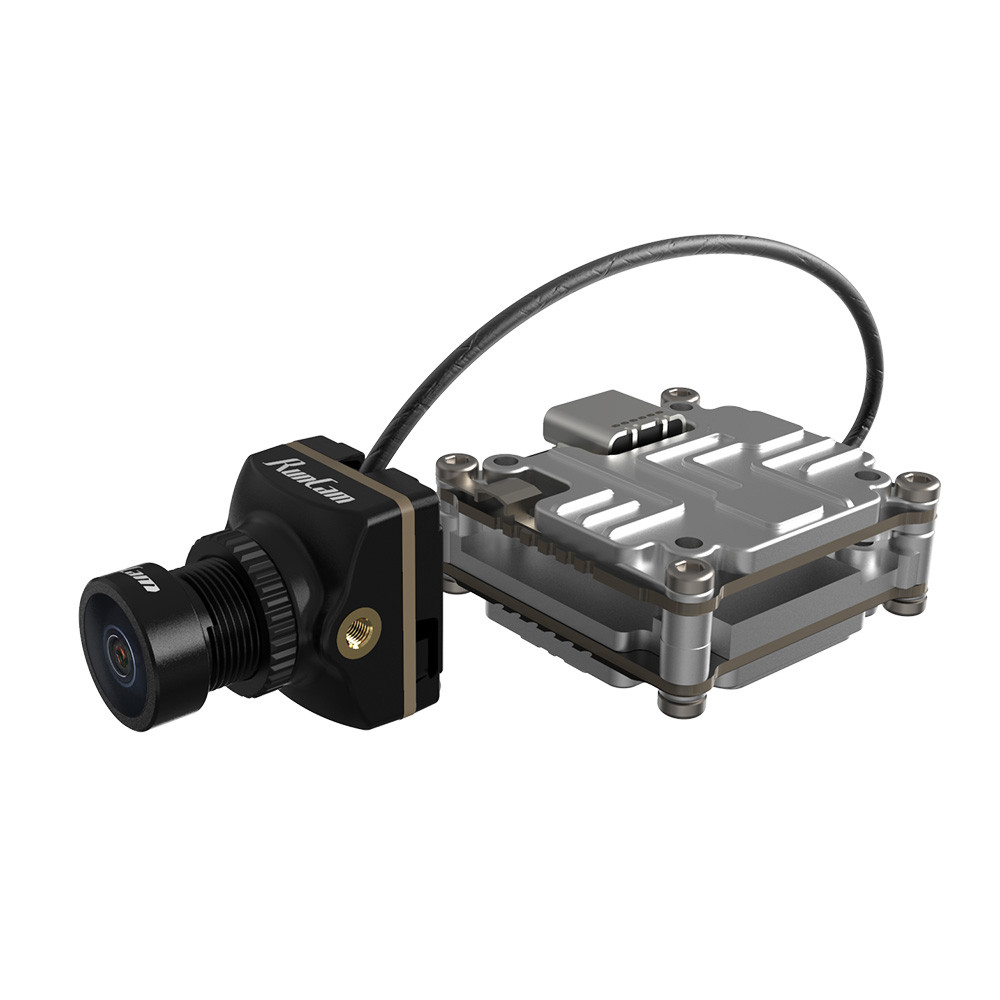

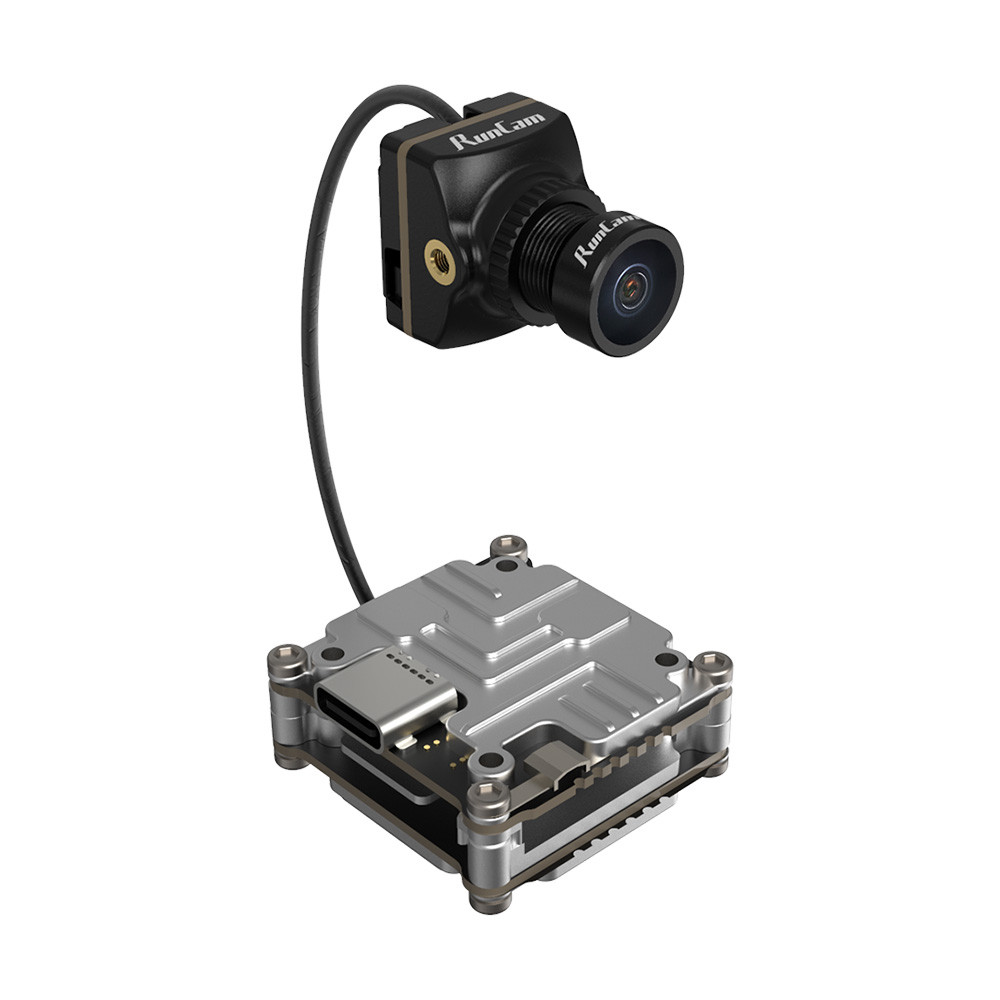

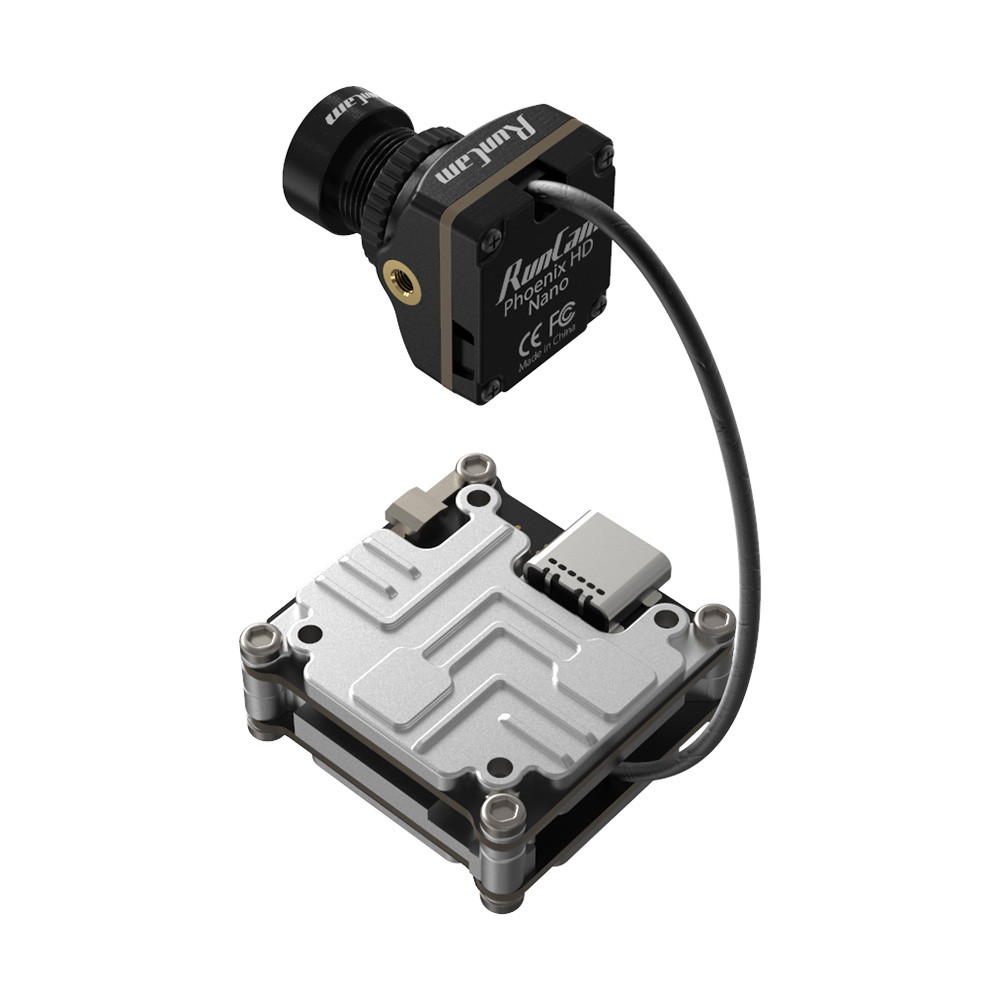

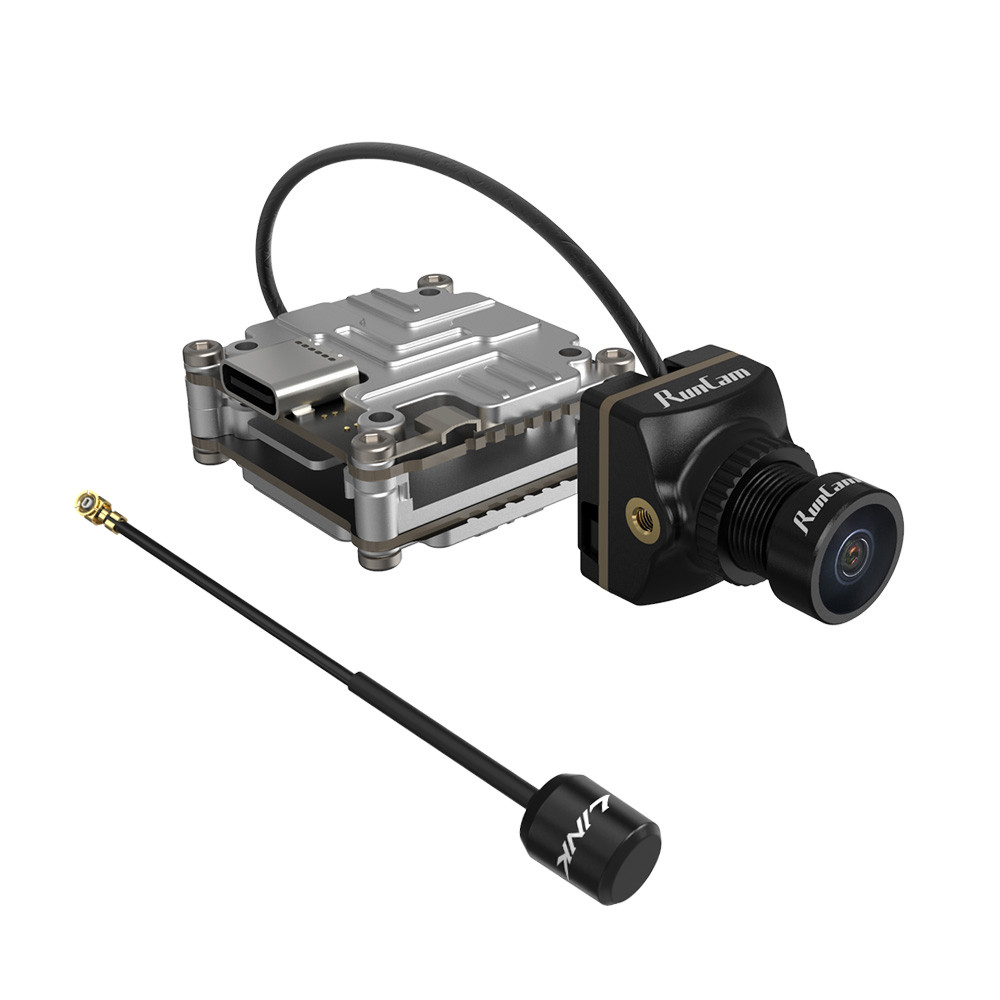

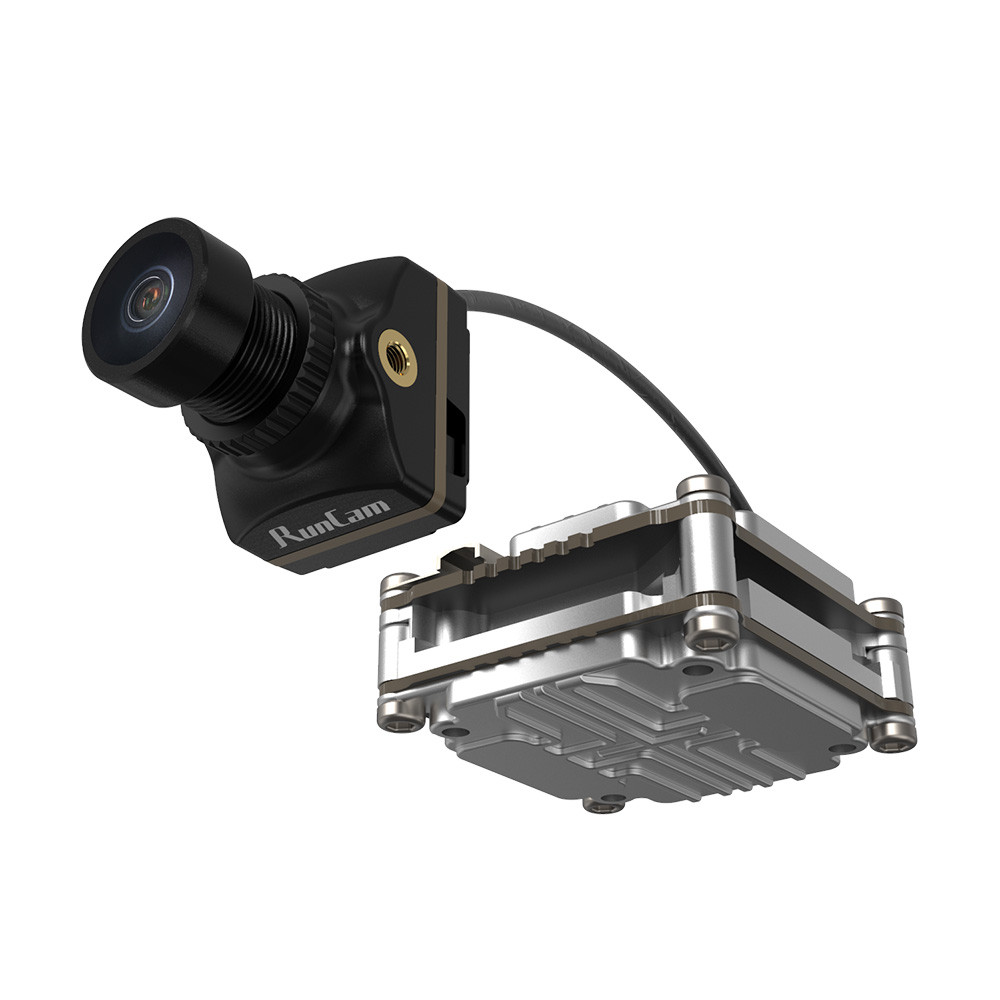

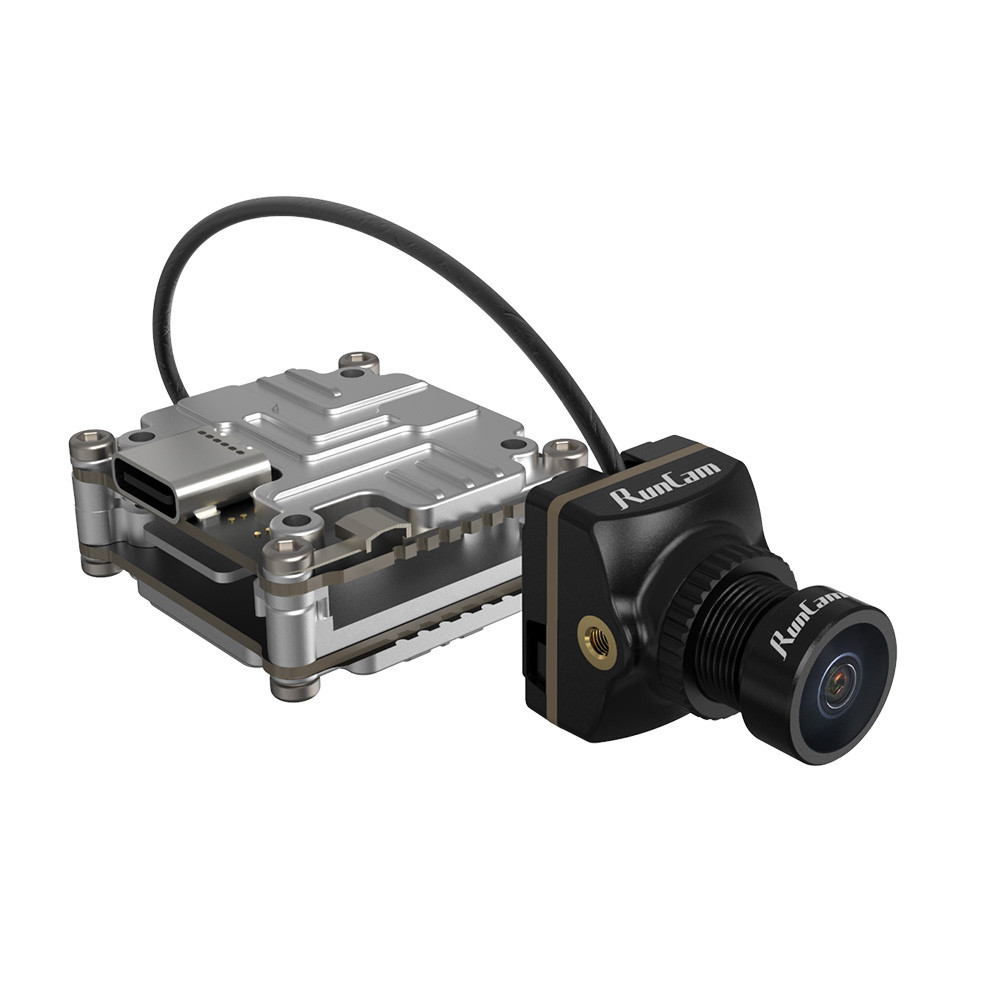

RUNCAM LINK Digital FPV AIR UNIT Phoenix HD Nano Camera Version
8 Channels,8 Drones.
The HDL FPV Transmission system and the FPV Air Unit are
equipped with eight frequency channels, which allow up
to eight drones to fly simultaneously. Each operator has
an exclusive channel. This helps to reduce
cross-interference and provide an
optimal racing experience.
equipped with eight frequency channels, which allow up
to eight drones to fly simultaneously. Each operator has
an exclusive channel. This helps to reduce
cross-interference and provide an
optimal racing experience.
Embedded Remote
Controller Receiver
Controller Receiver
Users can wirelessly connect their DJI FPV Air Unit to the DJI FPV Remote Controller
without having to purchase additional receivers. This reduces flight
preparation time significantly.
without having to purchase additional receivers. This reduces flight
preparation time significantly.
RUNCAM Phoenix
HD Camera
HD Camera
Use 1/2 inch, up to 10650 mV/Lux-sec ultra-high
sensitivity sensor, excellent night vision effect.
sensitivity sensor, excellent night vision effect.
At 1280 x 720 60fps
resolution
resolution
the delay is as low as 32ms, which is suitable
for freestyle flying.
for freestyle flying.
Parameters
| Model | RUNCAM LINK |
| Frequency | 5.725-5.850 GHz |
| Max. Distance | FCC/SRRC: <4 km & CE: <0.7 km |
| Power | 7.4-26.4V & 4-9W |
| Dimensions | 29×29×13 mm |
| Net Weight | 19.5 g |
| Model | RUNCAM Phoenix HD Nano |
| Image Sensor | 1/2” |
| Resolution | 1280*720@60fps |
| LENS | FOV D:145° H:123° V:67° |
| Shutter | Rolling Shutter |
| Coaxial Cable | 120 mm |
| Dimensions | L16mm*W14mm*H20mm |
| Net Weight | 4.3g |
