Specifications
- KV: 1350KV / 1750KV ( Optional)
- Color: Pink / Sliver ( Optional)
- No. of Cells (Lipo): 4-6S
- Version: CW Screw Thread
- Quantity: One PC
- Configuration: 12N14P
- Stator Diameter: 28mm
- Stator Length: 6.5mm
- Shaft Diameter: 4mm ( Hollow)
- Idle Current(10V): 1.2A @ 1350KV ; 1.65A @ 1750KV
- Max. Con. Power (5S): 960W @ 1350KV; 1200W @ 1750KV
- Internal Resistance: 58mΩ@ 1350KV ; 48mΩ @ 1750KV
- Max. Current(5s): 40A @ 1350KV ; 50A @ 1750KV
- Max.Effictiency Current: (2-6A) > 86% @ 1350KV ; (2-7A)> 86% @ 1750KV
- Motor Dimension(Dia*Len):34.3*32.9mm
- Weight: 47g ( 3cm wire)
Package Includes

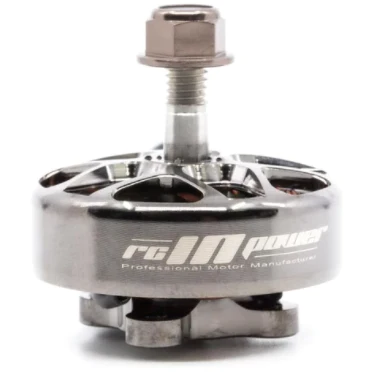

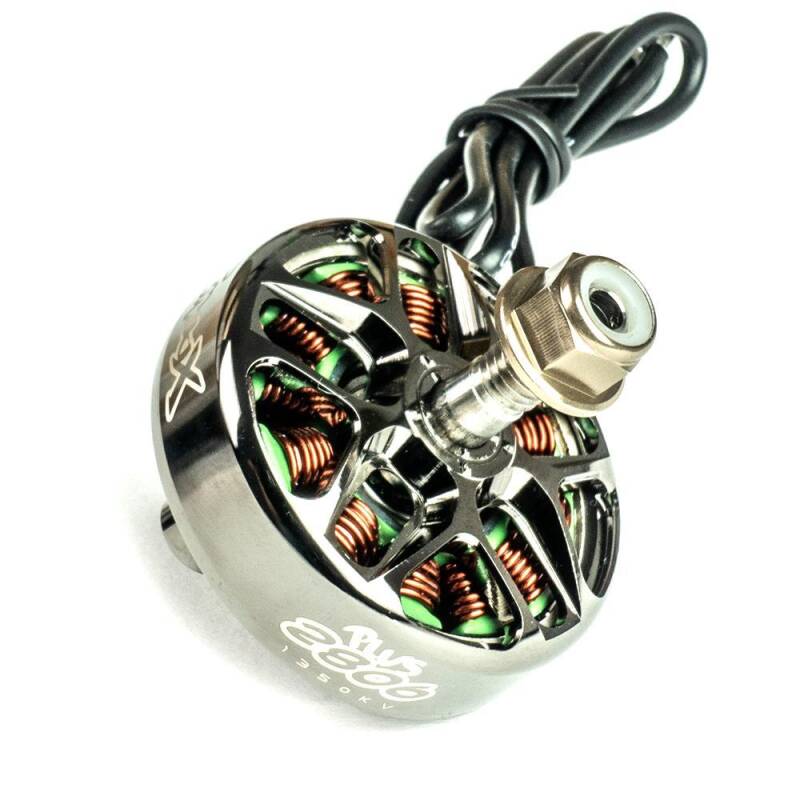

- 1 x SmooX 2806.5 Brushless Motor
