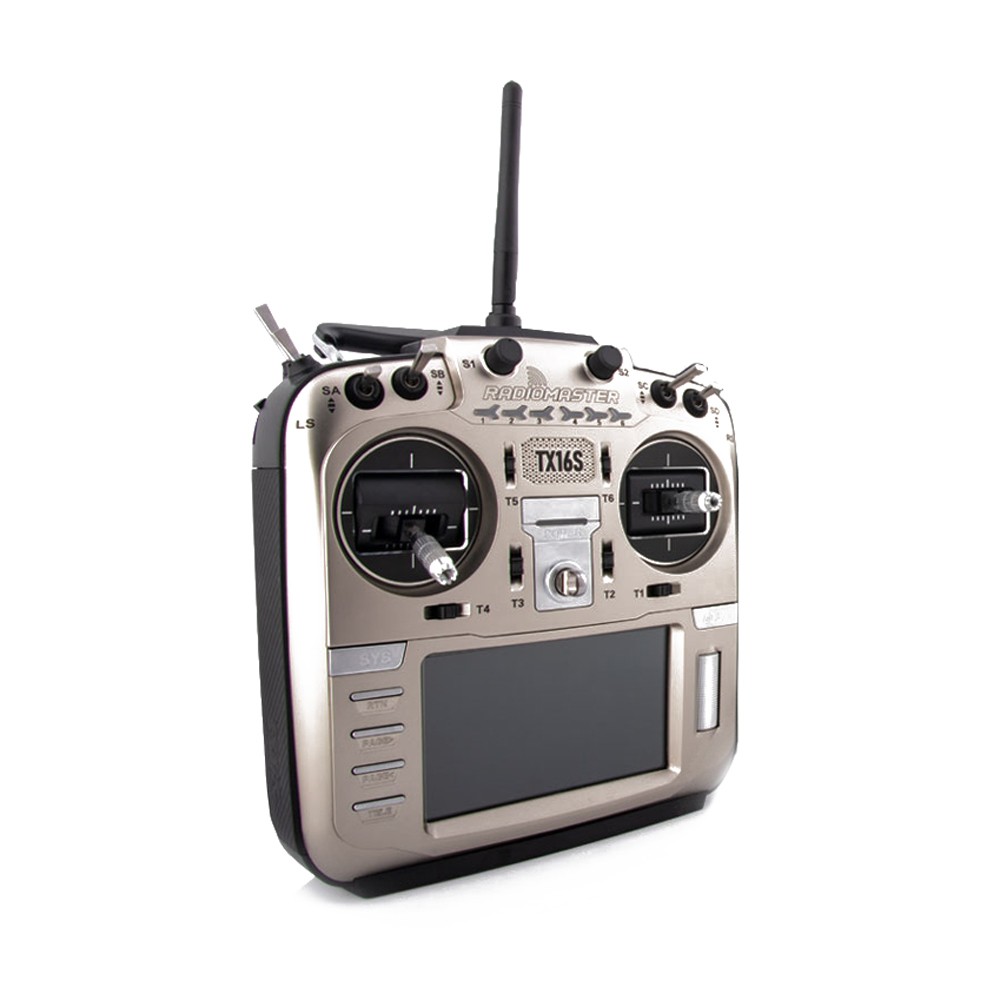

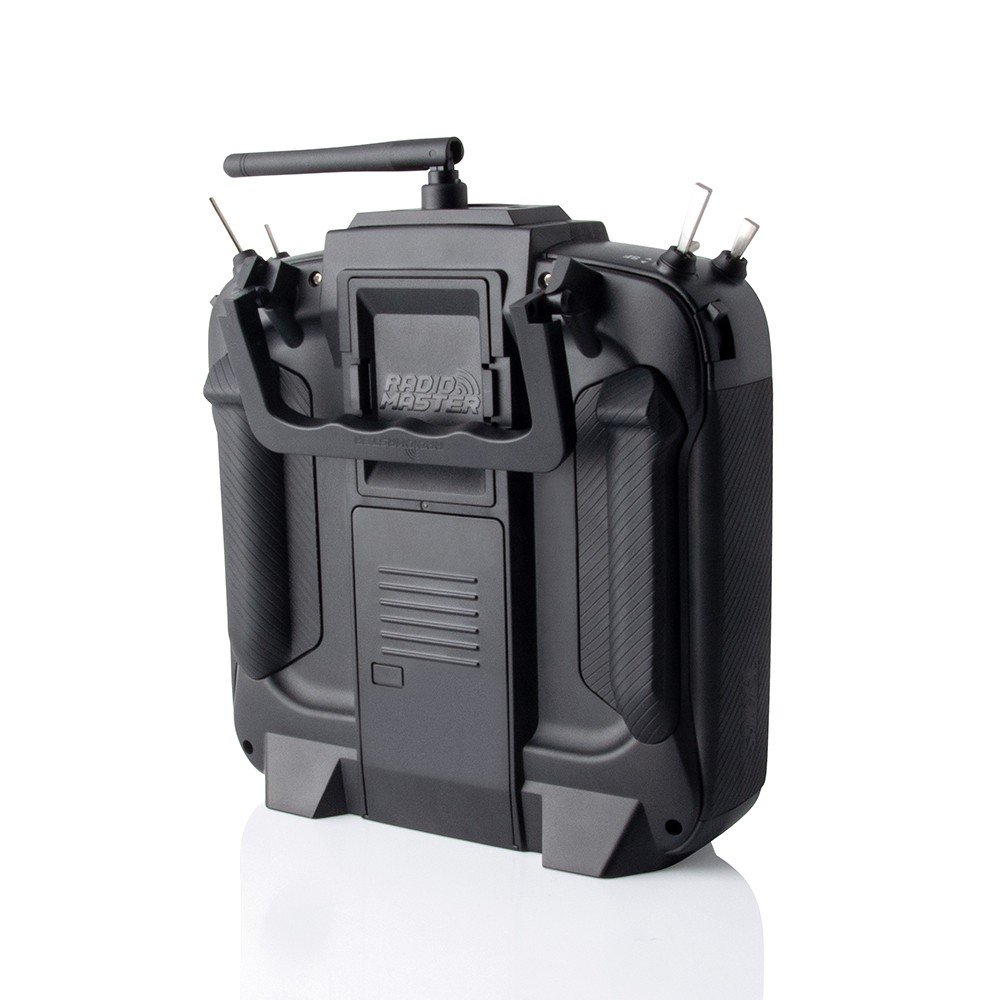

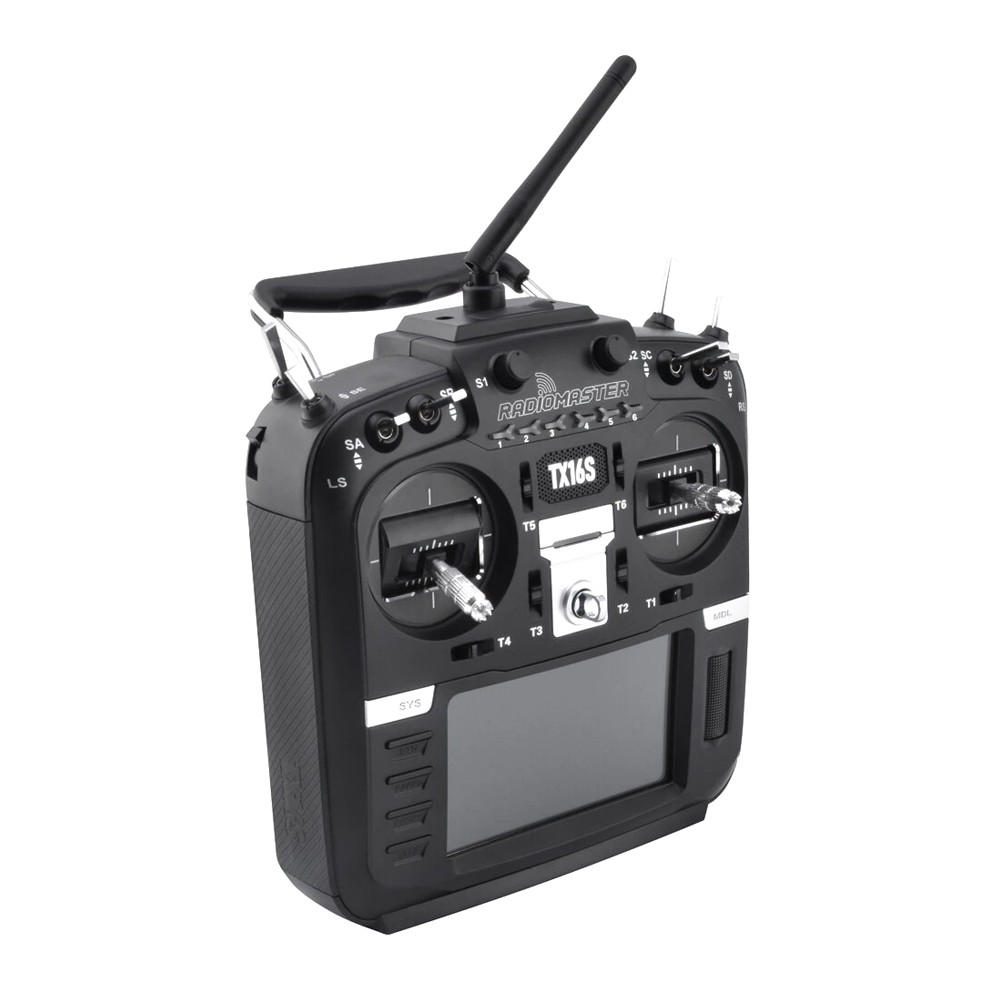

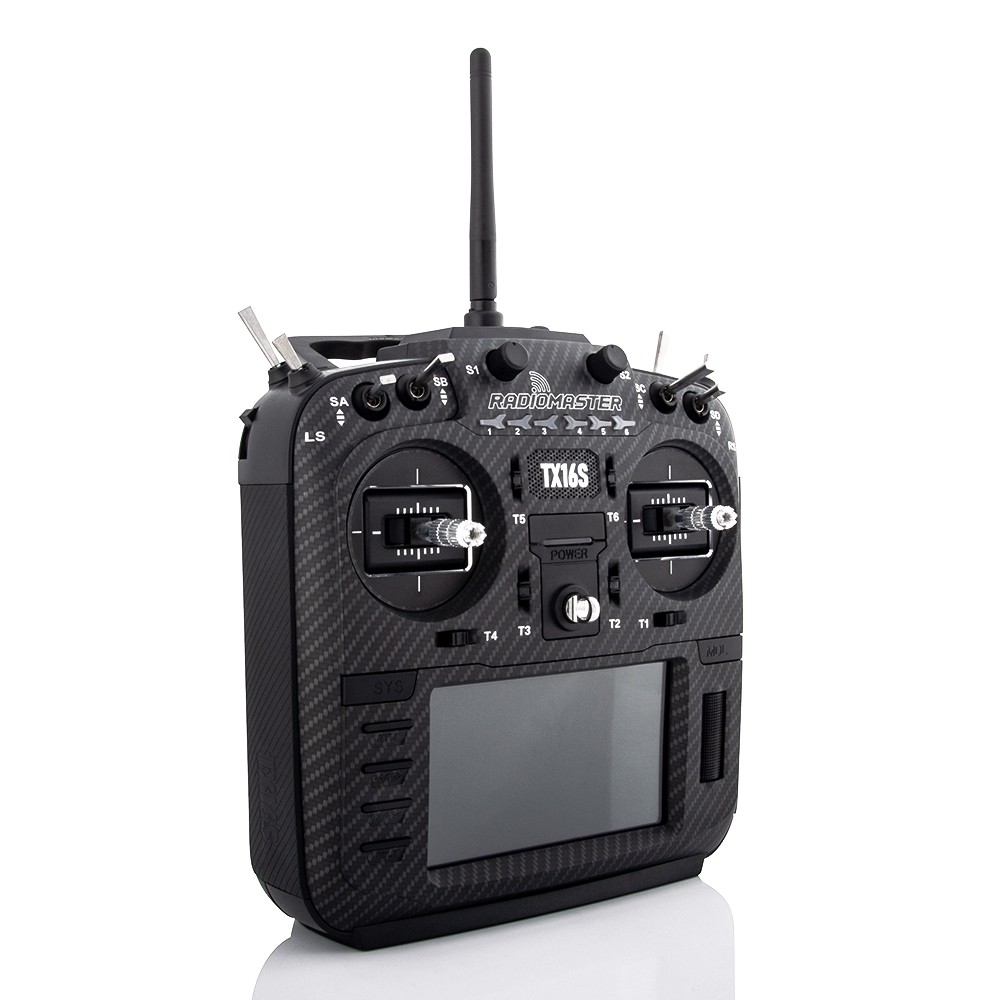

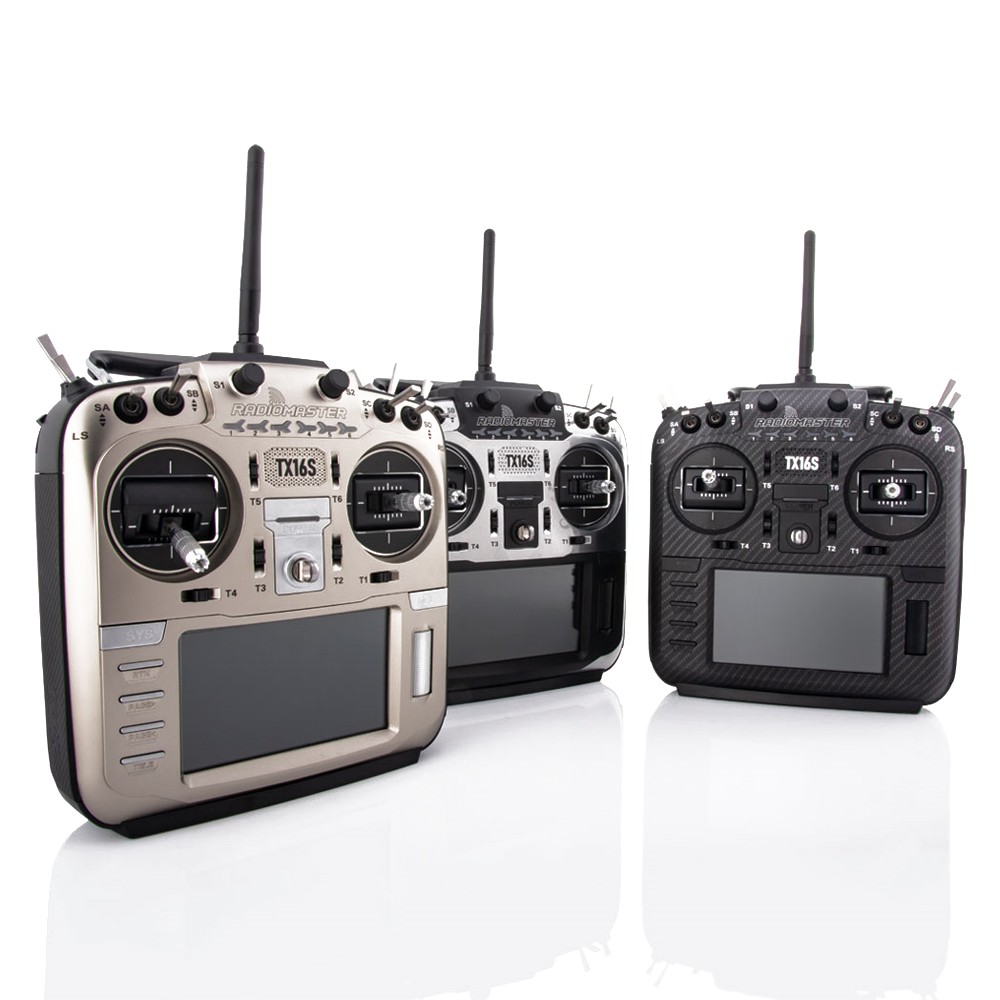

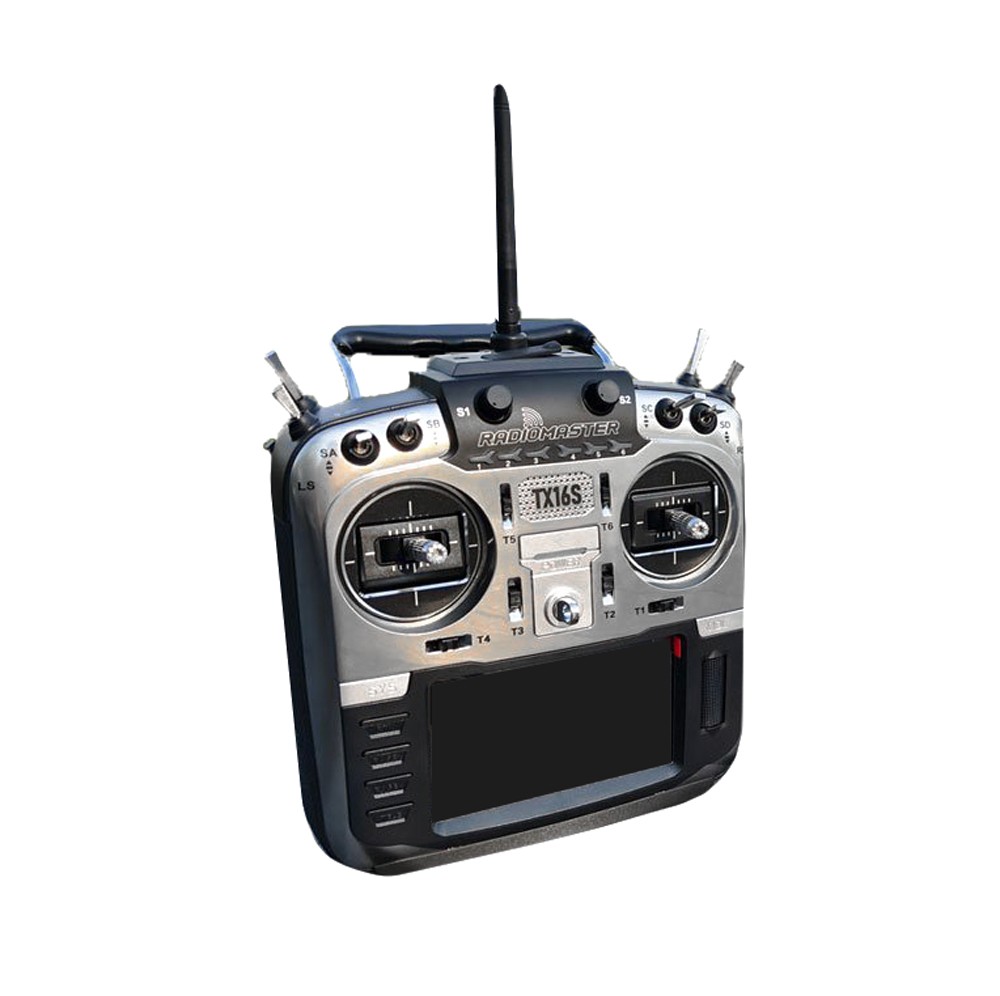

RadioMaster set out to create the very best radio in its class without compromises with the TX16S. The TX16S has the best of everything they could fit into the radio, right from the very start. Super smooth precision Hall sensor gimbals with CNC aluminum facias, built-in USB-C charging port, class-leading ergonomics, standardized internal Multi-Module, improved key layout and menu navigation, external SD port, external UART expansion ports, improved sliders, and much more! Ships ready for Mode 2! The RadioMaster TX16S OpenTX Multi-Protocol 16ch Transmitter is now available in stylish colors… Carbon Fiber, Silver, and Rose Gold!
VIDEO: RadioMaster TX16S – Flight – Overview – Setup
Features
- USB-C Charging port with 2cell Battery Management. 1.5A Current Max.
- Full-Size High-Quality HALL sensor gimbals with CNC Aluminum Facias
- Industrial grade 4.3 inch 480*272 outdoor-readable color screen
- External UART ports to expand the capabilities of your radio.
- Supports Telemetry (Protocol and Receiver dependent)
- Memory 16M (can be expanded by Micro SD card)
- Full Speed Native TBS Crossfire support (400K)
- 6-Flight Mode Buttons (Pixhawk and more!)
- USB-C Simulator and PC connection port.
- Internal Multi-protocol RF System
- Three-color LED status display
- Vibration reminder function
- Compatible with OpenTX
- Improved JR module slot
- STM32F429BIT6 MCU
- Touch Panel Screen
- Wheel menu button
- Voice function
Specifications
- Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)
- Current: 400mah (excluding external module)
- External Micro SD slot: Card Included
- Battery Compartment：25*52*97mm
- 2 x External UART Expansion Ports
- Working current: 350mA@8.4V
- Colored Casing Material: CNC
- Weight: 750g (without battery)
- Working voltage: 5.5-18v DC
- Size: 286.9*128.9*183.8mm
- Channel: 16ch
Manuals
Firmware Updates

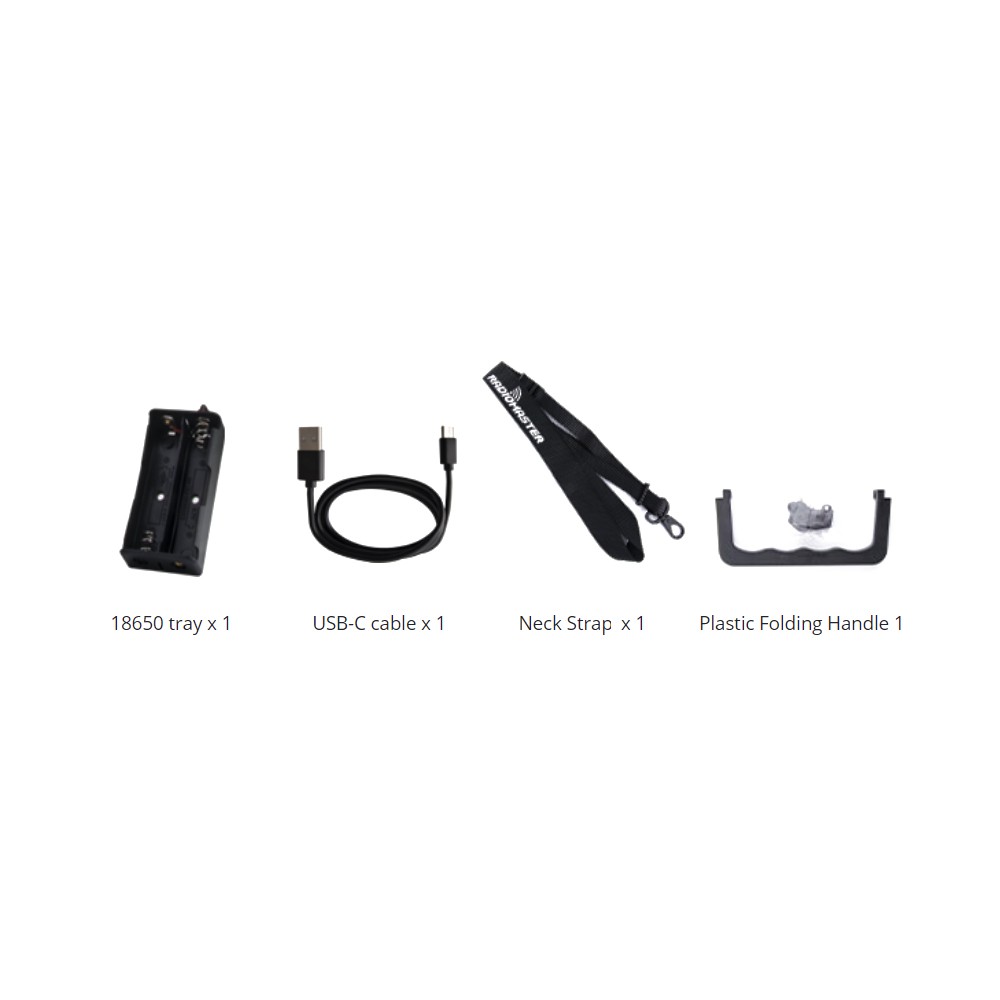

Includes
- 1x TX16S Radio (Silver, Carbon Fiber, or Rose Gold)
- 1x EPP Carrying Case
- 1x Folding Handle
- 1x USB-C Cable
- 1x 18650 Tray
- 1x Neck Strap
Reviews
There are no reviews yet.
