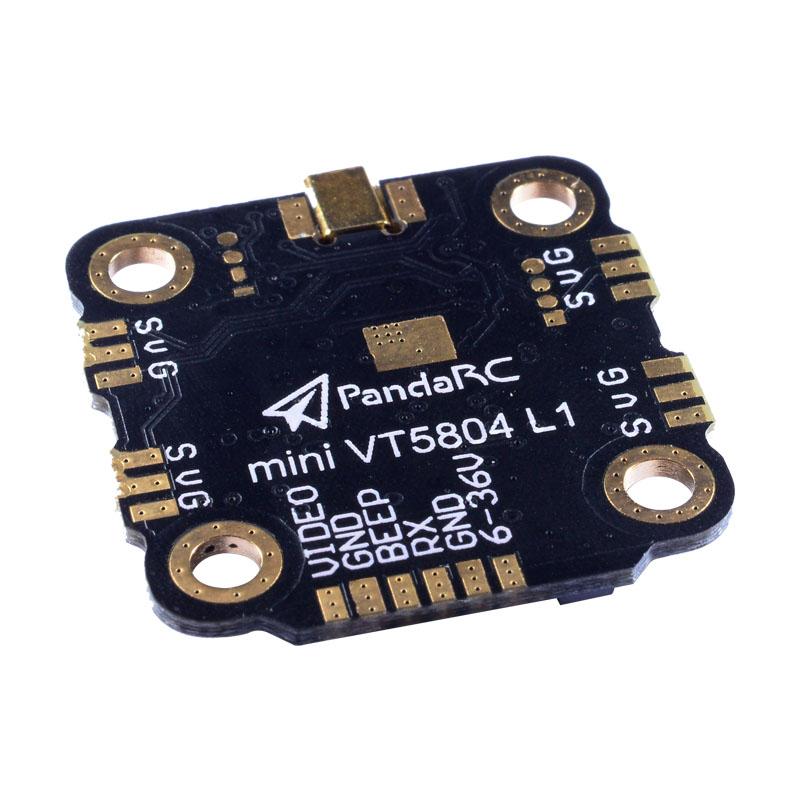

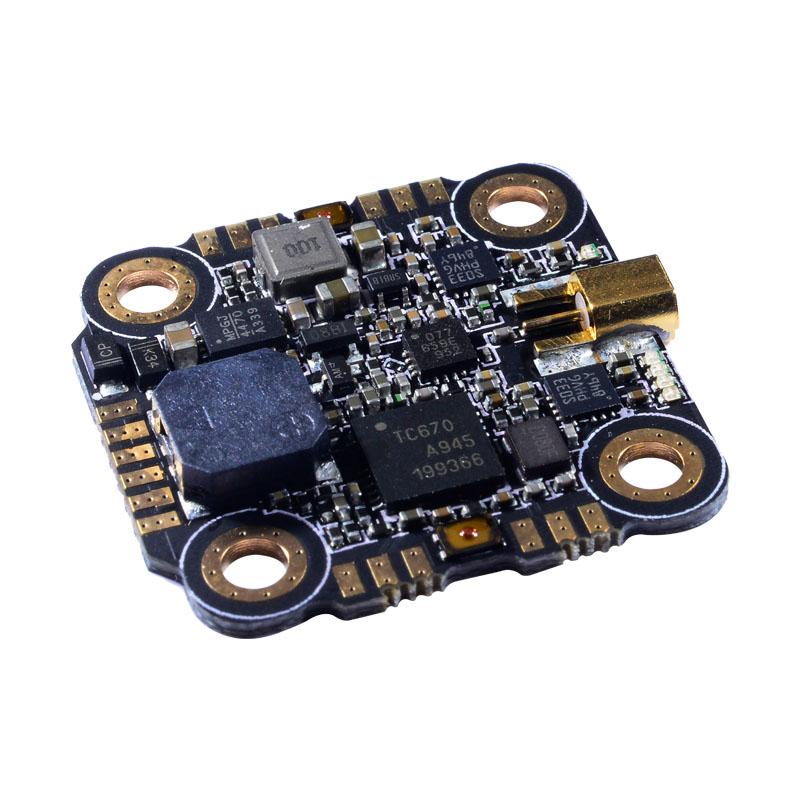

PandaRC 5804 L1 Mini 20X20 600mW 5.8GHZ VTX with LEDs

PandaRC 5804 L1 Mini 20X20 600mW 5.8GHZ VTX (LED’s Included)

SPECIFICATIONS:

• Input voltage: 6-36V

• Standard 40 channels, including A/B/E/F/R groups, of which R group is the competition frequency group
• Output power 0mw (PIT mode) /25mw/100mw/200mw/400mw/600mw
• The RF connector is connected to MMCX
• Video input format: NTSC/PAL
• Video input impedance: 75 Ohm
• VTX power consumption: Max 3.5W @600mw
• Support IRC serial port protocol setting VTX shop
• Built-in i42db high sensitivity microphone
• Connector: MMCX
• Mounting: 20x20mm
• Weight: 8g with MMCX Antenna

PACKAGE INCLUDES:

• 1 x Mini 5804 L1 VTX
• 4 x LED Strips (4 LEDs per strip)
