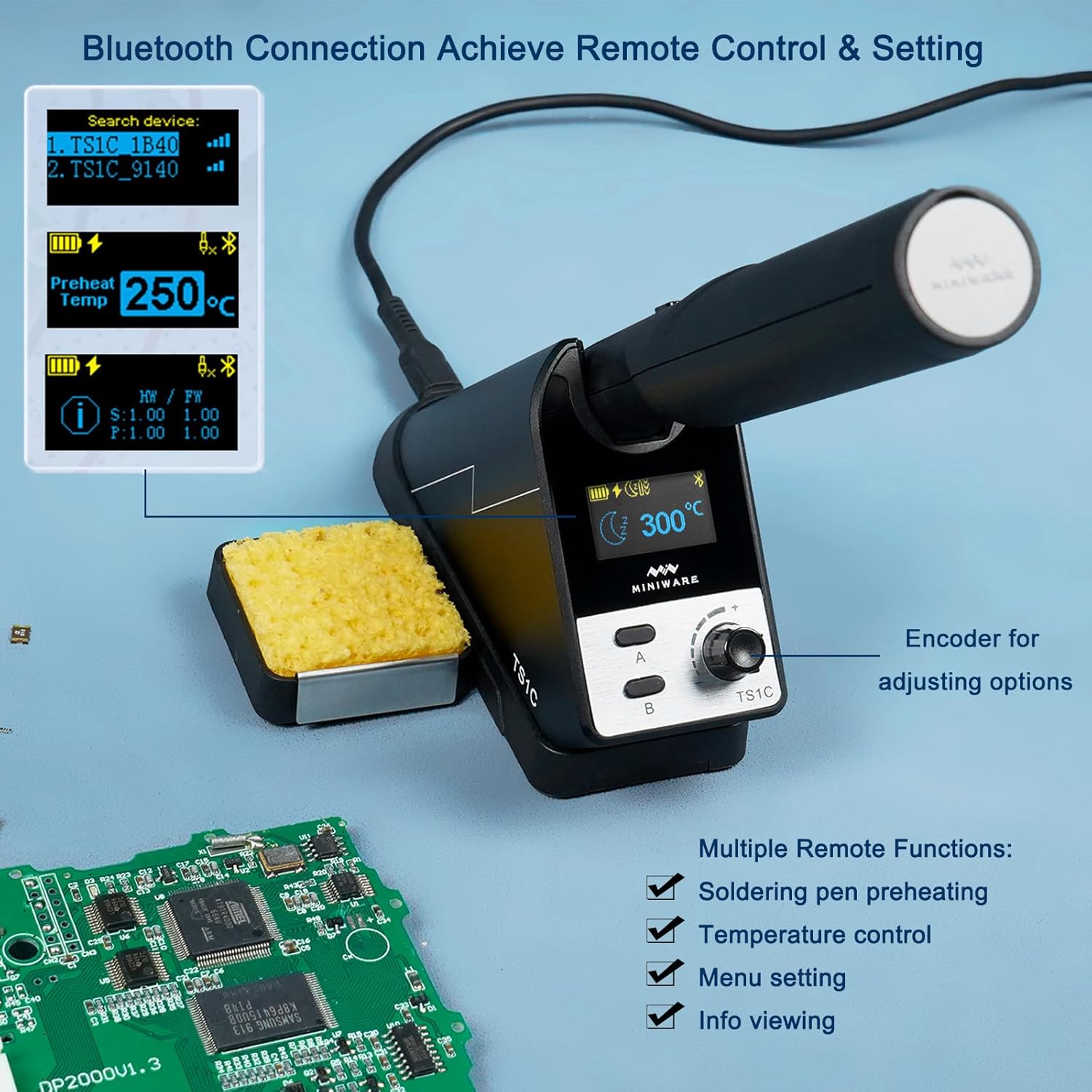

The TS1C rechargeable soldering iron is equipped with a wireless design and powered by a 750F capacitor. The soldering iron can be fully charged wirelessly at the control station in a short time of only 7 minutes. Wired charging is also possible via the USB-C port on the soldering iron and using the same power input parameters as for the control station. With a full charge, 180 soldering joints of the 0805 type can be soldered before having to recharge again. The TS1C can deliver up to 36W of power and can reach a temperature of 300°C from 25°C in 24 seconds with a time of 4 seconds possible if the preheating feature of the control station is used. The control station communicates with the soldering iron via Bluetooth and shows real-time information on its 128x64px OLED display.
Specifications
| Power | 36 W |
| Temperature range |
100 °C – 400 °C |
| Heating time |
~ 24 sec |
| Tip system | Active |
| Temperature stability | ± 3 % |
| Soldering capacity | 180 soldering joints (0805) |
| Power input | PD2.0 20 V / 45 W |
| Display | 128 x 64 pixel OLED display |
| Charge time | 7 min |
| Connectivity | Bluetooth Low Energy (BLE), USB-C |
| Dimensions | Soldering iron (without tip): 23 x 133 mm Control station: 44.5 x 122 x 73 mm |
| Weight | Soldering iron (without tip): 62 g Control station: 186 g |
