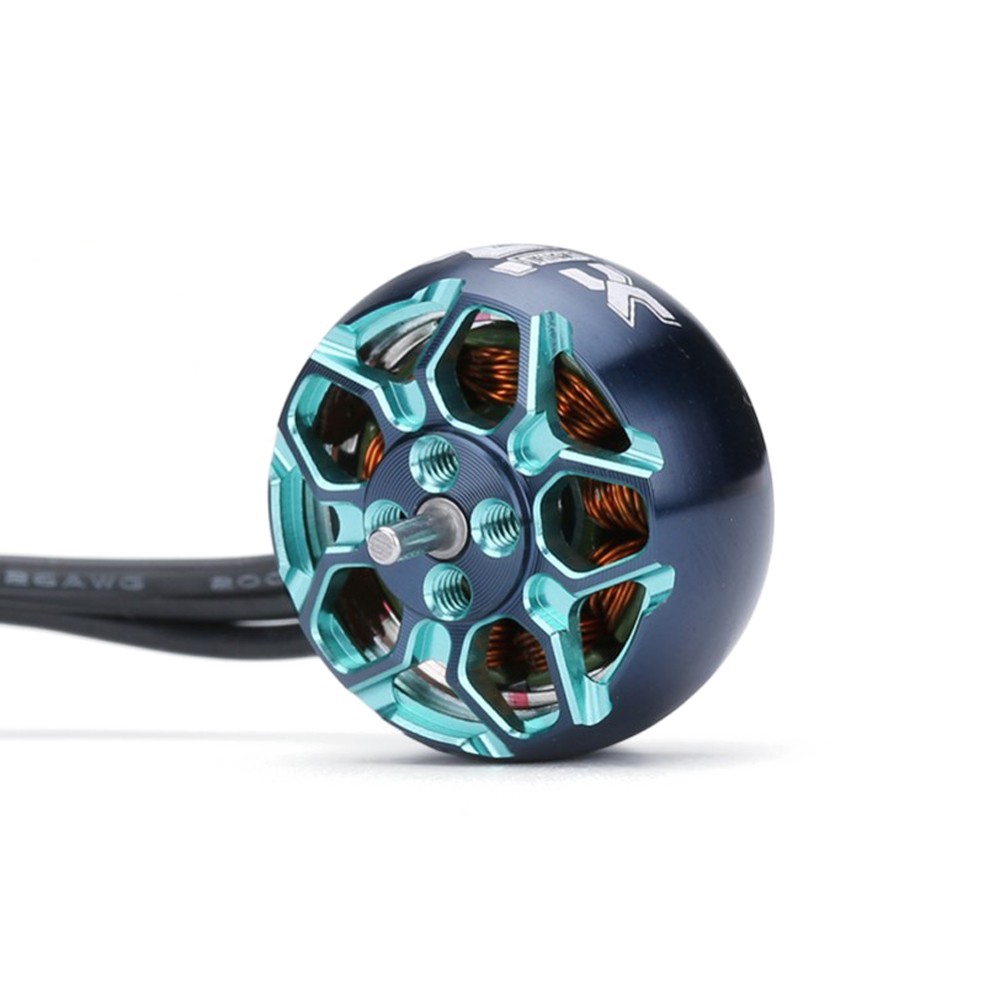

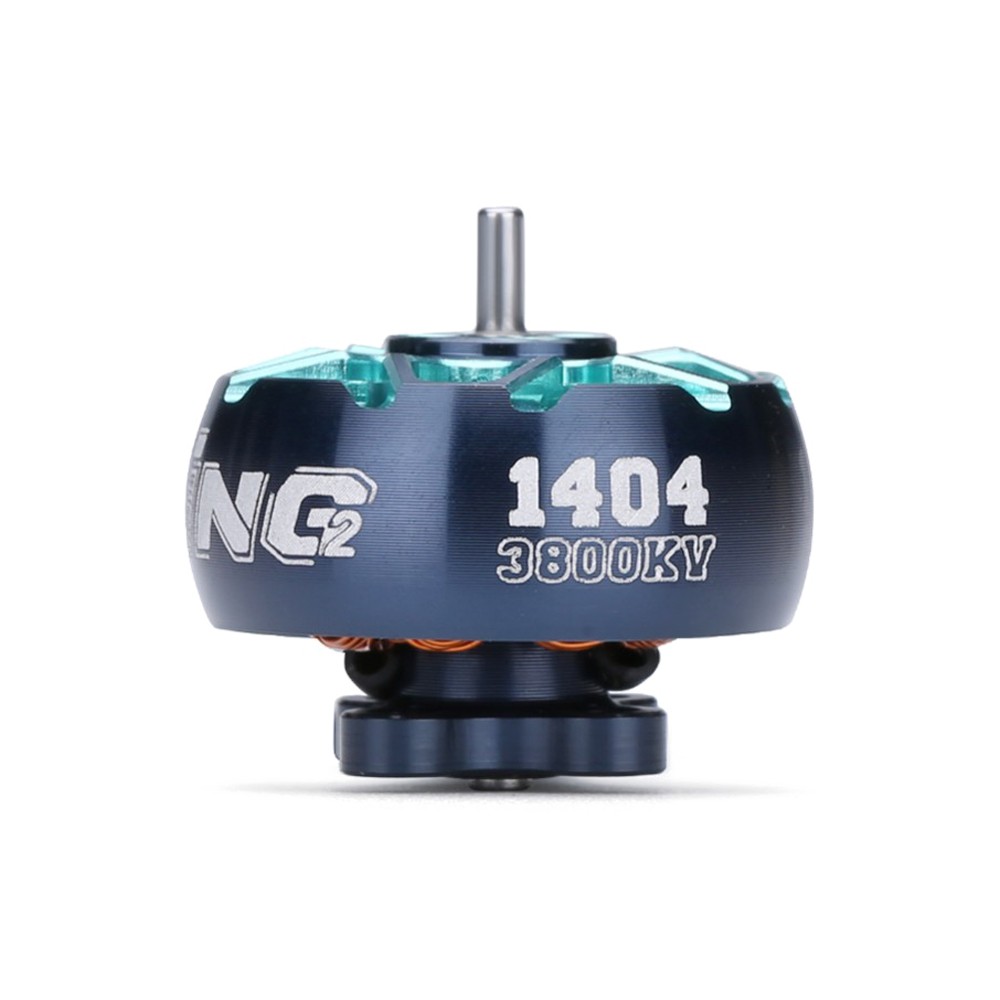

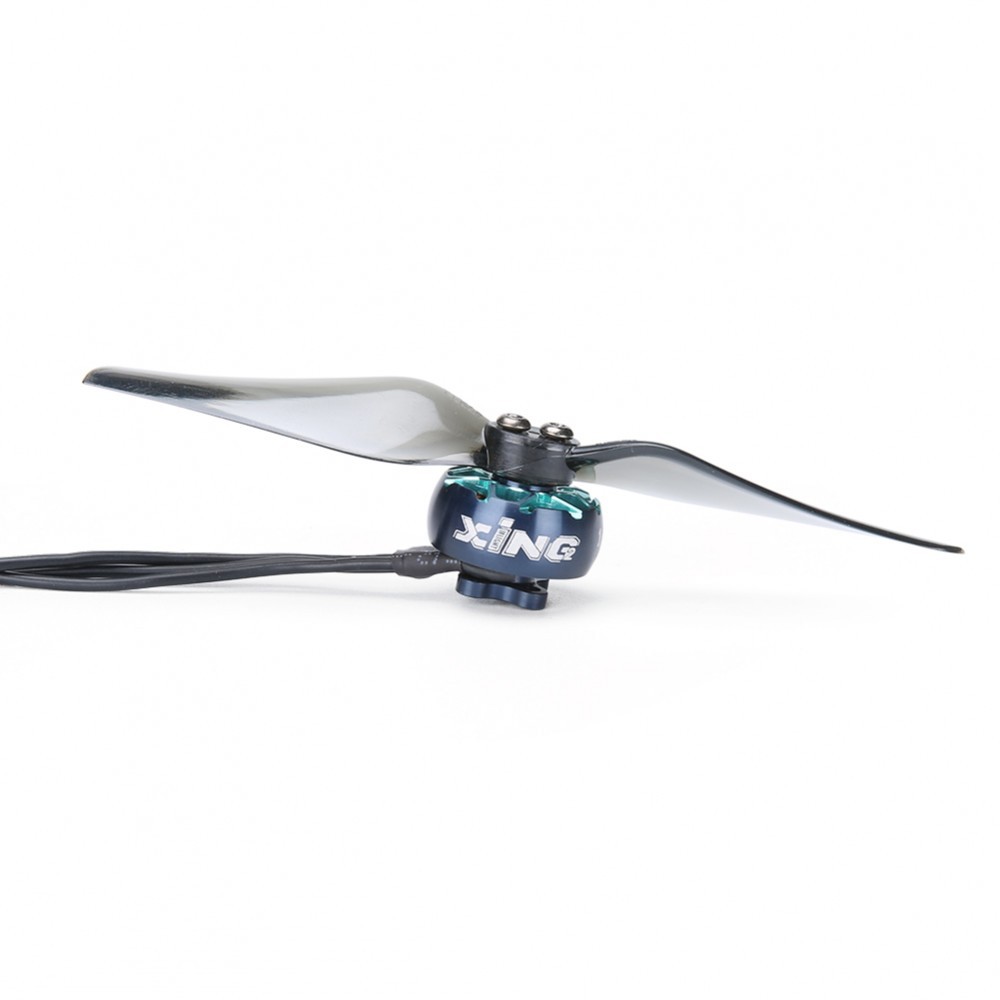

These XING2 1404 Motors come from our XING NextGen motor series and have become a new standard on the market. Super light 3″ builds like these just have gotten much nicer since we introduced the SucceX whoop style AIO. With this new motor and the new toothpick-style frame, you can build the ultimate ultralight microdrone.
Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We’ve been copied and compared all these years, but now it’s time to set a new standard again!
We’re finally ready to announce our predecessor, the XING2! The smooth, reliable, and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before. New centre slotted N52H curved arc magnets were introduced to drastically reduce the response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to the translation delay of its braking and accelerating. XING2 motors offer a faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Thanks to the high-quality materials used and the durable joint of the bell and shaft, we were able to reduce the magnet air gap and stator lamination to a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analogue of current) causing more efficiency and higher power! We started to put o-rings on the top of our bearings (between the motor bell and stator) in 2018. This acts as an absorber if your bell or shaft has gone through crashing and reduces all those vibrations induced by high RPMs! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high-quality 7075 bells, O-ring bearing protection, and all the other features you’ve just seen on your original XING series are still inbuilt in a new shape and design!
Features
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x9x4 bearings
Specifications
- Voltage: 2S-4S
- KV Option: 3000KV/3800KV/4600KV
- Internal resistance: 0.28Ω
- Weight: 8.5g(without cable)

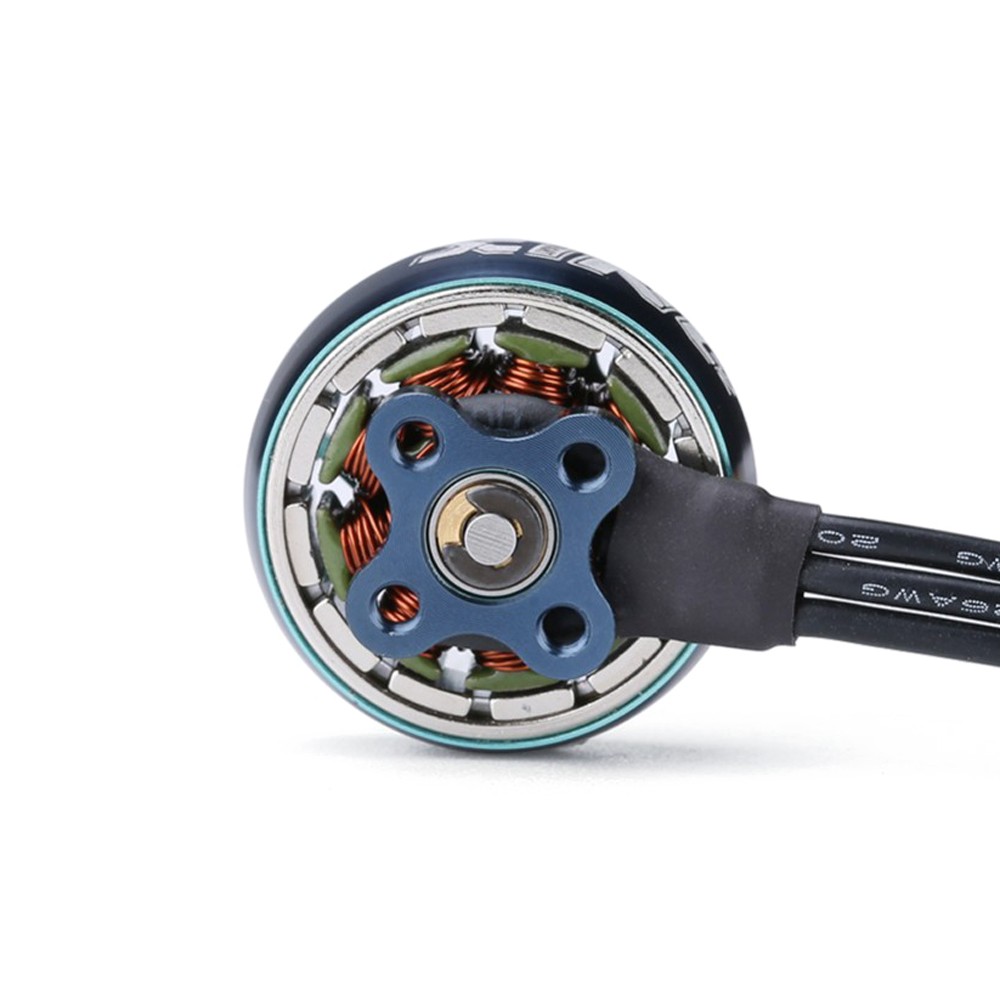

- Mounting pattern: 9*9-φ2mm
- Bearing: 5*2*2.5mm
- Configuration: 9N12P
- Stator Diameter: 14mm
- Stator Length: 4mm
- Shaft Diameter: 1.5mm
- No.of Cells(Lipo): 2-4S
- Max Continuous Current(A): 11.8A
- Max Continuous Power(W): 174.6W
- Wire: 120mm/26AWG
Includes
- 1x iFlight Xing2 1404 Motor (3000KV, 3800KV or 4600KV)
- 8x M2x7 mounting screws
