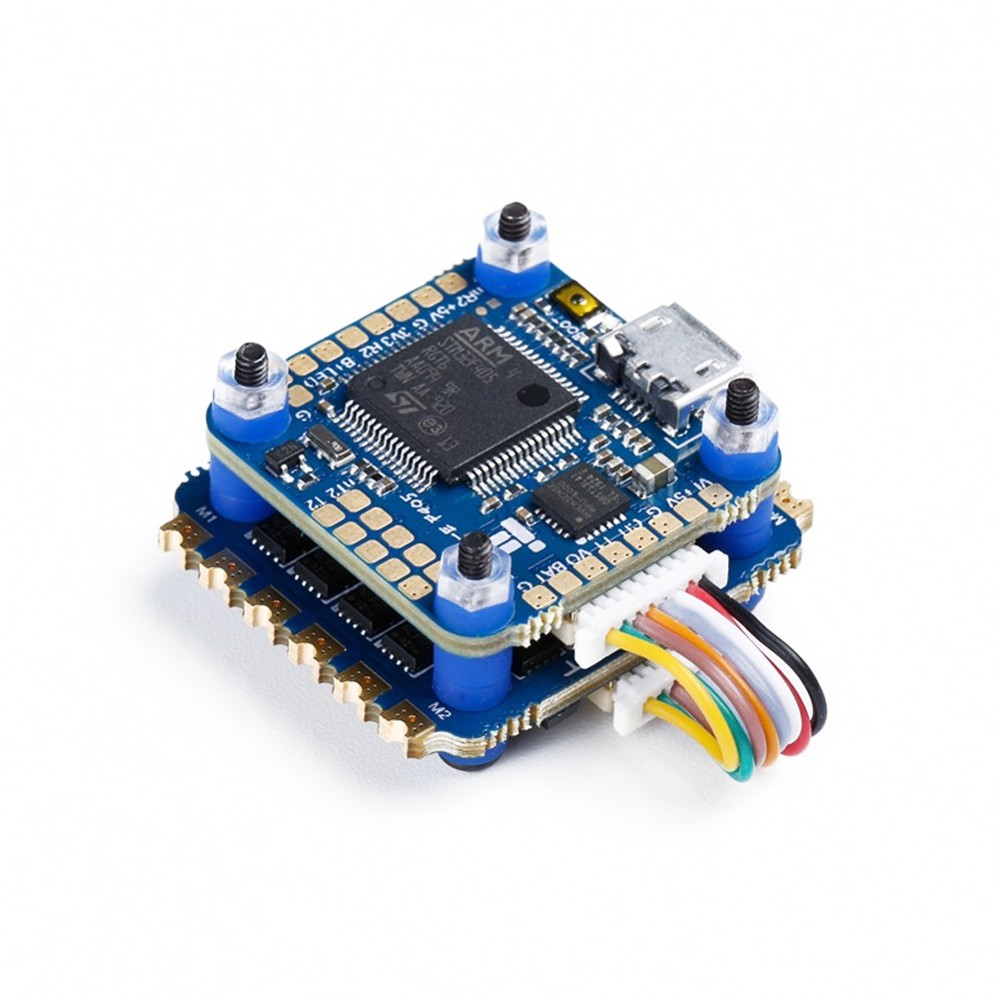

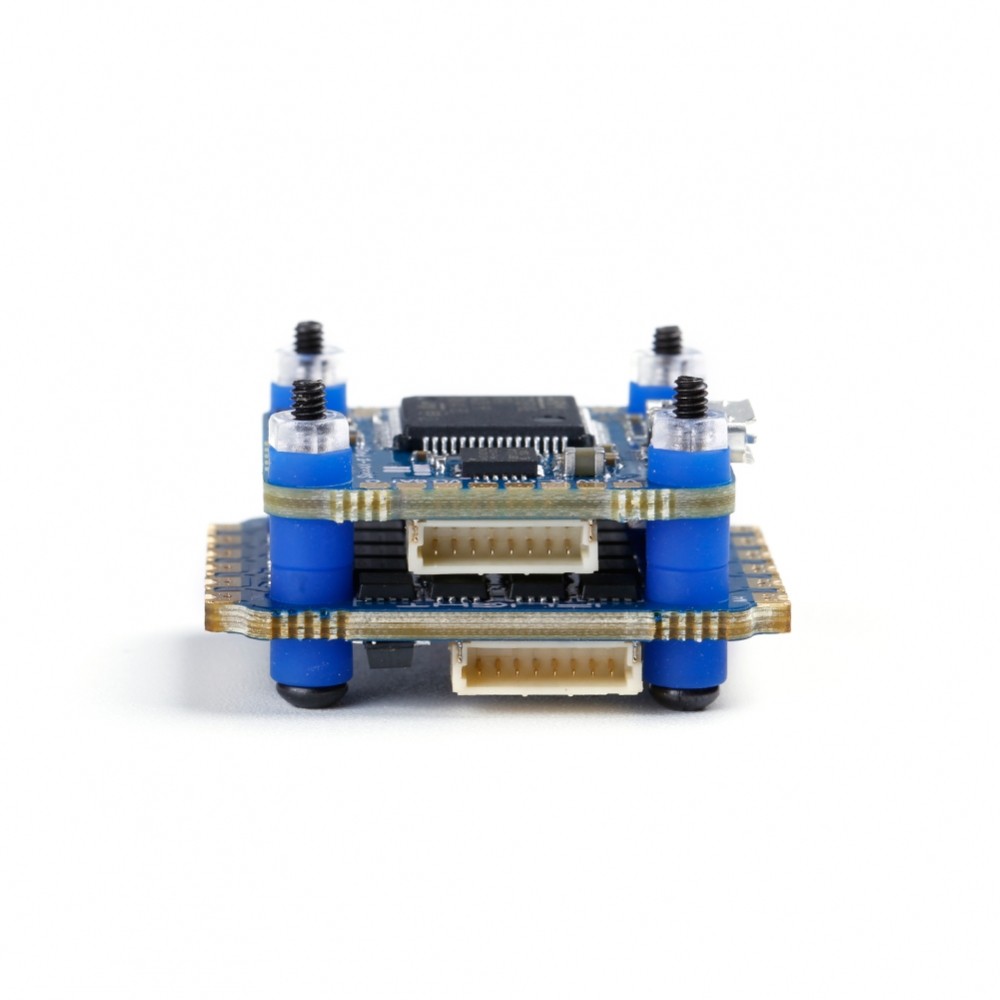

The SucceX-E Mini F4 Stack by iFlight includes the advanced SucceX Mini F4 Flight Controller along with the SucceX 35A 4-in-1 ESC, which can handle up to 6S input voltage and push your FPV racer to the max.
Specifications

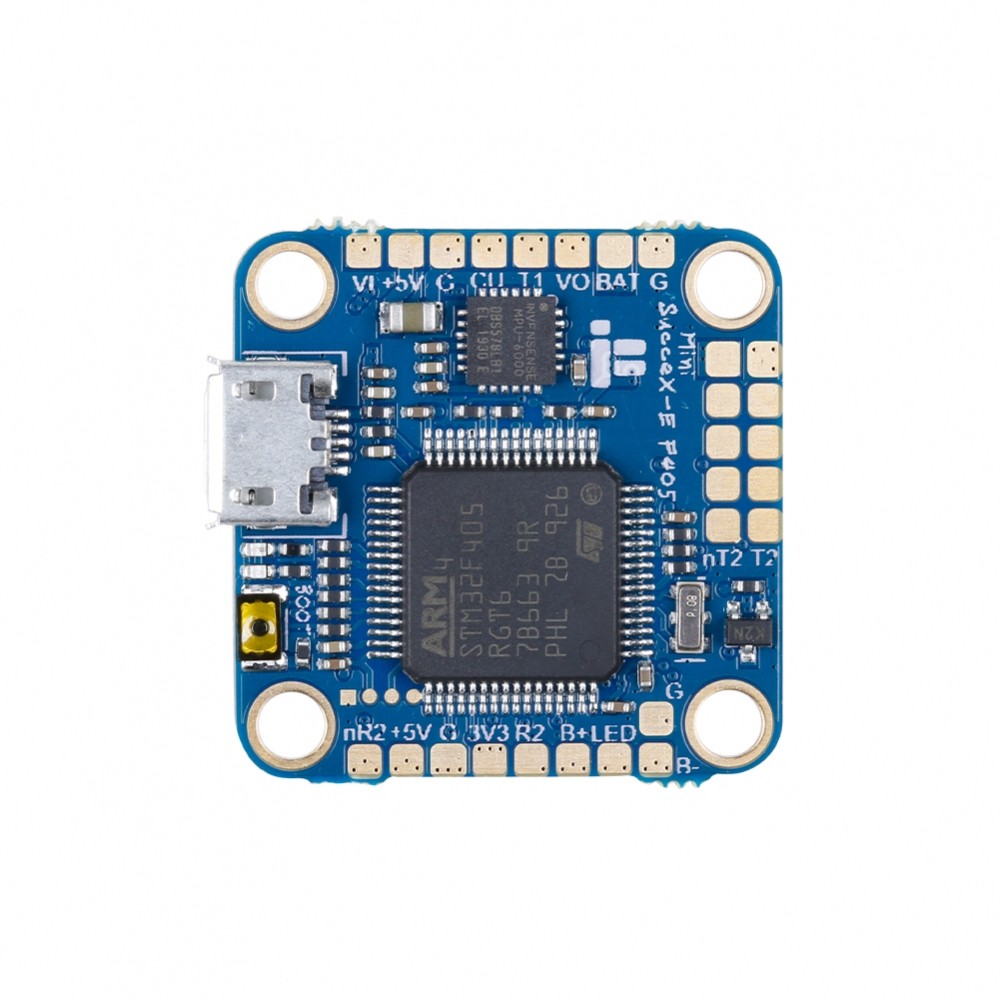

SucceX-E Mini F4 Flight Controller
- MCU：168MHz STM32F405
- Gyro：MPU6000
- Blackbox：8MB
- Betaflight OSD：YES
- BEC：5V 2.5A
- Uarts：5
- ESC Telemetry：yes
- INA Pad：nuart2
- Input voltage：2-6S
- Size:25*25mm /20*20mm φ3 mounting
- Weight: 4g

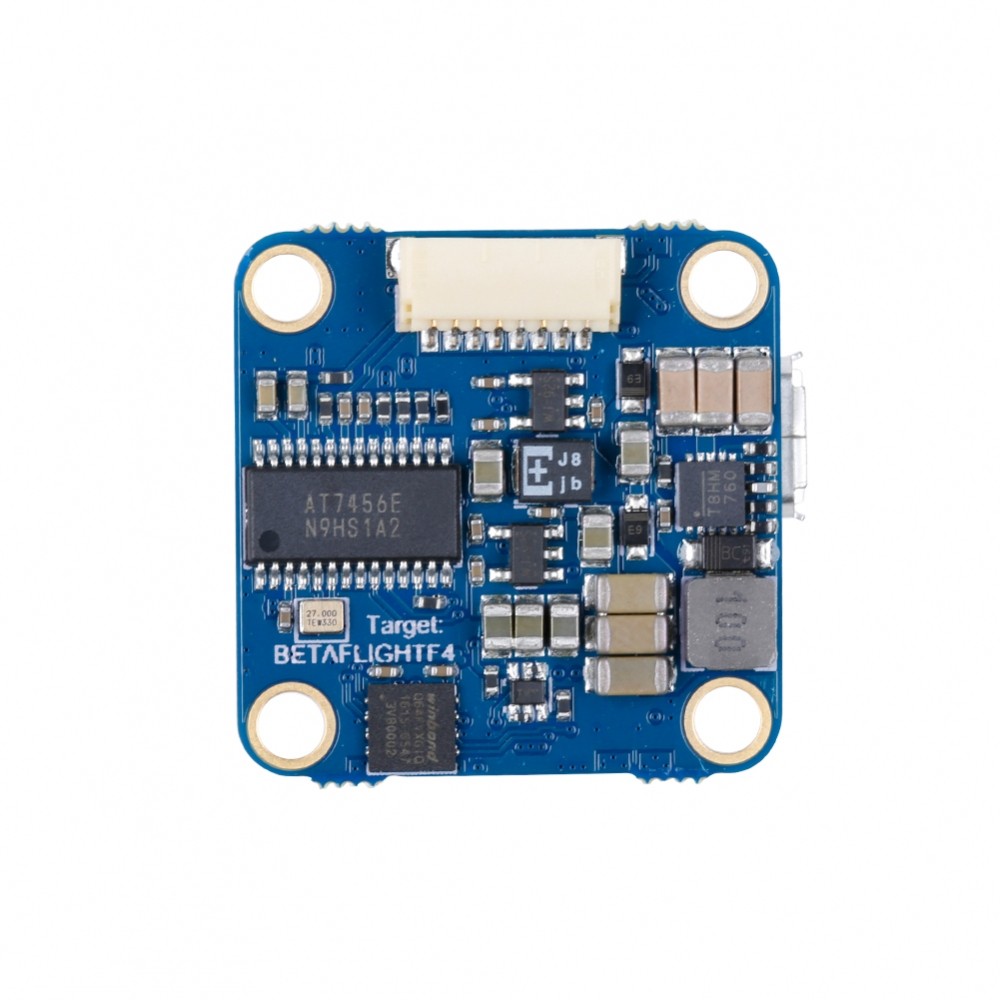

- Firmware：BETAFLIGHTF4
- Mounting hole：20*20mm，φ3mm
- Size：25*25mm
Download: SucceX-E mini F4 Manual

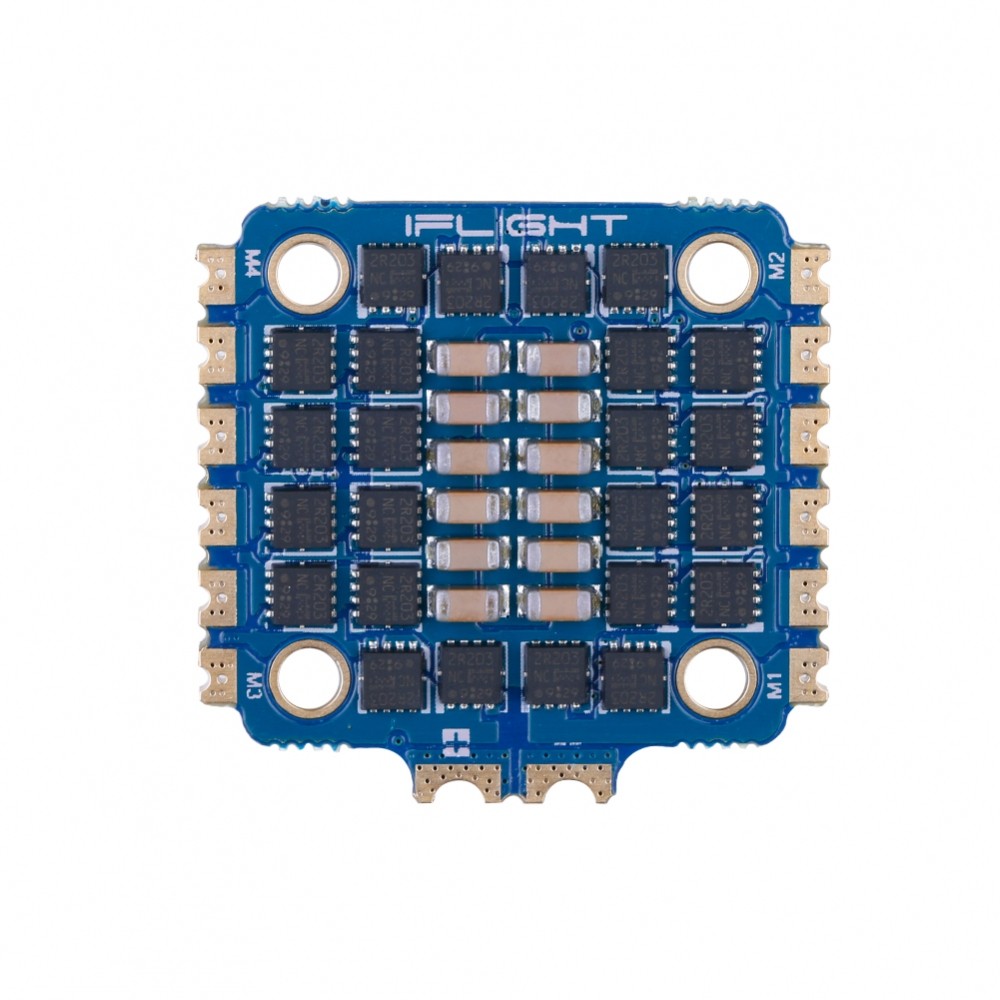

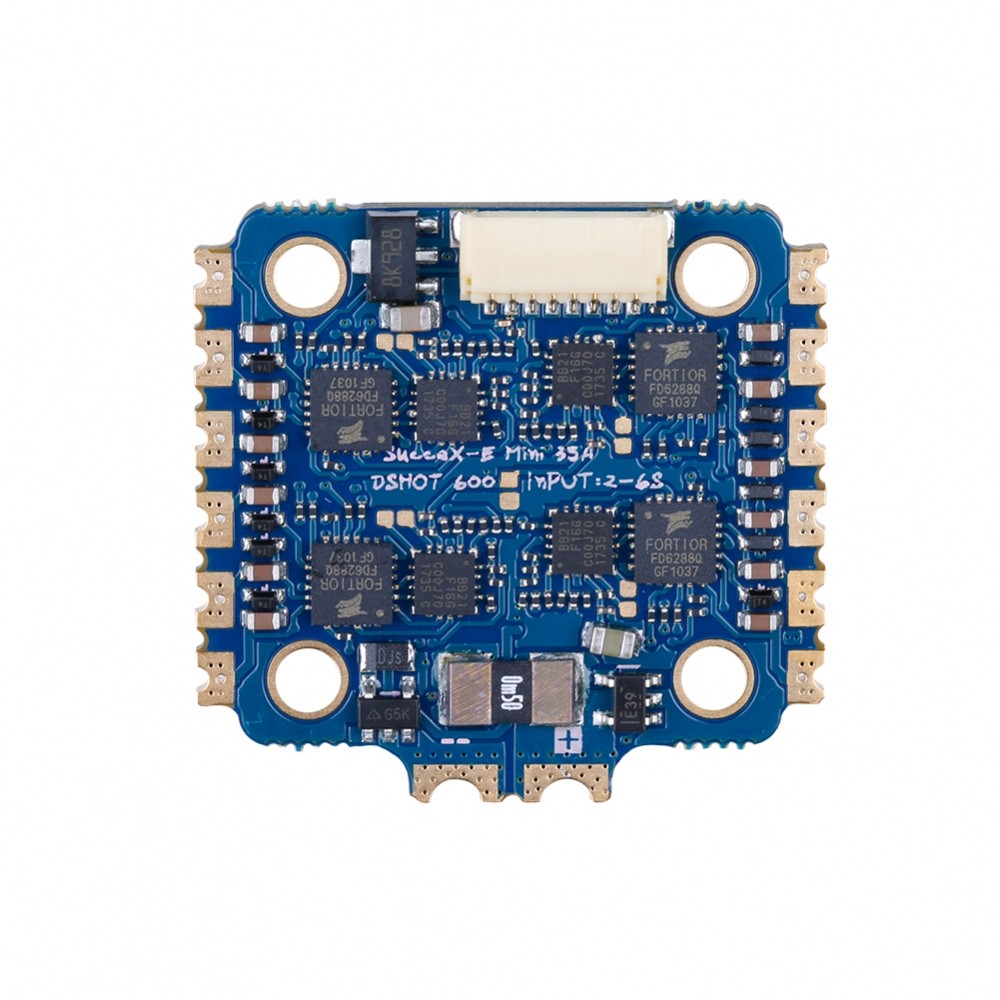

SucceX-E Mini 35A ESC
Features
- 6 layers double-sided PCB board
- 2oz 1.4mm thick power board
- TDK MLCC Low ESR ceramic capacitors
- Top grade 2R203 MOSFET
Specification
- MCU: BB21 F16G
- BLHeliS
- Capacitance: 470uF/50V
- Current Sensor: Yes
- Input: 2-6S LIPO
- Constant: 35A / Burst: 40A
- BEC: No
- Supports up to Dshot1200, Proshot, Oneshot, Multishot
- Target: G-H-30
- BLHeliSuite download
- Weight:6.9g
- Mounting pattern: 20*20, φ3mm with Grommets φ2mm

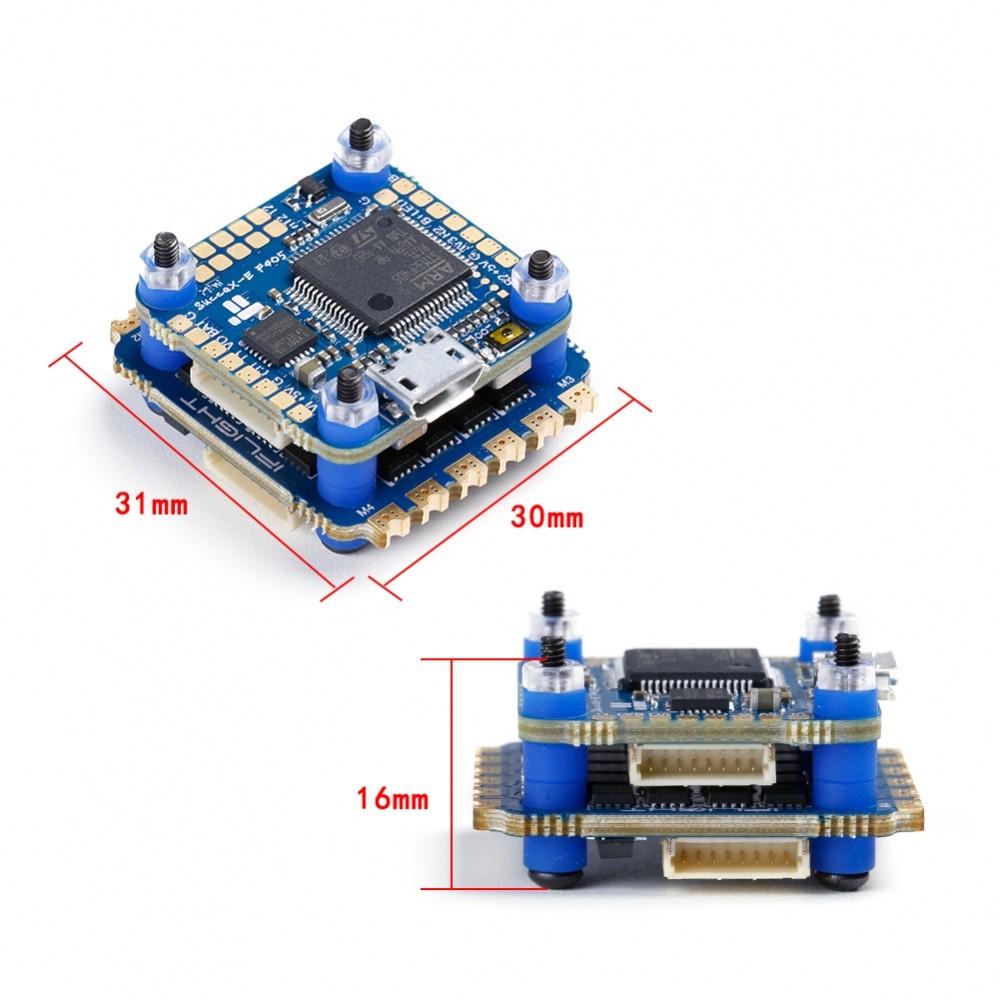

- Dimensions: 31*30mm (including the power pads)

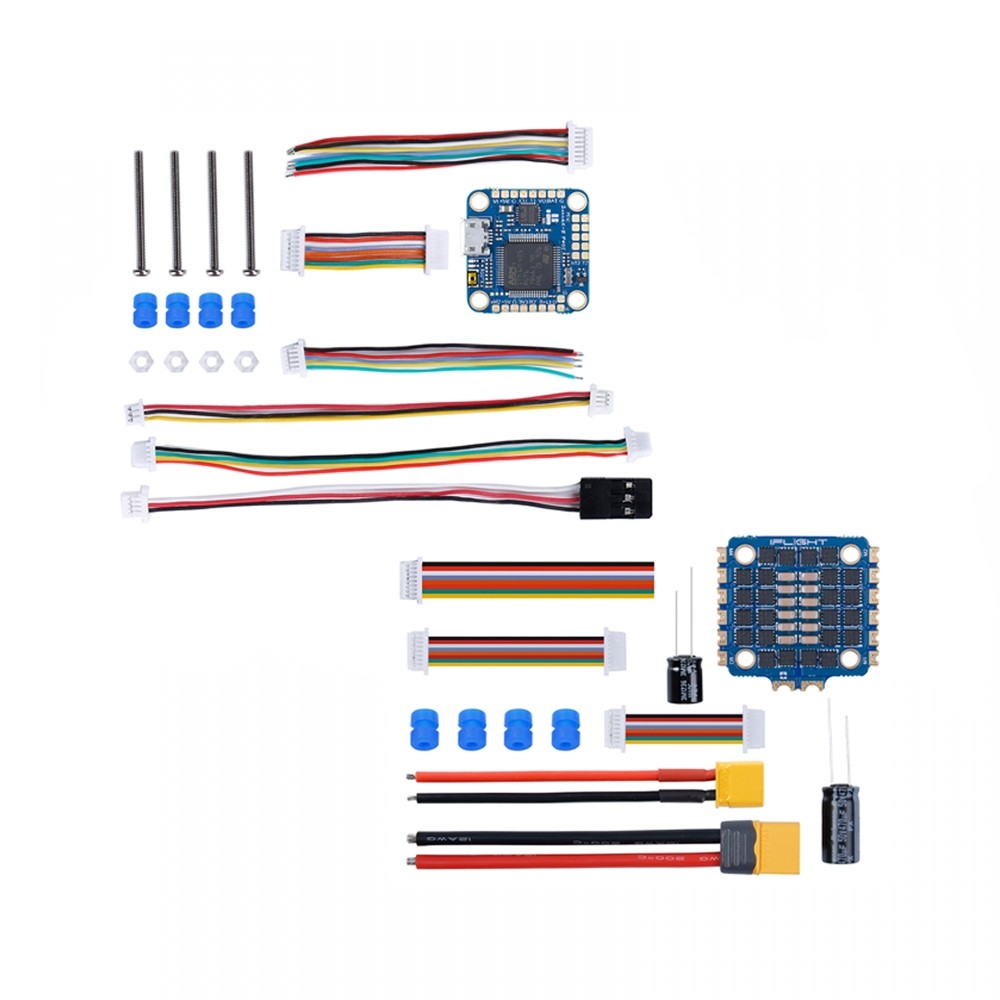

Includes
- 1 x SucceX-E mini F4 Flight controller
- 1 x SucceX-E mini 35A 4in1 ESC
