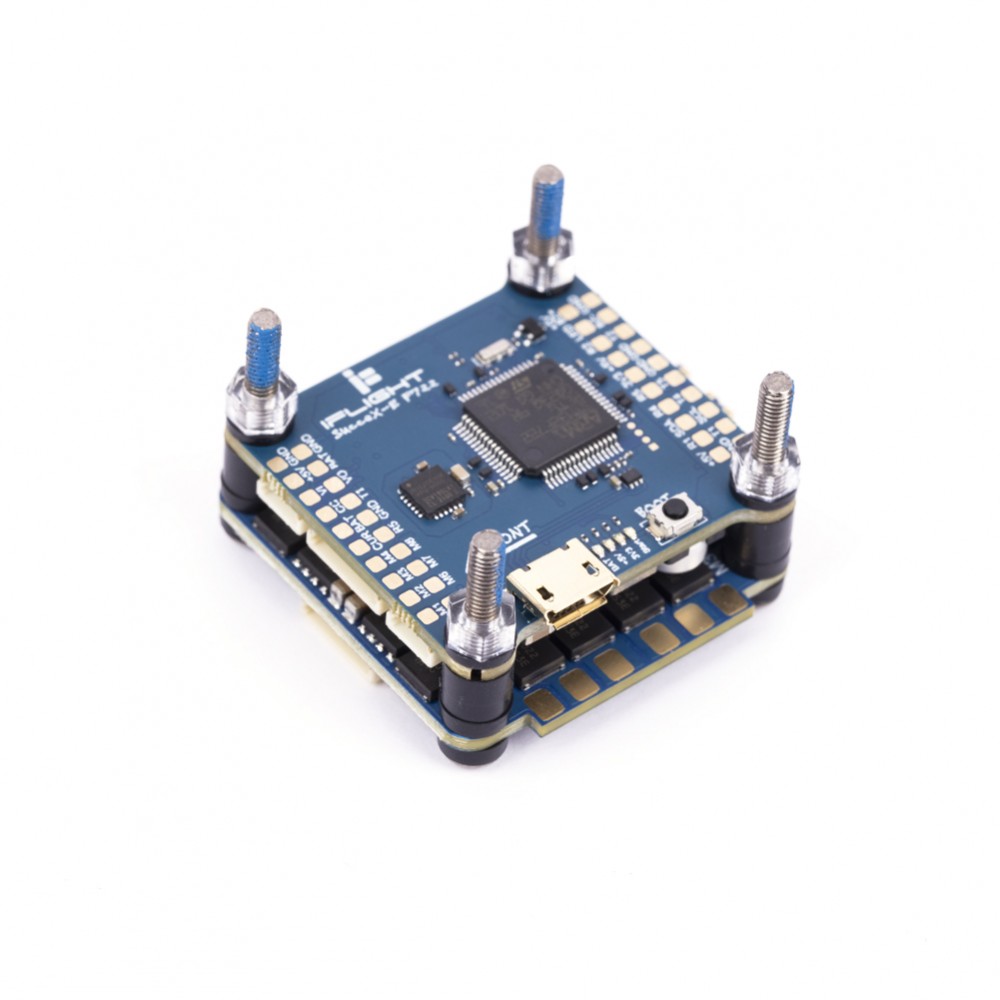

iFlight SucceX-E F7 45A 2-6S Flight Stack

PRODUCT DESCRIPTION

FC // SucceX-E F7

Top Features:

– Gold-plated plug

– BlackBox: 16MB

– Vista HD Plug-and-Play. No need to solder tiny wires.

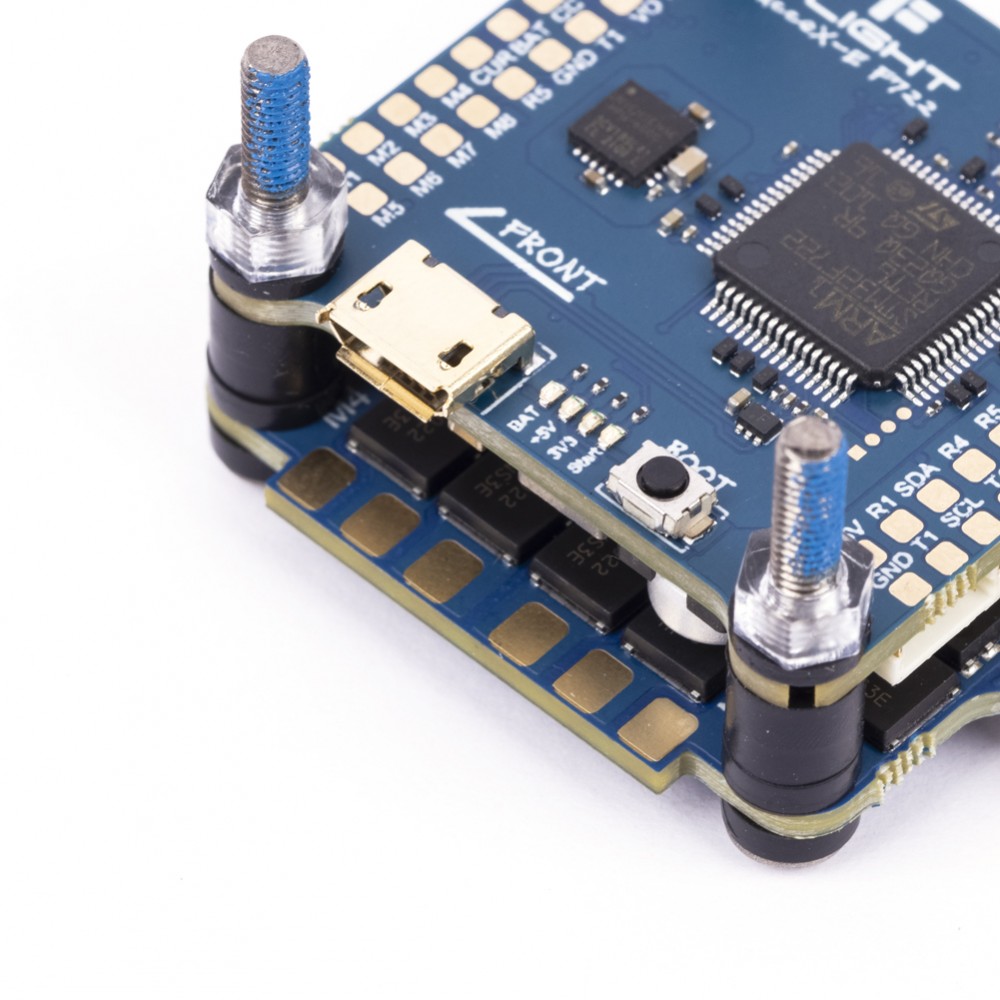

– BAT, +5V, 3.3, Start indicator

– Smartaudio & IRC Tramp VTX protocol supported

Specifications:

– MCU: STM32F722 216MHz

– Gyro: MPU6000

– Baro: NO

– OSD: IFLIGHT OSD （AT7456E）

– BEC: 5V 2.5A

– BlackBox: 16MB

– Uart: 4*UART(UART1、UART2、UART4、UART5)

– UART1 for VTX HD（for 4-6S Vista，for 4S DJI Air Unit）/AnalogTelemetry

– UART2 for Receiver

– UART4 for Free

– UART5 for ESC Telemetry

– 4×Dshot/PWM outputs

– Smartaudio & IRC Tramp VTX protocol supported

– WS2812 led Strip: Yes

– Beeper: Yes

– Firmware: IFLIGHT_SUCCEX_E_F7

– Outer Size: 36*36mm / 30.5*30.5/φ4 mounting

– Weight: 6.9g

Physical

– Mounting hole: 30.5*30.5mm，φ4mm

– Size: 36*36mm

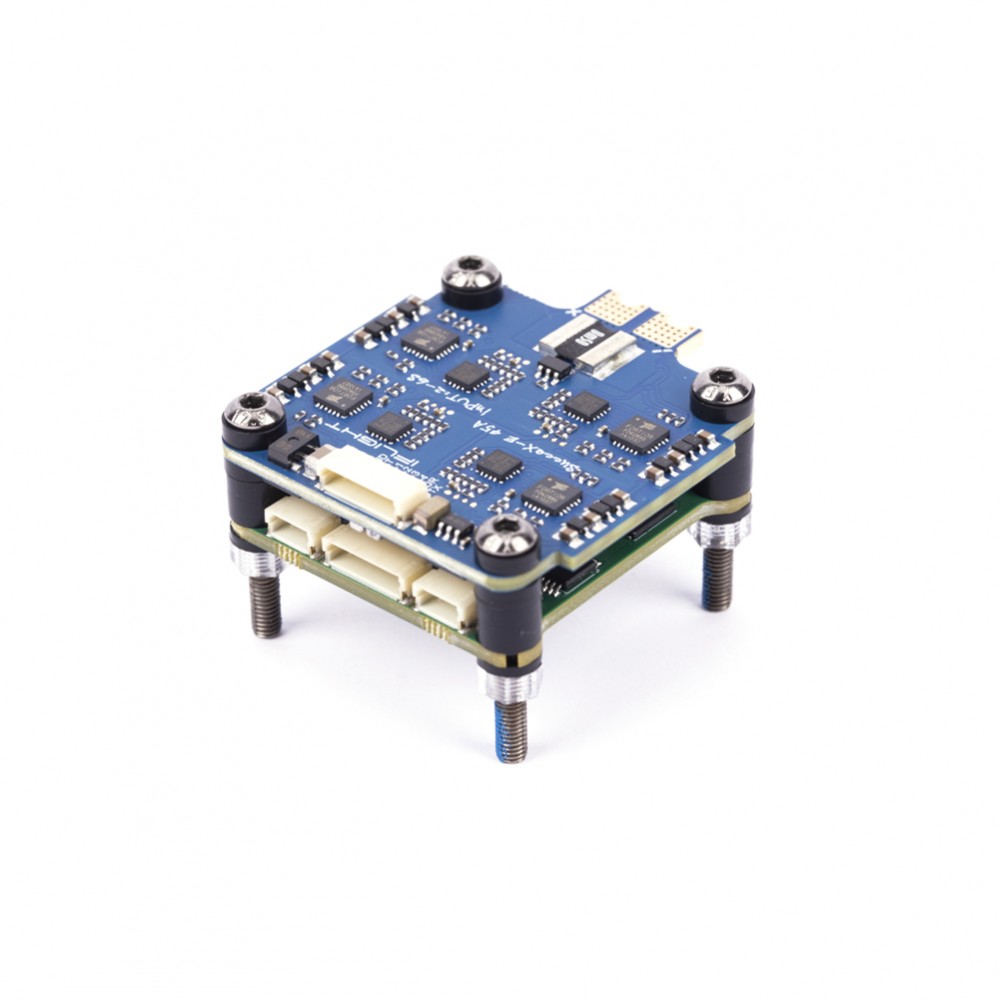

ESC // SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

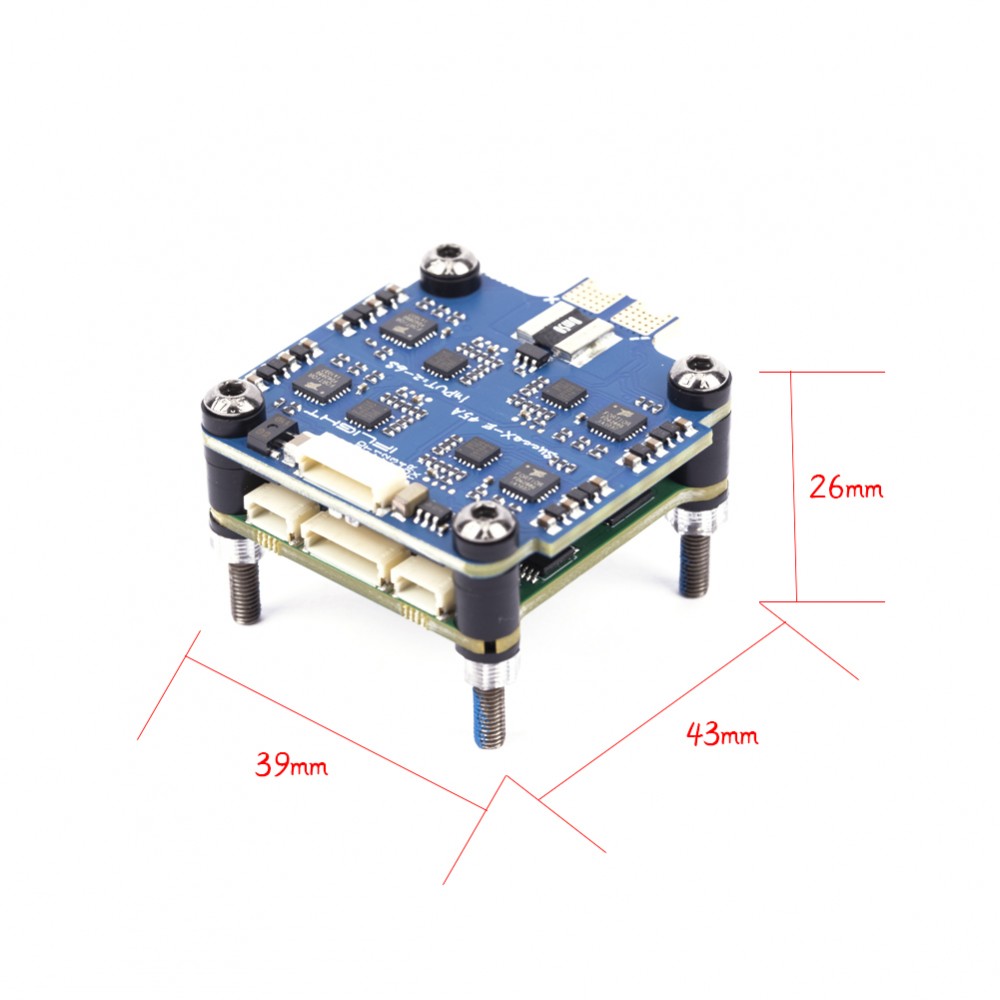

– Dimension: 40*43mm

– Mounting Holes: 30.5*30.5mm/Φ3mm

– Weight: 14.4g

– Supports 2-6S Lipo input

– EFM8BB21 MCU, 24Mhz Runs BLHELI 16.X Firmware

– Current sensor: YES

– BEC: NO

– Supports: DShot150/300/600/1200/MultiShot/OneShot etc.

– Target: G-H-30 BLS 16.7

Package included：

• SucceX-E F7 FC x 1
• SucceX-E 45A ESC x 1
