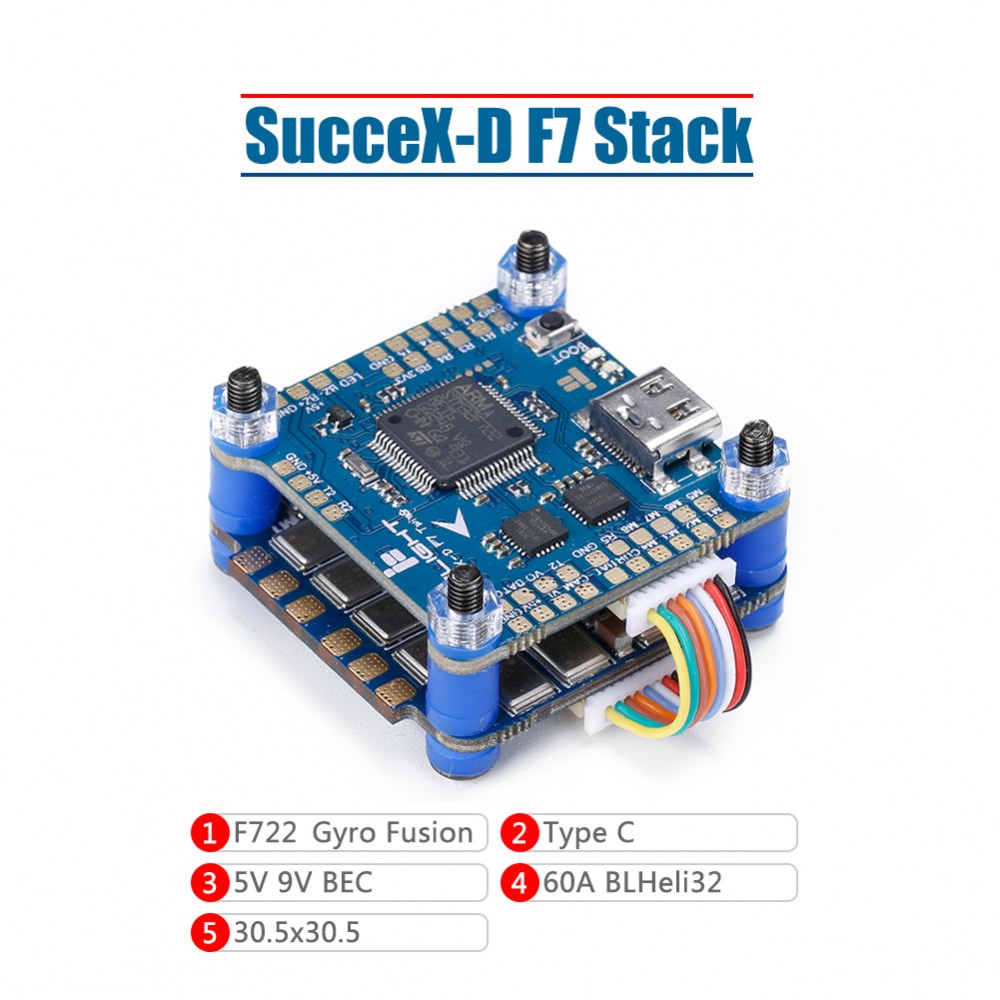

PRODUCT DESCRIPTION

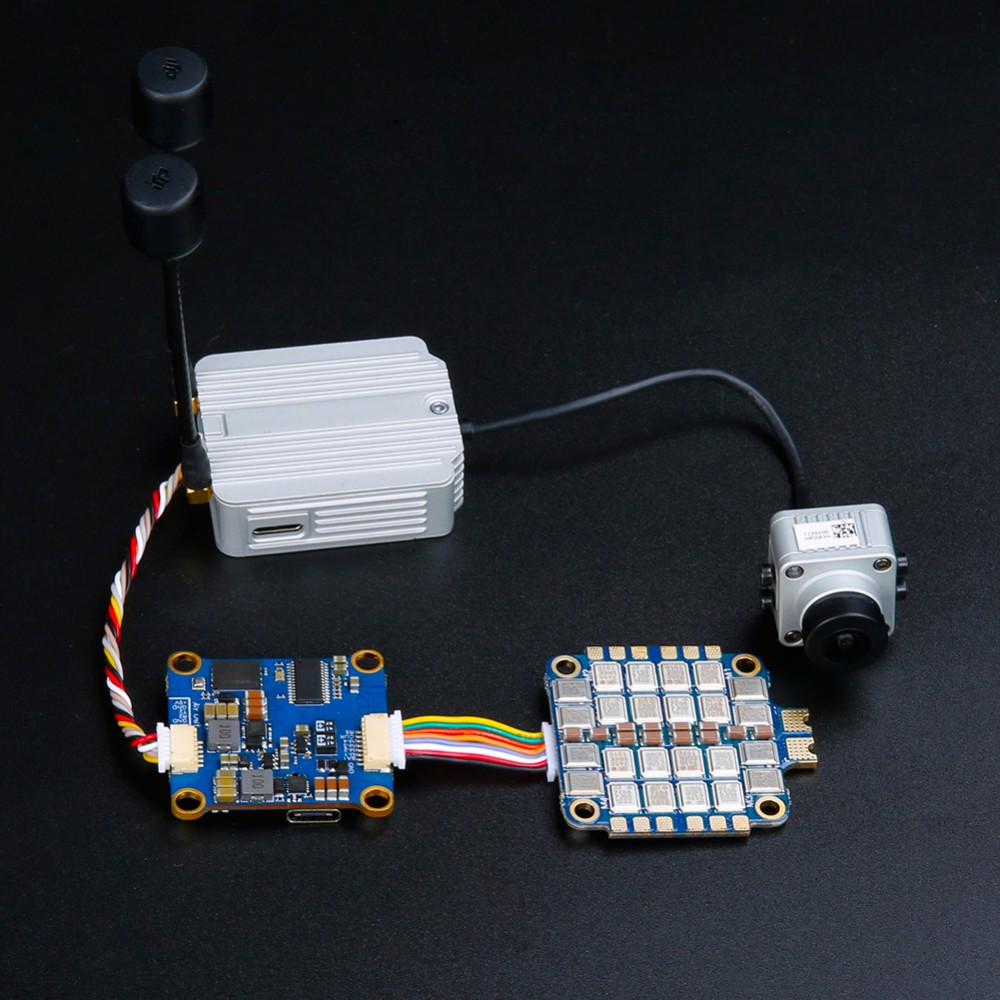

The SucceX-D F7 is designed to work seamlessly with DJI’s new HD FPV system. To make things even simpler, the DJI Air unit can just be plugged into the FC with the included wire harness. In addition, we added the popular and reliable USB Type-C instead of Micro USB and therefore the same standard than your DJI module.
Features
- Universal USB Type C connector instead of micro USB
- Plug-and-Play. No need to solder tiny wires.)
- Supports BLHeli pass-through for easy ESC upgrade and configuration.
- Designed to support DJI Digital FPV
FC // SucceX-D F7 V2.2 TwinG
- MCU: STM32 F722
- Gyro:ICM20689
- Baro: NO
- Blackbox:32MB
- Betaflight OSD: YES
- BEC: 5V 2.5A / 9V 2.5A
- Current sensor scale: 100
- Inverter for SBUS input (UART2-RX)
- Smartaudio & Tramp VTX protocol supported
- Beeper pad : Yes
- RSSI input pad: No
- UARTs:5
- Uart:4*UART(UART1、UART2、UART4、UART5)
- UART1 for Receiver
- UART2for VTX HD/Analog Telemetry
- UART4 for GPS or other sensors that require a serial port
- UART5 for ESC Telemetry
- Motor outputs: 8
- Input voltage:recommended 2-6S, MAX 8S
- Firmware target: IFLIGHT_F722_TWING
- Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm
- Dimensions: 36*36mm

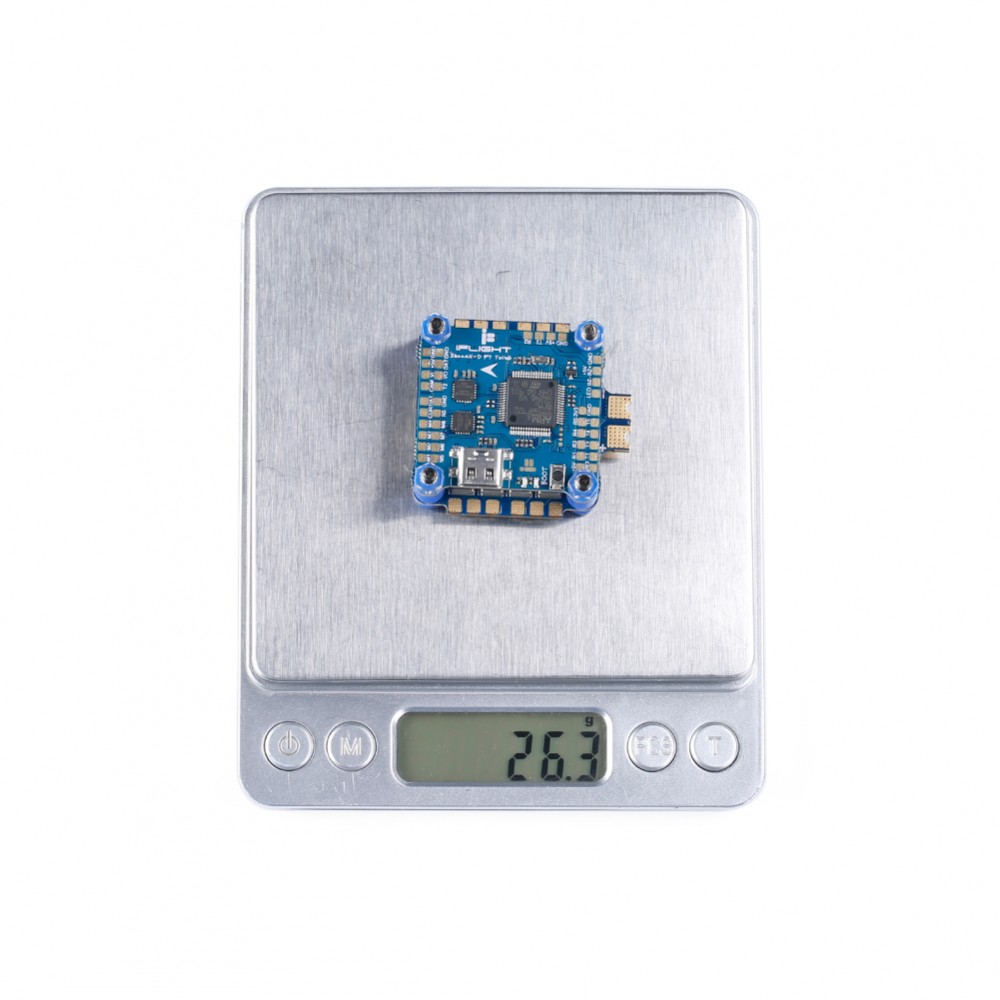

- Weight: 8.1g
- USB type-C
Changelog:
Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented.
Before target BTFL4.2.4 changed to IFLIGHT_F722_TWING
ESC // SucceX 60A V2 4in1
Top Features:
– 8 layers single-board stacking PCB board
– 4oz 1.6mm thick power board
– 32bit STM32FO51K MCU, 48kHz maximum clock speed
– TDK MLCC Low ESR ceramic capacitors
– Top grade metal MOSFET
Specification:
- MCU: STM32F051
- Up tp 48kHz PWM frequency
- Capacitance: 470uF/50V
- Current Sensor: Yes
- Input: 2-6S LIPO
- Constant: 60A / Burst: 80A
- BlHeli32 telemetry: Yes
- BEC: No
- Supports up to Dshot1200, Proshot, Oneshot, Multishot
- Target: iFlight_G071_4in1
- Weight:14.4g
- Mounting pattern: 30.5*30.5mm/Φ3mm

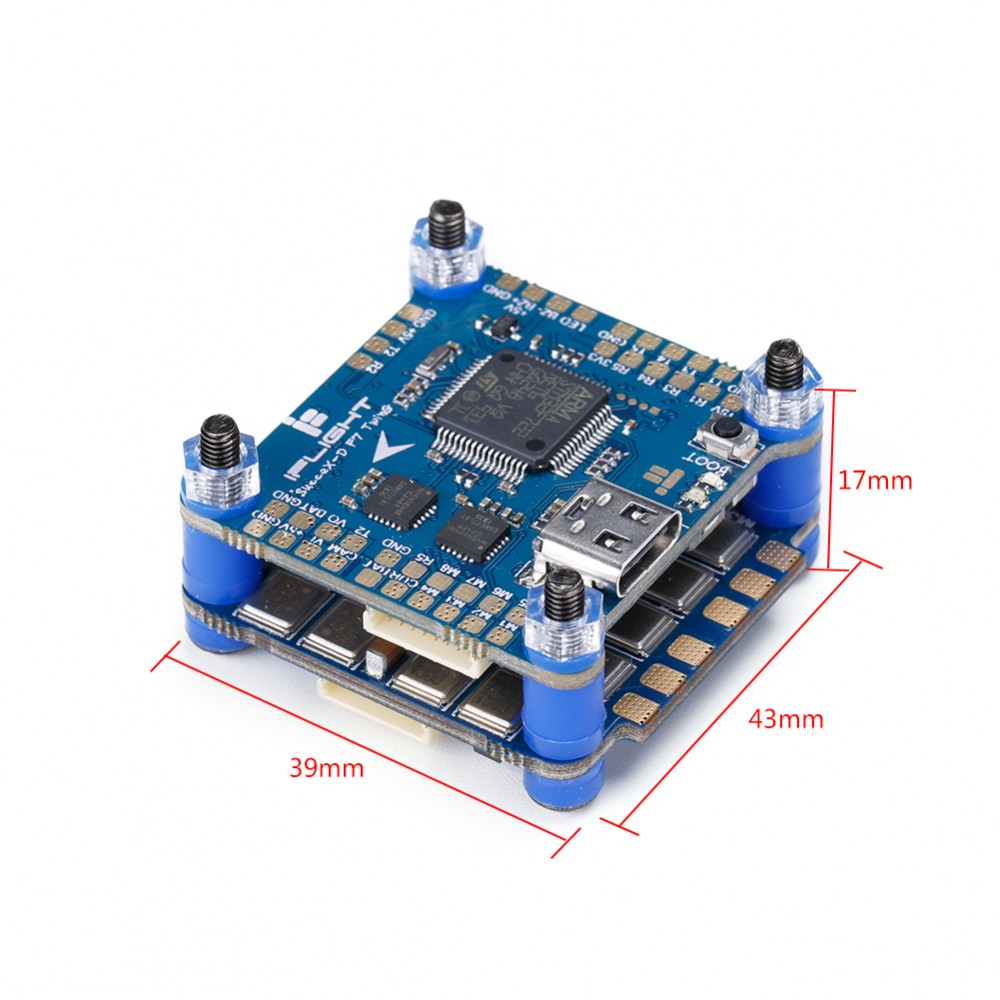

- Dimensions: 43*39mm (including the power pads)

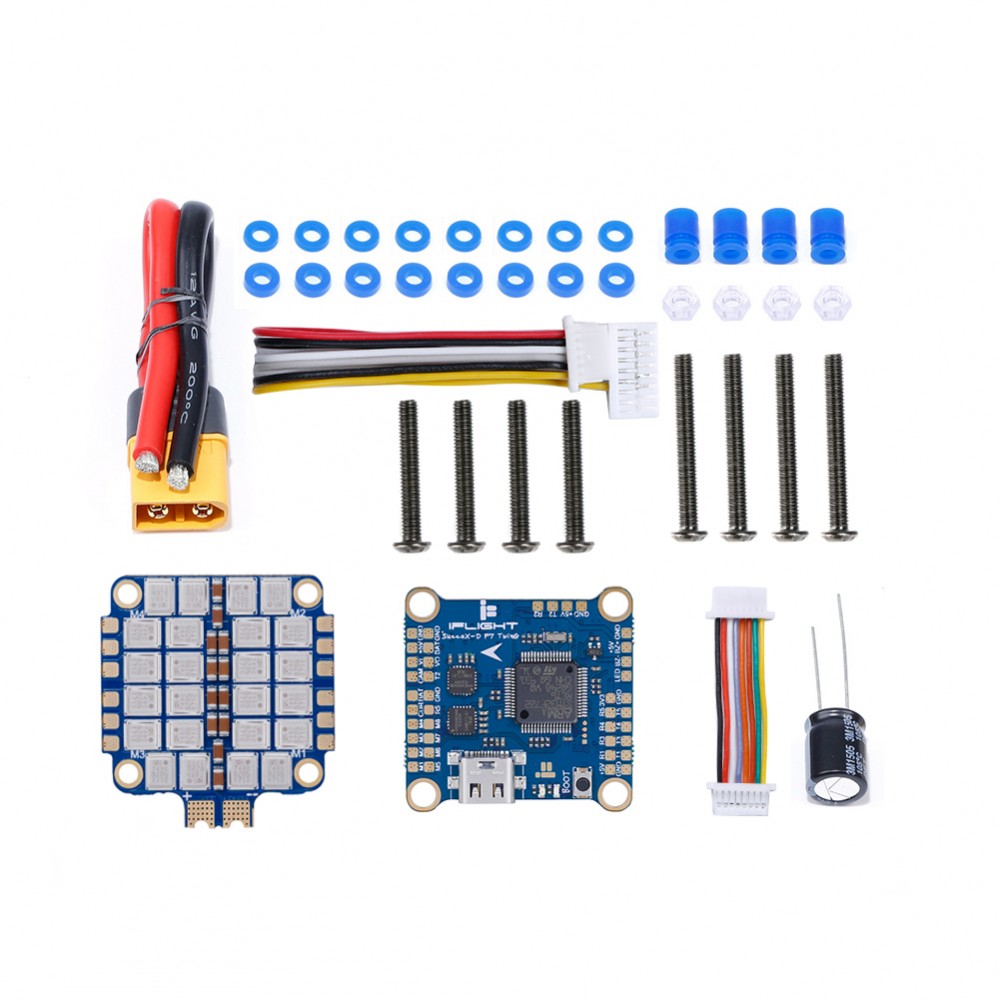

Package included:
- SucceX-D F7 TwinG FC x 1
- SucceX 60A V2 ESC x 1
