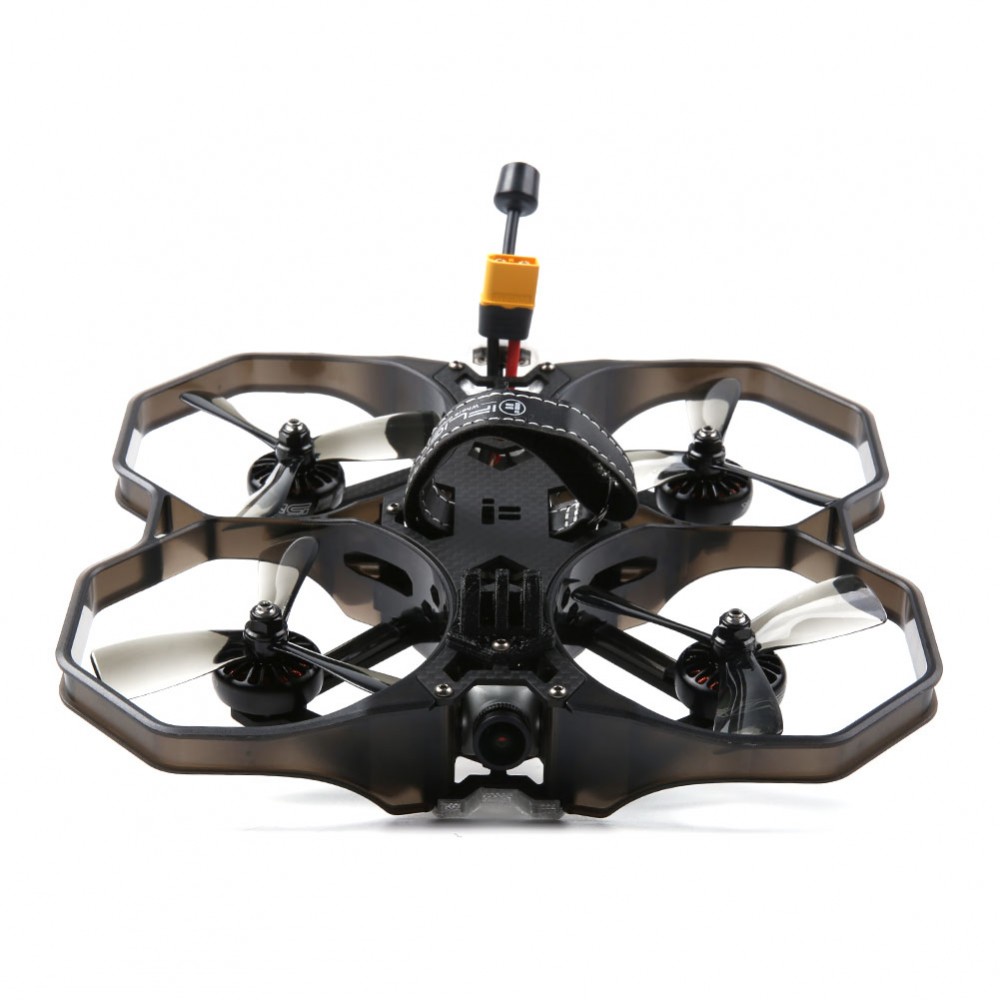

iFlight ProTek35 3.5″ 6S CineWhoop w/ DJI Polar Digital HD FPV System – PNP

After the very popular 3-inch Cinematic EVA bumper BumbleBee and Green Hornet CineWhoop series release, iFlight continue to strive to increase performance by coming up with their master Protek series. The Protek CineWhoop has a longer flight experience and weighs less than the previous cinewhoops!

iFlight was able to increase the speed and thrust by 50% compared to its 3-inch predecessor which gives a lot more room for a lot more fun; as a result, the ProTek35 is equipped with 2203.5 motors. It also features the DJI Digital HD System, Beast F7 AIO Flight Controller, 45A 2-6S ESC, and the Nazgul 3535 propellers.

Note: Battery, GoPro, and GoPro mount NOT included

Features

• No Props or frame in view!
• High-performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
• T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
• Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
• Low Resonance frame construction (Less Jello, more Cinematic footage)
• DJI FPV Air Unit 720p 120fps FPV feed (record in 1080p/60fps)
• Butter smooth 2203.5 3600KV (4S)
• Pre-tuned with smooth freestyle settings

Pre-Tuned & Pre- Setup

• Don’t worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
• To restore lost tunes or updates, please check out this  linked article: “Firmware/Factory Dumps“
• Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• Please check out this linked article on “How to disable Angle-Mode, activate Acro-Mode“

Specifications

• Board Beast Whoop F7 AIO 45A
• Motor: XING 2203.5 3600KV (4S)
• Wheelbase: 151mm
• Body Size: 118*94.5mmmm
• Bottom plate thickness: 3.5mm
• Top plate thickness: 2mm
• Top and bottom plate spacing: 20mm (aluminum standoff height)
• Propeller size: 3.5 inch
• FC pattern: 25.5*25.5mm / 20*20mmmm
• FPV cam spacing: 20mm
• Weight: 348.3g (without battery)

FC // Beast F7 AIO

• MCU: BGA-STM32F745
• Gyro: MPU6000
• UARTs: 5
• Blackbox: 8Mb Onboard Flash
• BEC output: 5V 2.5A
• Barometer: BMP280
• Connector: Micro-USB
• OSD: AT7456E
• FC Firmware：IFLIGHT_F745_AIO
• Mounting pattern: 25.5*25.5mm φ3mm
• Dimensions: 32.5*32.5mm
• Weight: 8.5g

ESC // 45A 2-6S

• Current Sensor: Yes
• Input: 2-6S LIPO
• Current scale: 200
• Constant: 45A / Burst: 50A
• BLHeli: BLHeli-S
• RPM-Filter ready: Yes (JazzMaverick or JESC firmware)
• Telemetry: no
• ESC Firmware: BlheliS G-H-30
• Mounting pattern: 25.5*25.5mm/Φ3mm
• Dimensions: 32.5*32.5mm

Recommended Parts (Not Included)

• Fullsend 4S 95C 1300mAh
• DJI HD FPV Goggles
• DJI Remote Controller (Mode 2)

Includes

• 1 x ProTek35 Frame
• 1 x Caddx Vista Digital HD System Kit
• 1 x Albatross LHCP Antenna Ipex 170mm
• 1 x TPU Bracket for Caddx Polar
• 1 x TPU Antenna holder
• 2 x Nazgul 3535 propeller (Set of 4 – Color May Vary)
• 1 x iFlight Lipo Strap 15*150mm (Color May Vary)
• 1 x  iFlight Lipo Strap 15*250mm (Color May Vary)
• 1 x GoPro TPU bottom stand black (GoPro Protector not included)
