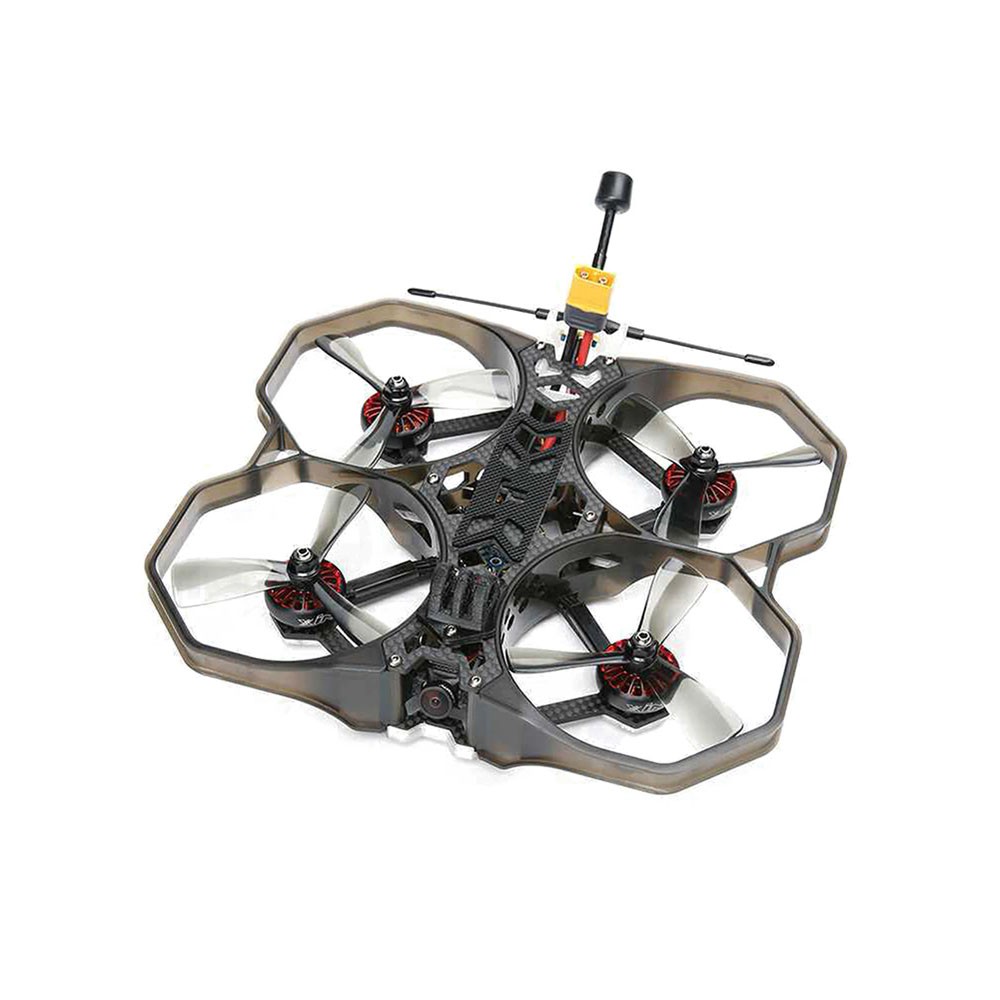

iFlight ProTek25 2.5″ 4S Analog CineWhoop – PNP

After the very popular 3-inch Cinematic EVA bumper BumbleBee and Green Hornet CineWhoop series release, iFlight continue to strive to increase performance by coming up with their master Protek series. The Protek CineWhoop has a longer flight experience and weighs less than the previous cinewhoops!

iFlight was able to increase the speed and thrust by 50% compared to its 3-inch predecessor which gives a lot more room for a lot more fun; as a result, the ProTek25 is equipped with the Butter Smooth XING 1404 5500KV Motors. It also features the SucceX-D 20A F4 Whoop AIO FC, SucceX Micro Force 5.8GHz 300mW VTX Adjustable, Nazgul 2525 propellers, and more!

Note: Battery, GoPro, and GoPro mount NOT included

Features

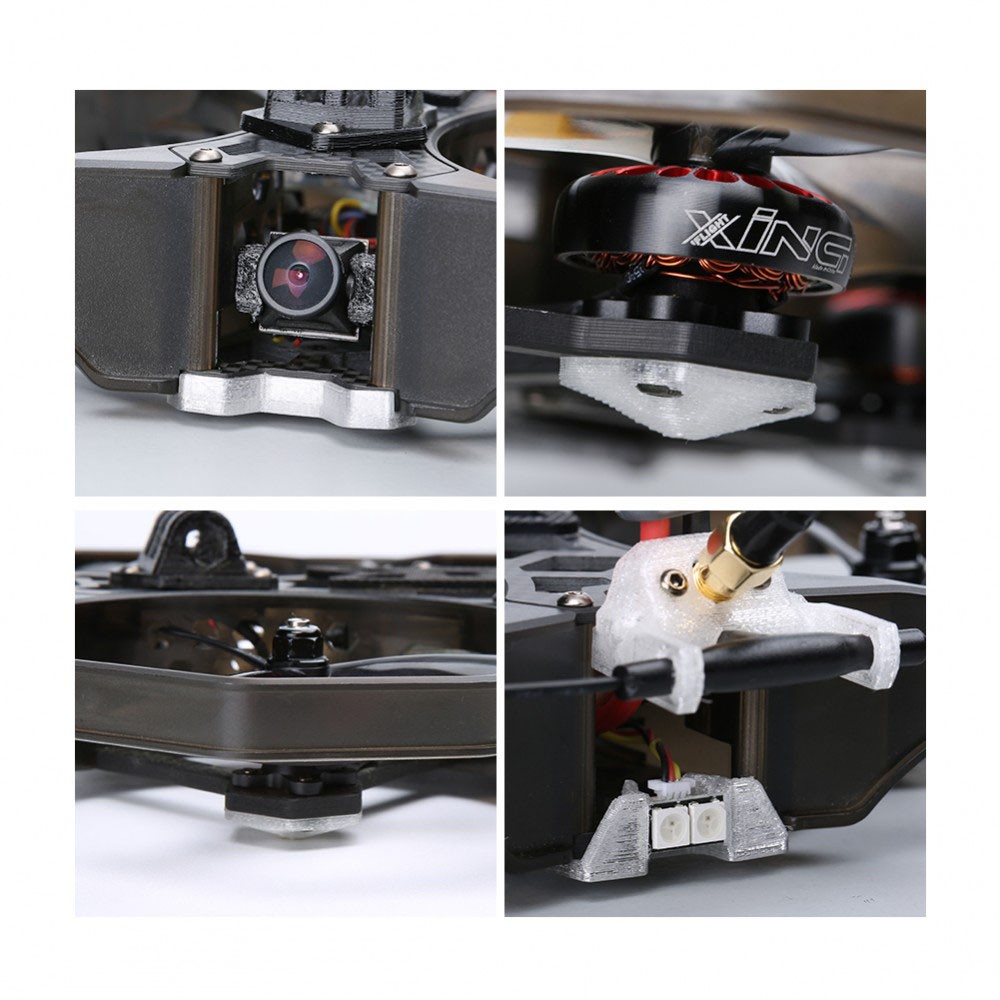

• No Props or frame in view!
• RaceCam R1 Mini 1200TVL 1.8mm 19*19mm FPV Camera
• High-performance SucceX-D 20A Whoop F4 AIO Board to save weight and space
• T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
• Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
• Low Resonance frame construction (Less Jello, more Cinematic footage)
• Butter smooth XING 1404 5500KV motors
• Pre-tuned with smooth freestyle settings

Pre-Tuned & Pre- Setup

• Don’t worry about tuning, iFlight did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
• To restore lost tunes or updates, please check out this  linked article: “Firmware/Factory Dumps“
• Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
• Please check out this linked article on “How to disable Angle-Mode, activate Acro-Mode“

Specifications

• SucceX-D 20A Whoop AIO
• Motor: XING 1404 5500KV

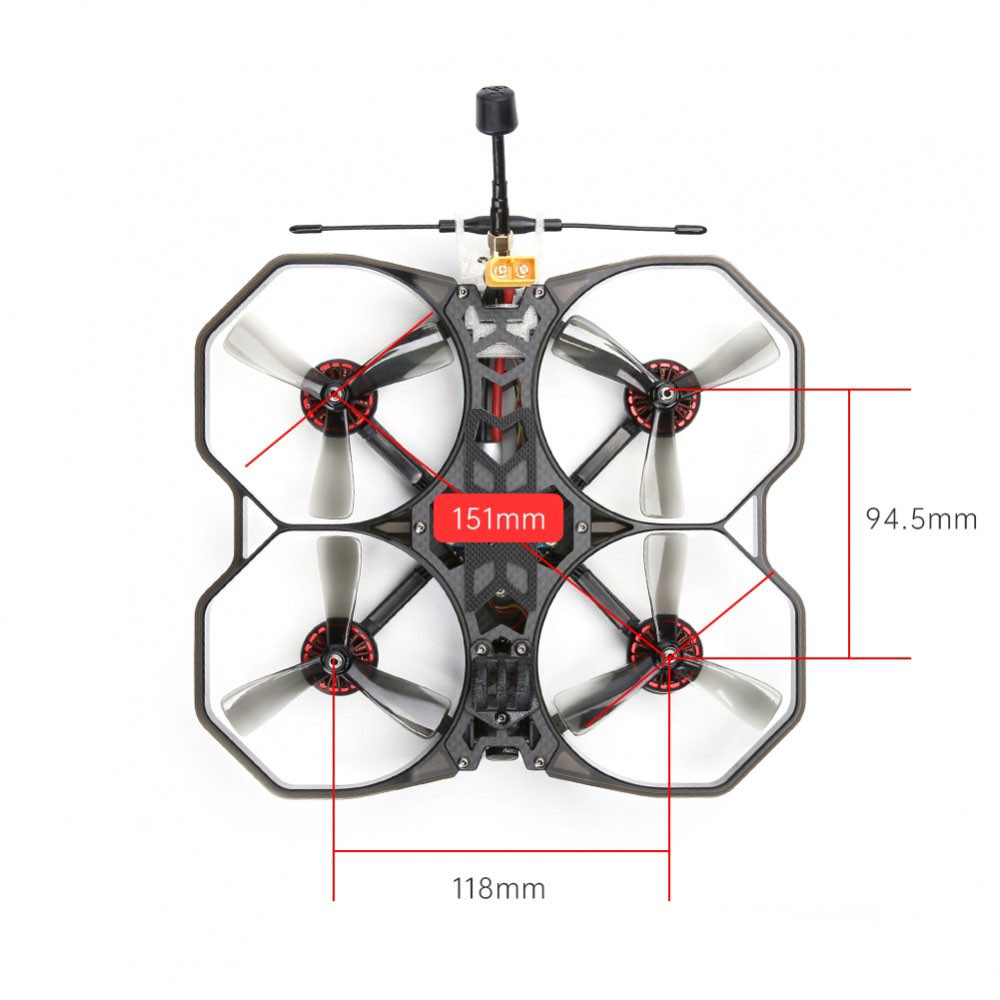

• Wheelbase: 114mm
• Body Size: 91*68.7mm
• Bottom plate thickness: 3mm
• Top plate thickness: 2mm
• Top and bottom plate spacing: 24mm (aluminum standoff height)
• Propeller size: 2.5 inch
• FC pattern: 25.5*25.5mm / 20*20mmmm
• FPV cam spacing: 20mm
• Weight: 194.3g (without battery)

FC // SucceX-D 20A F4 Whoop AIO

• Size：30.5*30.5mm
• Mounting pattern：25.5*25.5mm/φ3mm
• Connector：Micro-USB
• MCU：STM32F411
• Gyro：MPU6000
• Blackbox：8MB
• BEC output：5V 2A/10V 2A
• INA pad：UART2 (nR2)
• Barometer：no
• Constant current：20A，25A（Burst）
• Input：2-4S
• Current sensor：yes
• BLHeli：BLHeli-S
• ESC Telemetry：no
• Target：IFLIGHT_F411_PRO
• ESC Firmware：G-H-30 BLS

VTX// SucceX Micro Force 5.8GHz 300mW VTX Adjustable

• Power: PIT/25/100/200mW/300mW
• Antenna interface: IPEX (UFL)
• VTX protocol: IRC Tramp
• Size: 13.5×14.5mm
• Weight: 1.4g

Recommended Parts (Not Included)

•  4S 850mAh Battery

Includes

• Pre-built and tested Quadcopter
• 1 x ProTek25 Frame
• 1 x Albatross LHCP RP-SMA 5.8g antenna
• 2 x Nazgul 2525 propeller (Set of 4 – Color May Vary)
• 2 x iFlight Lipo Strap 15*200mm (Color May Vary)
• 1 x Naked GoPro TPU bottom stand black (Naked GoPro Protector not included)
