Having one of the most successful FPV companies link up with the global drone market leader, combining DJI’s digital FPV system with our highest standards racing, freestyle and cinematic drones to create a HD pilot experience!

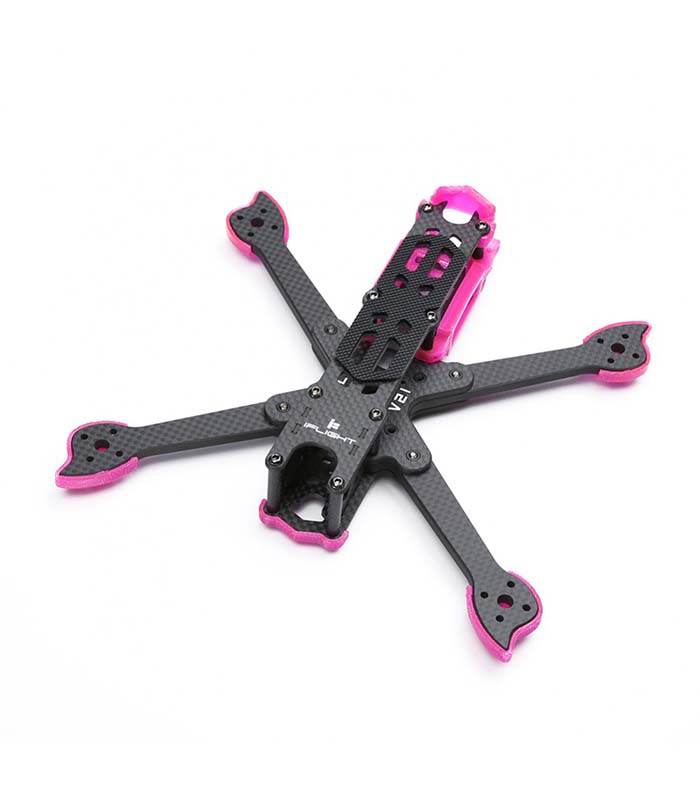

The Cidora SL5 V2.1 HD features the amazing new DJI FPV system, this quad makes flying FPV truly breathtaking. This frame offers a squashed X layout for maximum control, can be equipped DJI Air Unit, SucceX-D F7(50A 4-in-1 ESC) stack and popular XING motors.
Main Changelog V2.1:
– Bottom carbon thickness increased from 2mm to 2.5mm
– Arm thickness increased from 5mm to 5.5mm
– The Wheelbase increased from 215mm to 217mm
– TPU parts are not compatible, color is different
Features：
– Optimized weight distribution: DJI unit and Stack centered
– Equipped with SucceX-D F7(SucceX 50A BLHeli32 4-in-1 ESC) Stack
– Equipped with the DJI FPV Air Unit -Bind and Fly
– Buttery-smooth 720p 120fps FPV feed
– Pre-tuned with smooth freestyle settings
– Full 3K Carbon Fiber airframe with chamfered arms
– Equipped with XING 2207 motors
– Weight: 445.4g without battery and GoPro mount
– LED illuminated Logo
Recommend parts: (Not included)
SucceX-D F7(SucceX 50A BLHeli32 4-in-1 ESC) Stack
DJI FPV Air Unit -Bind and Fly
XING 2207 1800KV (6S)
XING 2207 2450KV (4S)
Nazgul 5140 Propeller
TPU 3D Printed Camera Mount for Gopro Hero 5/6/7/8/9 with ND8 Filter
TPU 3D Printed Camera Mount for GoPro Session
Recommend batteries (not included):
4S 1300mAh to 2000mAh
6s 1050mAh to 1500mAh
Specifications:
– Total Dimensions: 166*139mm (body dimension)
– Frame Wheelbase: 217mm
– Bottom to top distance: 28mm
– Arm thickness: 5.5mm
– Bottom plate thickness: 2.5mm
– Top plate thickness: 2mm
– Upper(middle) plate thickness: 3mm
– Camera plate thickness: 2.5mm (included TPU inserts)
– Weight: 156.1g (with TPU parts)

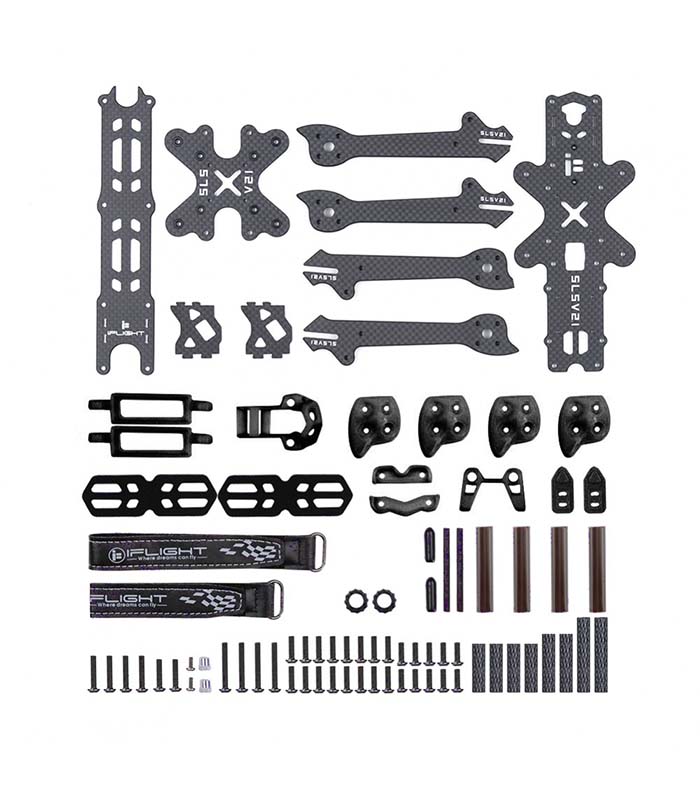

Package Included:
-1x Cidora SL5 V2.1 HD frame kit
-1 x Screw Bag
-1 x TPU Camera mount adapters
-4 x Arm guard/Motor mount
-1 x TPU DJI Air Unit Bracket Mount
-1 x TPU DJI Air Unit Antenna Mount
-1 x TPU bottom plate front protective mount
-1 x TPU bottom plate rear protective mount
-1 x Battery Anti-slip Mat
-1 x 20*250mm battery strap (Color May Vary)
-1x 20*200mm battery strap (Color May Vary)
