iFlight Chimera5 DC LR FPV Frame Kit

Please note this frame comes with M2 Motor holes and will not be compatible with most motors.

PRODUCT DESCRIPTION

Main Features:

-Full 3K Carbon Fiber airframe

-The 5 inch version of Chimera 7 is more lightweight

-360° TPU protection and Antenna mounts

– Compatible with Vista Air Unit

Specifications:

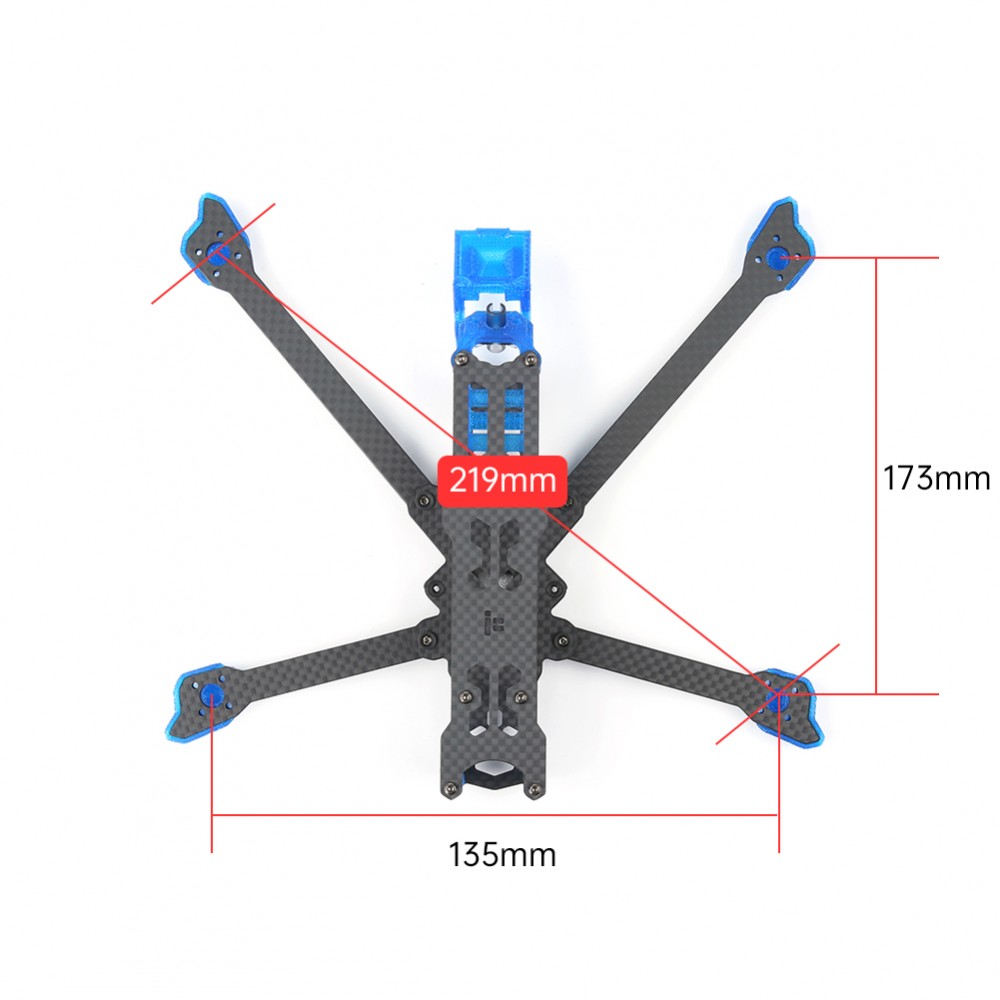

-Wheelbase: 219mm

-Main body dimension: 135*173mm

-Bottom to top distance: 28mm

-Arm thickness: 4mm

-Bottom plate thickness: 2mm

-Top plate thickness: 2mm

-Middle Plate thickness: 2.5mm

-TPU Camera plate

-FC: 25.5*25.5mm/20*20mm

-FPV Cam: 19mm Micro / 20mm

Additional Suggested Parts (not included)

Beast F7 AIO

XING 2005 2550KV Ultralight motors

Nazgul 5030 props

Caddx Nebula Pro Digital HD System

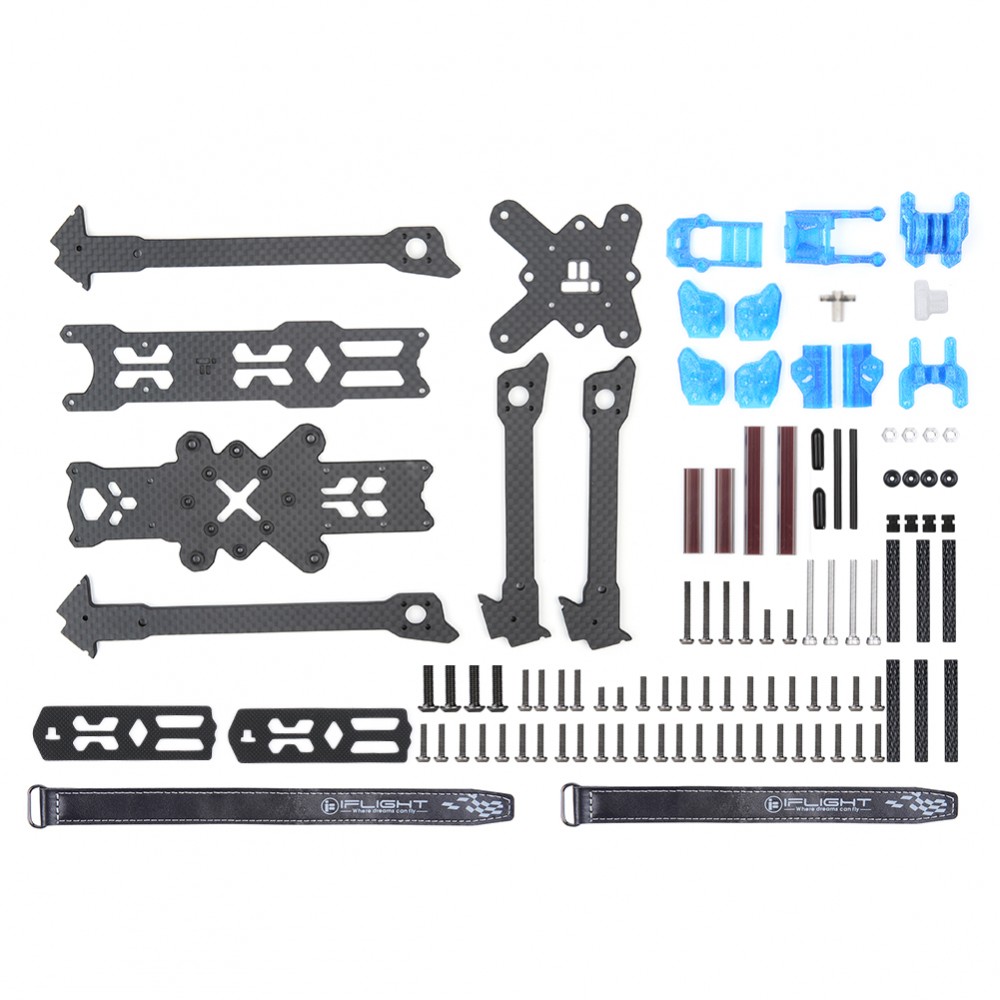

Package included:

1 x Chimera5 Frame

2 x battery straps

1set x TPU parts
