HGLRC Zeus Nano 350mW 16mm/20mm/25.5mm VTX

The HGLRC Zeus NANO Video Transmitter is ultralight and has multiple mounting patterns… including 16mm, 20mm, and 25.5mm. With a built-in microphone and slim boomerang shape, this VTX brings real-time audio transmission and a wider scope of application.

Check out Oscar Liang’s review on this product!

Specifications of HGLRC Zeus Nano

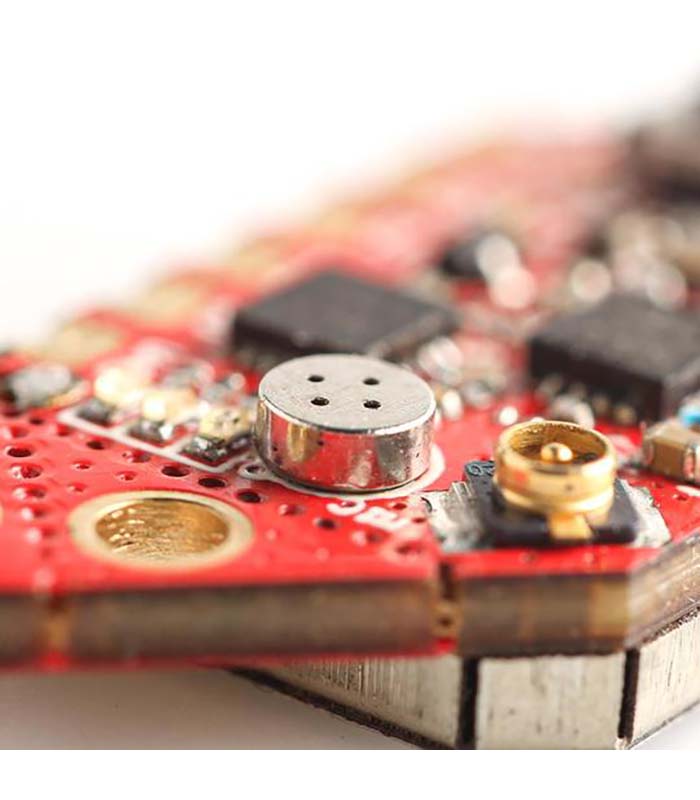

• Built-in Microphone
• Input voltage:DC 5V
• PIT@75mA
• 25mW@180mA/16dBm
• 100mW@280mA/21.5dBm
• 200mW@330mA/24.5dBm
• 350mW@400mA/27.5dBm
• Antenna interface:ipex
• Output power:PIT/25/100/200/350mW
• Standard 40 channels. A/B/E/F/R frequency group

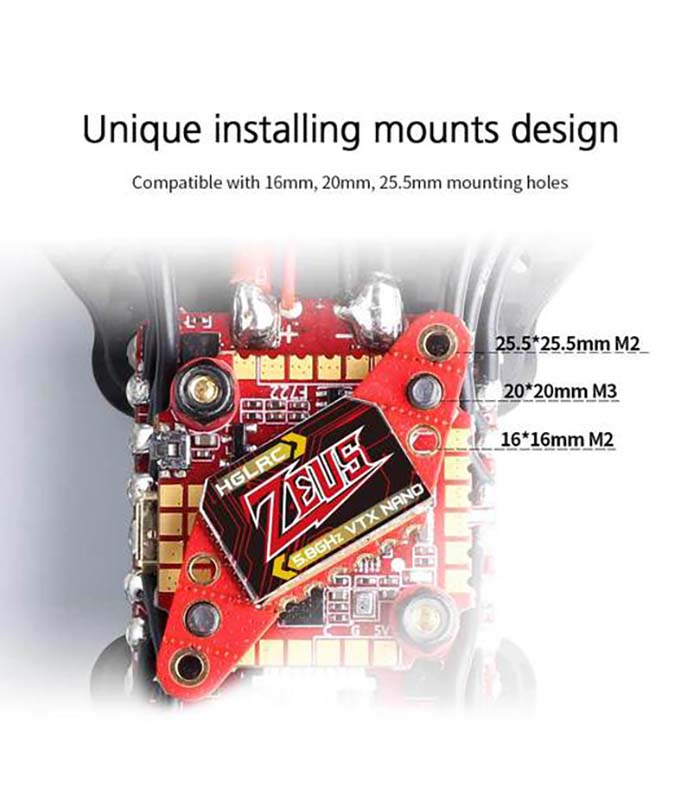

• Installing Hole:16X16/25.5X25.5mm.M2
• 20X20mm.M3
• Size:18.6mm x 13.6mm x 6mm

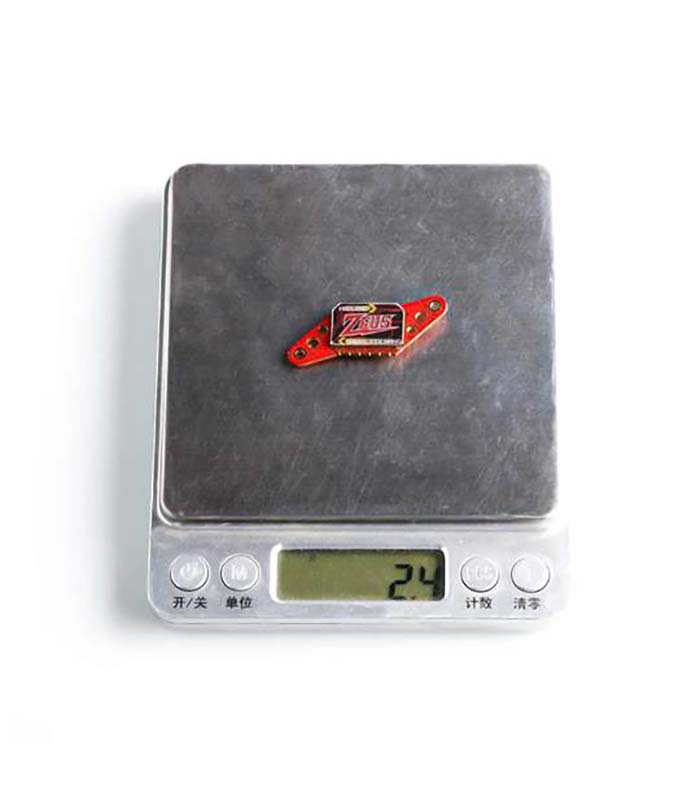

• Weight:2.4g

Includes:

1 x Zeus Nano VTX
1 x ipex Linear Brass Antenna
1 x ipex to SMA Adapter Cable
6 x VTX Cable
