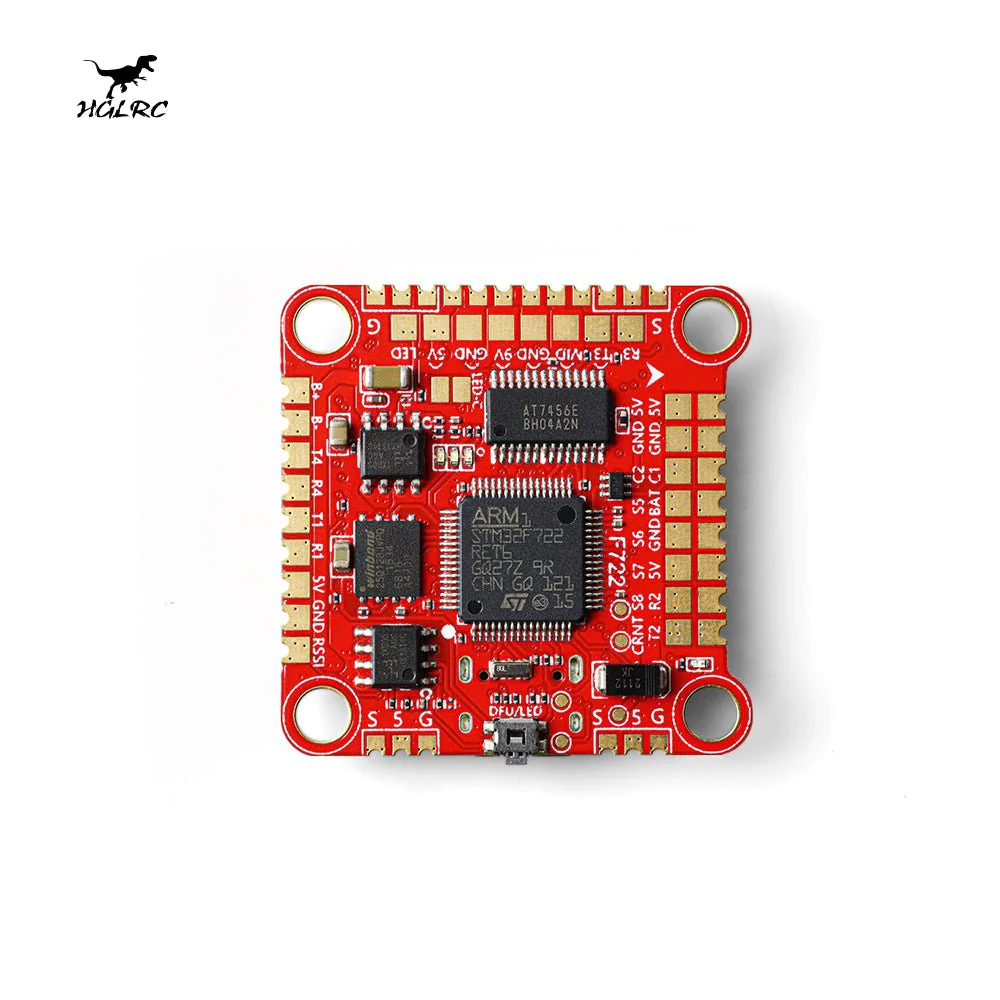

The HGLRC F722 is a 30.5×30.5 flight controller that houses an MPU6000 gyro and 3-6S direct lipo support. Comes with an integrated barometer and 16M black box, integrated DJI, LED, and GPS connector.
5 UARTS: receiver, GPS, VTX image transmission, DJI, ESC telemetry
Features
- An Integrated LED controller allows quick programming of LEDs with the push of a button.
- Integrated barometer and 16M black box.
- Maximum BEC 9V/2A and BEC 5V/3A output
- Easy direct soldering for XM+, NANO receiver, and TBS Nano VTX
- Quickly connect DJI and LED and GPS via socket
Specifications
- Item Name: Zeus F722 Flight Controller
- Built-in LED controller
- MPU: BMI 270
- UARTS:5
- CPU:STM32F722 RET6
- Input Voltage:3-6S Lipo
- Built-in Betaflight OSD to adjust PID
- BEC Output:
- 9V2A
- 5V/3A
- Usage:for 100mm-450mm Frame Kit
- FC Firmware:BF HGLRCF722(HGLR)
- Installing Hole:30.5X30.5mm.M3
- LED Control: BF/Button
- BlackBox:16M
- Barometer: BMP280(I2C)
- Size:37.3×37.3mm
- Installing Hole:30.5X30.5mm.m3
- Weight:8.1g
HGLRC Zeus F722 3-6S Flight Controller/support terminal direct connections without soldering
Features of HGLRC Zeus F722
1.Direct connections supported for camera,receiver,analog VTX/DJI Air unit/Vista, LED and GPS, no need soldering
2.Built-in switch to control 9V BEC by modes
3.Integrated LED controller for quick programming of LEDs with the button
4.Integrated 16M Blackbox to record flight data
5.Maximum BEC output 9V/1.5A and 5V/2A
Brand Name: HGLRC
Product name: Zeus F722
FC Firmware: HGLRCF722
CPU: STM32F722 RET6
MPU: BMI270
BEC Output: 9V/1.5A,5V/2A
Input voltage: 3-6S Lipo
UARTS: 5
OSD: Support
BlackBox: 16M
Built-in Current Sensor
Installing Hole: 30X30mm.M3
Size: 37.3×37.3mm
Weight:9.43g
Package Includes:
1x Zeus F722 flight controller
1x Accessory pack
Get plug & play ready LEDs.
Get plug & play ready GPS.
Package Included:
1x Zeus F722 flight controller
1x Accessory pack
Download hex file for iNAV 2.5.1 here. Or use target “HGLRCF722” on iNAV 2.5.2 and future versions.
Download hex file for emuflight here.
Target is ” HGLRC F722″ for flightone firmware, you will also need to purchase the flightone license separately.
See manual here: F722 flight controller
Learn more about this product directly from HGLRC.
