FEATURES:
- *Supports (20×20-25.5×25.5) mounting holes
- *Supports both AIO/stack installing at the same time,, ultra-light weight and have a super long flight time.
SPECIFICATIONS:
- Brand name:HGLRC
- Model:Sector30CR Freestyle Frame
- Material:3K carbon fiber
- Type:3-inch Frame
- Wheelbase:150mm
- Size:147 * 130mm
- Top plate:2mm
- bottom plate:3mm
- Space:25mm
- FC mounting hole:20x20mm/25.5×25.5mm
- Support camera:19*19mm
- Weight:42.2g(Without propeller guards)

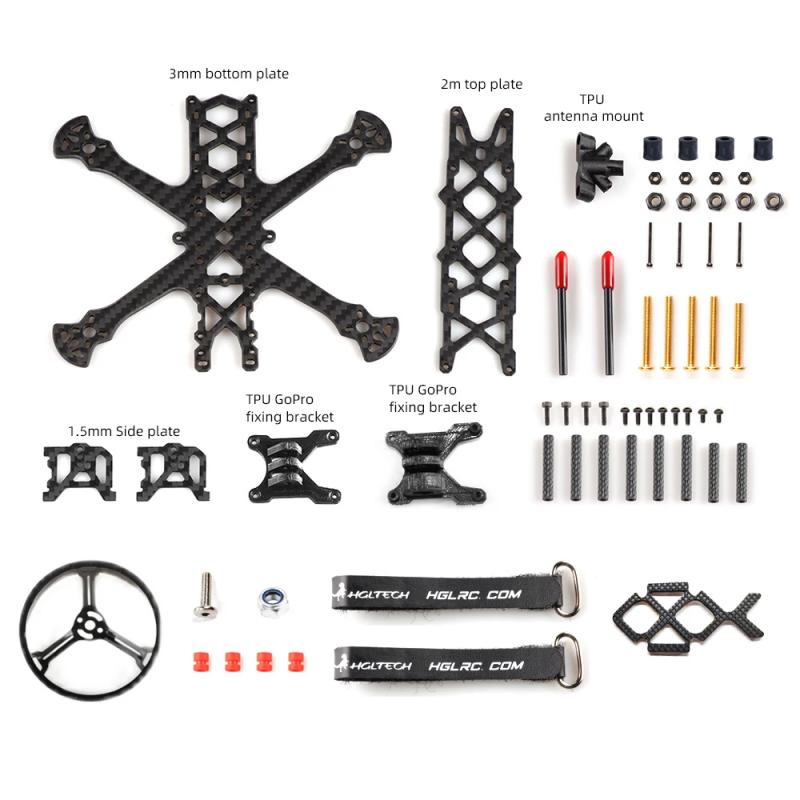

INCLUDED:

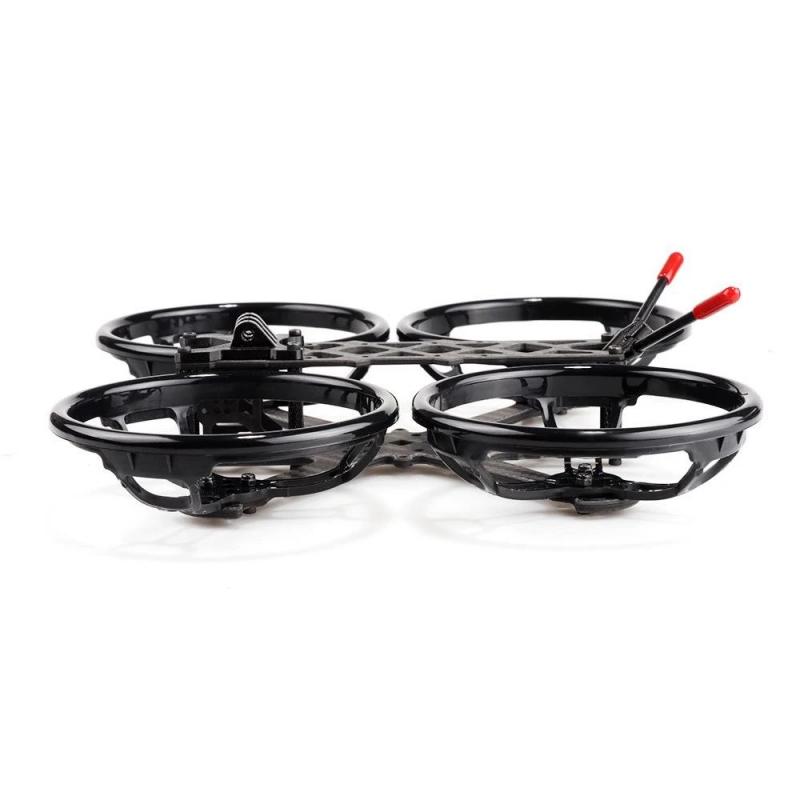

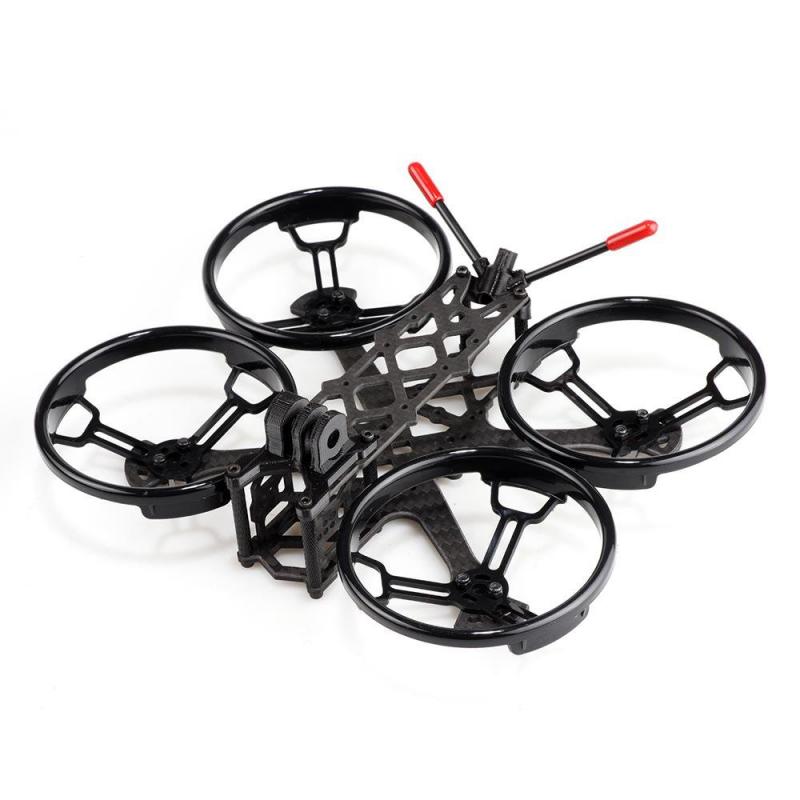

- 4 x 3 Inch Propeller Protective Guard
- 1x 2mm top plate
- 1x 3mm bottom plate
- 2x 1.5mm camera side plate
- 6x M2*25mm black mesh aluminum columns
- 2x M2*23mm black mesh aluminum columns
- 1x round head screw M5*20
- 4x round head screws M3*25
- 1x round head screw M3*20
- 4x round head screws M2*20
- 8x cup head screws M2*7
- 6x round head screws M2*6
- 2x round head screws M2*4
- 1x M5 self-locking nut
- 5x M3 self-locking nuts
- 4x M2 self-locking nuts
- 4x M3*8 shock absorbing balls
- 4x M2*4 shock absorption columns
- 2x battery straps 15x200mm
- 1x battery anti-slip pad
- 1x Black TPU GoPro fixing mount
- 1x Black TPU Naked GoPro fixing mount
- 1x TPU antenna base
