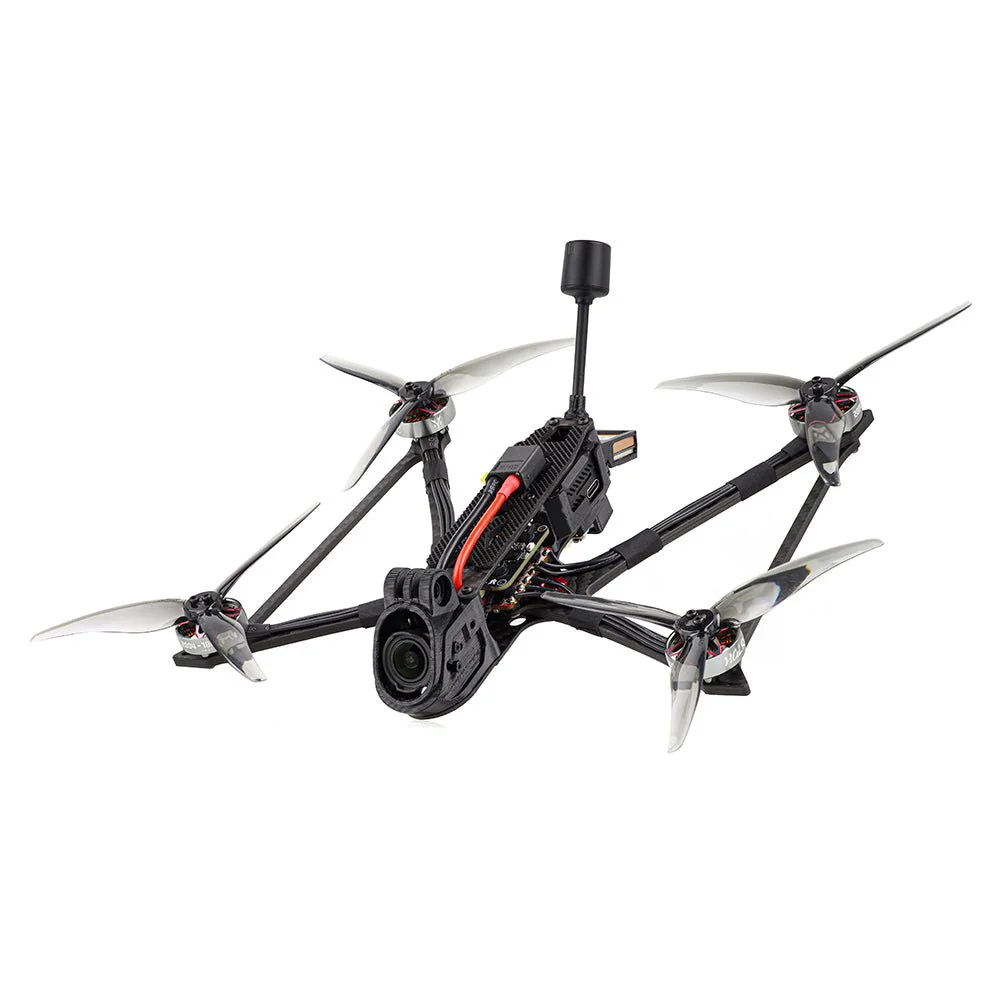

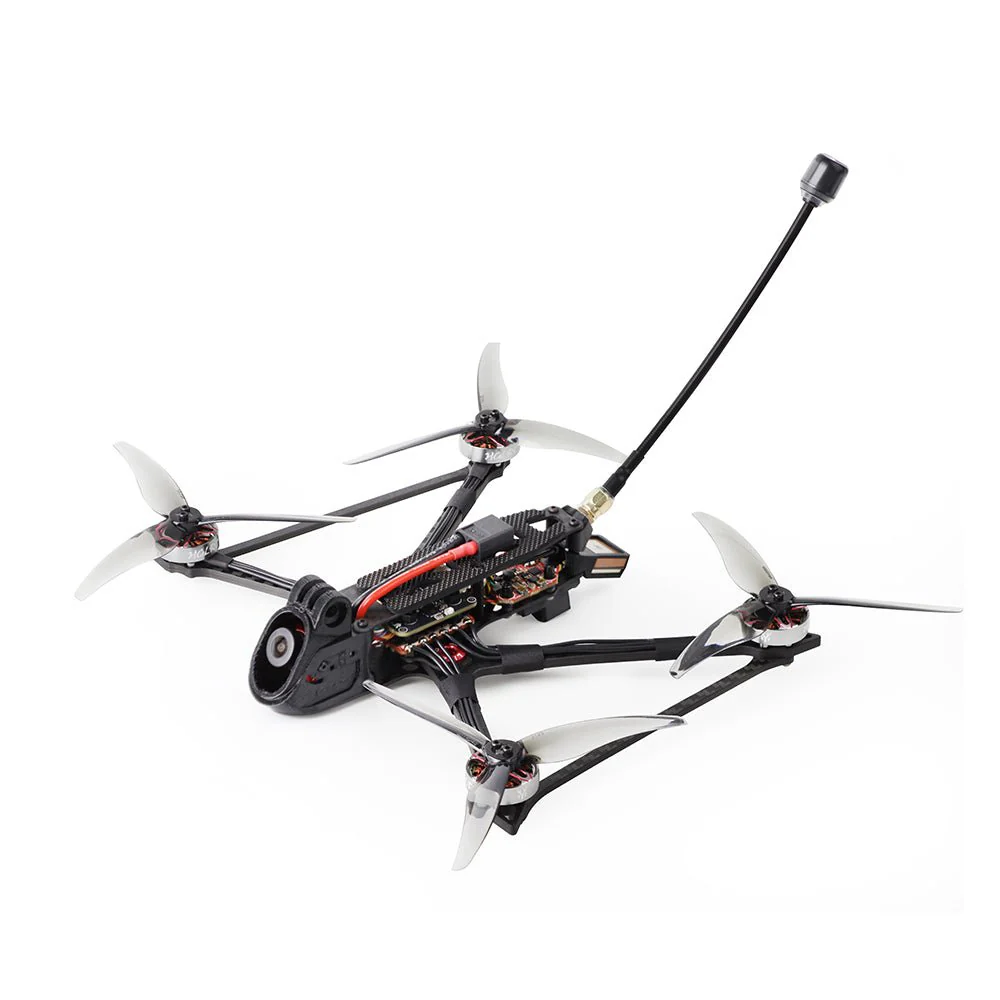

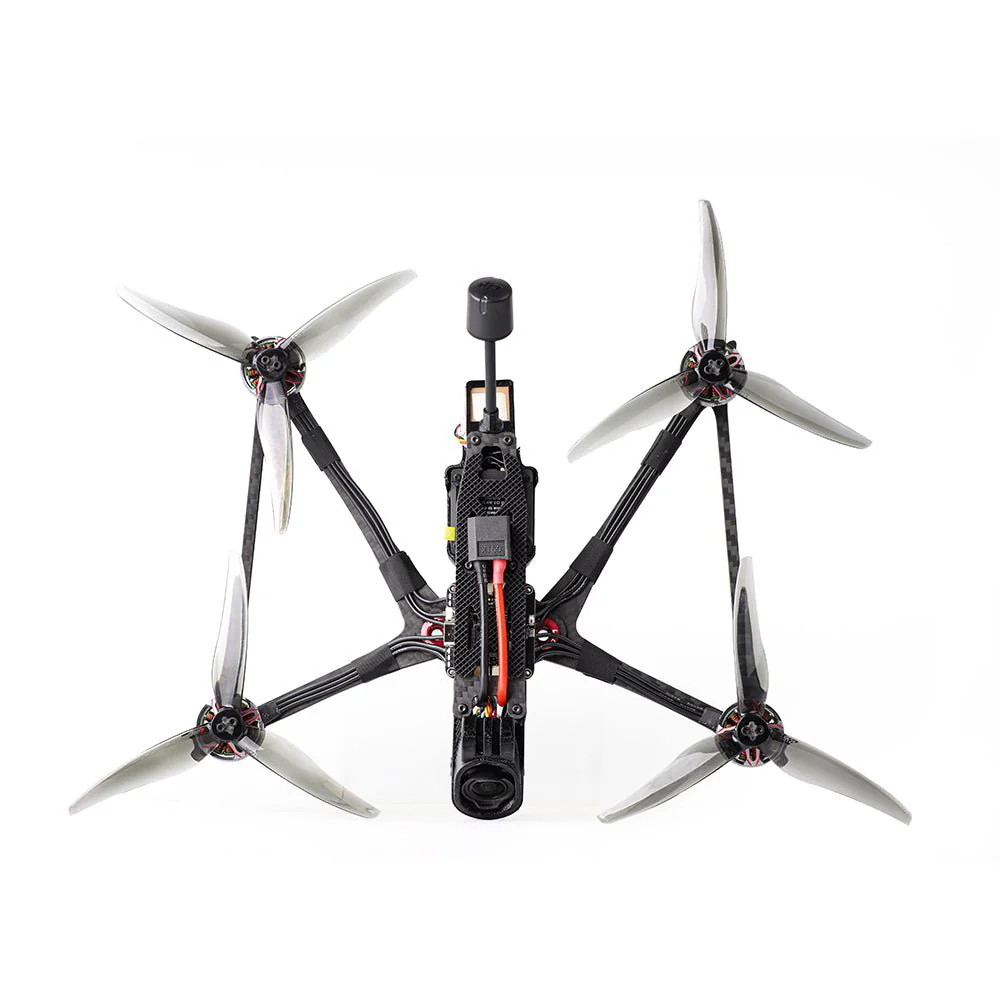

HGLRC Rekon5 Mini Long Range Quad Analog Version – PNP

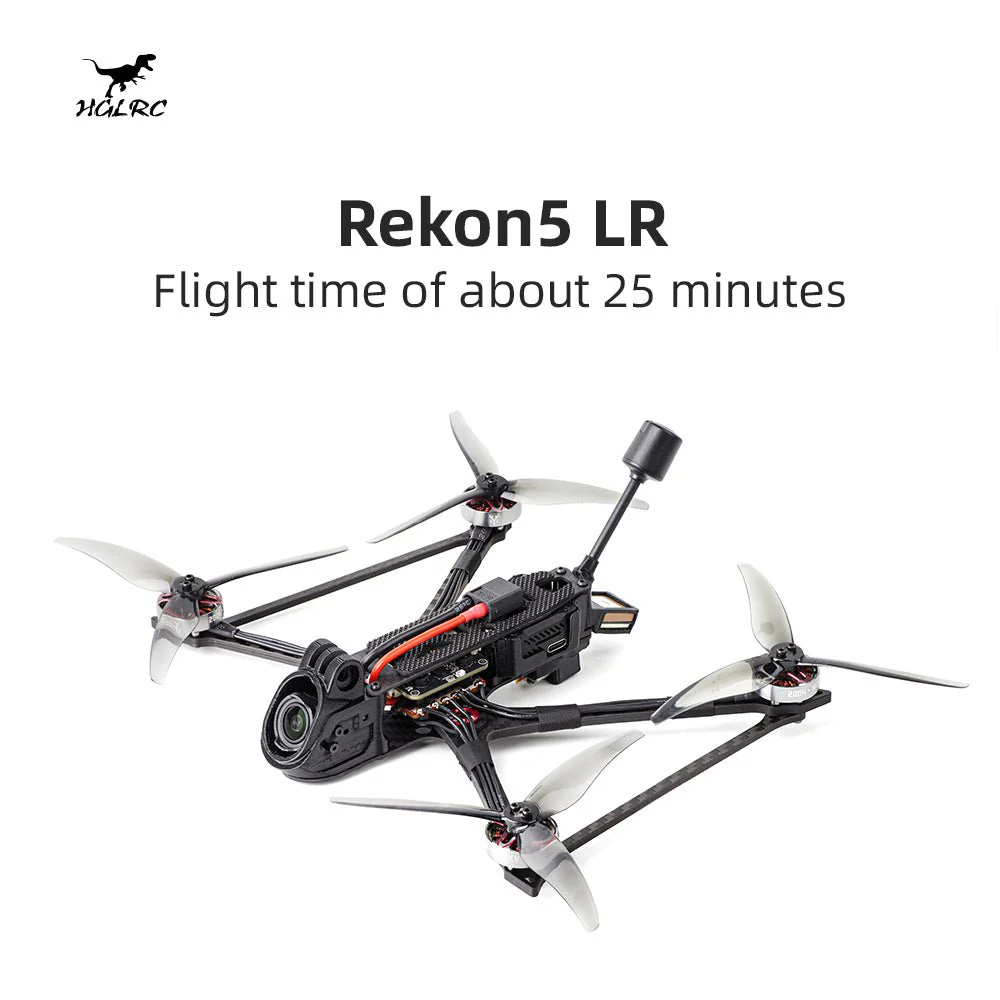

The Rekon 5 is a platform based on the designs of Dave_C FPV, the goal for this build was to maximize flight times while carrying a larger battery and action camera. The extreme efficiency of the larger 2004 motors allow for long flights while also maintaining a higher cruising speed. Aside from the standard essentials of FPV builds the Rekon 5 include long-range must-haves like a GPS, buzzer, and extended antenna.

FEATURES:

• Lightweight frame with aluminum bolts, compact 25/20mm standoff split deck main body for double 20×20 stacks
• Naked camera mount for Naked GoPro or SMO 4K
• Foldable T antenna mount for R9, CRSF, etc
• Mild dead cat design gets props out of view while still performing
• Optional braces for durability and rigidity
• Optimized for 2004 motors with 12×12, M2 mounts
• M80 GPS with TPU mount
• External buzzer mount for Soter Buzzer

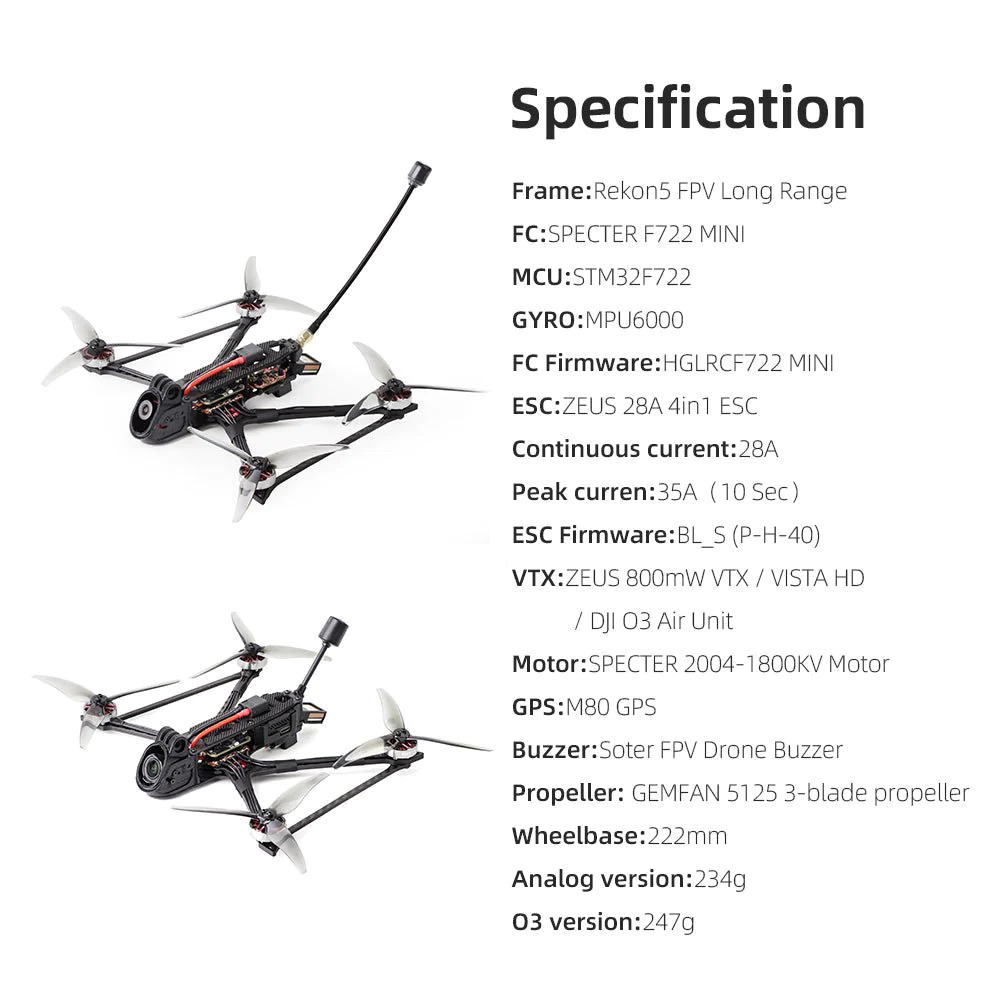

SPECIFICATIONS:

• Net Weight: 218.5g(Weight without receiver)

Rekon Frame 5 inch

• Type: 5″ frame
• Wheelbase: 210mm
• Support for propellers: Up to 5 inches
• Overall size: 210x155mm
• Weight: 53g (Including TPU)

Zeus F722 mini Flight Controller

• MPU: MPU6000
• CPU: STM32F722 RET6
• Input Voltage: 3-6S Lipo
• BEC Output: 5V/3A,9V/2A
• Weight: 8.1g

Zeus 30A BL32 3-6S 4in1 ESC

• CPU: STM32F051
• Input Voltage: 3-6S Lipo
• Steady Current: 30A
• Peak Current: 35A（10 Sec）
• Weight: 7g

Zeus 5.8GHz 25-800mW VTX

• Output power: PIT/25/100/200/400/800mW
• Input: DC 6-26V
• Antenna: MMCX
• Weight: 4.8g

Caddx Ratel V2 FPV Camera

• Image Sensor: 1/1.8 ” 1200TVL CMOS
• Input Power: DC 5V
• Dimensions: 19x19x20mm
• Net weight: 5.9g

HGLRC Aeolus 2004 Micro Motor

• Kv: 1800KV(6S)
• Recommended Prop(inch): 5Inch
• Weight: 16.6g

M80 GPS

• Power Supply: 5V
• Size: 18.5×18.5×7.1mm
• Weight: 9.4g

Soter FPV drone buzzer

• Input voltage: 5V
• Size: 22mm x 12mm x12

SUGGESTED BATTERY:

• The 4S version comes with 3000Kv motors and we recommend using 850-1800mAh 4S LiPo packs.
• The 6S version comes with 1800Kv motors and we recommend using 550-1300mAh 6S LiPo packs.
• For maximum flight times, both versions can run on 3000mAh 4S Li-Ion packs

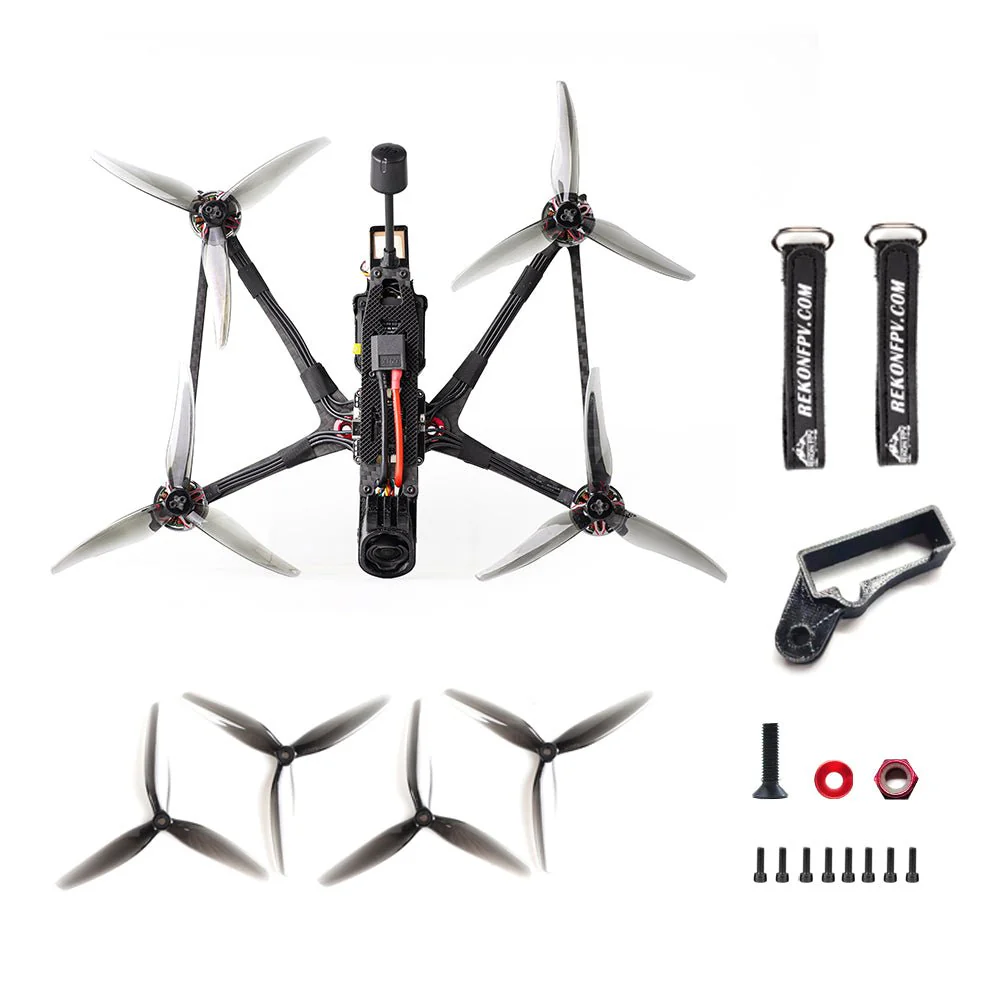

PACKAGE INCLUDES:

• 1x HGLRC BNF Rekon 5 5″ Long Range Quad
