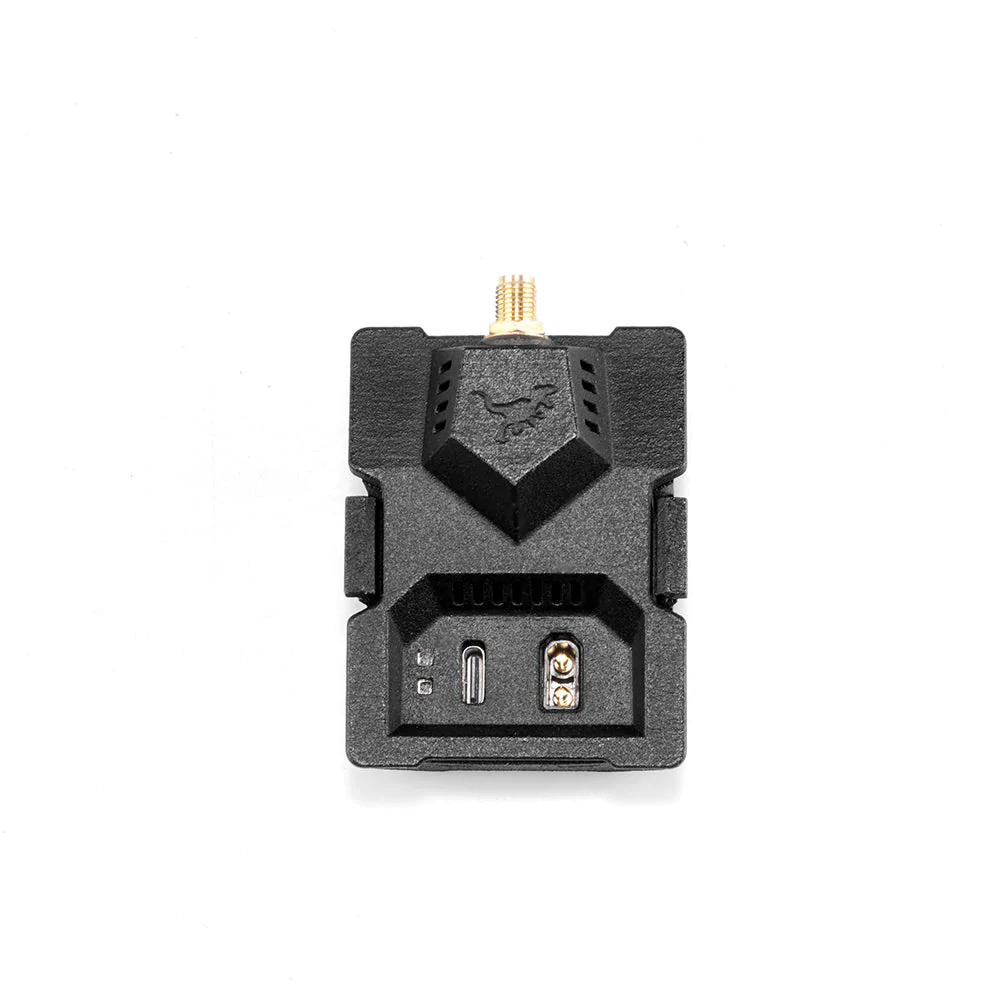

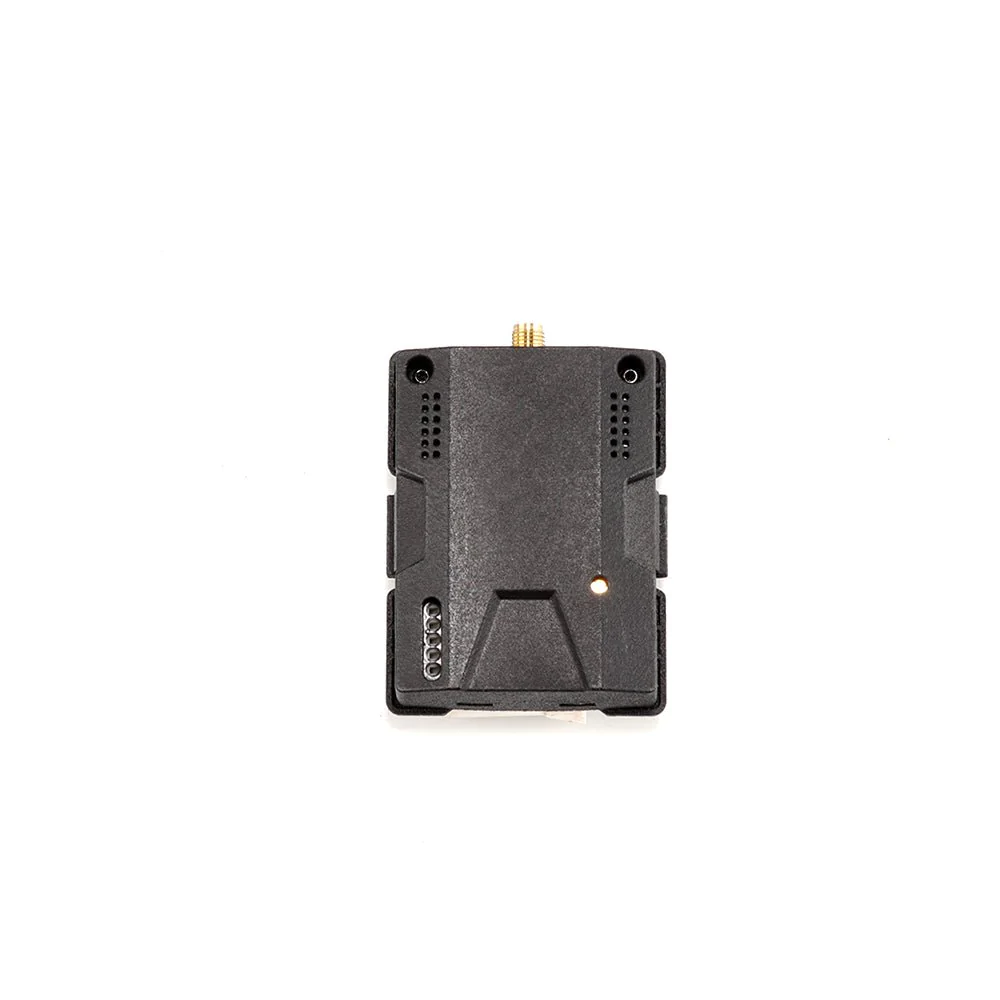

HGLRC Hermes ExpressLRS 2400TX Transmitter Module

HGLRC Hermes ExpressLRS 2400TX TX transmitter module for FPV racing drone, long distance extended range module

Transmitter module features:
1. Hermes ExpressLRS 2400TX TX module is currently the module with the lowest delay and the highest refresh rate on the market. It has an ultra-high refresh rate of 500Hz and is specially designed for FPV racing.
2. ExpressLRS firmware is pre-installed. You will only need a remote controller that supports OpenTX, and use the LUA script to configure the parameters.
3. To upgrade the module, you can connect it to Wifi, and then visit 10.0.0.1 (Wifi password expresslrs) through the browser to update the firmware.
4. Comes with heat dissipation module, which helps effectively dissipate heat under high power conditions for stable operation.

Product name:HGLRC Hermes ExpressLRS 2400TX transmitter module
Frequency Range:2400 MHz
Receiving refresh rate:25Hz-500Hz
RF Output Power:10dBm – 24dBm
Support voltage:6.5-17V
Antenna gain:2dBi
Size:68mm * 48.5mm * 8mm
JR standard 5pin socket

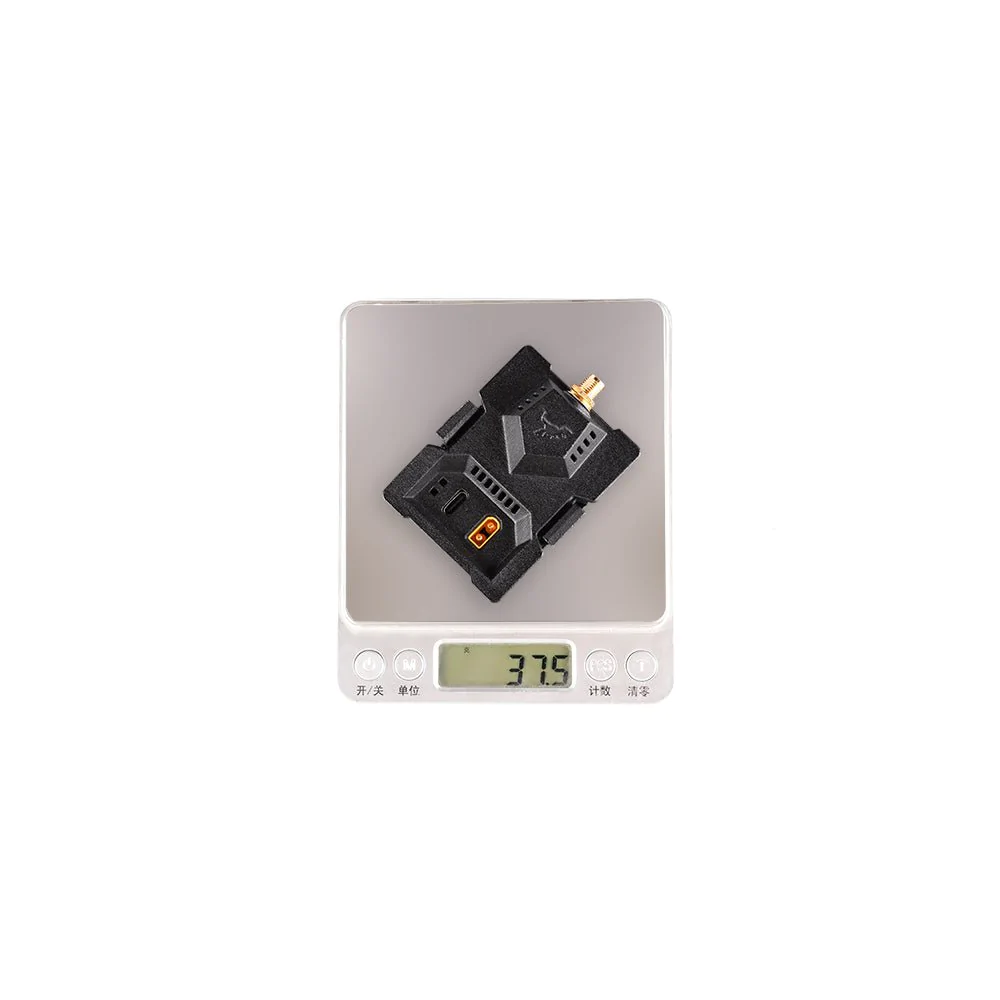

Weight:37.5g (without antenna)

Packing List :

Module
1*HGLRC Hermes ExpressLRS 2400TX Module

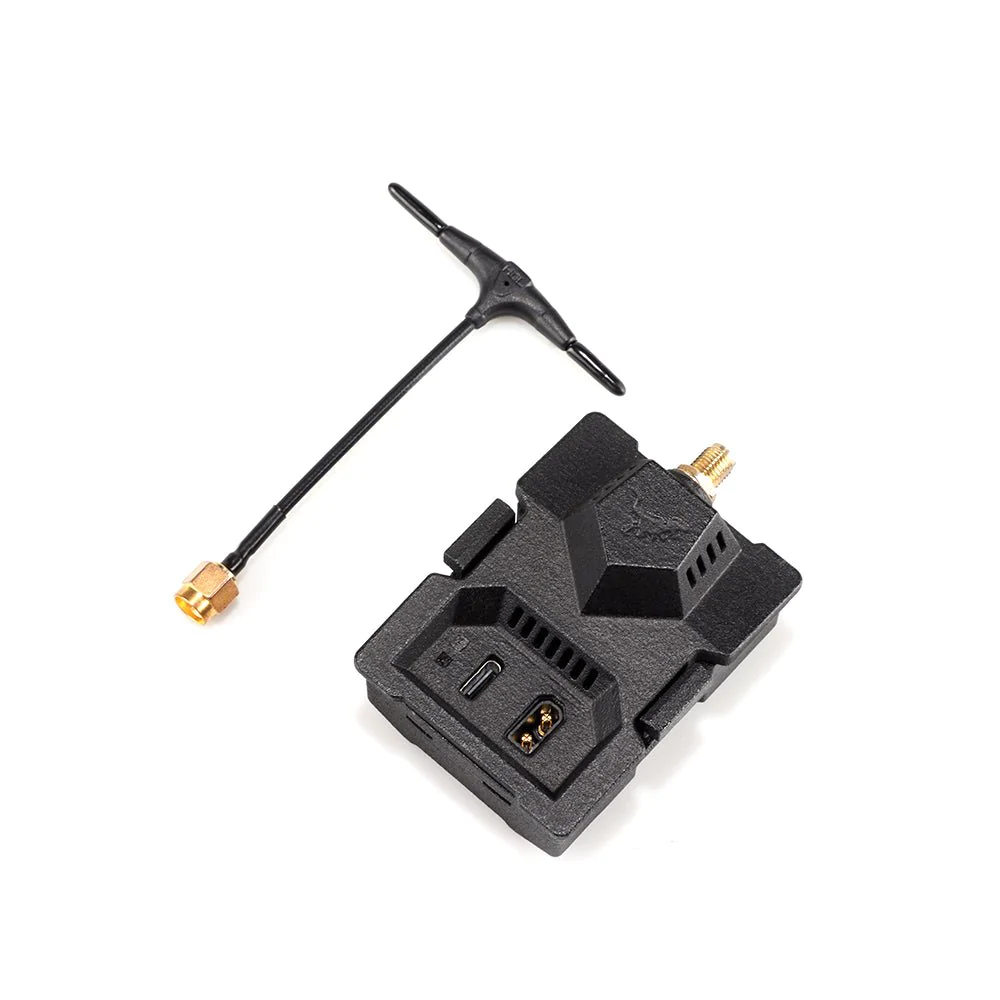

1*Antenna

Module Kit

1*HGLRC Hermes ExpressLRS 2400TX Module

1*Antenna

2*HGLRC Hermes ExpressLRS 2400RX-T Recever
