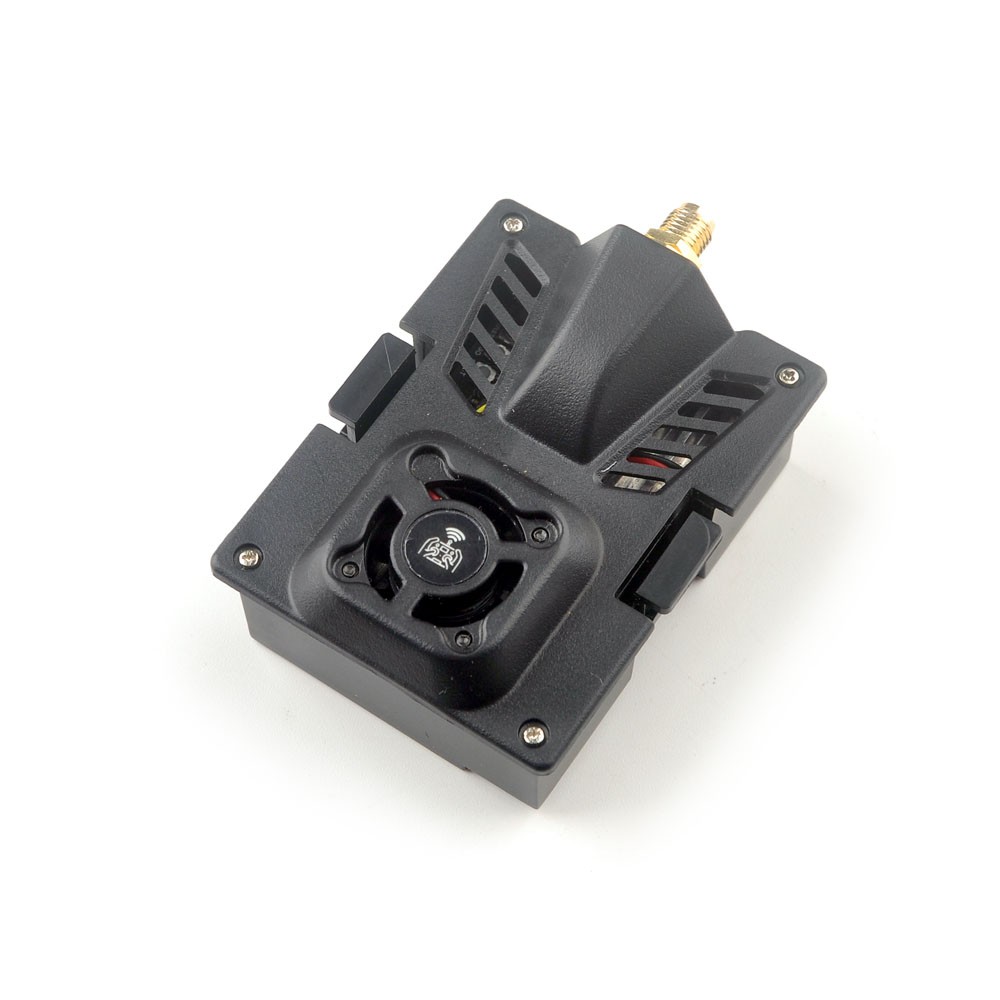

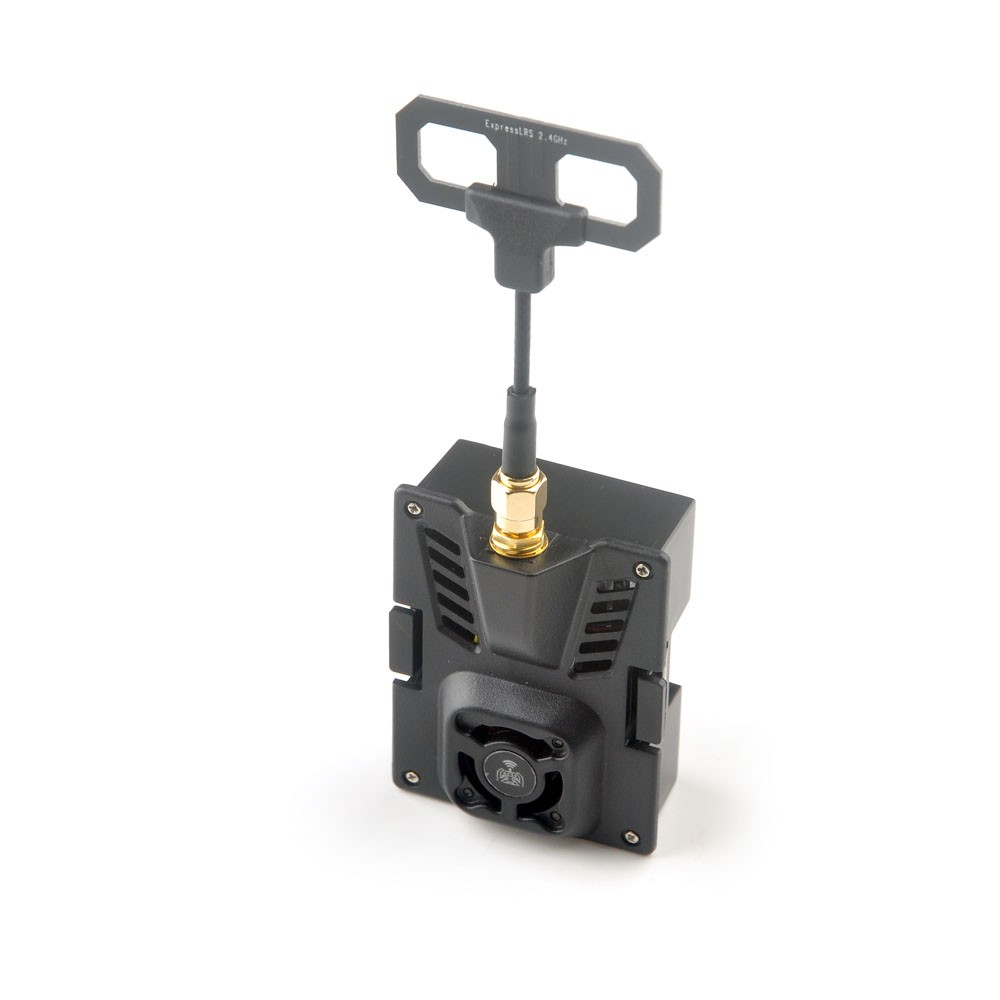

The ES24TX Pro Micro ExpressLRS TX module is an upgraded version of the ES24TX module.
The ES24TX Pro comes with improvements over the original. Max output power now up to 1000mw, reserved cooling fan, and an RGB LED module. This Micro TX module supports most OpenTX radio transmitters with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of the factory.
- Regulatory Domain: ISM2400
- MCU:ESP32(main),ESP8285(aux,as espbackpack)
- RF chip: SX1281IMLTRT
- JR standard 5pin socket
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- RF Output Power: >30dBm
- Power supply voltage: 5v~10v
- Weight: 51gram(without antenna）
- Dimension: 70mm*49mm*32.5mm
- Antenna gain: 4.18dBi
- Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX

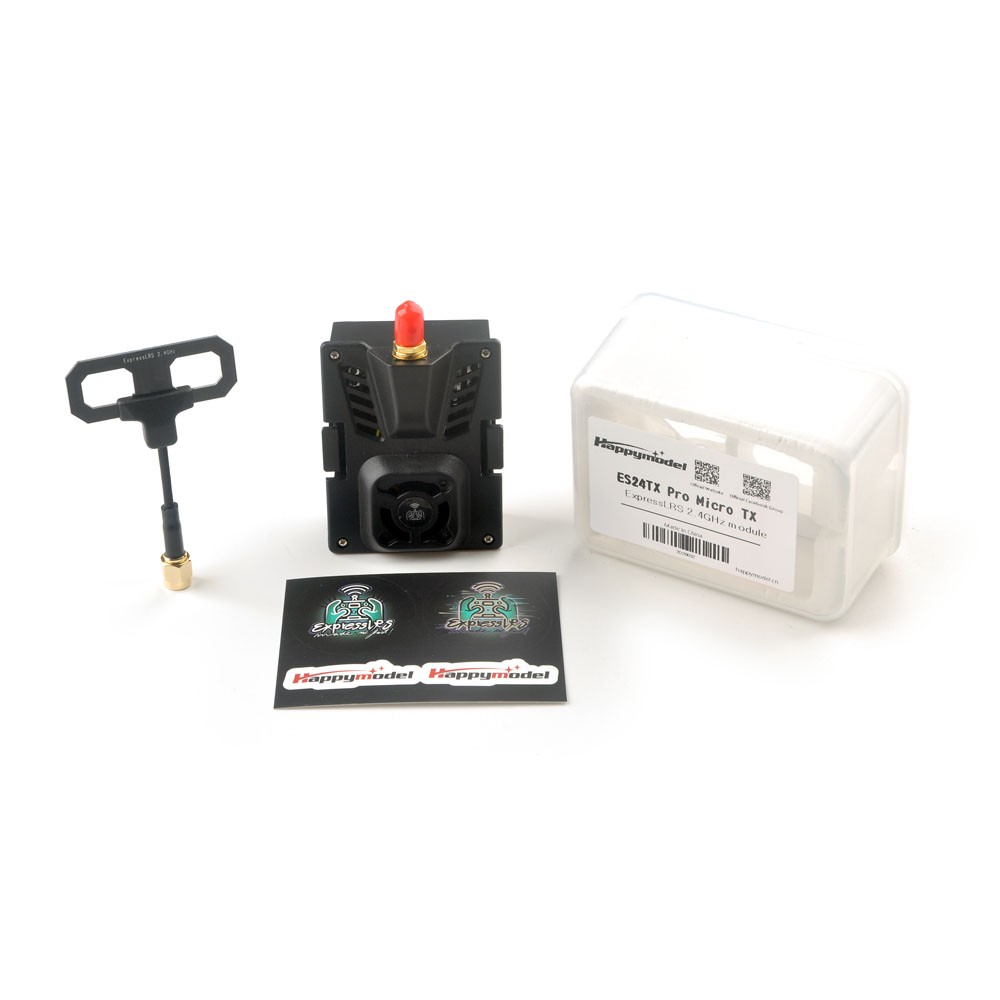

- ES24TX Pro Micro TX module *1
- Happymodel 2.4GHz Moxon antenna *1
