    Home Radio & Receiver Radio Receivers FrSky R-XSR 2.4GHz 16CH ACCESS/ACCST Micro Receiver w/ S-Bus & CPPM
    FrSky

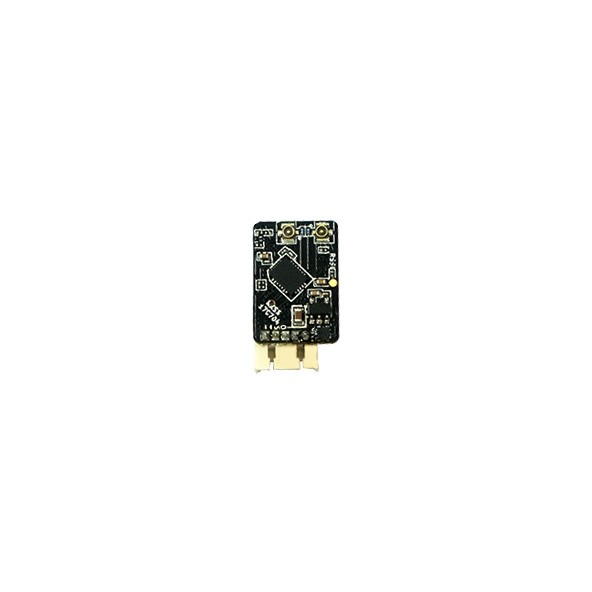

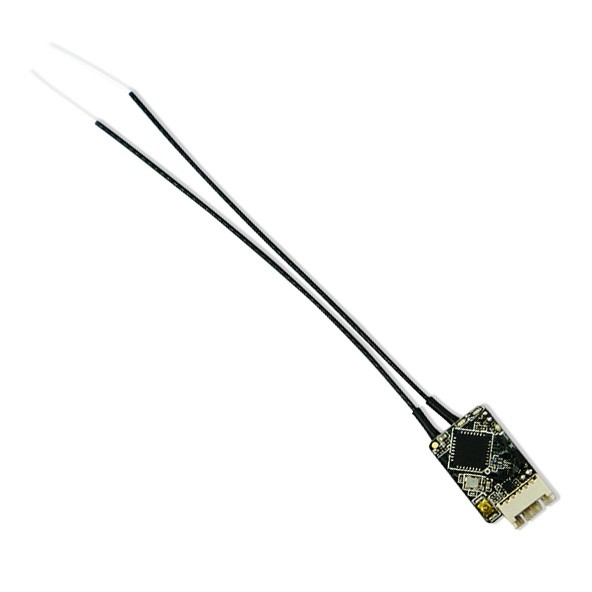

    FrSky R-XSR 2.4GHz 16CH ACCESS/ACCST Micro Receiver w/ S-Bus & CPPM

    ₹2,299 ₹1,999

    This is the smallest full telemetry SBUS receiver from FrSky. FrSky R-XSR 2.4GHz 16CH ACCST Micro Receiver w/ S-Bus & CPPM.

    Out of stock

    Notify me when the item is back in stock.

    Compare
    Add to wishlist
    Categories: Radio Receivers, Radio & Receiver
    Share:
    • Description
    • Additional information
    • Reviews (0)
    • Shipping & Delivery
    Description

    Frsky R-XSR receivers are now coming installed with ACCESS firmware. To bind with ACCST only radios, a firmware update is required. Firmware can be found here: https://www.frsky-rc.com/r-xsr/ (Select history firmware download for ACCST 1.0 firmware)



    The FrSky ultra mini receiver R-XSR is the evolution of the popular full range XSR receiver. The R-XSR is a standalone receiver with all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The R-XSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas.

    Features

    • Ultra mini size and light weight
    • Support telemetry and Smart Port enabled
    • Full range
    • Switchable SBUS/ CPPM signal output
    • Supports redundancy function

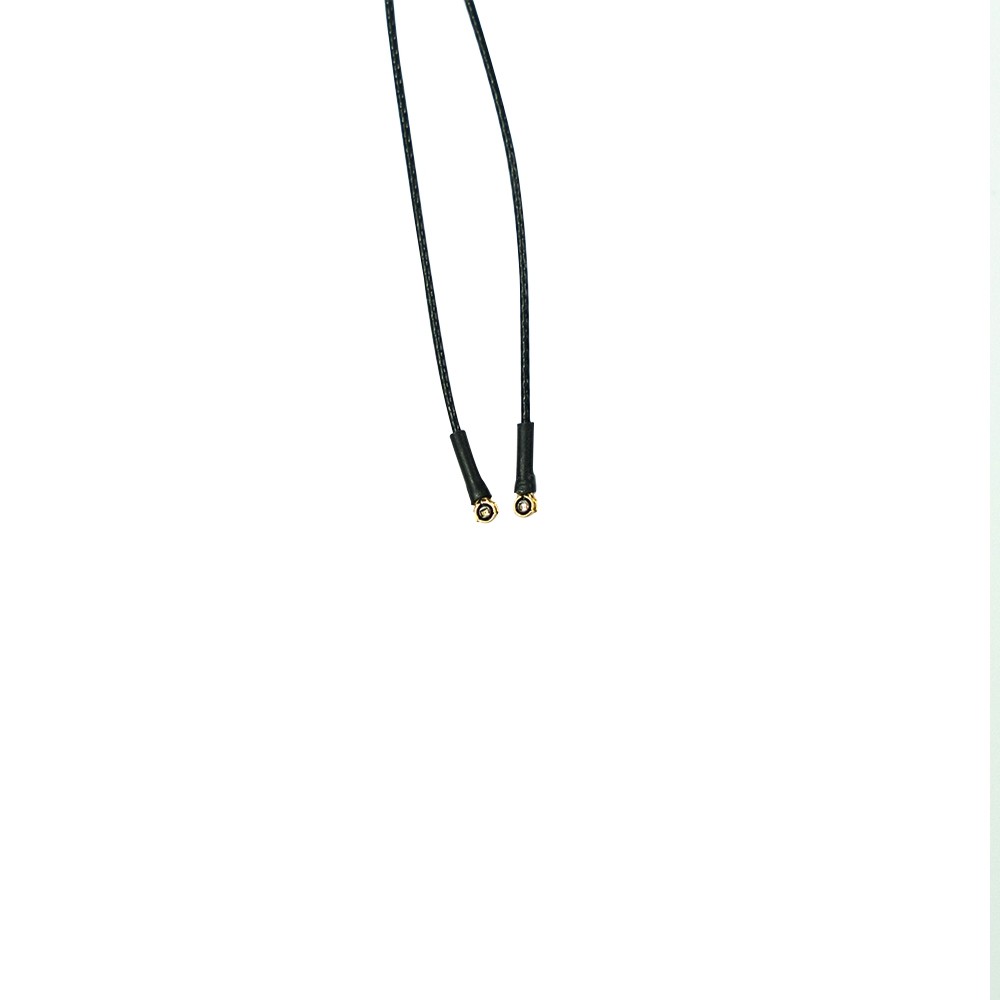

    • IPEX connector, replaceable antennas

    Specifications

    • Dimension: 16*11*5.4mm (L*W*H)
    • Weight: 1.5g
    • Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
    • Operating Voltage Range: 4~10V
    • Firmware Upgradable
    • Compatibility: FrSky X Series modules and radios in D16 mode

    Downloads

    • Download the R-XSR Manual here.
