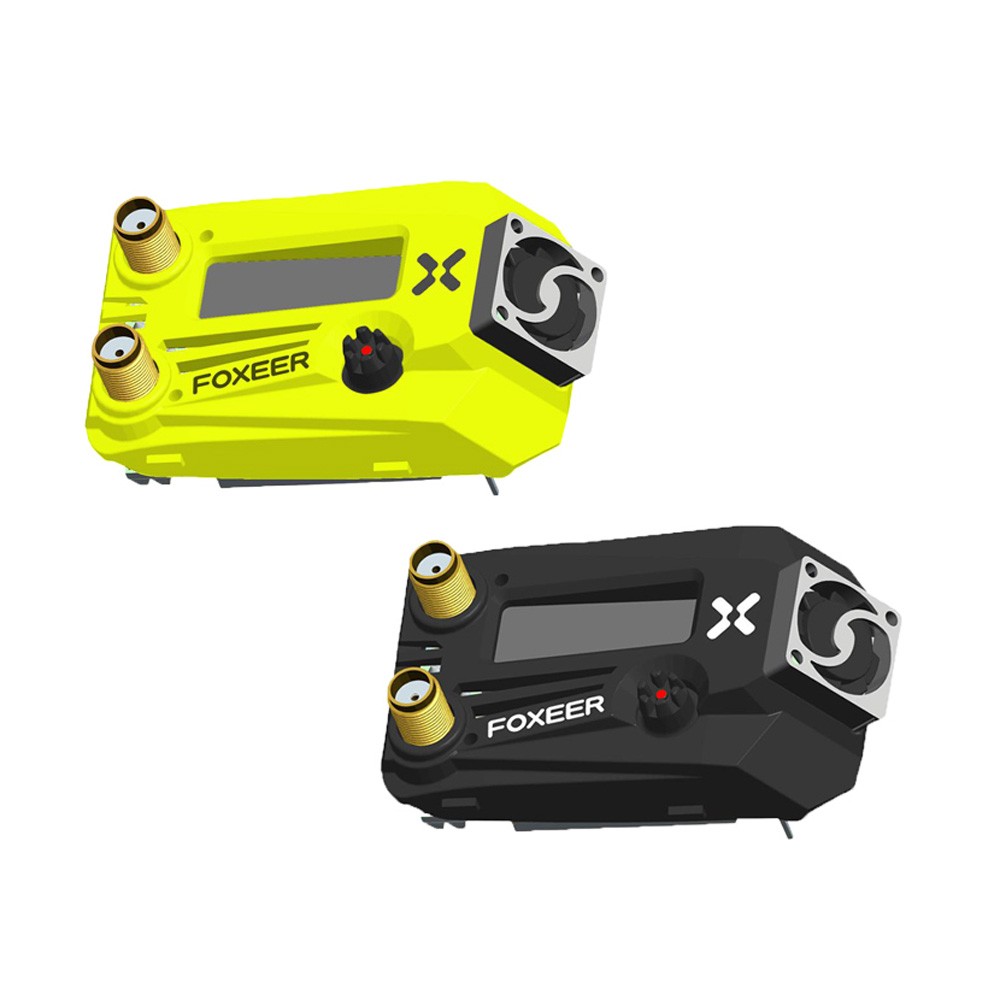

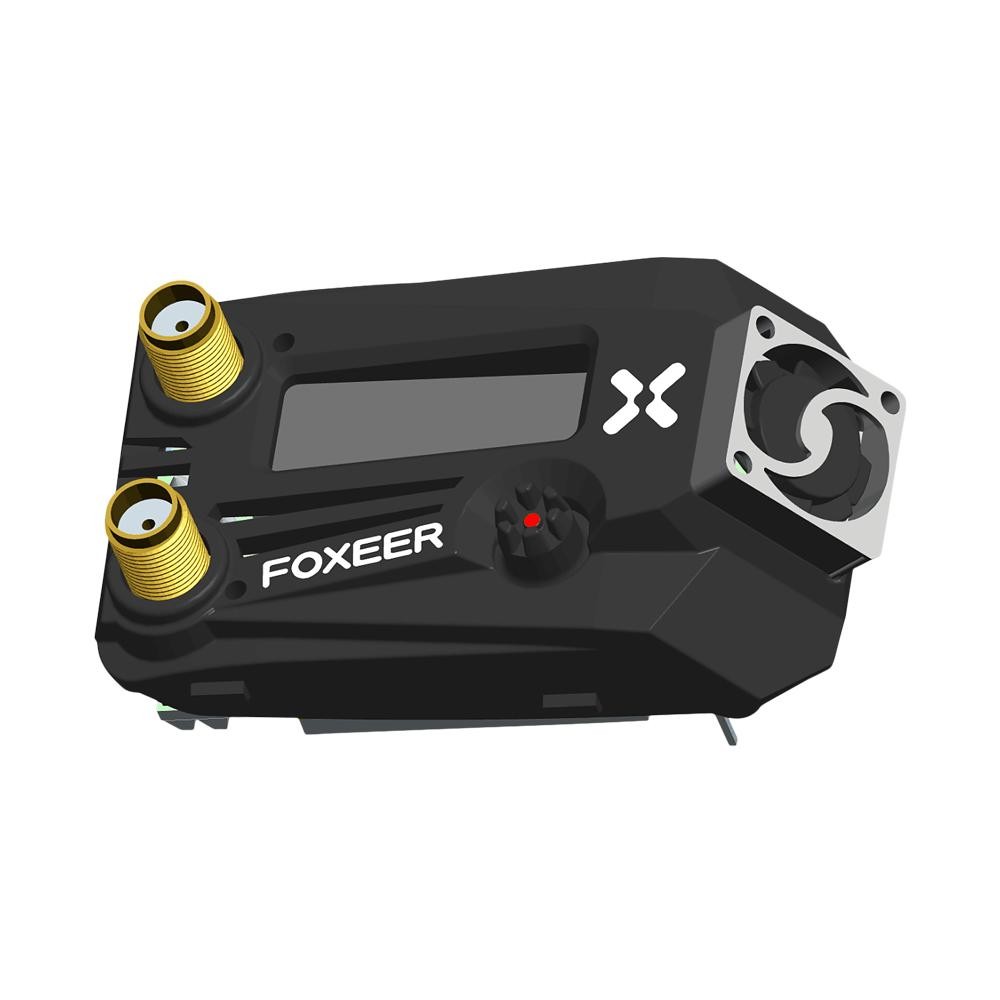

The Foxeer Wildfire is a 5.8GHz receiver module that is compatible with all Fat Shark Dominator Goggles. The Foxeer Wildfire uses the latest technology in RF to improve the FPV feed even in multi-path environments. It features an anti-rolling shutter technology, to help avoid desync pictures, by changing to a standard diversity receiver under a low RSSI value. Supports OSD and Firmware Update and includes an OLED Screen.
Features
- OLED Screen
- Supports OSD and Firmware Update
- 5-Way Button
- 5~16V
- 1504 Fan
Specifications
- Brand Name: Foxeer
- Item Name: Wildfire
- Compatibility: All Fatshark series goggles (V1,V2,V3,HD1,HD2,HD3,SE, HDO and HDO2)
- Appearance: OLED screen, 5-way Button, Micro-USB, 1504 Fan (made by Taiwan)
- Menu: Channel, Favorites, Finder, Band Scan, Setting
- Frequency: 5.8G 72CH
- RF Sensitivity: -98dBm
- Update: Support OSD and Firmware Update
- Power Consumption: 5V 400mA±10%
- Power Requirement: 5~16V

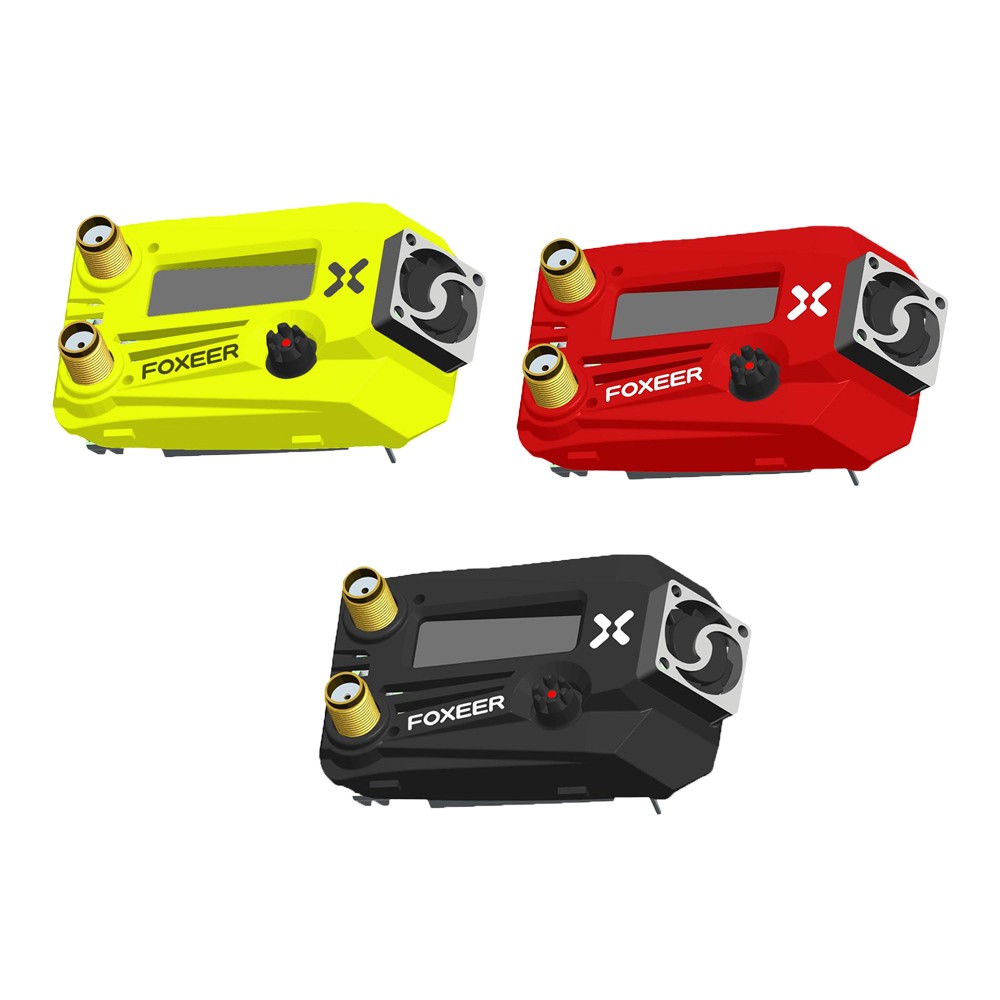

- Color(optional): Black, Fluorescent Green, Red
- Weight: 30g
Compatibility Fit FatShark HD Series directly, 3D STL case file (download part) is provided for attitude series Appearance OLED Screen 5 Way Button Micro USB 1504 Fan(Made in TanWan) Menu Channel Favorites Finder Band Scan Setting Frequency 72CH RF Sensitivity -98dBm Update Firmware Update Via USB Consumption 400mA±10%@5V Input Voltage 5~16V Language ENGLISH Working Humidity 20~80% Storage Temperature -20°~70°C Weight 30g Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885 5905 5925 5945 Band F 5740 5760 5780 5800 5820 5840 5860 5880 Band R 5658 5695 5732 5769 5806 5843 5880 5917 Band H 5653 5693 5733 5773 5813 5853 5893 5933 Band L 5333 5373 5413 5453 5493 5533 5573 5613 Band U 5325 5348 5366 5384 5402 5420 5438 5456 Band O 5474 5492 5510 5528 5546 5564 5582 5600
Includes
- 1 x Foxeer Wildfire 5.8GHz 72CH Goggle Receiver Module
