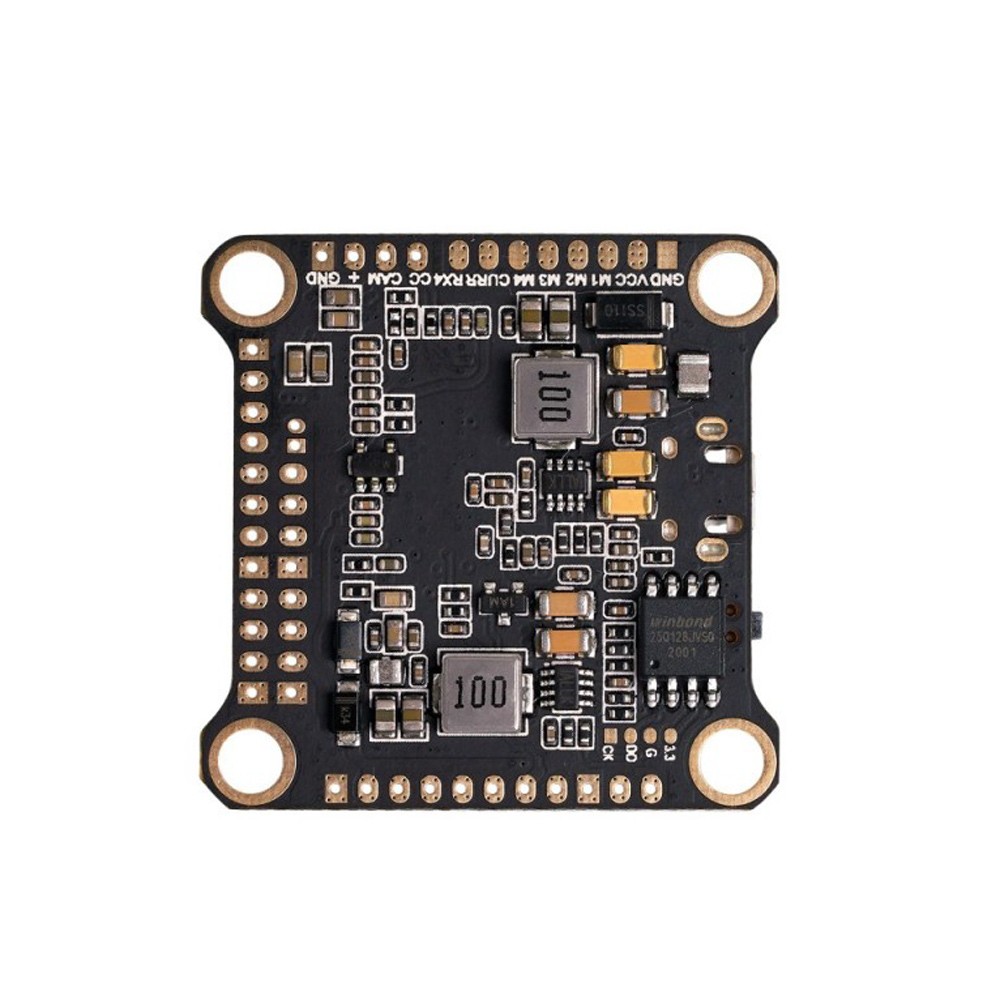

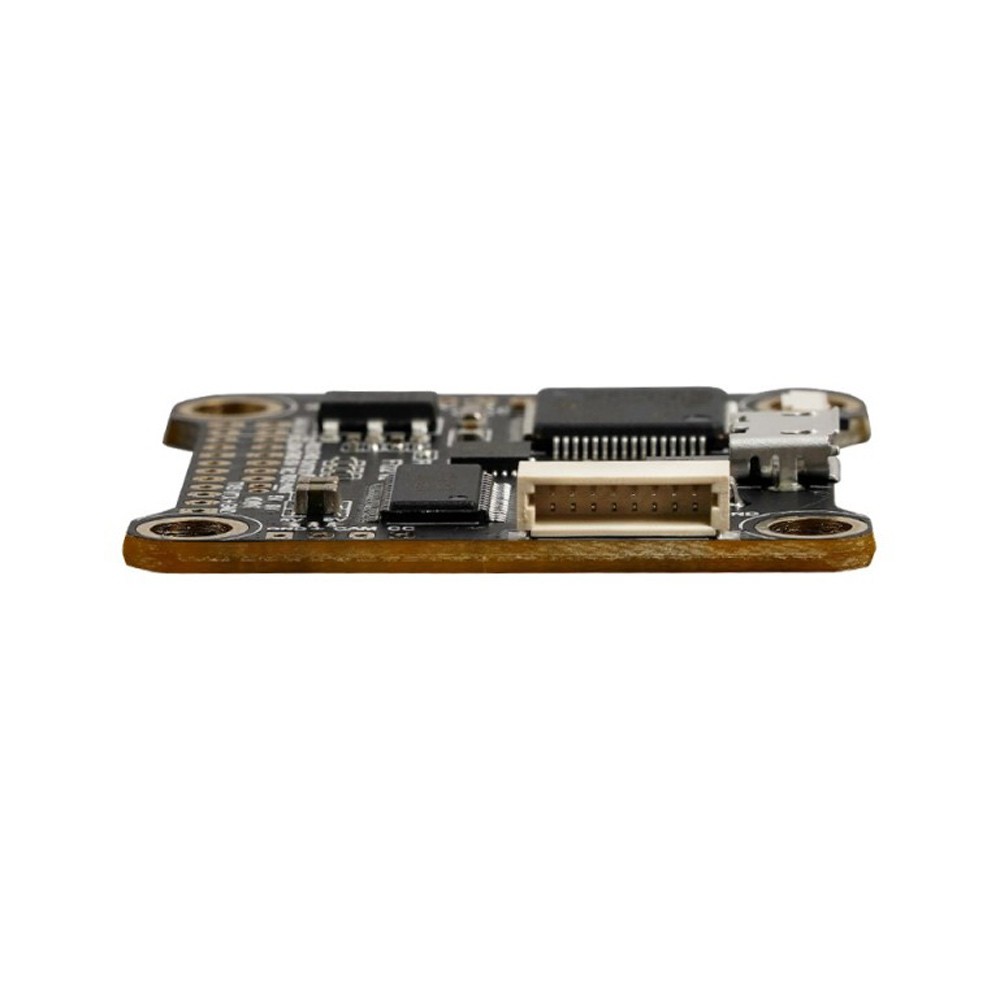

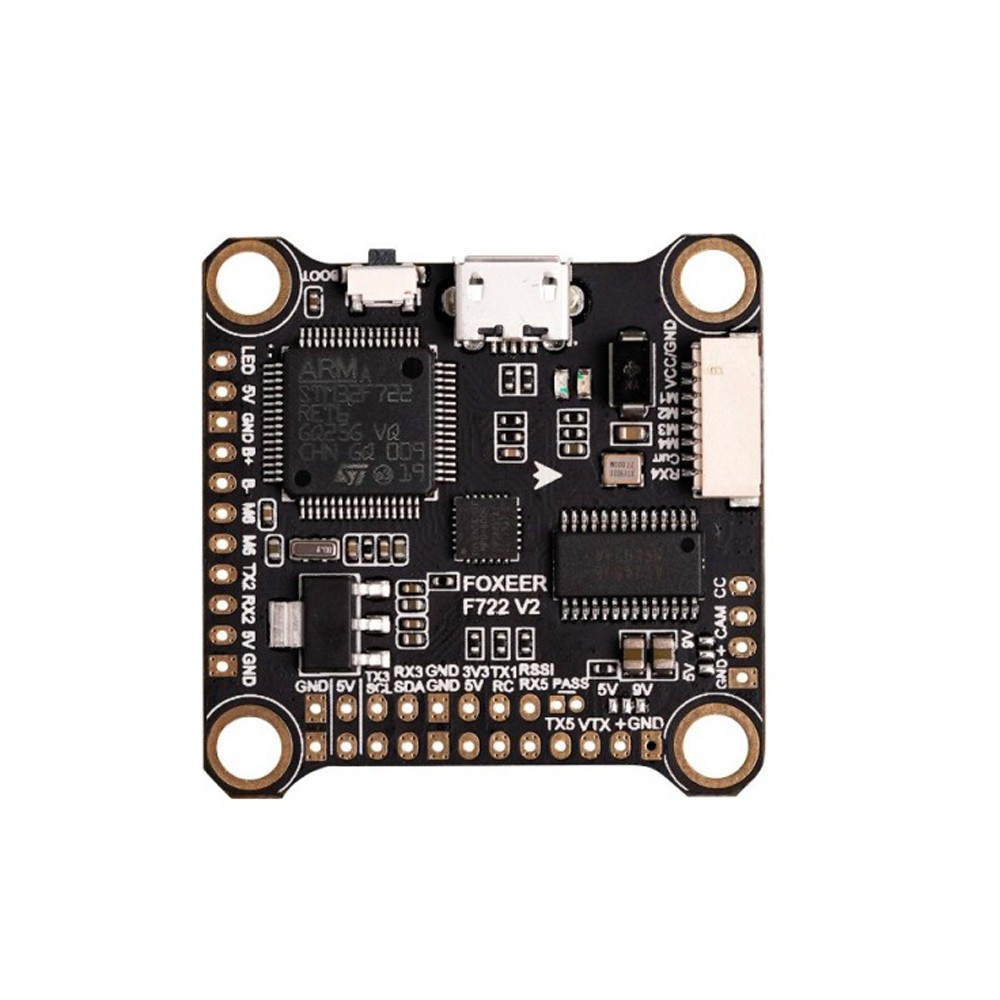

Foxeer F722 V2 3-6S Flight Controller

The Foxeer F722 V2 Flight Controller features CPU STM32F722RET6, GYRO MPU6000, has an excellent layout, 3-6S LIpo, includes five st of UARTS and has great filtering. You can connect this FC to your Foxeer cam OSD pin and remote control the camera menu without doing any setup. Another cool feature is the PASS function, which allows you to wire up your quad when using Crossfire and you can also connect this FC to your DJI FPV Digital HD System.

Specifications

• Model: F722 V2
• CPU: STM32F722RET6
• Power Supply: 3~6S Lipo (11V~30V)
• BEC Output: DC5V/2A; DC9V/2A
• OSD: BF OSD
• Black Box: 16M Flash Memory
• UART: 5 Set
• ESC Telemetry: RX4
• Buzzer: YES
• Smart Audio: YES
• LED: 1 Set 2812 LED
• USB: Micro USB
• Fireware: FOXEERF722V2(FOXE)
• Size: 37X33mm
• Mounting Hole: 30.5X30.5mm,Φ4mm
• Weight(g): 7.6g
• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃ ~ +70℃

Includes

• 1 x Foxeer F722 V2 3-6S Flight Controller
