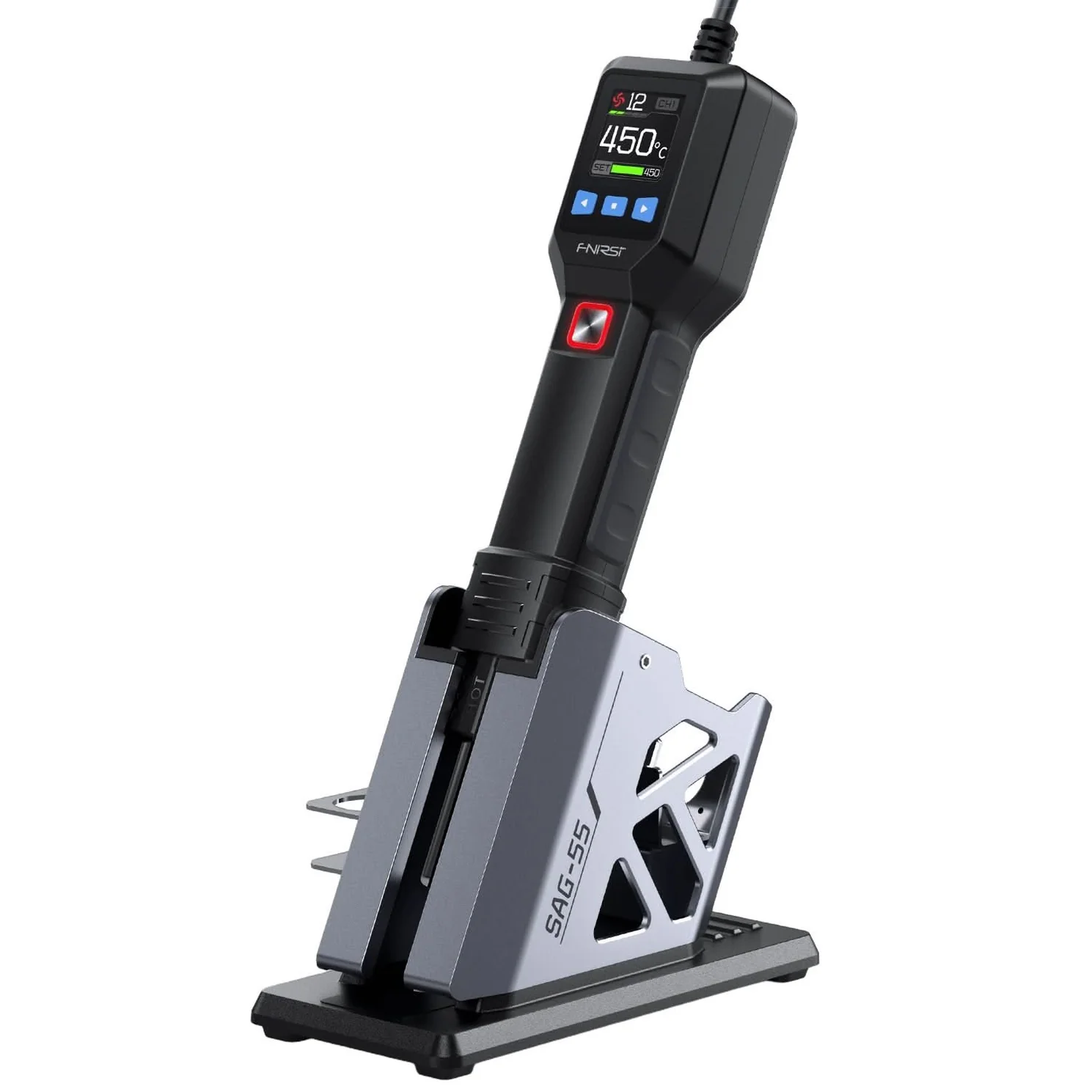

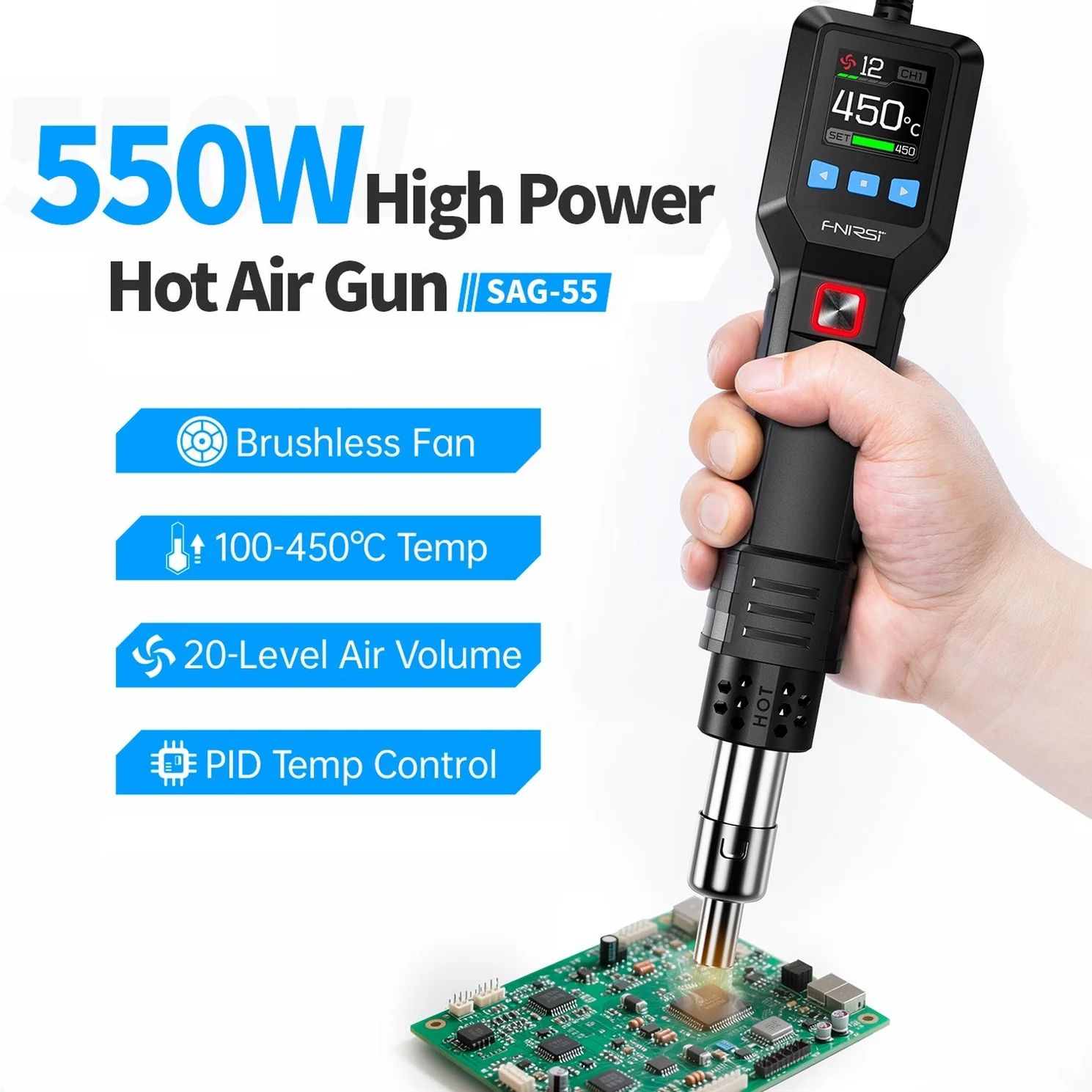

The SAG-55 Intelligent Hot Air Gun is a newly launched portable smart hot air gun designed to meet various application needs. It uses a microcontroller with PID precise temperature control technology, ensuring rapid heating with minimal thermal shock, which extends the lifespan of the heating element. The brushless fan supports adjustable wind speeds from levels 1 to 20, providing low noise, long life, and adaptability to different work environments.
The handle integrates a magnetic sensor that automatically heats up when picked up and cools down into standby mode when returned, making operation simple. The controller and display screen on the handle allow for effortless one-handed adjustment of temperature and wind speed. It also supports three sets of quick temperature/wind speed presets for fast switching.The fast cooling function accelerates cooling, further extending the heating element’s lifespan. Real-time monitoring by various sensors ensures the device shuts off heating in case of any abnormalities, ensuring safety. The LCD display and LED indicator clearly show working status and temperature changes.
With its ergonomic handle design for a comfortable grip and compact, portable build, the SAG-55 is the ideal choice for professionals and DIY enthusiasts alike.
The handle integrates a magnetic sensor that automatically heats up when picked up and cools down into standby mode when returned, making operation simple. The controller and display screen on the handle allow for effortless one-handed adjustment of temperature and wind speed. It also supports three sets of quick temperature/wind speed presets for fast switching.The fast cooling function accelerates cooling, further extending the heating element’s lifespan. Real-time monitoring by various sensors ensures the device shuts off heating in case of any abnormalities, ensuring safety. The LCD display and LED indicator clearly show working status and temperature changes.
With its ergonomic handle design for a comfortable grip and compact, portable build, the SAG-55 is the ideal choice for professionals and DIY enthusiasts alike.
Key Features:

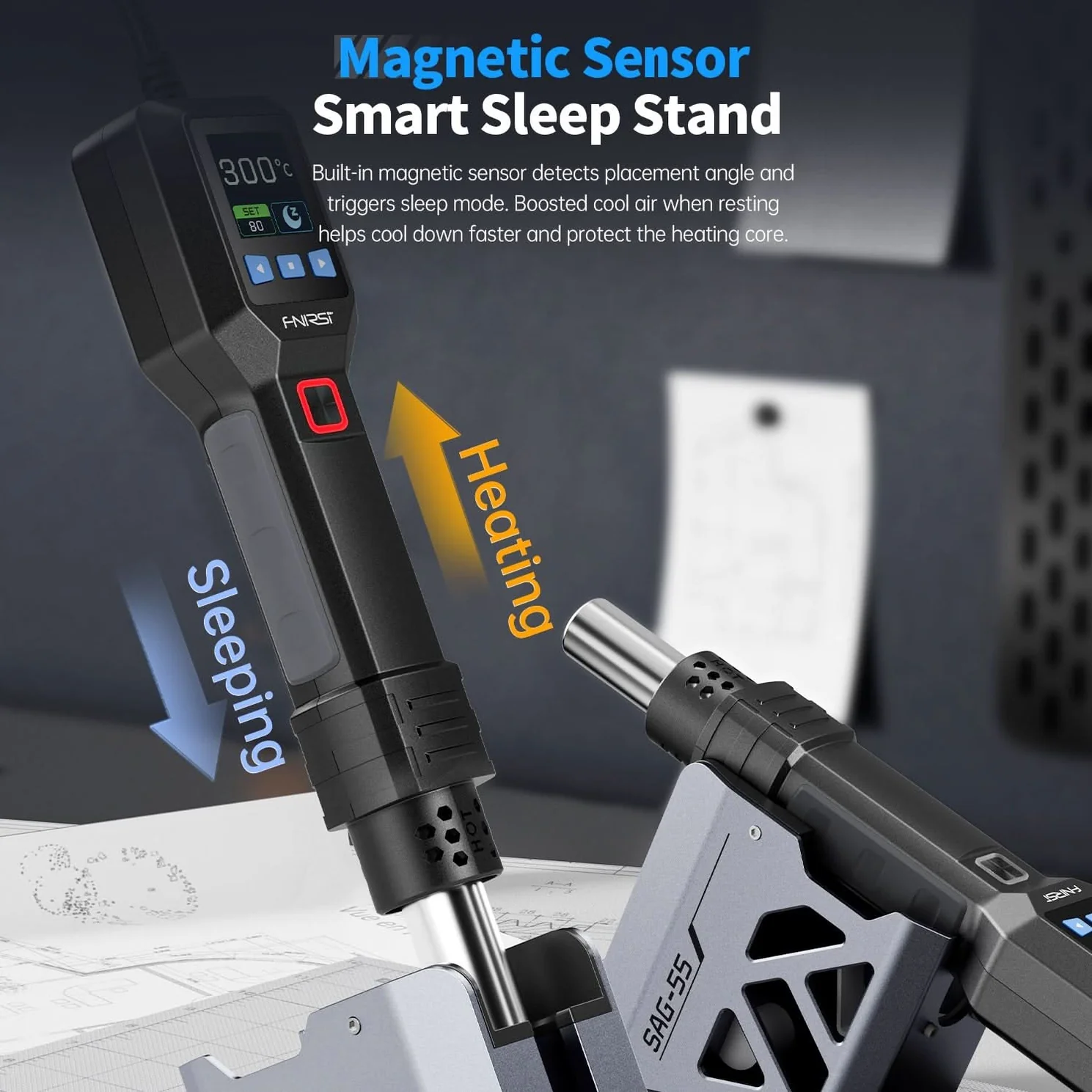

- Magnetic Sensor Smart Sleep Stand
Built-in magnetic sensor detects placement angle and triggers sleep mode. Boosted cool air when resting helps cool down faster and protect the heating core. - Brushless Fan Smooth Speed Control

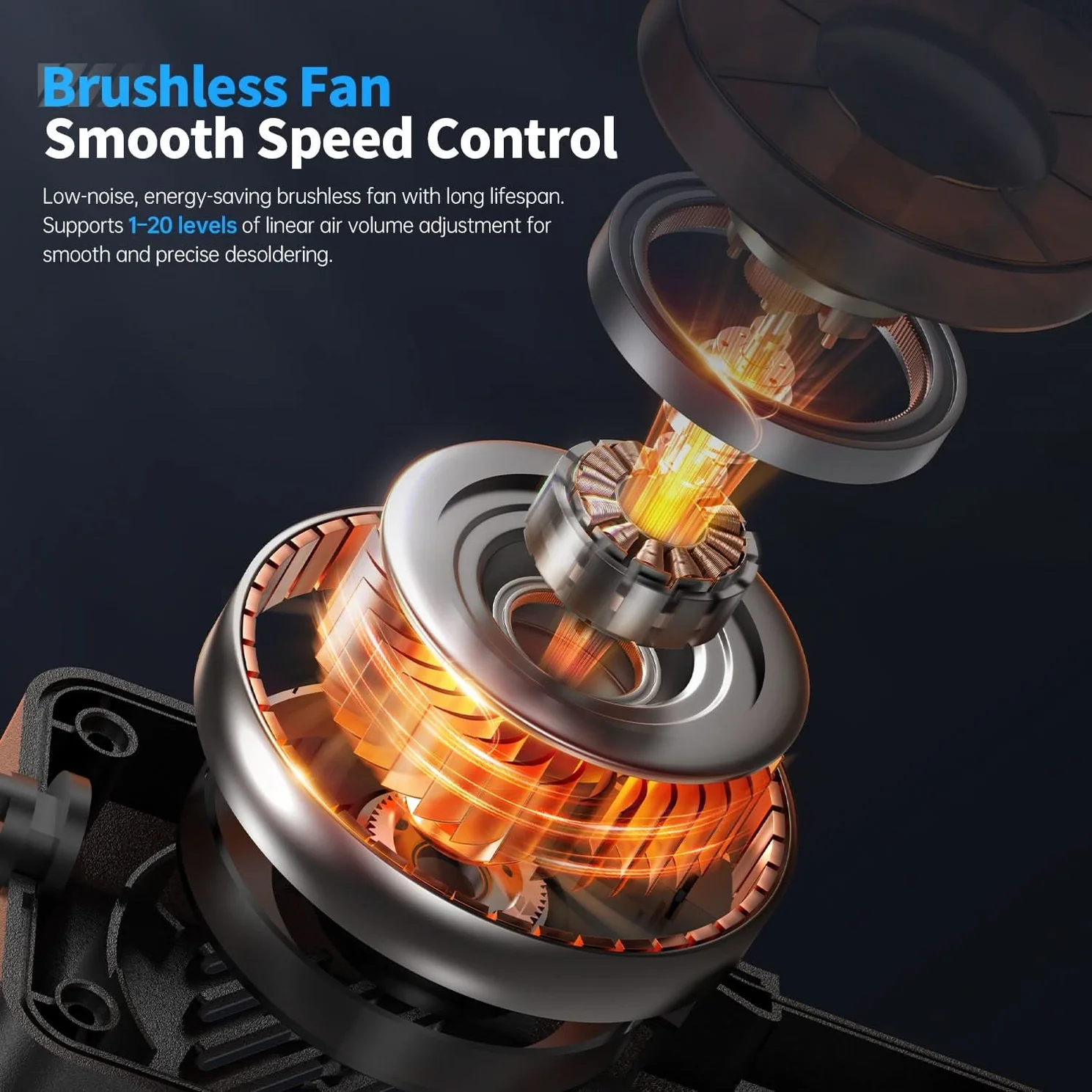

Low-noise, energy-saving brushless fan with long lifespan. Supports 1-20 levels of linear air volume adjustment for smooth and precise desoldering - Hot & Cold Air Switch Faster Cooling Efficiency

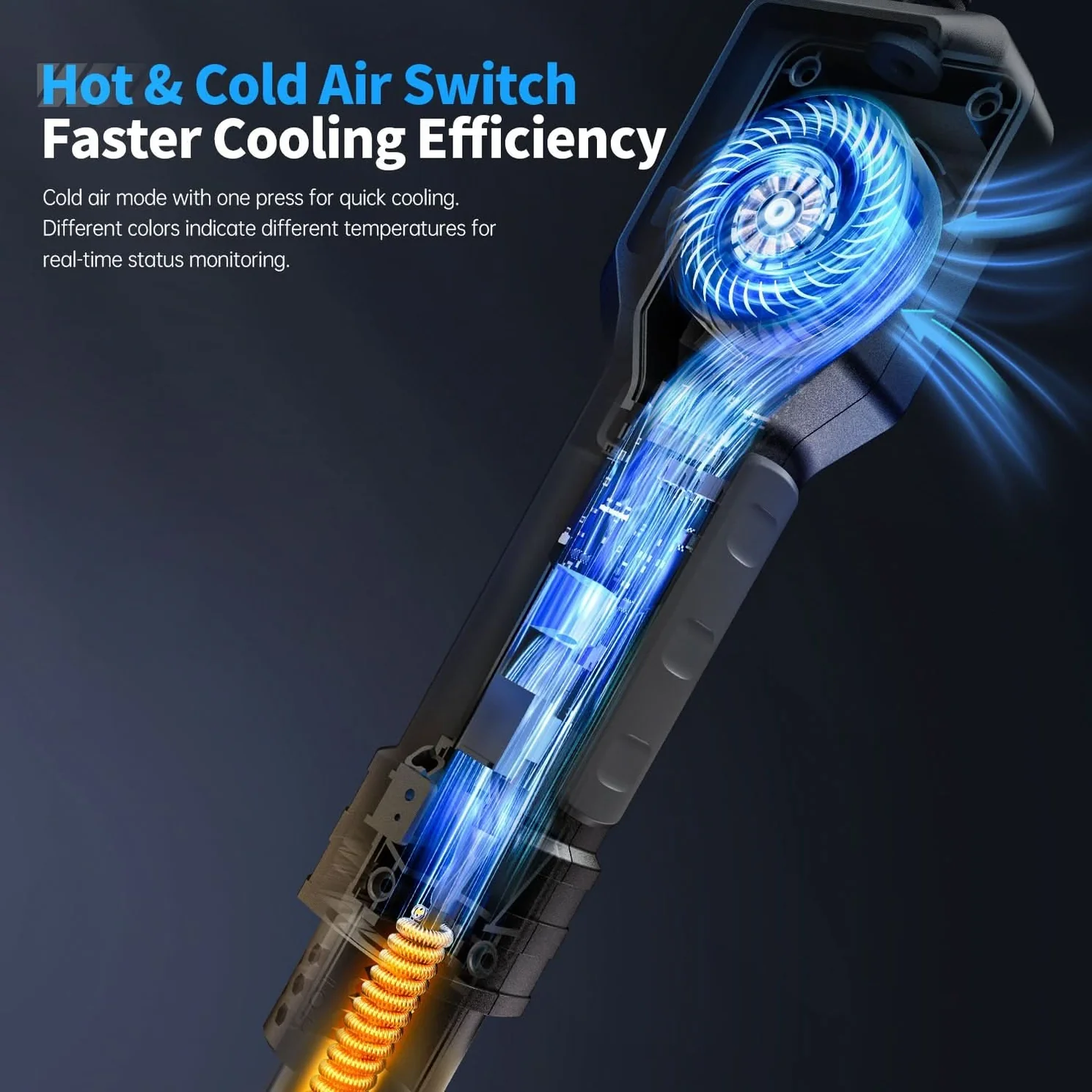

Cold air mode with one press for quick cooling. Different colors indicate different temperatures for real-time status monitoring - Three Presets One-Touch Switch
Easily save 3 temperature and air volume settings (100-450℃) for fast switching. Adapt quickly to different soldering needs with just one press
Specifications
Model: SAG-55
Power Supply (Input Voltage): 200-240V AC (EU Plug)
Power Parameters:: Frequency: 50-60HzMax Power: 550W
Temperature Control Range: 100℃-450℃ (212℉-842℉)
Temperature Control Range: 100℃-450℃ (212℉-842℉)
Display Screen Size: 1.54-inch LCD (240*240)
Airflow Rate: 80L/min, Adjustable from 1-20 levels
Heating Tube Size: Length 80mm, Diameter 21.6mm (compatible with 850 series nozzles)
Body Dimensions: Handle (excluding nozzle): 260*60*40 mm Power Adapter: 118*50*30.6 mm
Cable Length: Handle Silicone Cable: 1.2m AC Power Cord: 1.2m
Operating Noise: <65dB
Overall Weight (including accessories): ≈1391g
Auto off: Never Shutdown, 5 minutes, 10 minutes, 15 minutes
Unit: Celsius (°C) / Fahrenheit (°F)
Language: English
Shortcut: Fan speed 1‒20, Temperature 100‒450°C
Step: 5℃ ~ 25℃
Standby: 70℃ ~ 100℃
Cooling: Close / Open
Temp CAL: 120°C, 220°C, 320°C, 420°C
Brightness: 1 ~ 10
Package List:

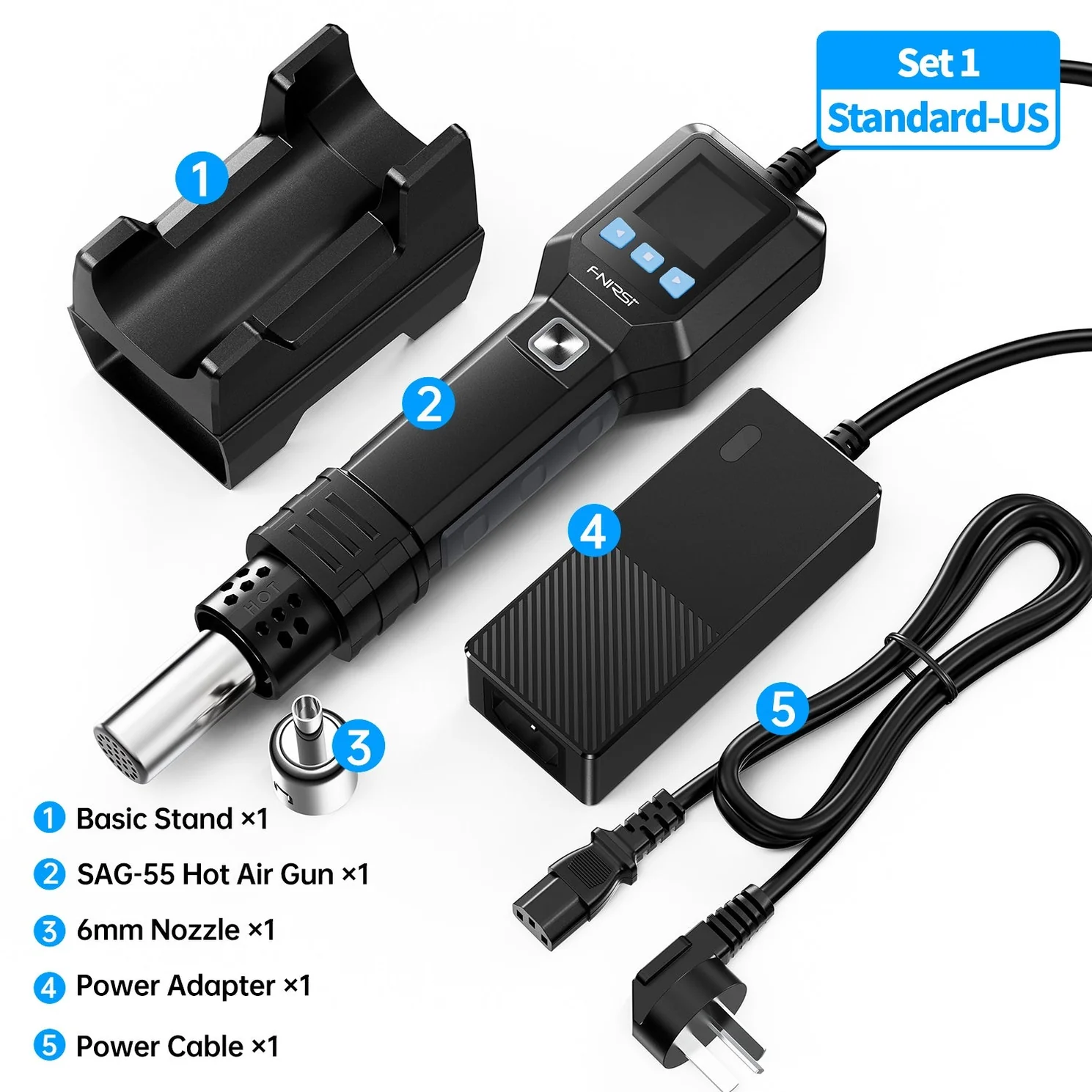

Set 1 – Standard
◉ Basic Metal Stand x1
◉ SAG-55 Hot Air Gun x1
◉ 6mm Nozzle x1
◉ Power Adapter x1
◉ Power Cable (Need to select US or EU plug) x1
◉ User Manual × 1
◉ SAG-55 Hot Air Gun x1
◉ 6mm Nozzle x1
◉ Power Adapter x1
◉ Power Cable (Need to select US or EU plug) x1
◉ User Manual × 1
Set 2 – Pro
◉ Smart Sleep Stand x1
◉ SAG-55 Hot Air Gun x1
◉ 6mm Nozzle x1
◉ Power Adapter x1
◉ Power Cable (Need to select US or EU plug) x1
◉ User Manual × 1
◉ SAG-55 Hot Air Gun x1
◉ 6mm Nozzle x1
◉ Power Adapter x1
◉ Power Cable (Need to select US or EU plug) x1
◉ User Manual × 1
