Name: Eachine Moneagle 5 Inch 800×480 5.8GHz 40CH Diversity FPV Monitor | The FPV Store you Deserve
Brand: Eachine
Price: 7999 INR
Availability: OutOfStock

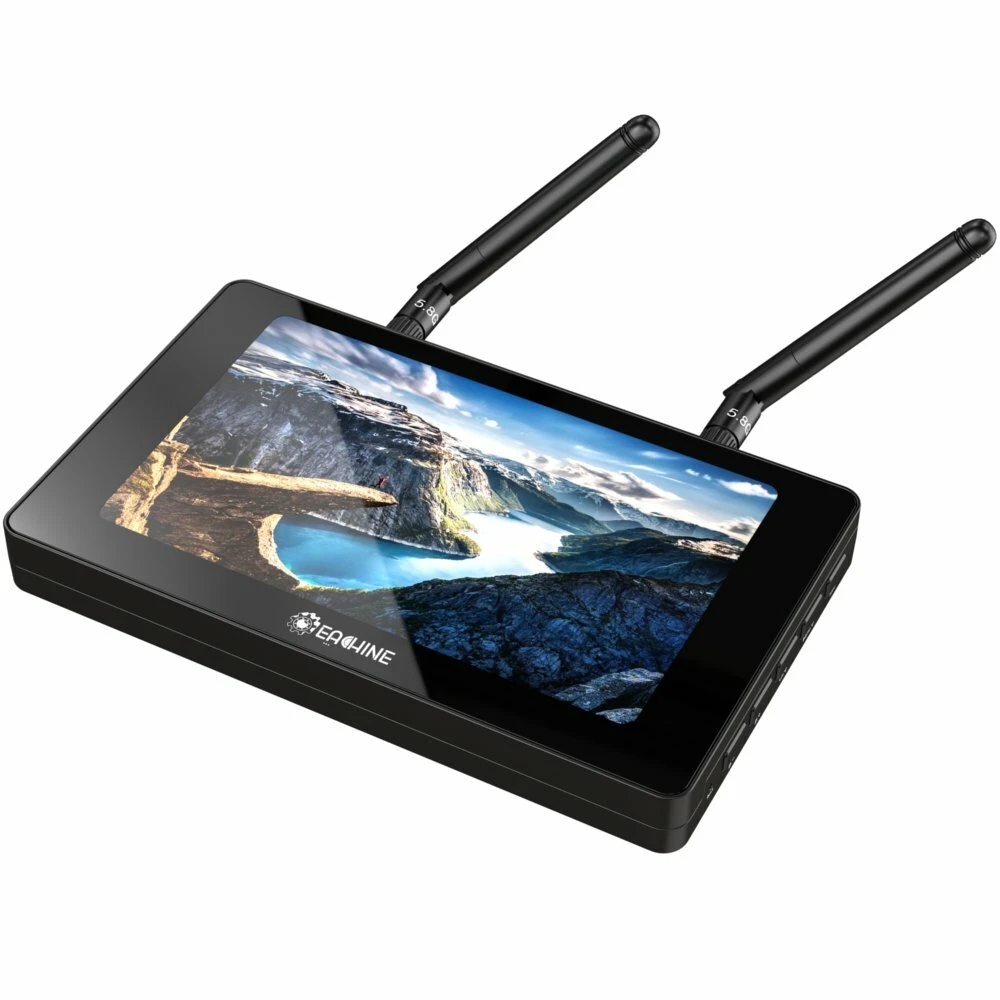

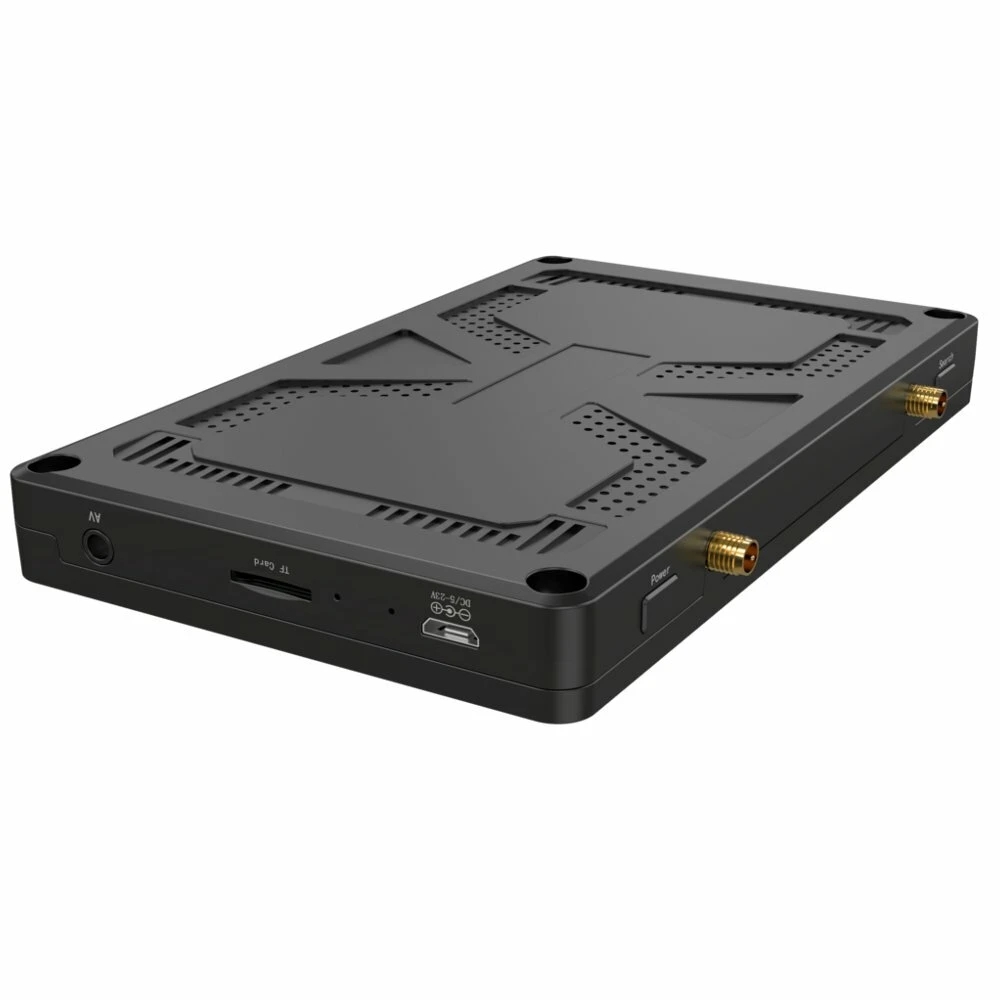

Eachine Moneagle 5 Inch 800×480 5.8GHz 40CH Diversity FPV Monitor

₹7,999

Out of stock

Notify me when the item is back in stock.

I consent to being contacted by the store owner

Description:

Brand Name: Eachine

Item Name: Moneagle

Size of Display: 5 Inches

Glass Material: IPS High luminance,all viewing angle

Clarity of Display: 800x480px

Luminance of Display: 1000Lux

Receiver: Diversity Receiver

Receiving Frequency Channel Numbers: 40

DVR System: Autonomous System

DVR Function: Supporting Replay

DVR Mode: VGA/D1/HD available

Storage Medium: TF Card

Storage Standard: C10,Maximum supporting 64G

Loudspeaker: High fidelity,stereo speakers

Material of Battery: 3.8V Polymer battery

Battery Capacity: 4000mAh

Continuous Working Hours: >3 hours

Size of Product: 145x86x16mm (without antenna)

Weight: 170g

Charging Input Mode: USB Charging Mode

Input Voltage: DC 5-23V, wide voltage input range,which can be powered by lipo battery 2-6S

Features:

– 5.8G 40CH true diversity receiver

– Ultra-high luminance,800x480px HD screen

– One-Key-Auto search,simple operation

– 360 degree all-view HD display

– Three video recording modes: DVR(VGA/D1/HD)

– Built-in 4000mAh high capacity battery

– Support DC 5-23V wide voltage

– Support 2-6S lipo battery,very suitable for long time flight

– Support up to 64G TF card

– Support video replay

– Support eight languages

Frequency Table (MHz):

	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band A	5865	5845	5825	5805	5785	5765	5745	5725
Band B	5733	5752	5771	5790	5809	5828	5847	5866
Band E	5705	5685	5665	5645	5885	5905	5925	5945
Band F	5740	5760	5780	5800	5820	5840	5860	5880
Band R	5658	5695	5732	5769	5806	5843	5880	5917
