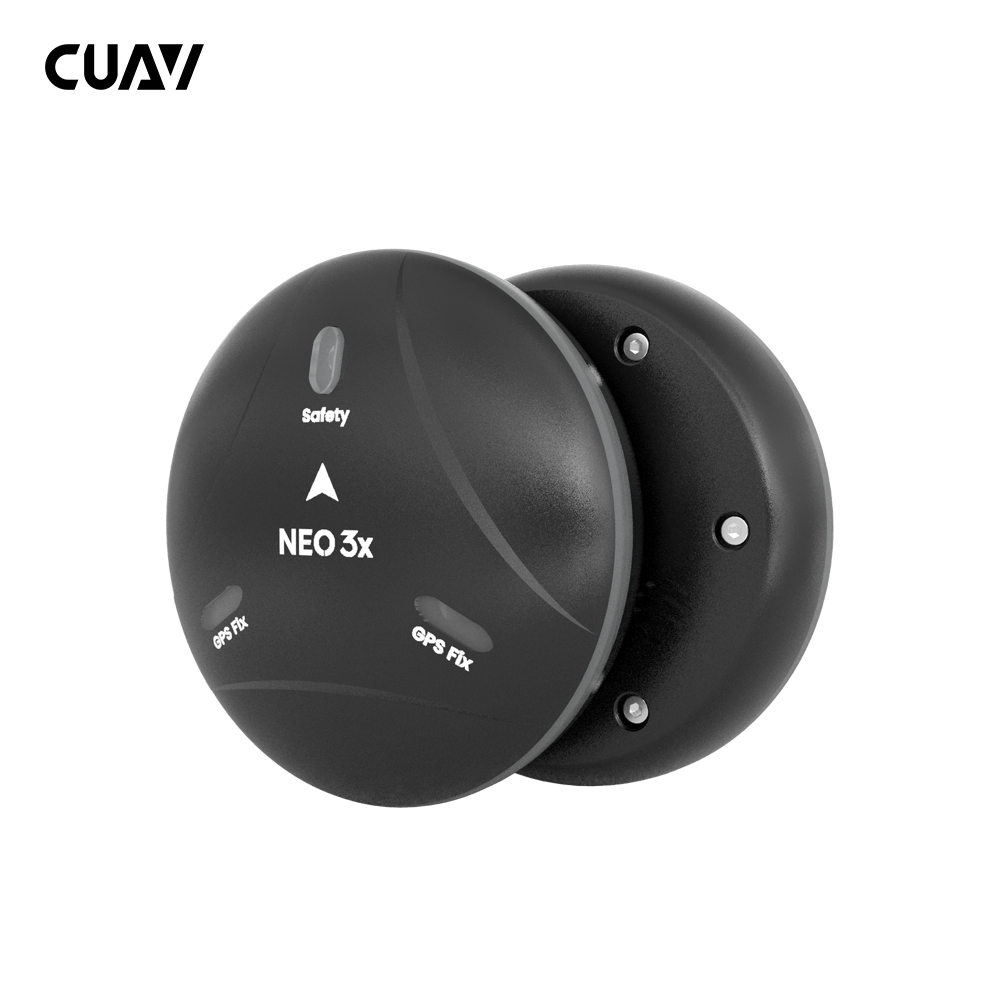

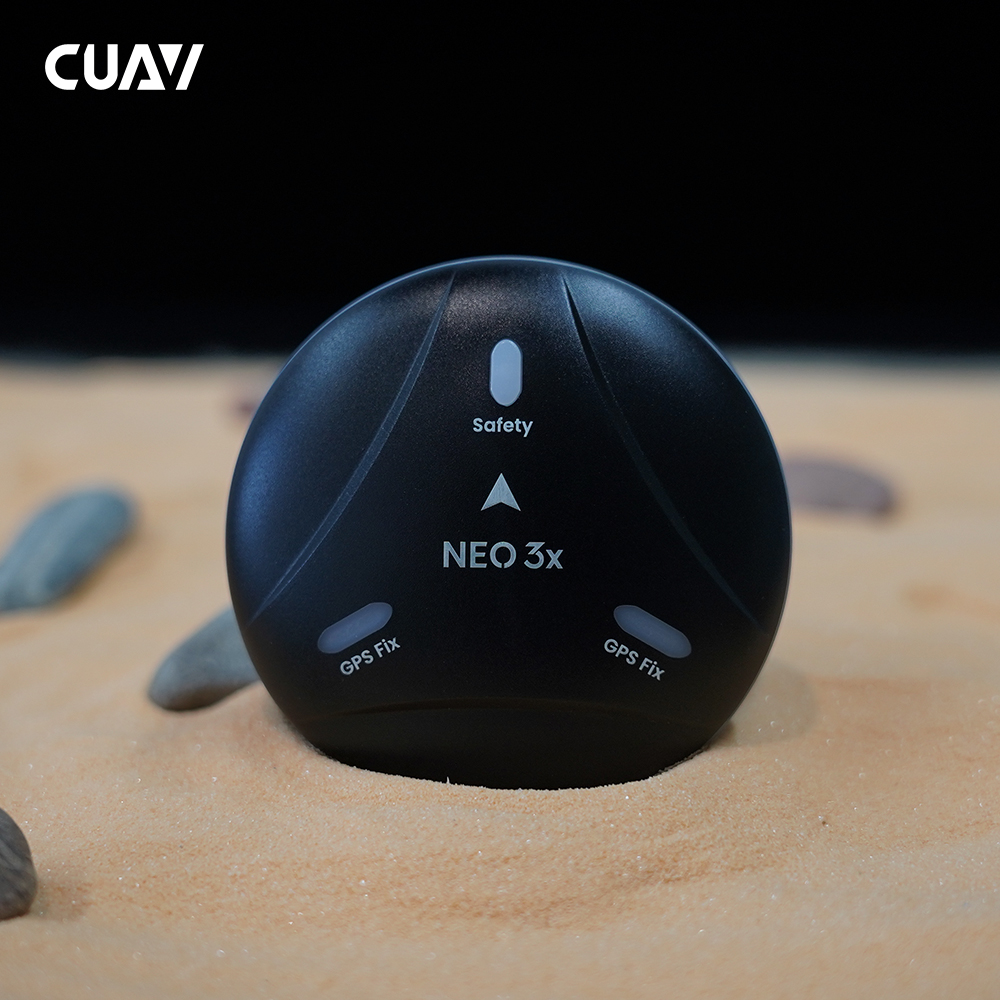

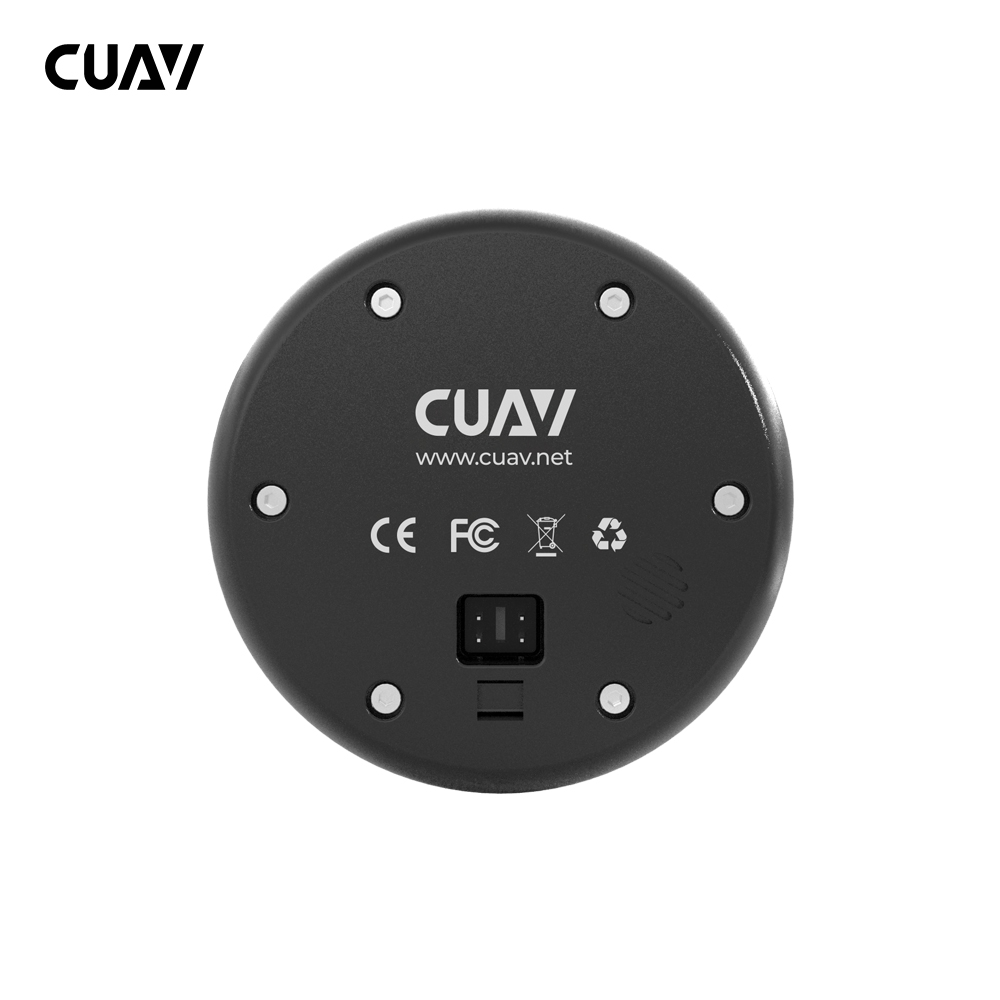

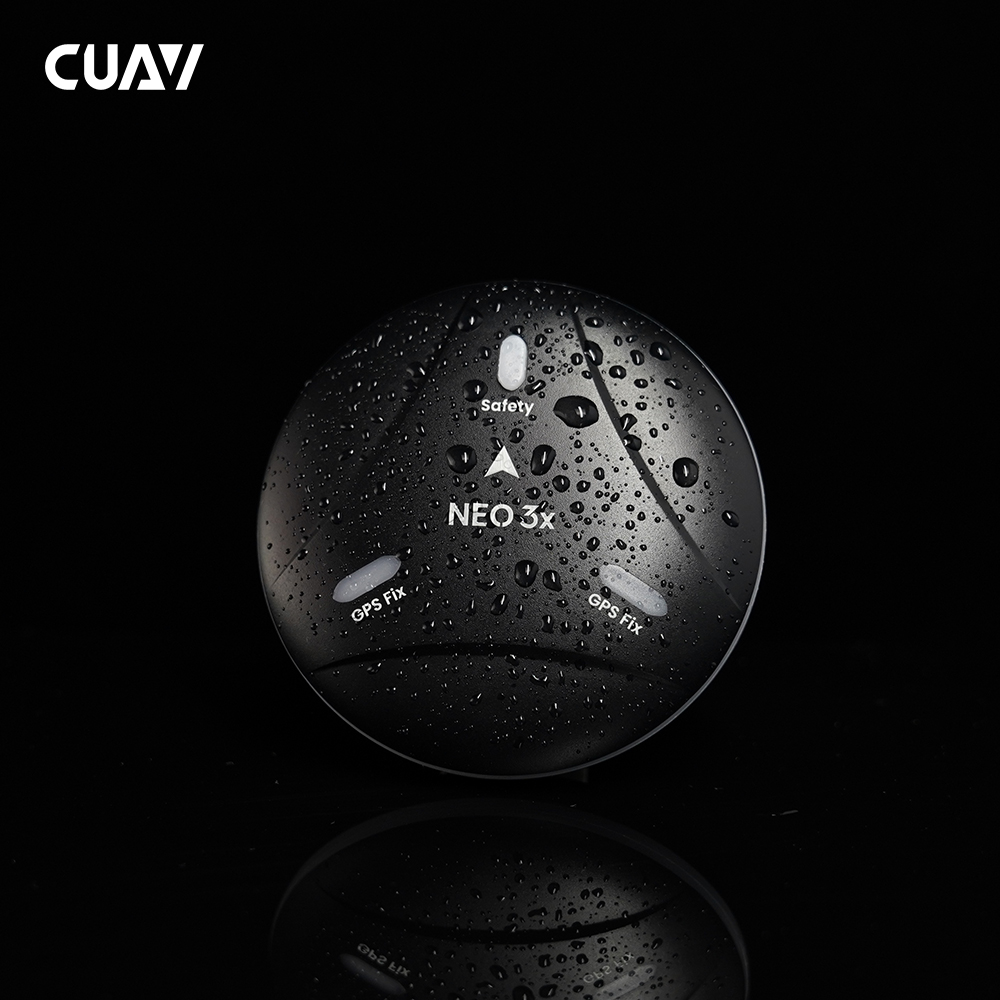

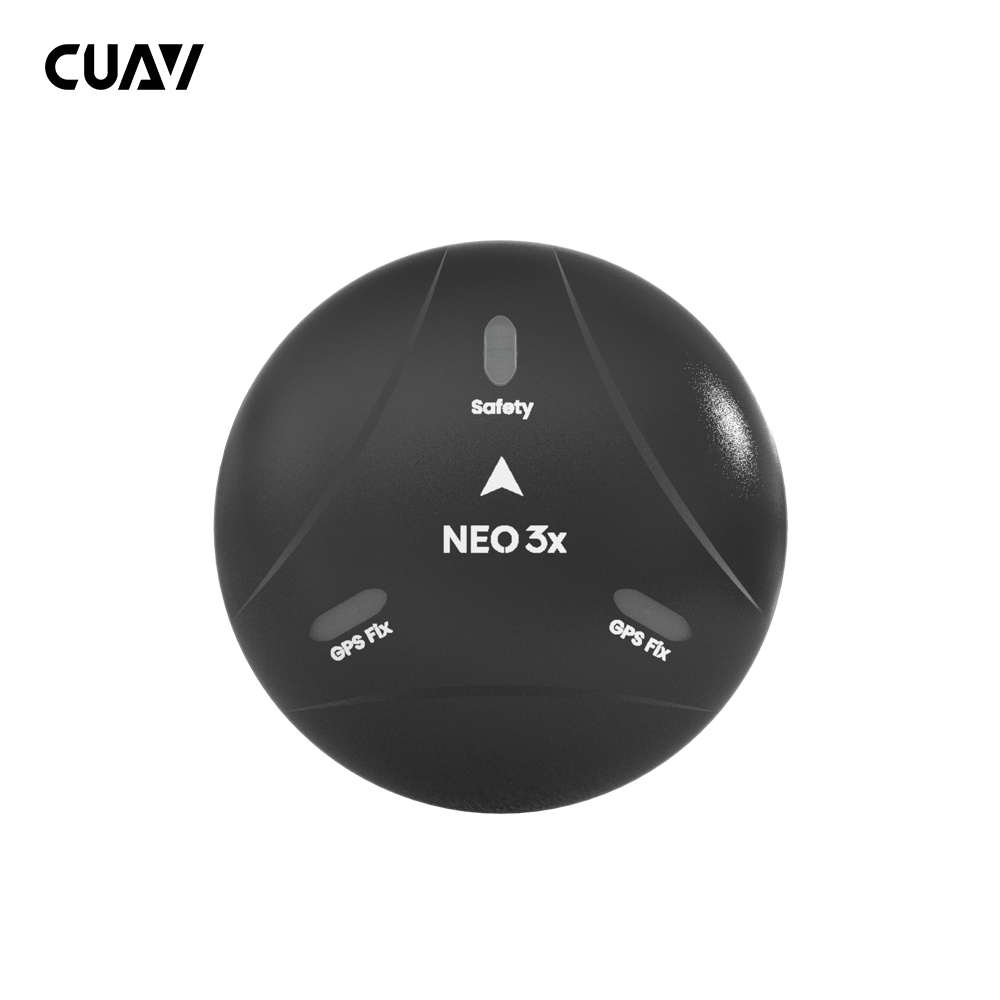

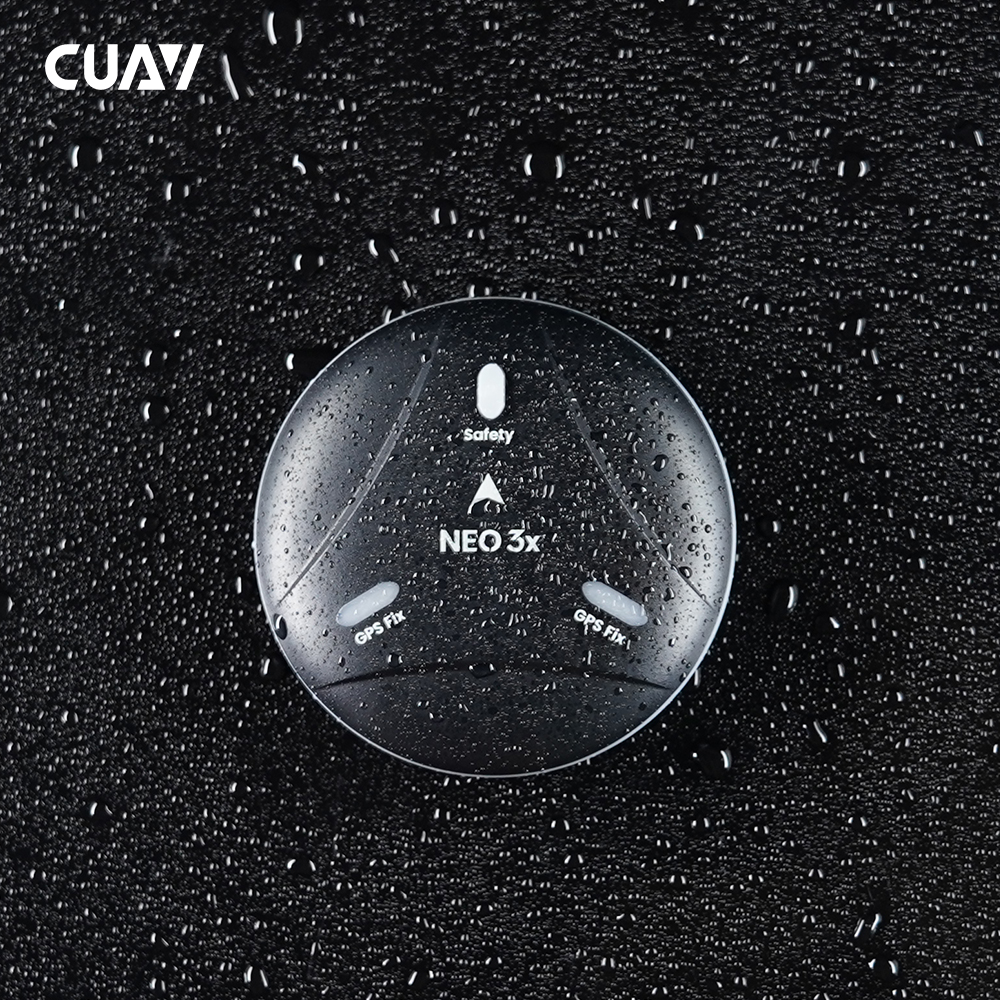

NEO 3X is a GNSS receiver with IP66 protection level. It supports four-star system integration and has a variety of built-in waterproof and dustproof structural designs and materials to meet dustproof and waterproof requirements in various environments. It has built-in STM32F4 series processor, ICP2100 barometer, Ublox M9N module and RM3100 industrial grade compass, and supports DroneCan protocol.
![악세사리 상품상세 이미지-S1L4](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240105/9e2de0c27ea02b85d14f2ea69f287375.jpg?ssl=1)
![악세사리 상품상세 이미지-S1L5](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/d9b5b573c6d6f14d6f8bd4362dbfa1be.jpg?ssl=1)
![악세사리 상품상세 이미지-S1L6](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/f1a9da45ac5378c6dd17aaff86d360ad.jpg?ssl=1)
![악세사리 상품상세 이미지-S1L7](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240105/6fa57a152e8c6452a39d6a194e41e123.jpg?ssl=1)
![악세사리 민트 색상 이미지-S1L8](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/30e78d396b0be51fa62852438fca9259.jpg?ssl=1)
![악세사리 상품상세 이미지-S1L9](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/8caa86aebc264107ab919795294a8856.jpg?ssl=1)
![악세사리 상품상세 이미지-S1L10](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/3a64588d4d7a872671310265f452d297.jpg?ssl=1)
![악세사리 상품상세 이미지-S1L11](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240105/672005c8911a53fded27aa1a53c1b1fa.jpg?ssl=1)
![악세사리 상품상세 이미지-S1L12](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/dc53ab14faf5c30a78549f13340ea913.jpg?ssl=1)
![악세사리 브라운 색상 이미지-S1L13](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/49f1bb330b46fb6c95127701defb4b57.jpg?ssl=1)
![악세사리 상품 이미지-S1L14](https://i0.wp.com/dronewe.com/web/upload/NNEditor/20240314/c8ace0740262d1ea4bbc8b3d94ef5d7c.jpg?ssl=1)
Technical Specification
Hardware | Type |
---|---|
MUC | STM32F412 |
Protocol | DroneCAN |
Compass | RM3100 |
Barometer | ICP-20100 |
GNSS receiver | Ublox M9N |
Frequency band | GPS: L1C/A GLONASS:L10F Beidou:B1I Galileo:E1B/C |
Number of concurrent GNSS | 4 |
Horizontal accuracy | 1.5m |
Number of satellites(MAX) | 32+ |
Acquisition | Cold start:24S Hot start:2S Aided start:2s |
Nav. update rate | 5Hz(default),25Hz(MAX) |
Sensitivity | Tracking and nav:-167dBm Cold start Hot star:-148dBm Reacquisition: -160dBm |
Protection level | IP66 |
Input voltage | 4.7~5.2V |
Operating temperature | -10~70℃ |
Size | 676721.2mm |
Weight | 46g (without cable |
