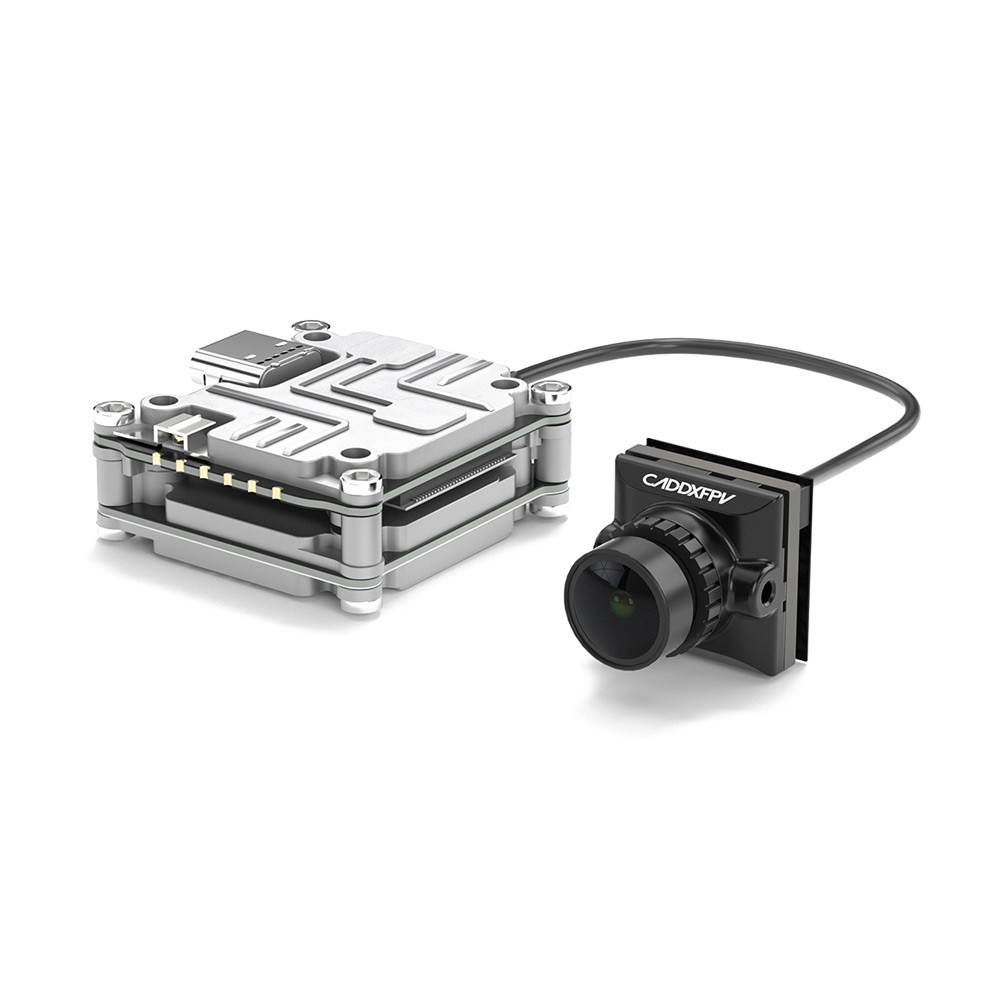

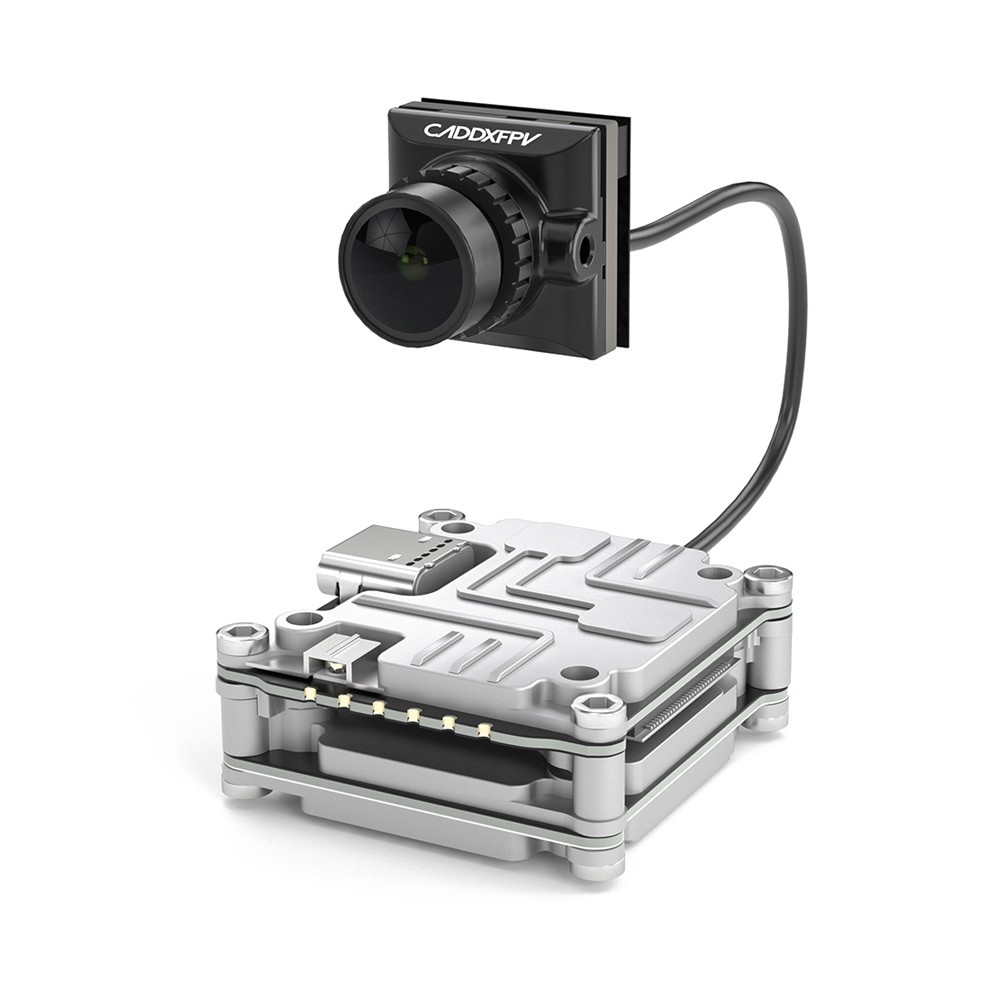

The Caddx Polar Nano Starlight Camera Vista Kit is a low-light camera with a 1/1.8″ digital starlight sensor and Caddx Vista Unit. This camera has low-latency HD image transmission video recorded through the DJI FPV Goggles. Perfect for your nano builds with its ultralight features… including the new 1.5g lightweight polar antenna which has a 98% efficiency rate and 2dbi average gain.
VIDEO: Caddx Polar Nano Vs. Polar – Side By Side Comparison (Watch In 4K)
Features
- Starlight camera is great for low-light flights
- 1/1.8 Inch HD Digital Starlight Sensor
- Low-latency HD image transmission

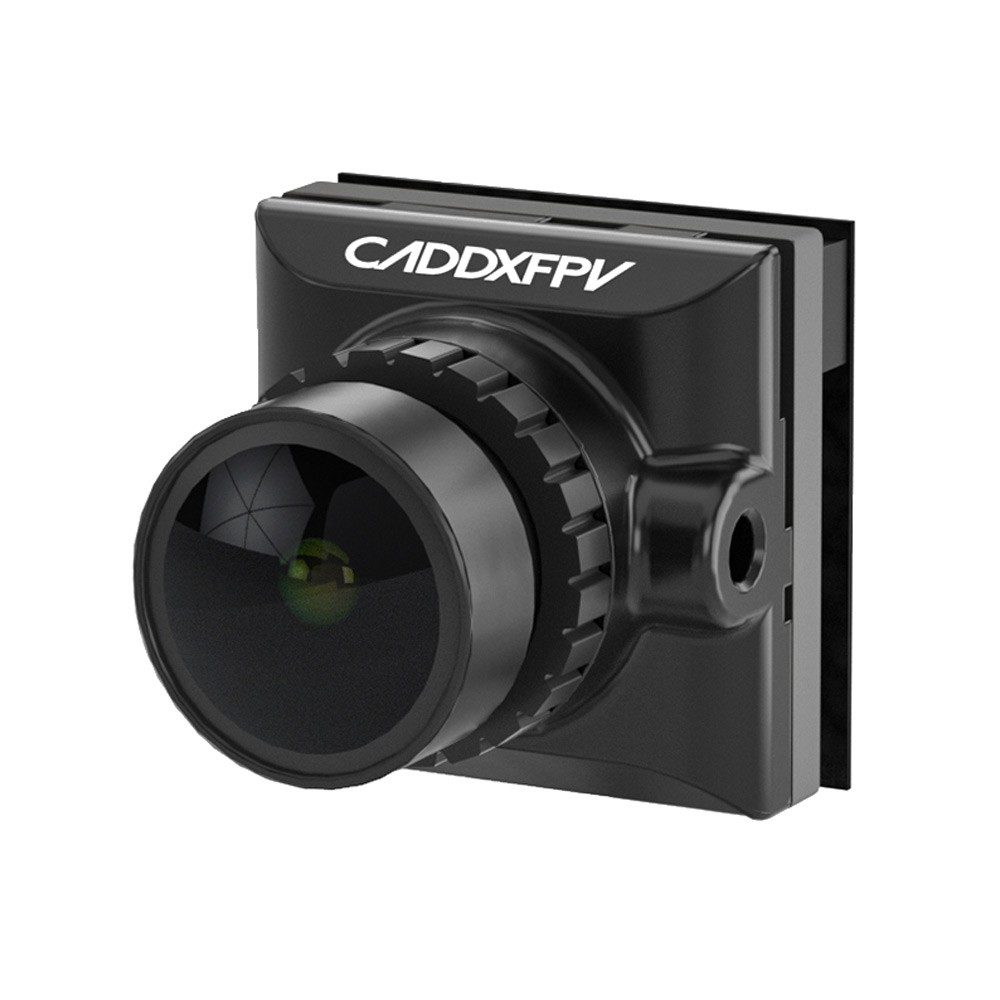

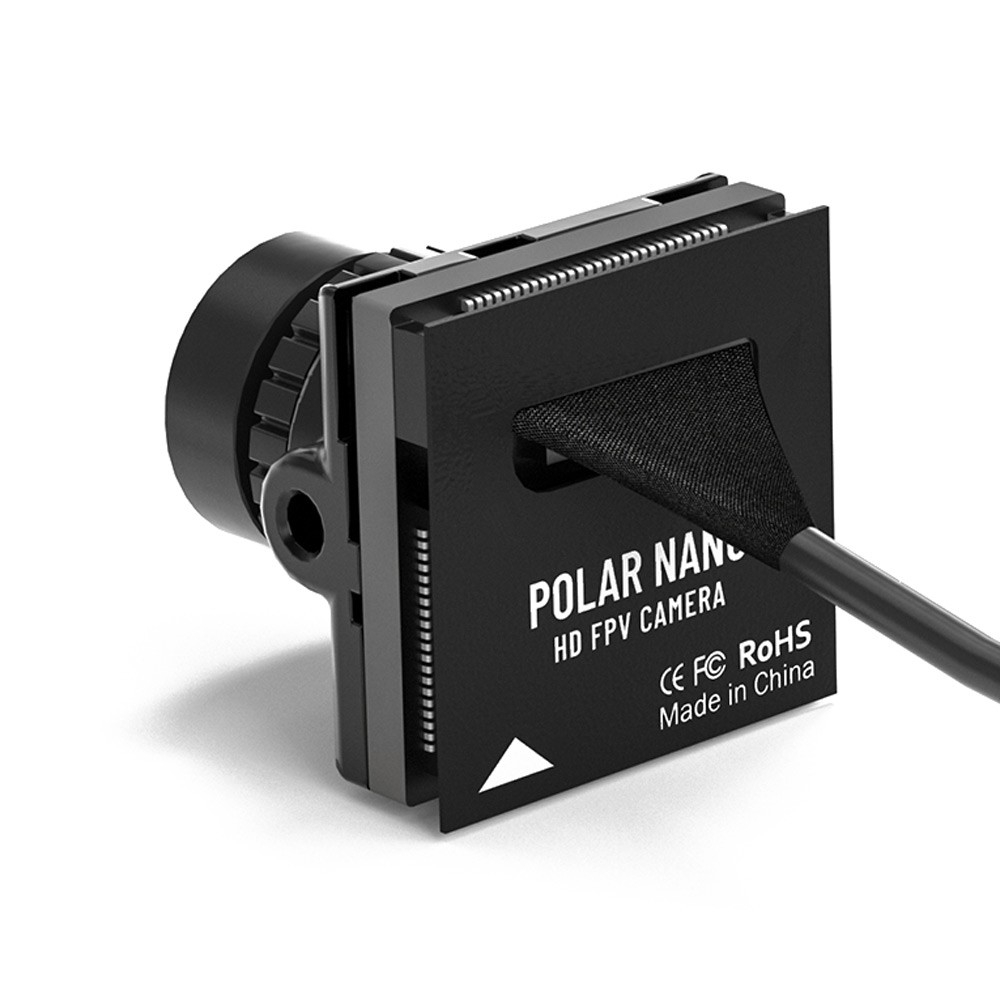

- Caddx Polar Nano Starlight Camera
- 2.7g Ultra-light Digital HD Camera
- 1/1.8 Inch 14x14mm 2.7g camera
- Min. illumination: 0.OO0O3Lux
- New 1.5g lightweight antenna
- Small Camera – Big Sensor
- Radiation efficiency: 98%
- 14mm nano-size camera
- Work with DJI goggles
- Caddx Polar Antenna
- Caddx Vista Unit
Specifications
- Max. Transmission Distance FCC/SRRC: 4km;CE: 0.7km
- Operating Temperature Range: 32° to 104°F (0° to 40°C)
- Transmitter Power: (EIRP) FCC/SRRC/MIC: <30dBm
- Power Output: 29MW/200mMW/500mW/700mWwW
- Min.latency (end-to-end): 720p 60fps: <32ms
- Camera Sensor: 1/1.8” inch starlight CMOS
- Supported Flight Control System: F3.F4.F7
- Weight of Vista Kit (camera included): 22g
- Operating Frequency: 5./25-5.850GHZz
- I/O Interface: USB-C,IPEX,3-in-1 port
- Model: Caddx Polar Nano Vista kit
- Camera Size: 14x14x15.8mm
- Min. Illumination: 0.00003Lux
- FOV: 162°(D);138°(H);75°(V)
- Dimensions: 30x29x13mm
- Shutter: Rolling shutter
- Input Power 7 4-26.4V
- Coaxial Cable: 80mm
- Aspect Ratio: 16:9
- ISO: 100-25600
- Antenna: 1.59
- CE: <14dBm
- Lens: F/1.8
Includes

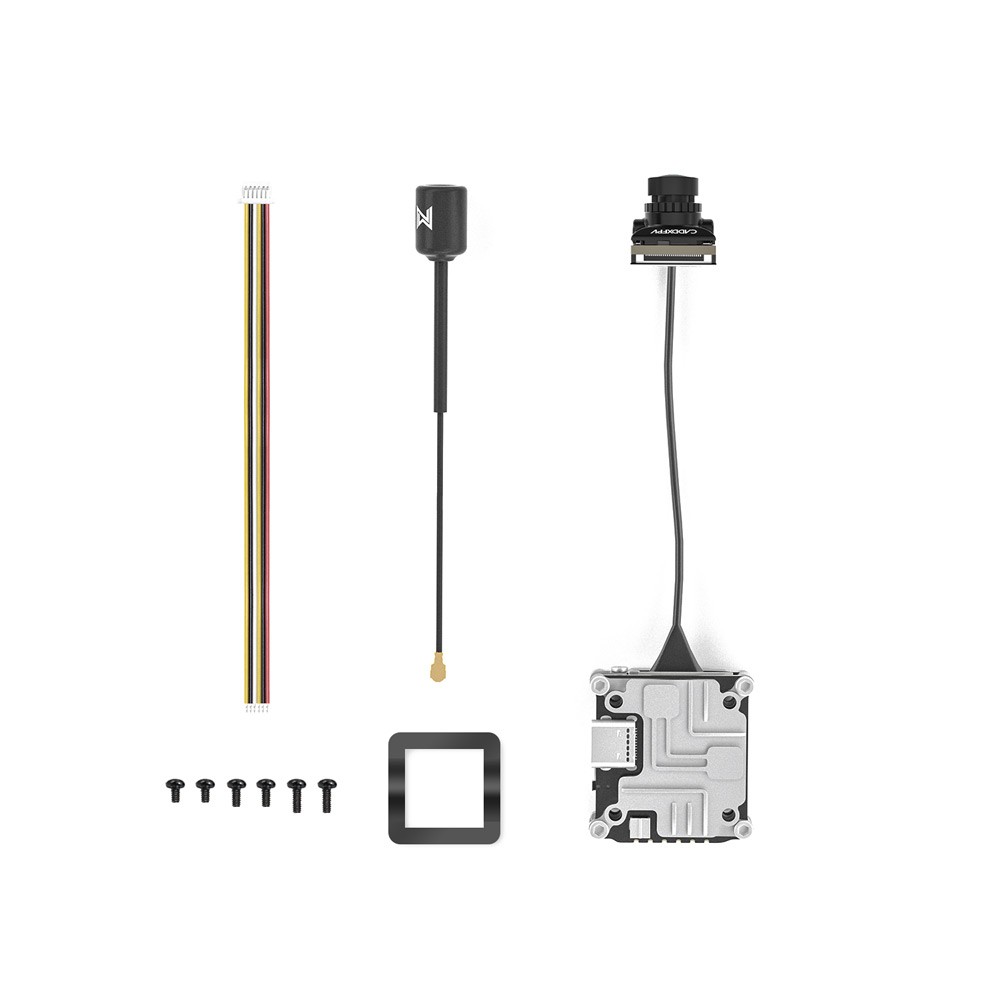

Caddx Polar Nano Starlight Camera Vista Kit
- 1x Caddx Polar Nano Starlight Camera
- 1x Caddx 1.5g Polar Antenna
- 1x 14mm-19mm bracket
- 2x M2 Screws 3/4/5mm
- 1x Caddx Vista Unit
- 1x 3-in-1 Cable
