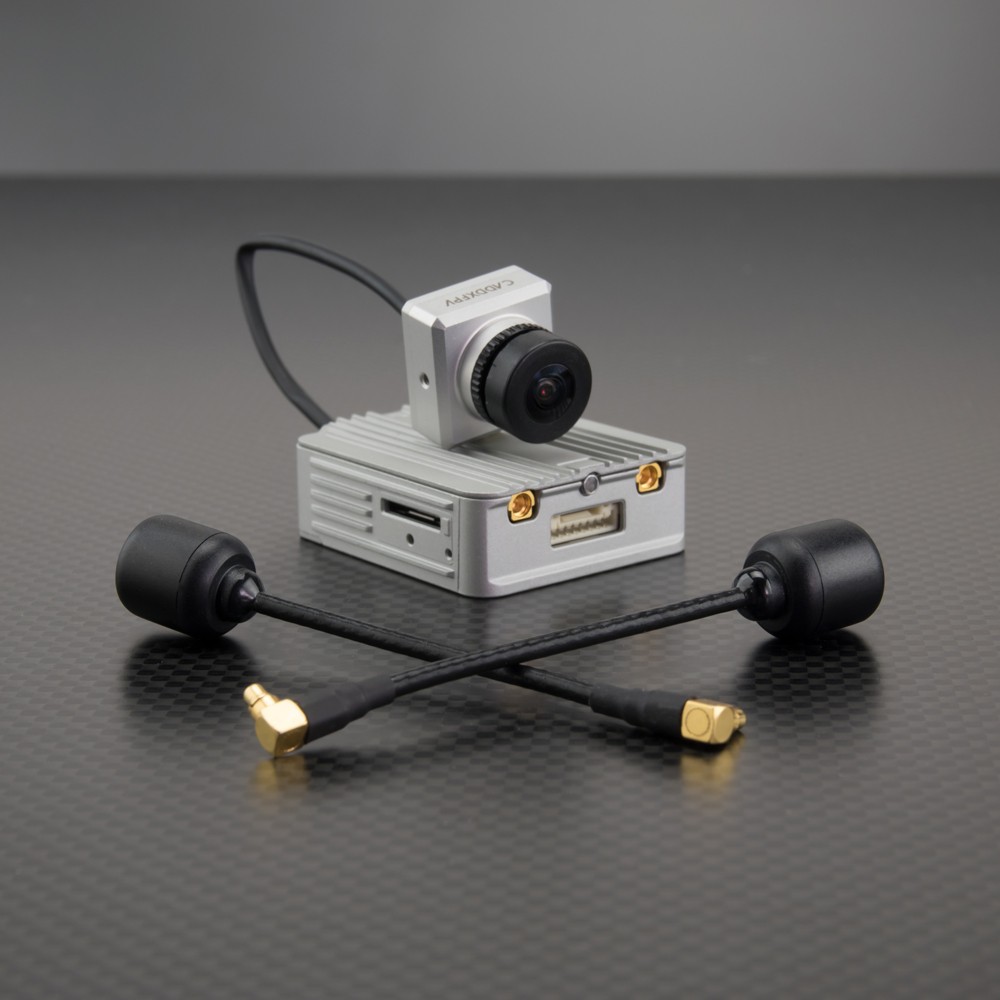

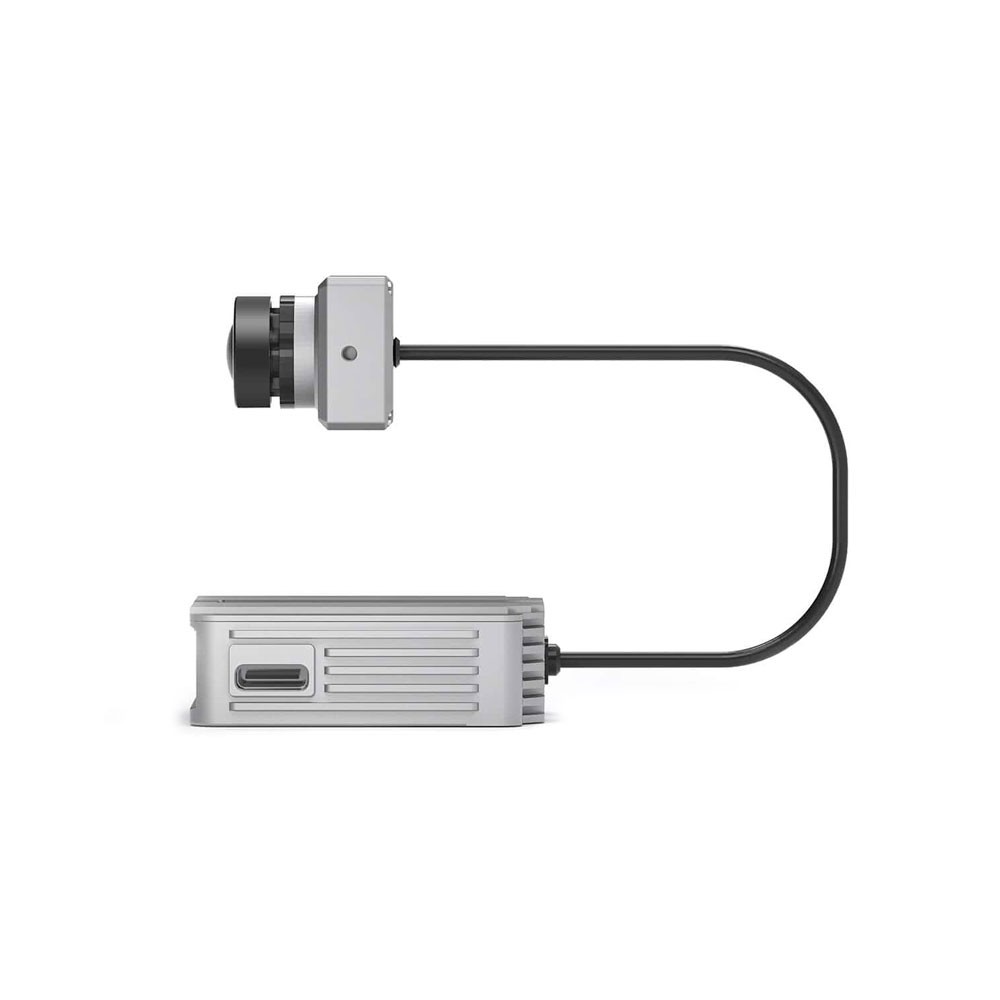

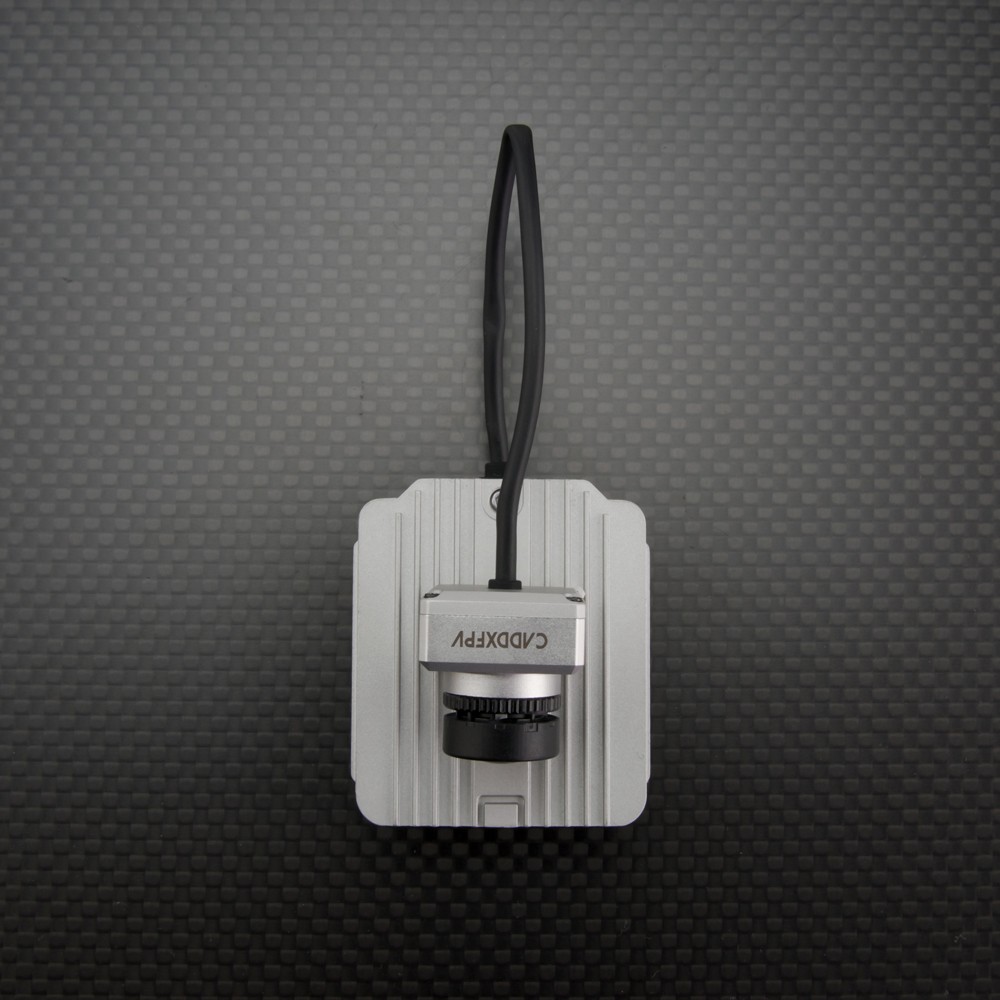

The CaddxFPV Air Unit Micro Version is a 19×19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas. Modern innovations, like a strong transmission system embedded remote controller receiver, and multi-antenna technology, is why the Air Unit can perform remarkably.
Features
- 4-in1 Closed Loop control for the DJI FPV RC
- Embedded remote controller receiver
- 8 Channels for up to 8 Drones
- Multi-antenna technology
- 1080p Aerial Footage
- Micro-Sized Camera (19x19mm)
Specifications
- Weight:
- Air Unit: 41.6g
- Antenna: 3.7g(MMCX Straight) 3.9g (MMCX Elbow) 6g (reverse polarity female SMA)
- Operating Temperature: 32 to 104 F (0 to 40 C)Input Power: 7.4-17.6V
- Transmitter Power: FCC/SRRC: <30dBm CE: <14dBm
- I/O Interface: USB-C, MMCX, 3-in1 Port, MicroSD
- Output Power: 25mW3200mW/500mW/700mW
- Video Transmission: 28ms Low Latency
- Dimensions:
- Air Unit: 44×37.8×14.4mm
- Camera:20.7x19x19mm
- Flight Control System: BetaFlight
- Max Transmission Range: 4km
- Coaxial Cable Length: 100mm
- FOV: 150(D); 122(H); 93(V)
- Goggle Compatibility: DJI
- Closed Loop 4-in-1: Yes
- Frequency Channels: 8
- Shutter: Rolling Shutter
- Sensor: 1/3.2″ CMOS
- Effective Pixels: 4 M
- Image: 720p/120fps
- Video Format: MP4
- Video: 1080p/60fps
- Lens: 2.1mm, F/21
- ISO: 100-256000

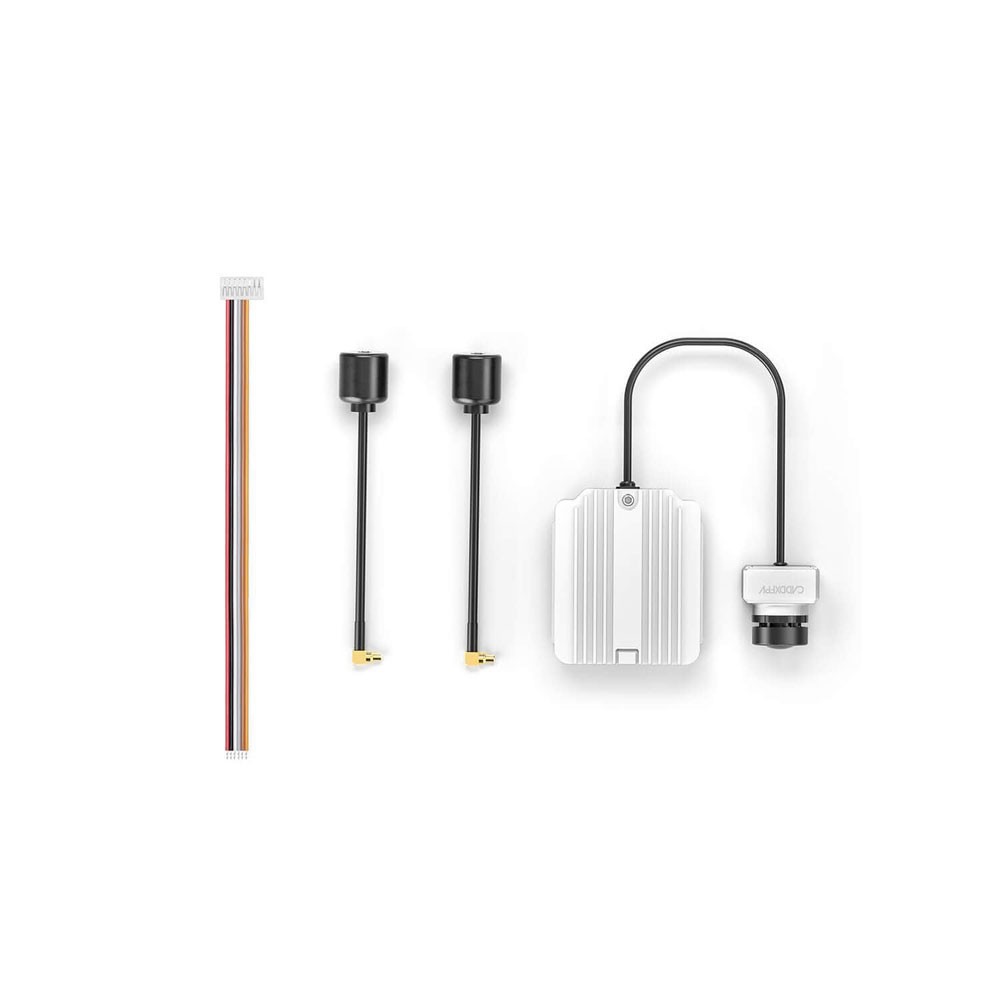

Includes
- 1x Caddx Air Unit Micro Version
- 1x 3-in1 Cable/Coaxial/Antenna
- 1x M2 Screws
