Built to go toe to toe with 5″ Freestyle quads whilst weighing under 250g. The AOS 3.5 EVO has been updated to be compatible with the new DJI O3 Air Unit as well as existing 20x20mm and 25.5×25.5mm electronics. The camera cage and arms have been reinforced to improve durability. As with all AOS frames exceptional vibration and resonance performance is guaranteed, eliminating IMU resonance issues with O3 image stabilisation.
Approx. 50g with all hardware
Designed for up to 3.5 inch props
160mm wheelbase
4 mm Arms
One 25.5×25.5 or 20×20 mm stack in the front and one 25.5×25.5 or 20×20 mm stack in the rear OR
One 25.5×25.5 or 20×20 mm stack in the centre
Fits the DJI O3 Air Unit, Caddx Vista or HDZero Whoop VTX perfectly
Fits both 20mm (DJI and O3 camera) and 19mm (Micro sized) cameras
Motor mounting 9×9 up to 12×12 (1404, 1504, 1505 recommended)
Standoffs, frame and screws included
May 20, 2023: The frames have been updated with silicone dampers and XT30 mounting hardpoints.

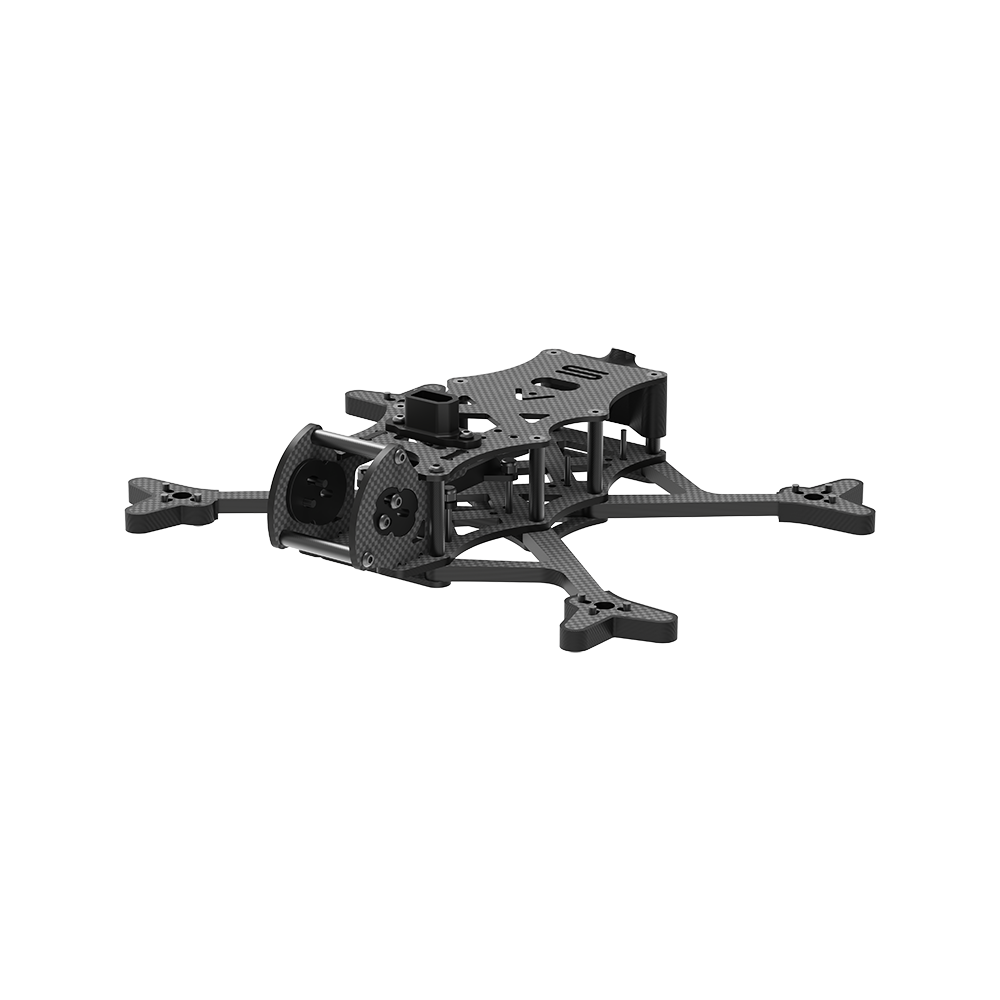

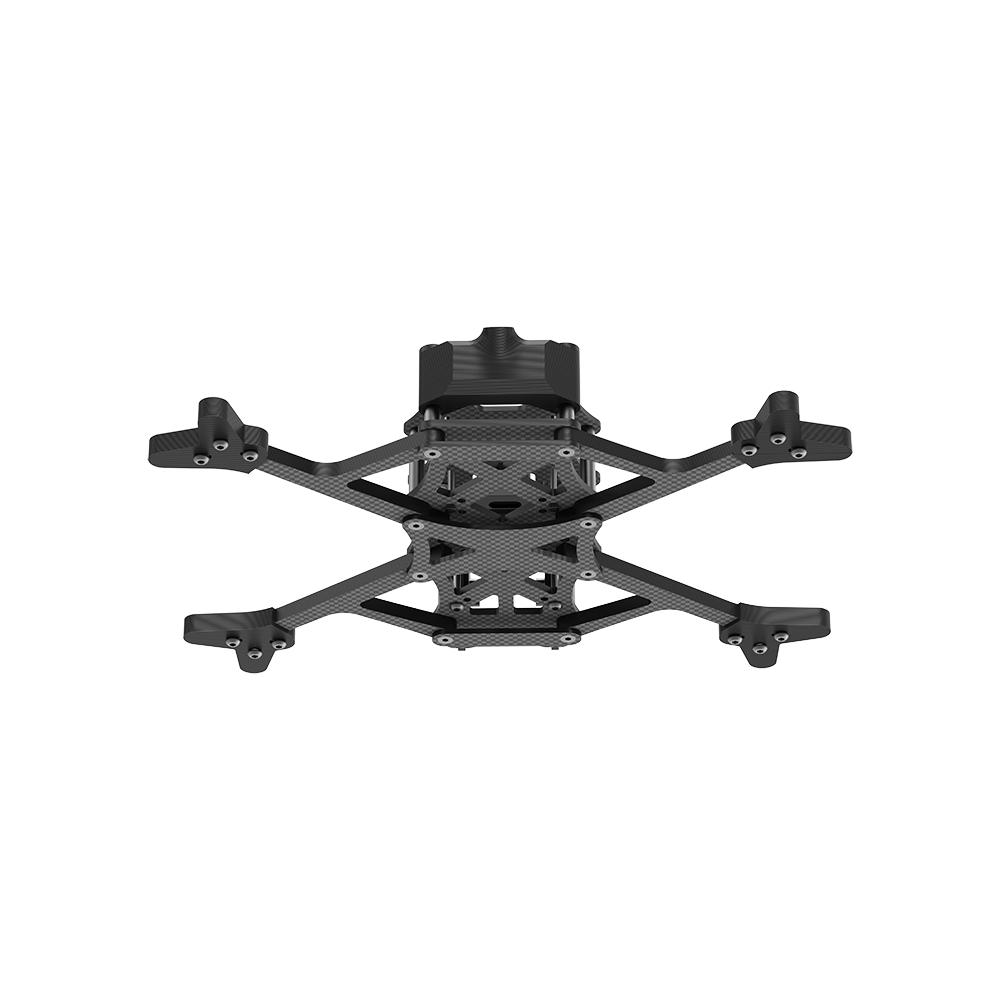

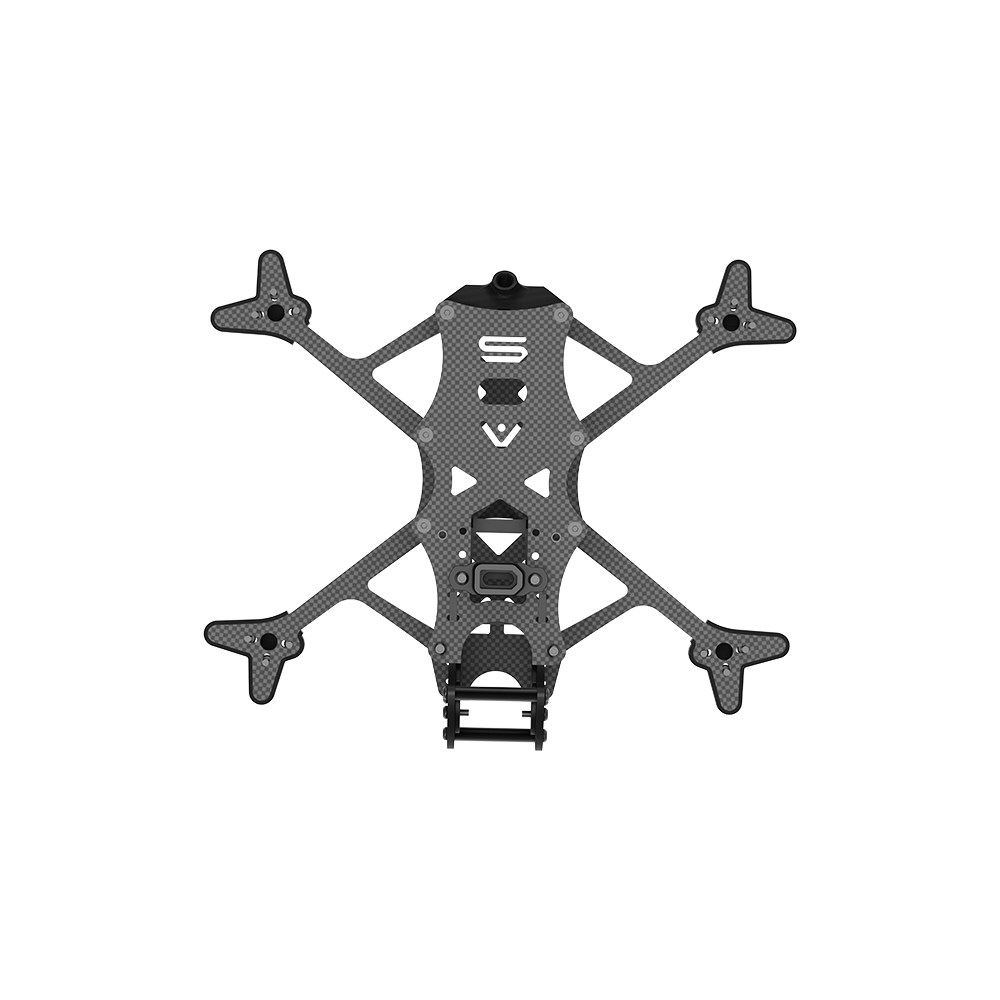

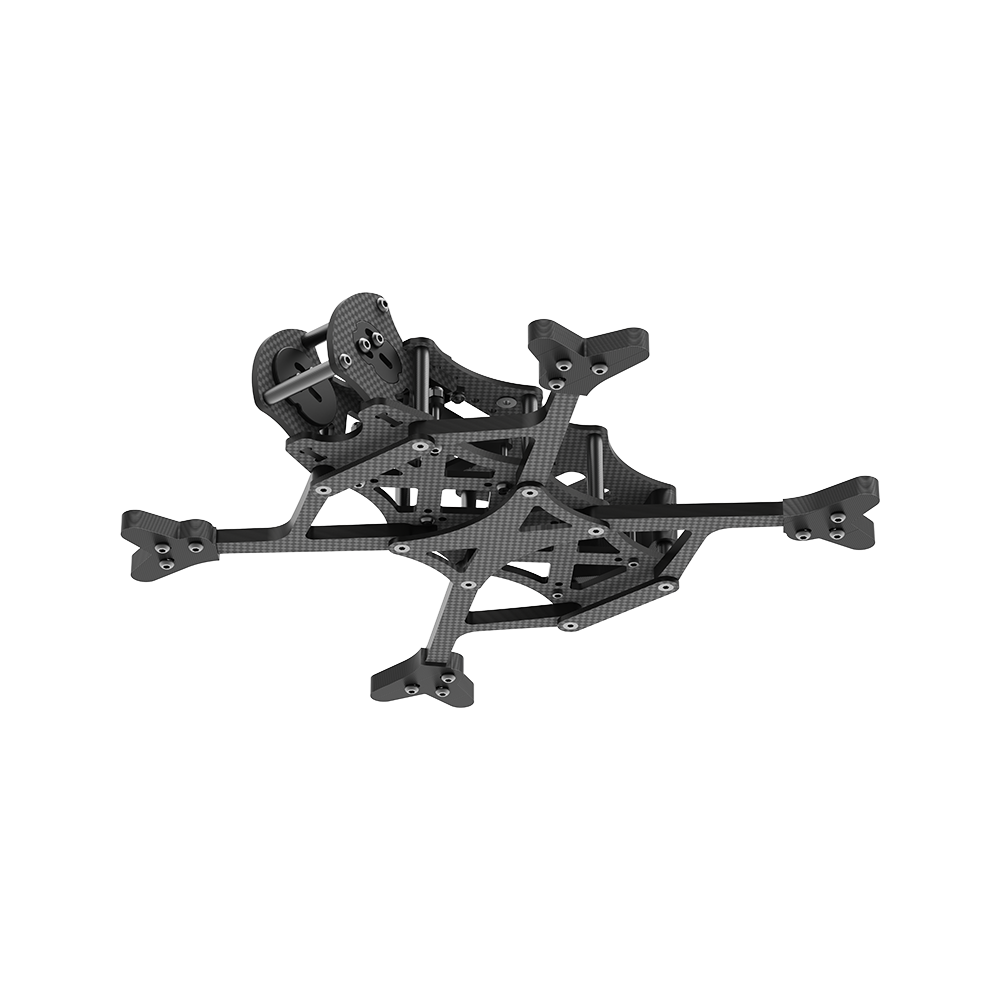

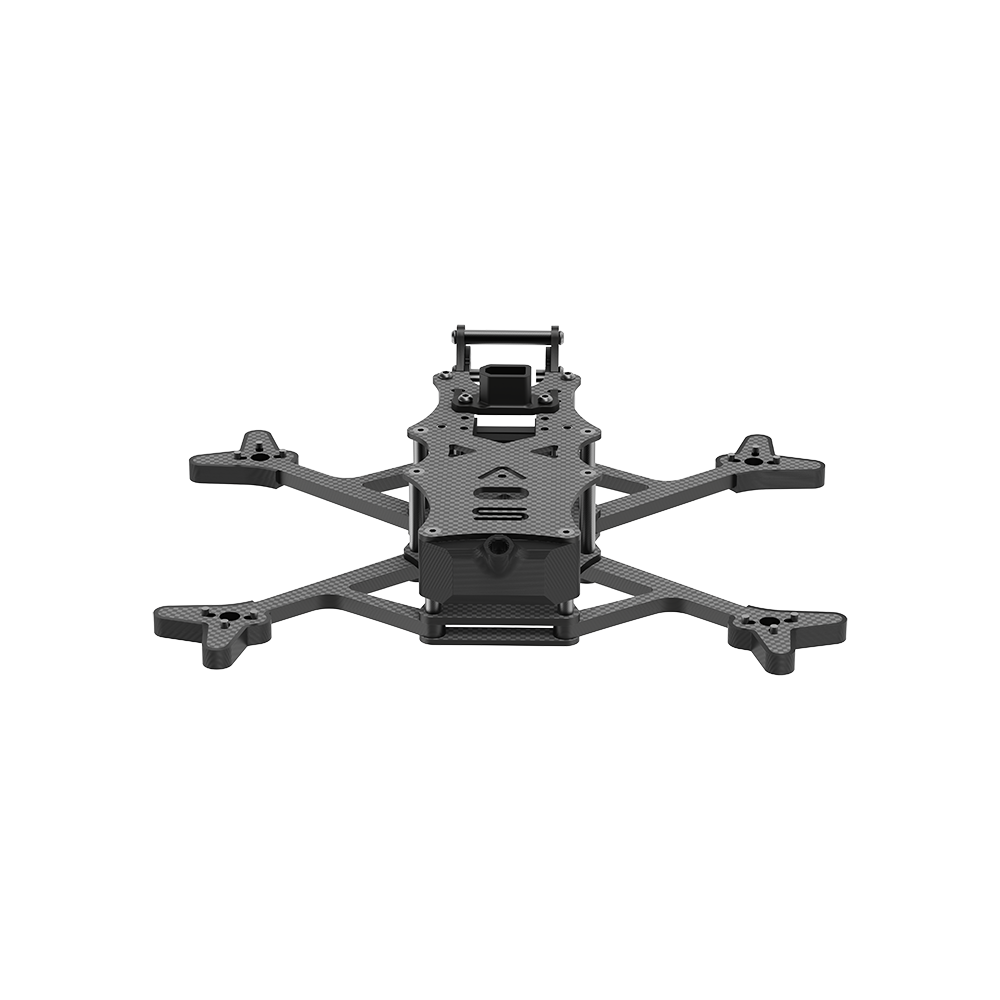

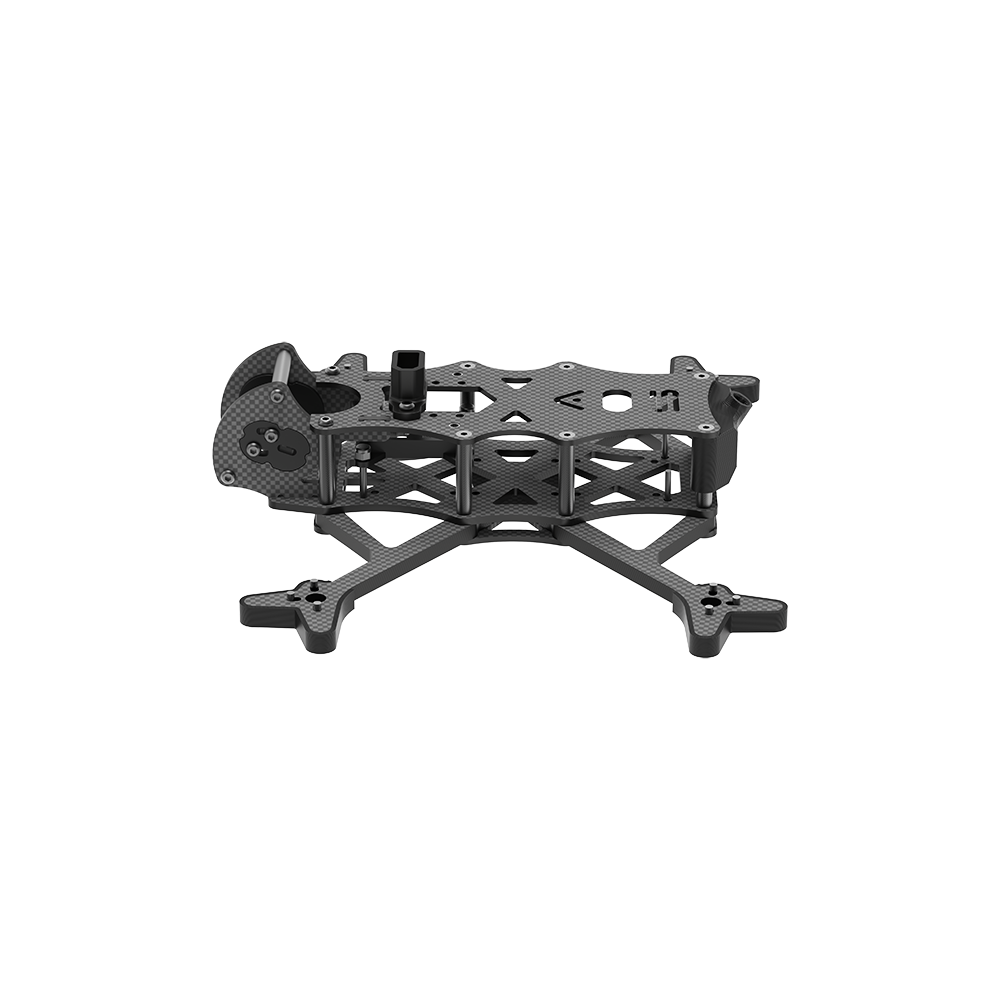

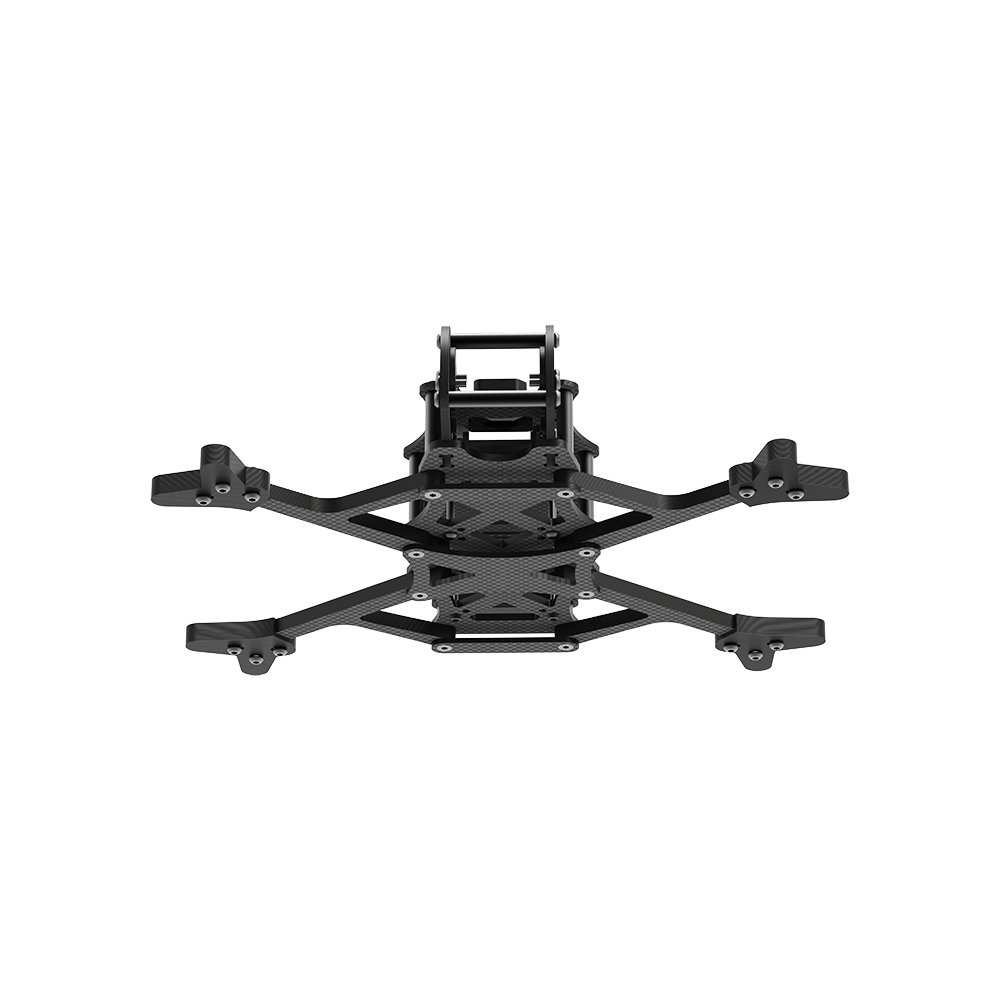

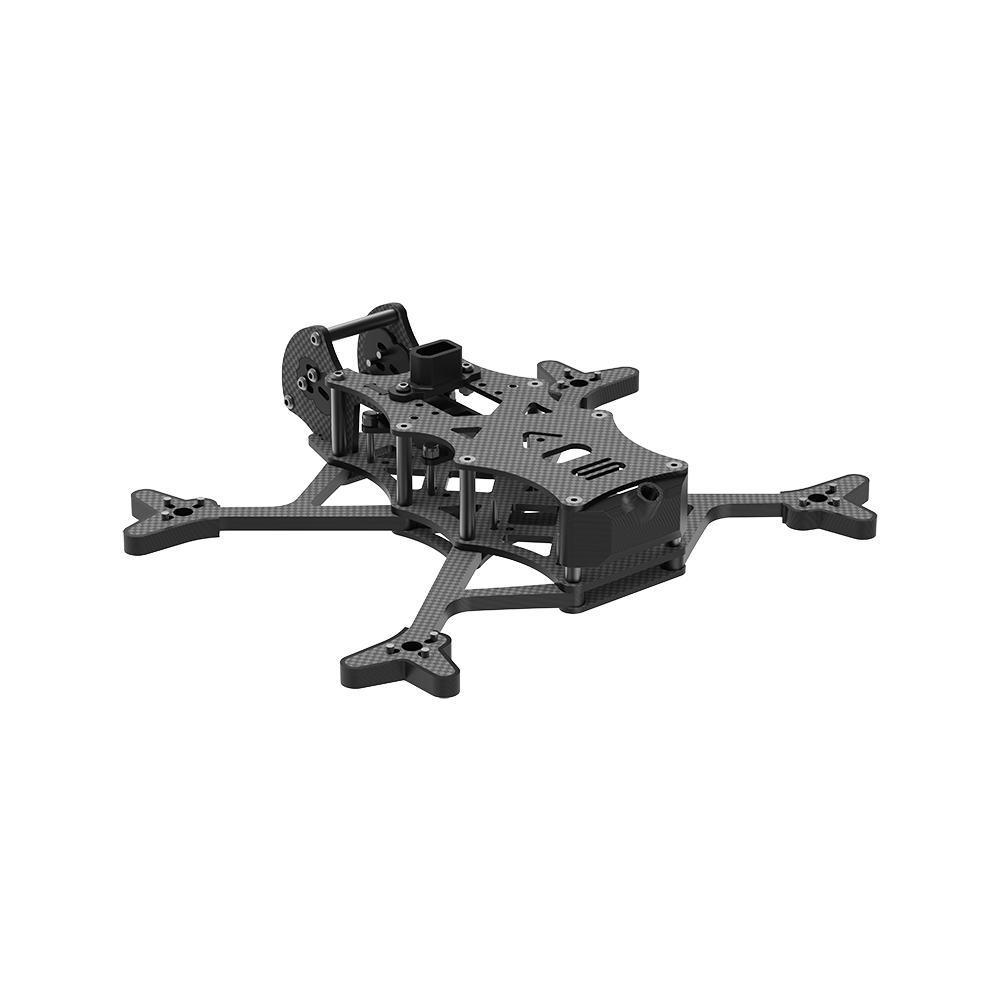

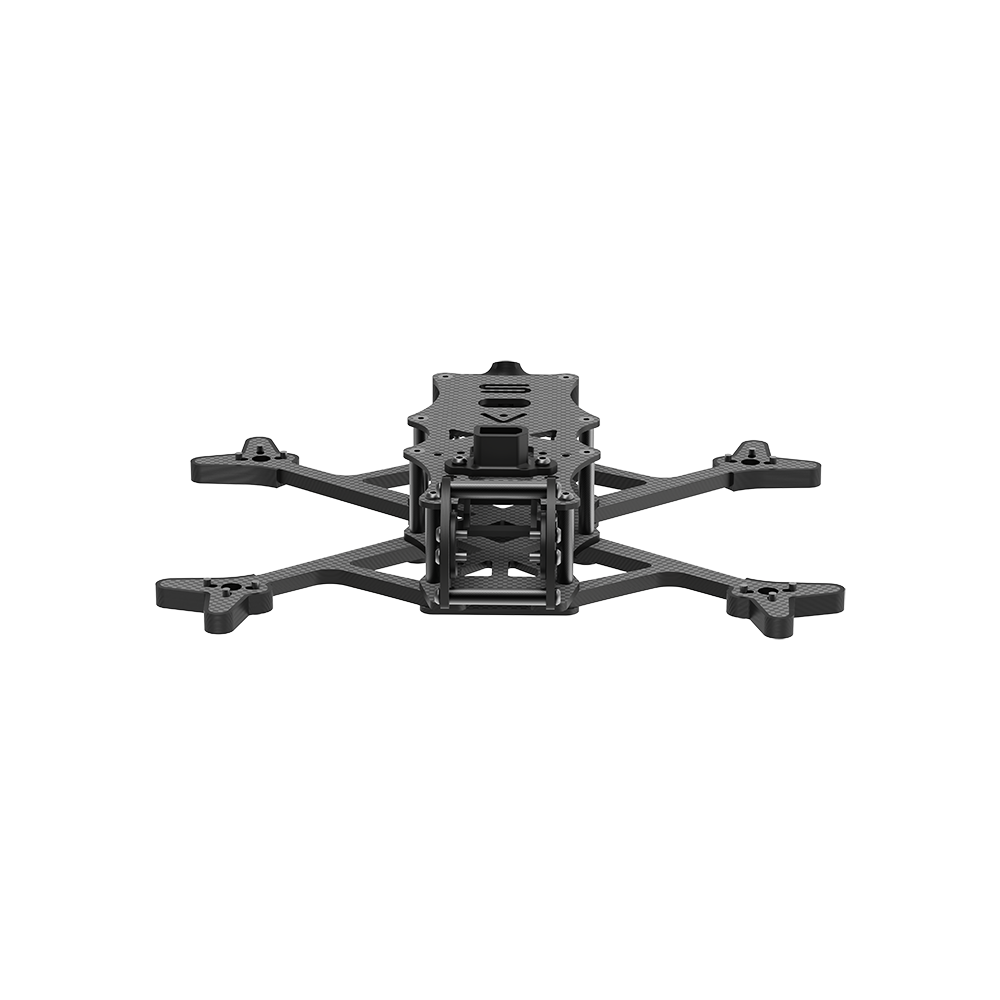

Product Name: AOS 3.5 EVO Frame Kit
Frame wheelbase: 162mm
Frame Dimension: L94.5*W131*H29 mm
Arm Thickness: 4mm
Top Plate Thickness: 1.5mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 1.5mm
Motor Mounting: 9x9mm-φ2mm
VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
1 x AOS 3.5 EVO Frame Kit
1 x TPU Parts
4 x Motor Wire Shield Tube
1 x Screw Bag
2 x Battery Strap
2 x Battery pads
