    Home New Arrivals AlexMos 32 BIT Extended BGC with GM110-10 w/Encoder Gimbal Motor System Combo

    AlexMos 32 BIT Extended BGC with GM110-10 w/Encoder Gimbal Motor System Combo

    ₹69,999

    Out of stock

    Notify me when the item is back in stock.

    Compare
    Add to wishlist
    Category: New Arrivals
    Share:
    • Description
    • Reviews (0)
    • Shipping & Delivery
    Description

    PRODUCT DESCRIPTION

    Encoders in the SimpleBGC project
    Using encoders with SimpleBGC board gives the following advantages:
    1. Prevents motors from losing synchronization and skipping steps.
    2. Provides the information about frame angle and angle of the camera relative to the frame, that can be
    important for some kind of applications.
    3. Can significantly decrease power consumption by using field-oriented control strategy to drive
    motors.
    4. Increases instant torque in the same way.
    5. Provides possibility to get information about the camera balance and makes automatic balancing
    (with help of extra DC servomotors and moving counterweights).
    6. Option to adjust the camera position by hands.
    7. Increase the precision of stabilization by applying for FOC-specific compensations.
    Despite the implementation of some new features is still in progress, encoders now give completely new
    feel of operating the system, and recommended to use in the professional-grade products.
    List of supported encoders
    AMT203 – absolute (capacitive technology) 12bit, SPI communication
    AS5048A, B – absolute (magnetic) 14bit, PWM, I2C or SPI communication, not assembled.
    MA3 – absolute (magnetic) 10-12bit, assembled. PWM communication.
    Analog – potentiometer or any other type where the analog output is proportional to the angle
    AS5600** – absolute magnetic encoder with Analog, PWM or I2C interface
    SBGC32_I2C_Drv expansion board – acts as an external motor driver combined with encoder interface,
    controlled by an I2C bus. Seehttp://www.basecamelectronics.com/sbgc32_i2c_drv/ for details.
    Type of encoder can be selected during the tuning process in the GUI.
    There is no big difference between 12bit and 14bit resolution because encoders are not used in the
    closed-loop PID controller, so high resolution is not strictly required. But ABSOLUTE angular error should
    be as low as possible, especially with the big number of poles.


    The iFlight Original BaseCam SimpleBGC 32-bit Extended Gimbal Controller Encoder Version, it is built-in frame IMU, a current sensor to measure battery power consumption, CAN-bus to replace I2C for the IMU sensor and other periphery connection

    New Capabilities:

    *Built-in Frame IMU

    *Current sensor to measure battery power consumption

    *CAN-bus to replace I2C for the IMU sensor and other periphery connection

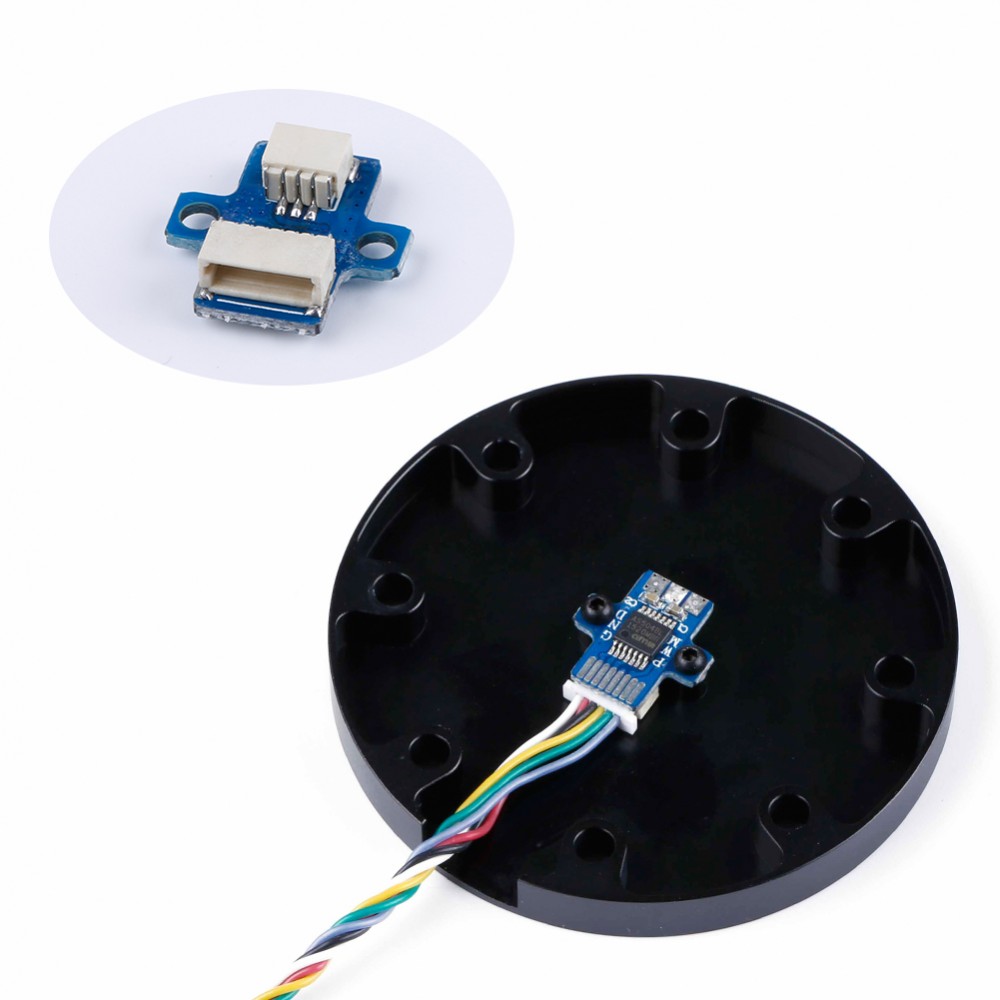

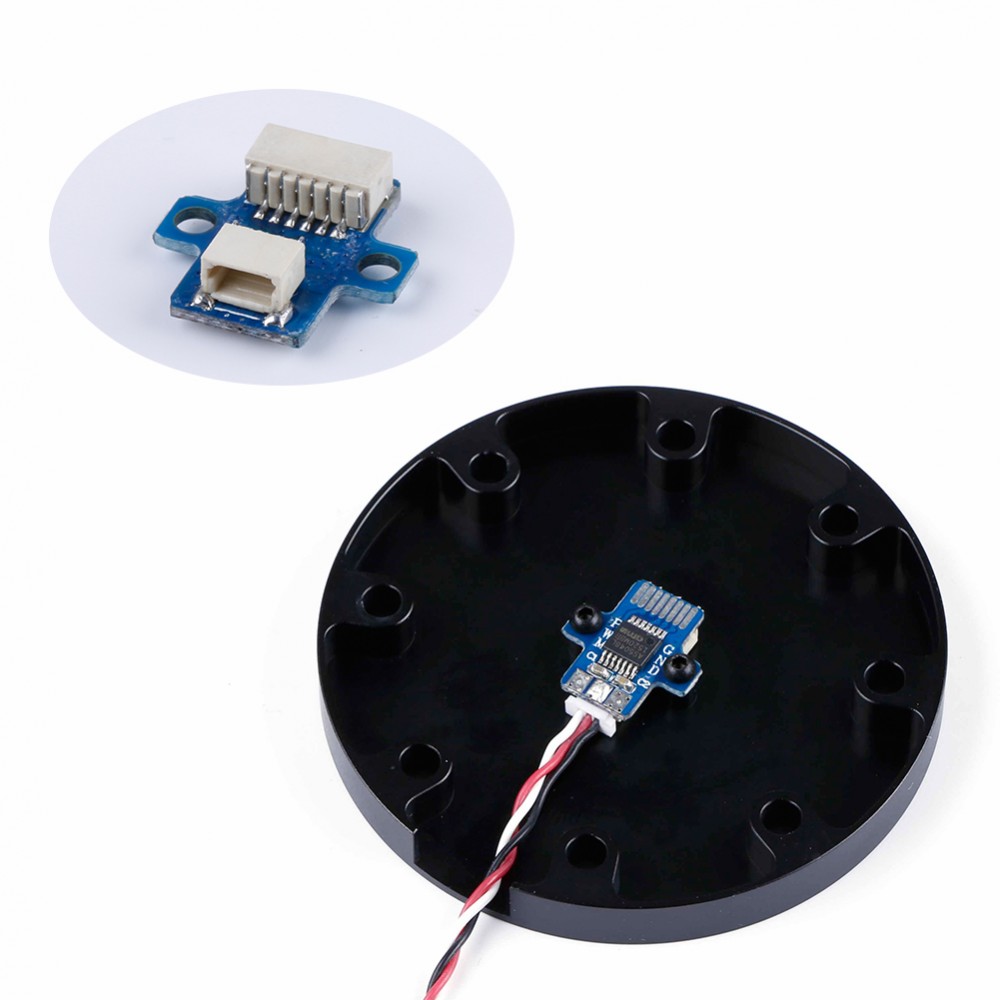

    *Dedicated 3x SPI/PWM ports for encoder connection

    *Additional I2C port to connect 2nd IMU or encoders

    *Built-in sound beeper

    *Up to 6s LiPo battery is supported

    Specifications:

    Size of the board: 50×50 mm

    The Distance between the mounting holes: 45 mm

    The Diameter of the mounting holes: 3 mm

    Power supply voltage: 8-26 V (3s-6s LiPo)

    Maximum motor current: 1,5 A

    5V output current to power external devices: up to 1 A

    3V output current: 150 mA

    The AS5048 is an easy-to-use 360° angle position sensor with a 14-bit high-resolution output. The maximum system accuracy is 0.05° assuming linearization and averaging is done by the external microcontroller. The IC measures the absolute position of the magnet’s rotation angle and consists of Hall sensors, the analog-digital converter, and digital signal processing. The zero position can be programmed via SPI or IC command. Therefore no programmer is needed anymore. This simplifies the assembly of the complete system because the zero position of the magnet does not need to be mechanically aligned. This helps developers to shorten their developing time. The sensor tolerates misalignment, air gap variations, temperature variations and as well as external magnetic fields. This robustness and wide temperature range (-40°C up to +150°C) of the AS5048 makes the IC ideal for rotation angle sensing in harsh industrial and medical environments. Several AS5048 ICs can be connected in the daisy chain for serial data read out. The absolute position information of the magnet is directly accessible over a PWM output and can be read out over a standard SPI or a high-speed IC interface. Version AS5048A comes with SPI and PWM Interface. Version AS5048B is configured with the IC interface and has also a PWM output. An internal voltage regulator allows the AS5048 to operate at either 3.3 V or 5 V supplies.

    It is specially designed for iPower Motor GBM5208 GBM6208 GBM6212 GBM8017 GBM8028 GBM8108 GBM110 Motor, Please note that there should be screw holes on the gimbal motor to fit the metal mounting plate, otherwise you’ll need to DIY to mount. The dimension of the aluminum alloy part is shown below.

    Key Features & Benefits
     • 360° contactless angle position sensor
     • Standard SPI or high speed IC interface and PWM
     • Simple programmable zero position via SPI or IC command
     • No programmer needed
     • 14-bit full scale resolution 0.0219°/LSB
     • Angle accuracy 0.05°after system linearization and averaging
     • Daisy chain capability
     • Tolerant to air gap variations   magnetic field input range: 30mT – 70mT
     • -40°C to +150°C ambient temperature range
     • 3.3V / 5V compliant

     • 14-pin TSSOP package (5×6.4mm)

    Magnets size 6mm x 2.5mm

    Applications
     • The robotic joint position detection
     • Industrial motor position control (we used it for BLDC Controller with Alexmos system)
     • Medical robots and fitness equipment

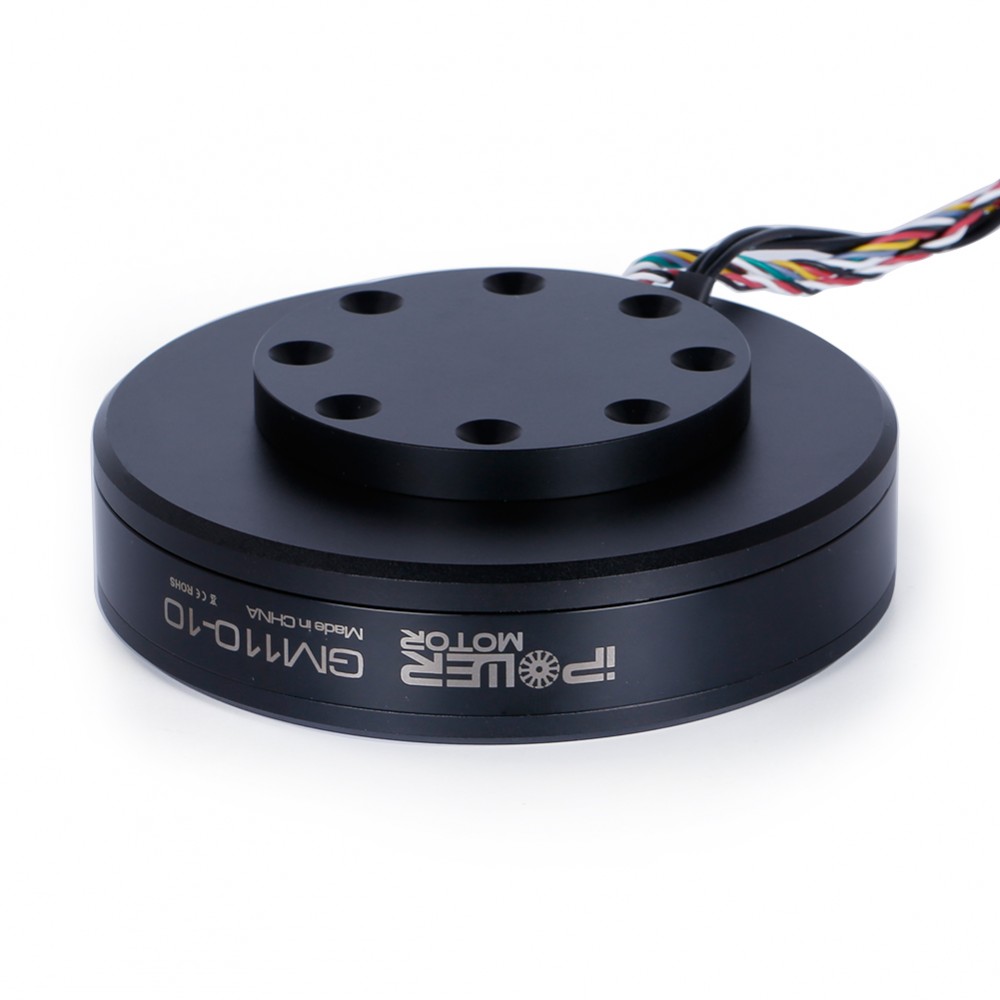

    GM110-10 brushless gimbal motor

    The principle of the camera stabilization using brushless direct-drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

    Specially designed for SLR aerial and Z-axis DIY Parts

     Features:
    -Sealed Case to prevent contamination by dust and dirt.
    -Hollow shaft for slipring
    -Configuration: 36N42P ,prove more torque.

    Specs:

    Model No.:GM110-10

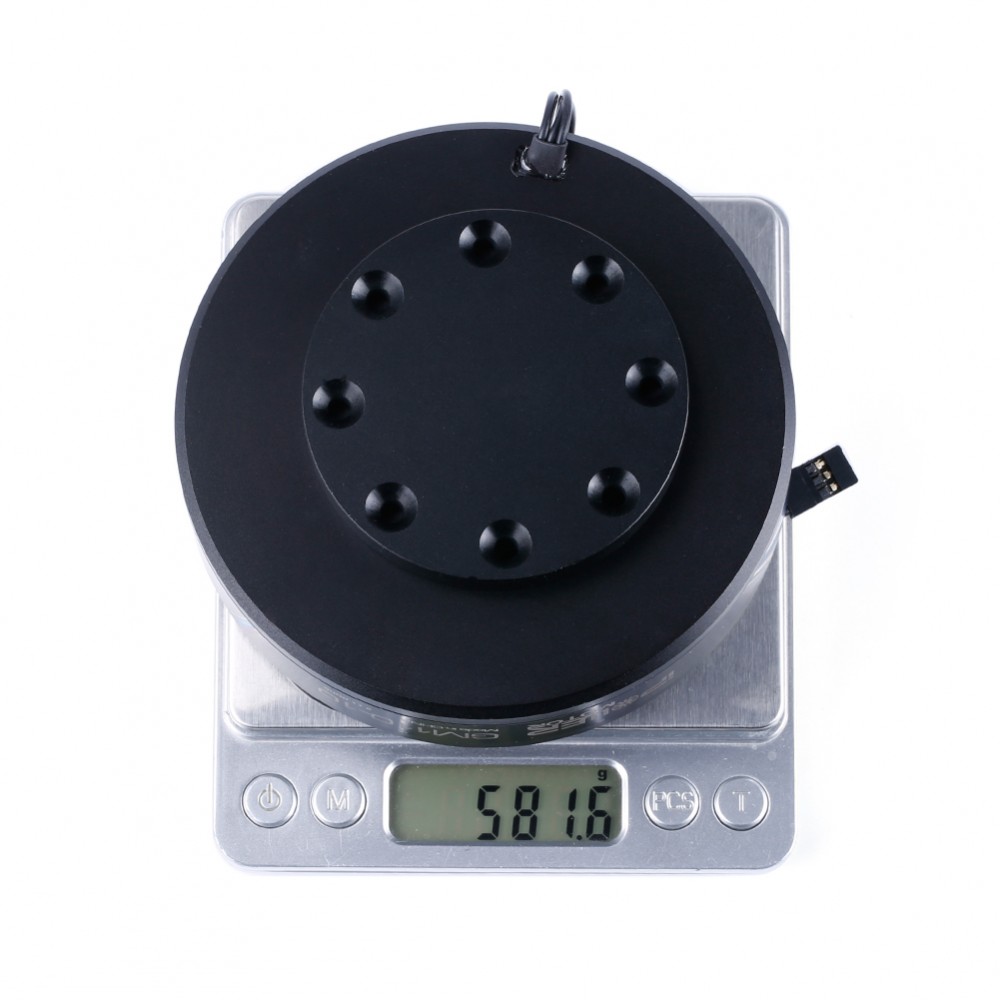

    Weight: 581.6g

    Dimension(mm):110*33.9

    RPM: 334~370 RPM

    Torque (g): 9800-12000

    Voltage (V): 20V

    Current (A):2

    Configuration: 36N42P

    Winding Turns: 0.4*1-35T

    Resistance(Ω): 5.57Ω±5%

    Hollow Shaft Diameter (mm): 22

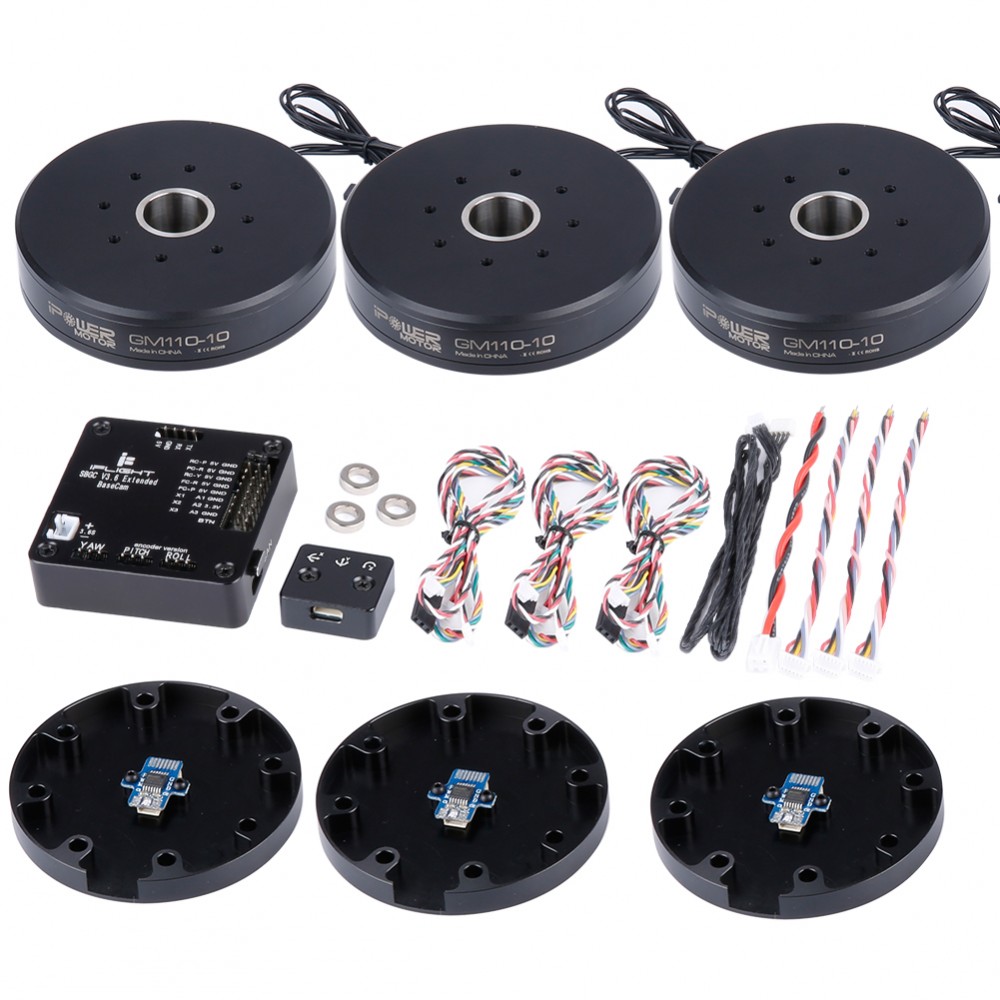

    Package included:
    – 3 x GM110-10 Gimbal Motor with AS5048A Encoder & Magnet
    – 1 x Alexmos 32BIT Extended BGC Board Encoder version with alum case
    – 1 x Connecting cables set
    Connecting encoders to the regular SimpleBGC 32bit board
