DOVE V3 now is new optimize with some modern race feature, It’s a trend by offering a small footprint light weight race frame without compromise the strength, adopt the popular Stretch X configuration, it fits both 30.5x and 20x stacks building options.
What has been upgraded in V3？
1. Bottom and Upper plates are changed to 3mm.
2. 4-hole Motor screw lock on the arms.
3. The angle between the front and rear arms is 80 degrees.
– Super lightweight ( airframe weighs 77.4g only)

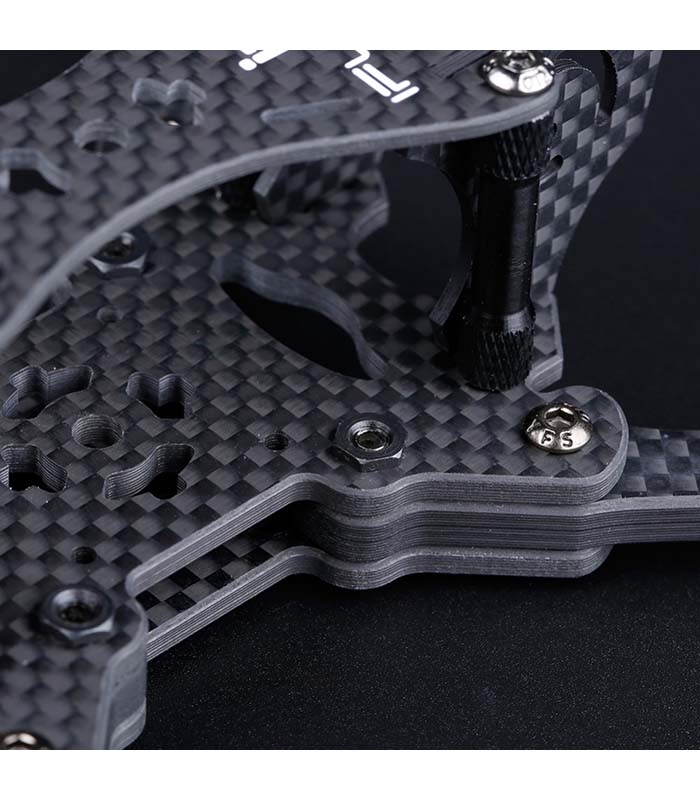

– Chamfered & 45°cut 3K carbon makes the frame extra strong
– Super durable 5mm thick Arms
– Popular Stretch X configuration
– 20*20,30.5*30.5 mount holes for all flight controllers
– Compact & easy repairing design
– Frame wheelbase: 218mm
– Frame weight: 77.4g approx
– Standoff Height: 28mm
– 5mm Arm thickness,8mm width,1.5mm vertical side plates
– The distance between vertical side plates: 19mm
– The distance between the top and upper plates: 28mm
– 2mm top, 3mm upper & 3mm bottom plate
– Mounting Holes: 20*20,30.5*30.5mm
Recommended parts(not included):
– Flight controller: SucceX F4/F7 Compatible controller
– Motor: XING 22XX or bigger size Motor
– Propeller: Max 5.1 inch propeller
– Camera: Micro Cameras(19mm width)
– Battery: 4S-6S Lipo battery
– 1pc * Dove V3 FPV Race Frame
– 1pc * Antenna mount
