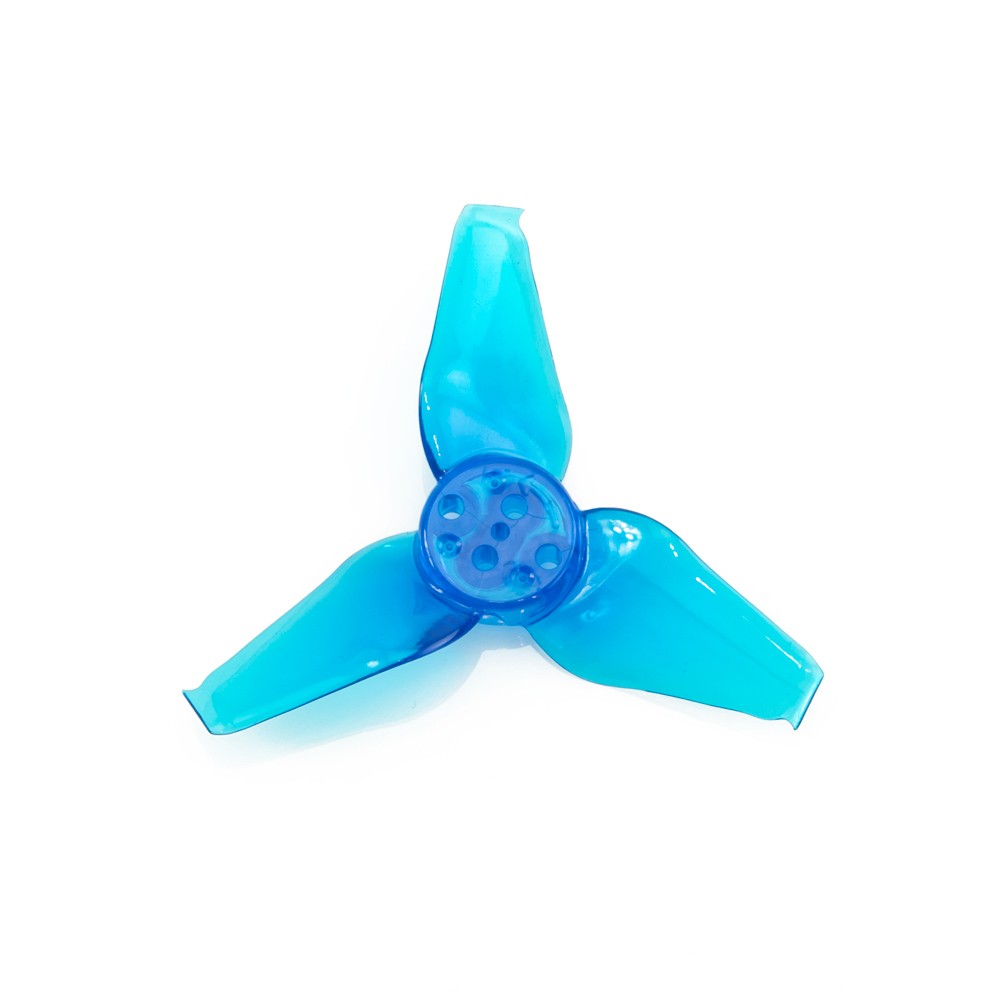

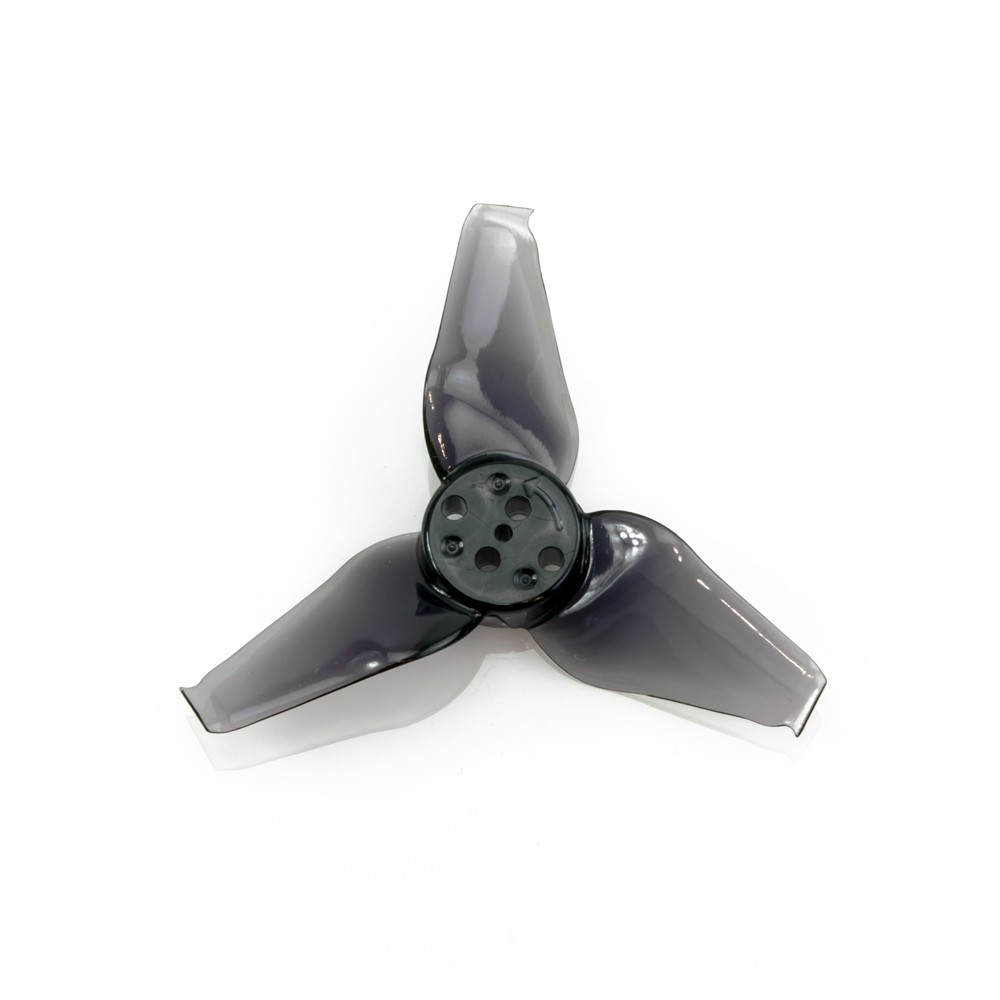

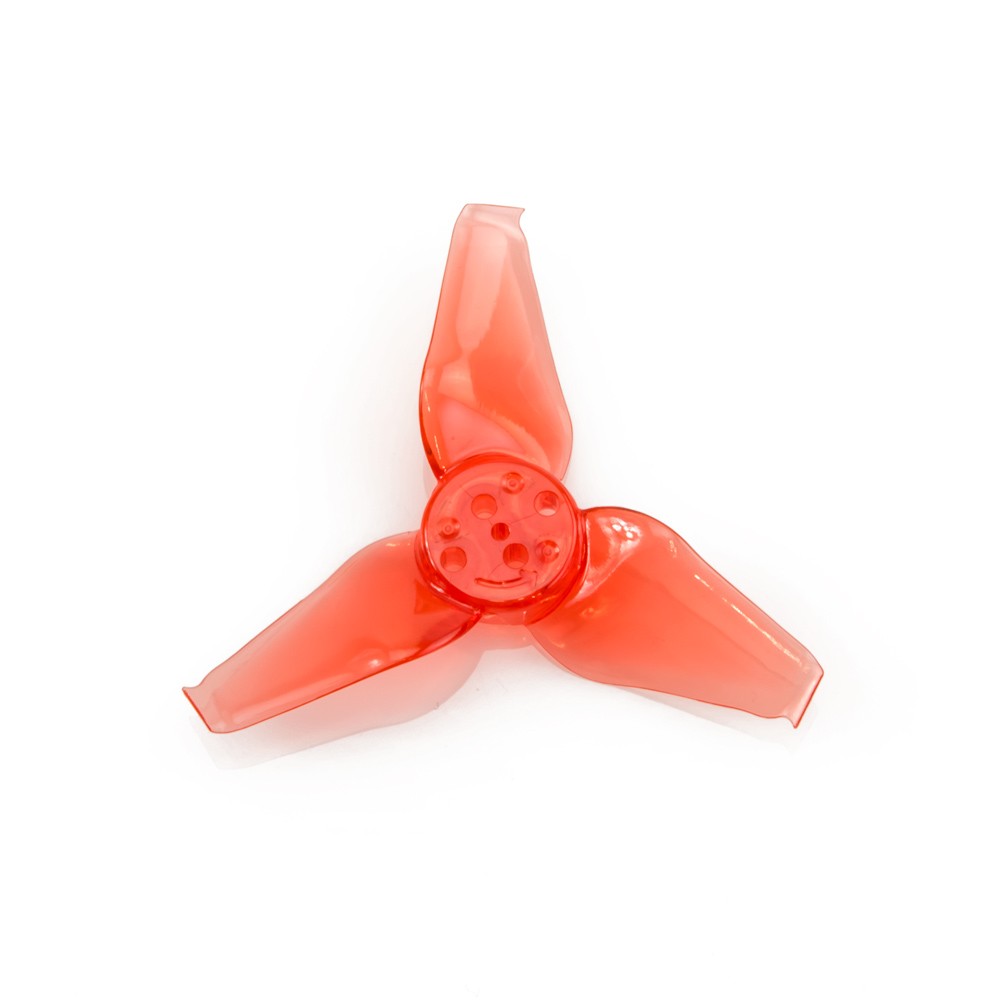

Emax Avan Babyhawk 2.3×2.7×3 Propeller (6 Pairs)

Emax’s new Babyhawk props are a great upgrade over your stock Babyhawk props. Alternatively, you can use them on any micro build that can handle 2.3″ props for great all-around performance.

Clear
Clear Red
Crystal Black
Crystal Blue
Clear
Compare
Add to wishlist
SKU: N/A Categories: ,
Description

The Emax Avan Babyhawk 2.3×2.7×3 propeller was designed to maximize control of your Babyhawk while remaining efficient. A true constant 2.7″ pitch throughout the blade gives a linear control feeling across the throttle band while still achieving high speeds. This allows for ease of flight and more precision. With a special PC blend, the Avan Babyhawk weighs 1.3 grams. Most of the weight is centralized near the hub creating a low moment of inertia of 1.14 grams*square centimeter which in turn makes a very responsive prop. The large blade chord makes the propeller very durable.

These props are the best match for the original Babyhawk or any micro running the 1104 5250kv motors with 2-3s batteries. Avan Babyhawk has screw hole mount spacing both for the original 1104 5250kv motors as well as a smaller M2 hole spacing (5mm diameter spacing) to mount on other micro-sized motors. With the new standard hole pattern try them on EMAX 1106 6000kv motors for insane thrust and speed.

 The Avan Babyhawk was designed from the ground up starting from design constraints such as RPM, airspeed, and required thrust. From these constraints, aerodynamic models were built to predict performance and to design the blade shape. Highly cambered airfoils were used to achieve high lift coefficients at high angles of attack prolonging stall. This allows for a higher blade angle while still remaining efficient. The cambered airfoils also allow a greater flight envelope making for great low-end responsiveness while still being able to achieve high speeds.
A special Polycarbonate blend is used to achieve high durability. This material is incredibly tough and ductile to resist fracture in high impact crashes. A thick blade root was designed to further increase this durability. Our injection mold process is optimized to reduce bubbles in the plastic to increase the strength of the propeller and to maintain superb balance.

Specifications

  • Size: 2.3″
  • Pitch: 2.7″
  • Blades: 3-Blade
  • Weight: 1.3 grams
  • Moment of Inertia: 1.14 g*cm^2
  • Hole Pattern: Babyhawk and standard M2 5mm diameter holes

Includes

  • 6x CW Avan Babyhawk Props
  • 6x CCW Avan Babyhawk Props
Additional information
Brand

EMAX
Color

Clear, Clear Red, Crystal Black, Crystal Blue
