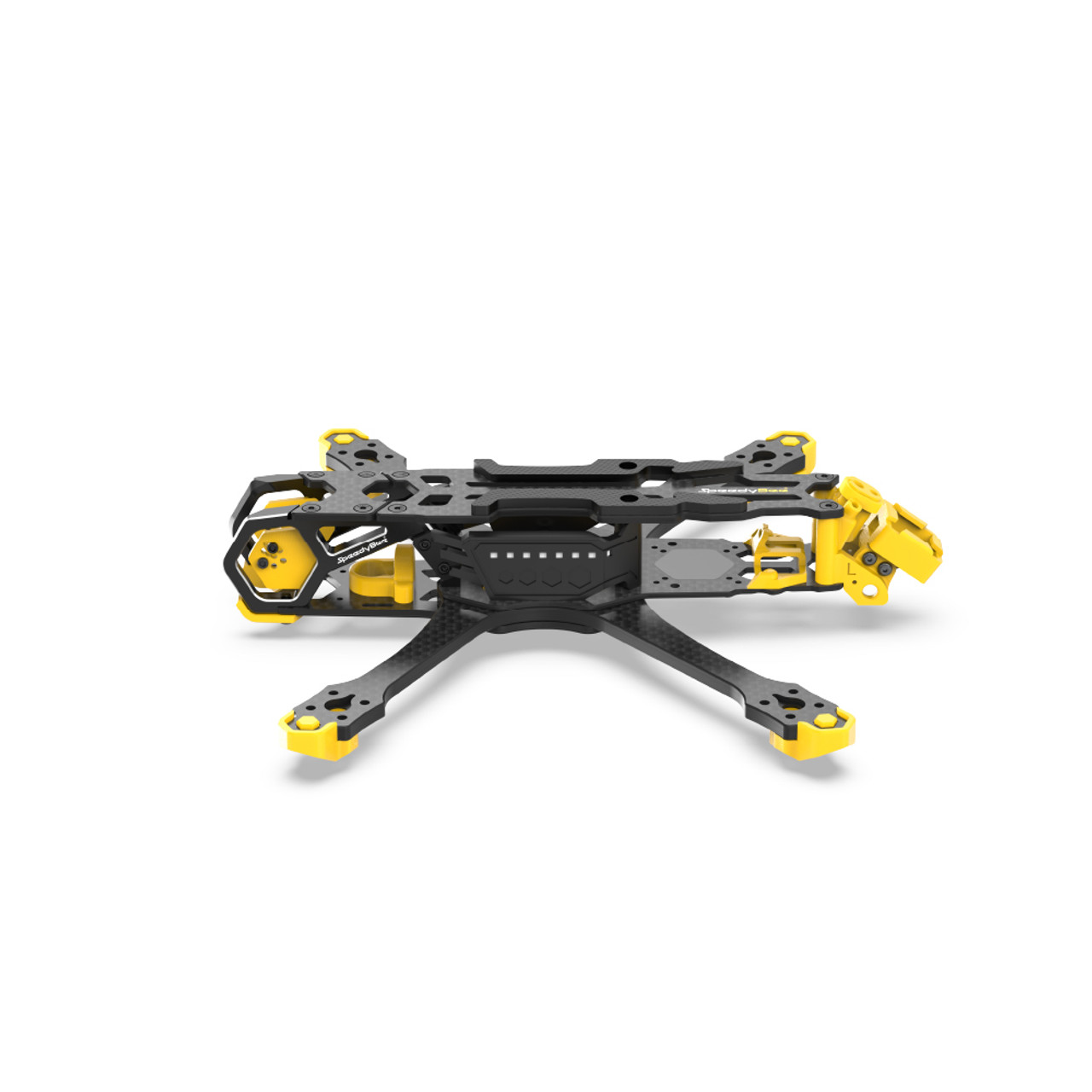

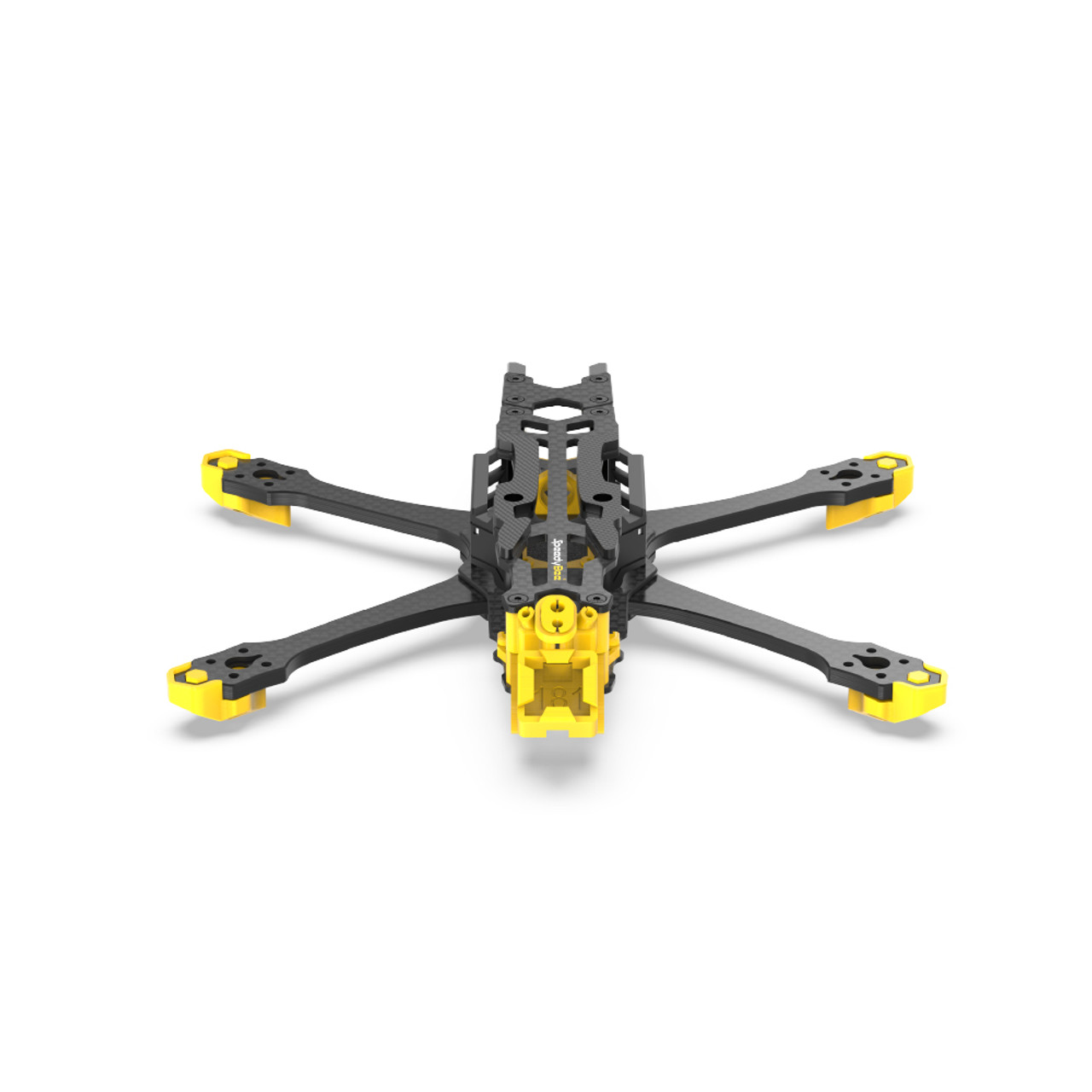

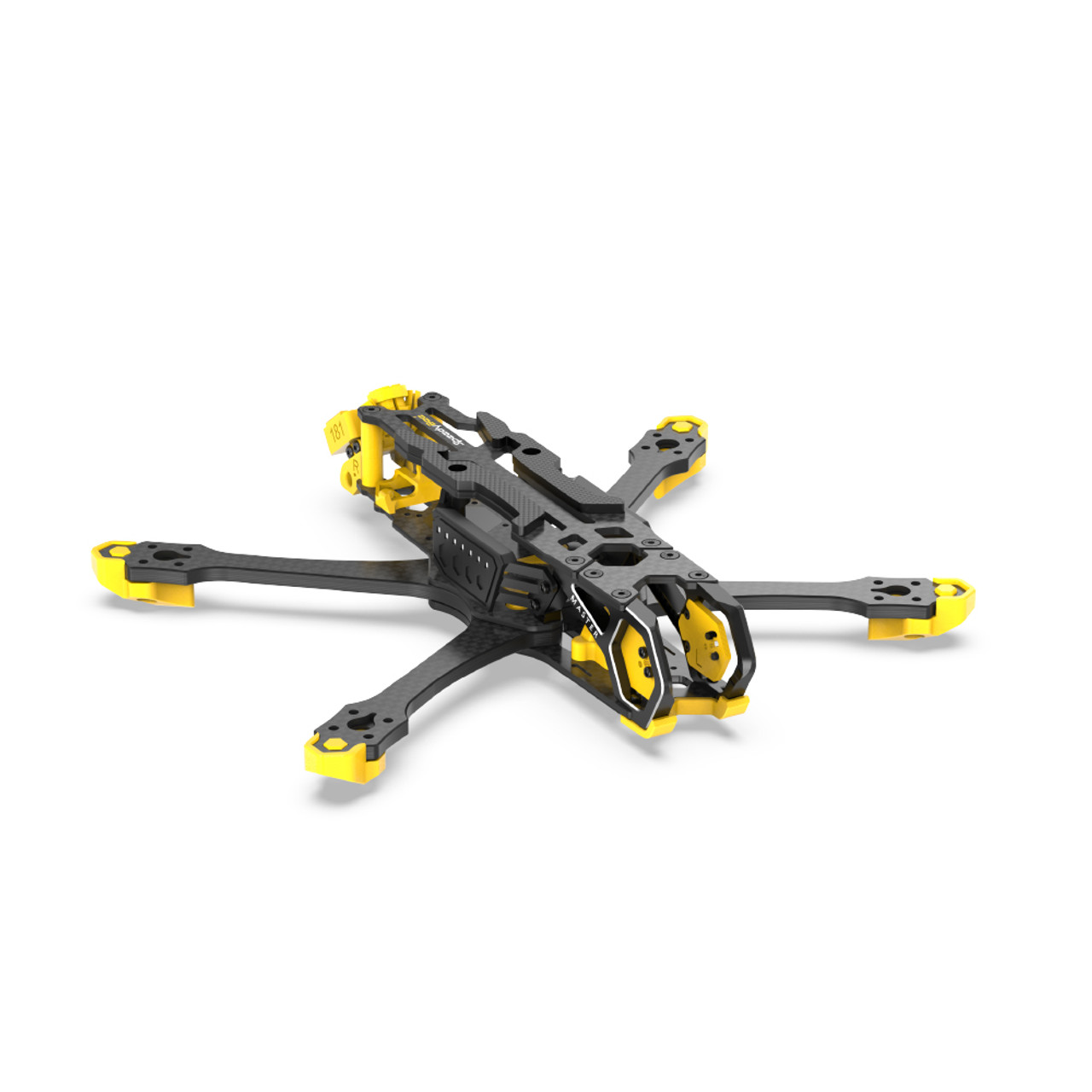

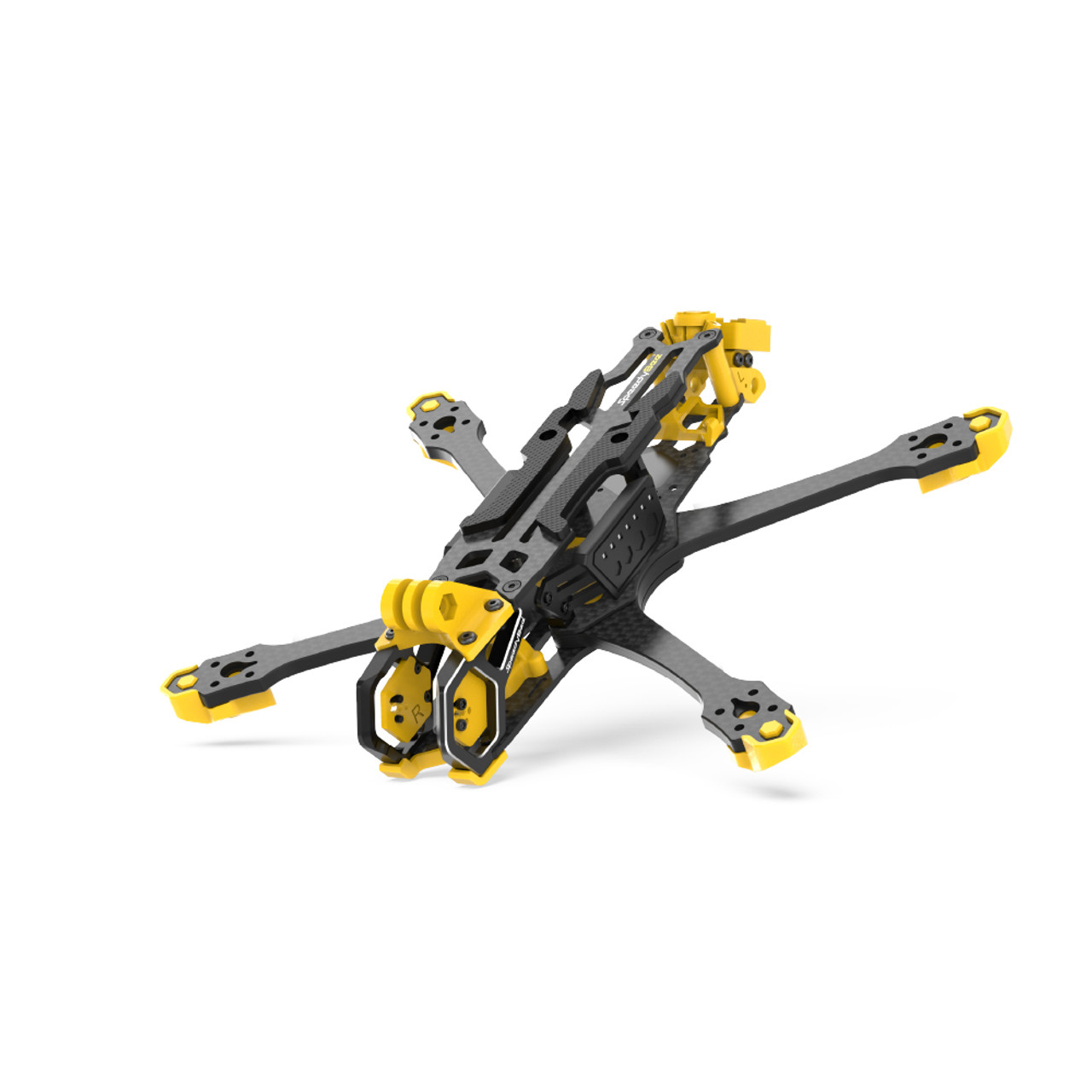

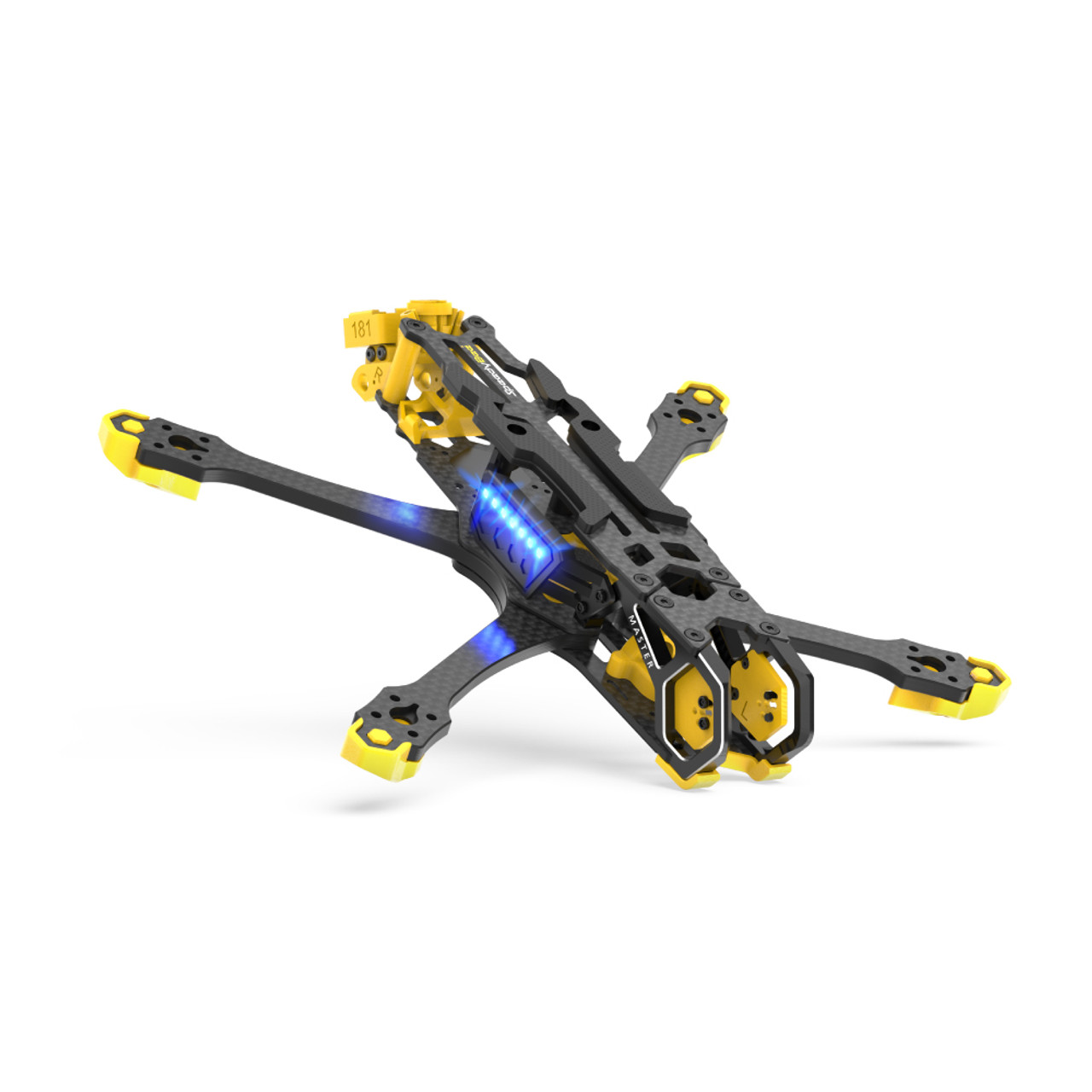

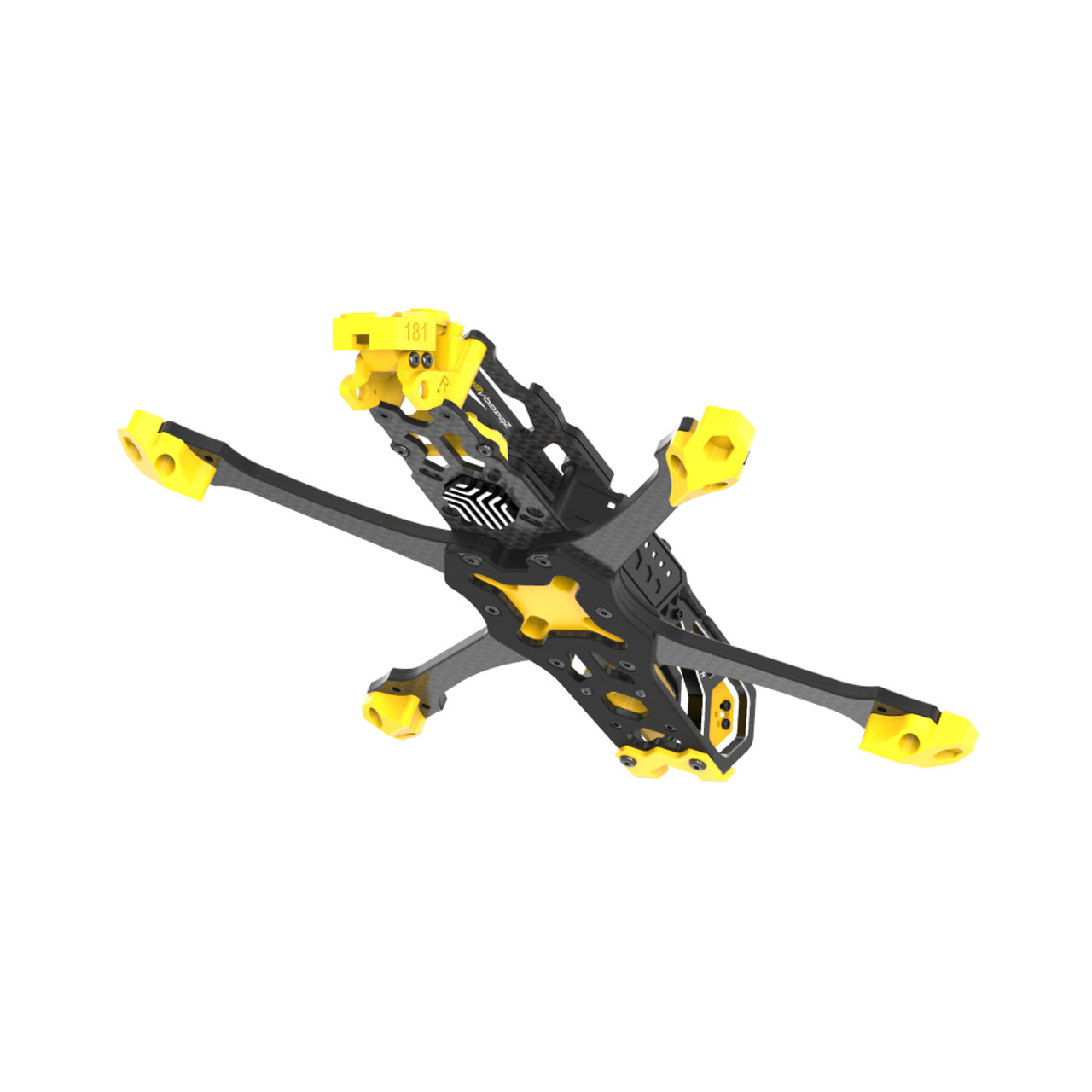

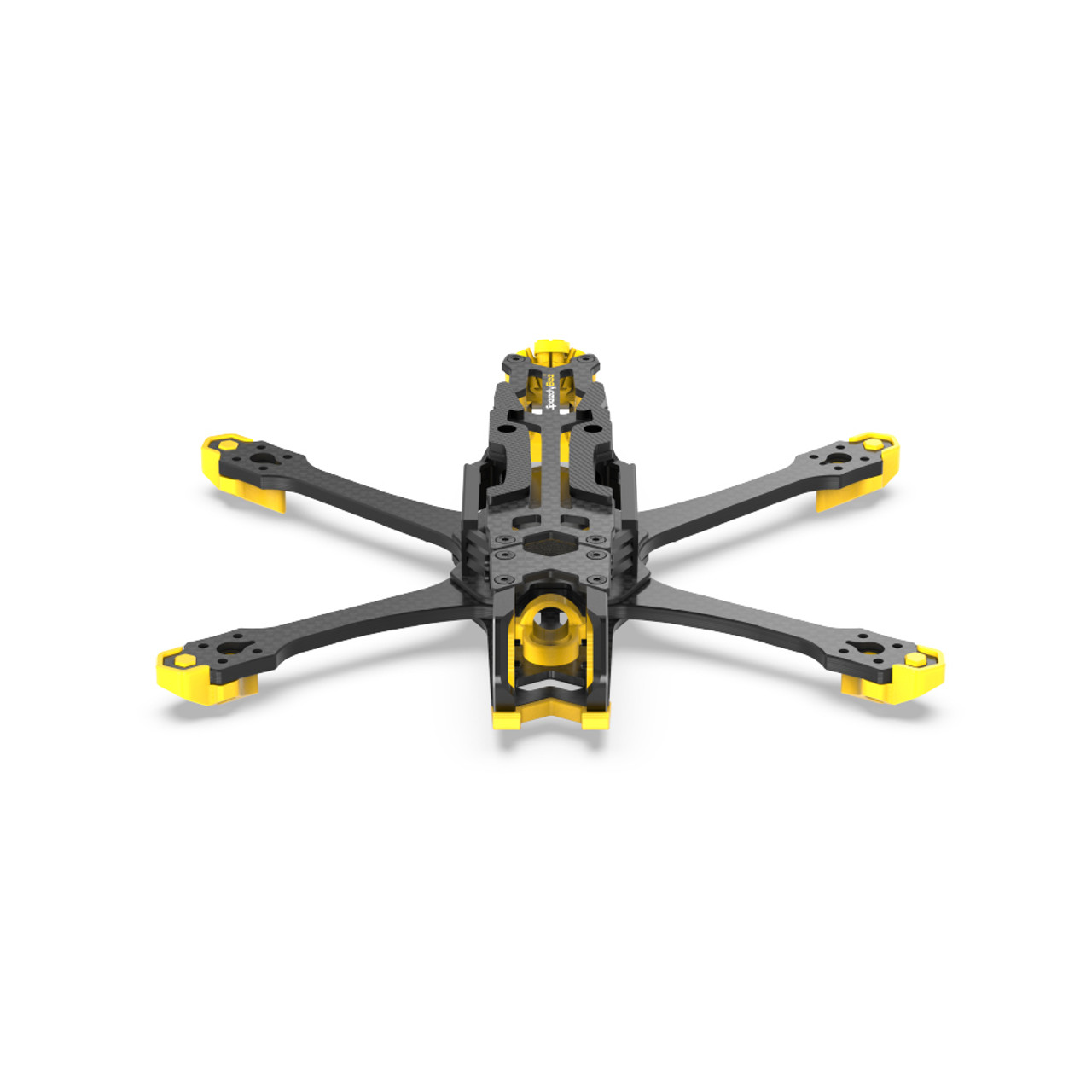

SPEEDYBEE Master 5 V2 HD 5 Inch O3 Frame Kit
Specifications
Frame | Master 5 V2 |
Wheelbase | 226mm |
Weight | About 140g (non-3D printed parts included) |
Top plate thickness | 2.5mm(T300 3K) |
Middle plate thickness | 2mm(T300 3K) |
Bottom plate thickness | 2.5mm(T300 3K) |
Arm thickness | 5mm(T300 3K) |
Camera side plate thickness | 2mm TUPC |
Anti-vibration stack structure hardness | Yellow HB80、Translucent HB50 |
3D printed par | Yellow TPU |
Motor circlip spacing | φ8mm |
Compatible propellers | 5-5.1 inch |
Mounting holes for motors | 16*16mm |
FC mounting hole | 30.5×30.5(M3) & 20×20mm (M3) |
Drone head | 7075 CNC aluminum alloy |
Aluminum standoff | 7075 M3*23mm*(6mm/4.7mm)、M3*23mm*(4.6mm) |
Internal installation height | 23-30mm |
Standard antenna installation suppor | SMA (single), O3 4mm, RunCam Link |
Standard GPS base size | 18*18*8mm (other size requiresan additional purchase) |
Rear Support Mounting Holes | 20*20mm – 25.5*25.5mm – 30.5*30.5mm |
Detachable stack protective plate RGB LED | included |
Motor wire protection | included |
Included 3D printed parts | GOPRO base, capacitor/buzzerbase, arm protection, 181GPS base, T-antenna base, CNC drone head TPU protection, camera anti-vibration module |
Buzzer | TMB12A05 |
