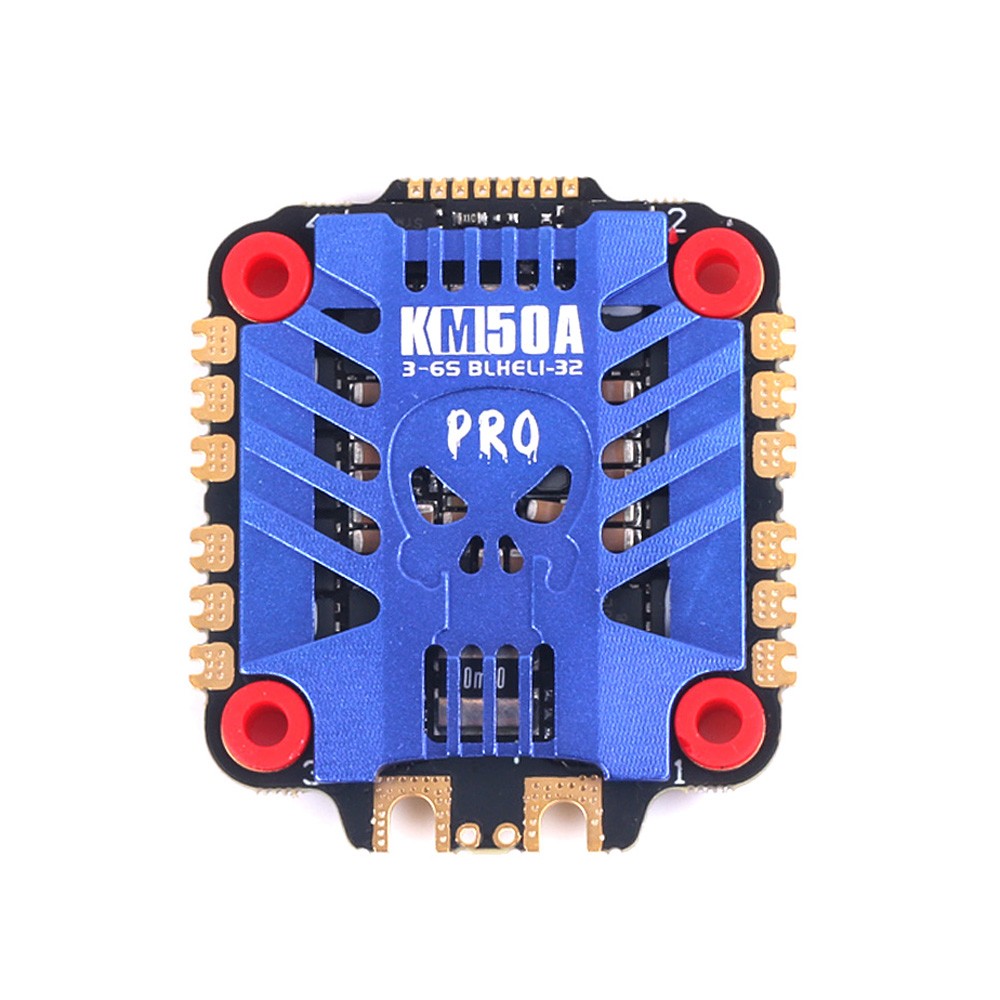

SkyStars KM50A Pro 3-6S BLHeli_32 4-in-1 ESC

The SkyStars KM50A Pro 3-6S BLHeli_32 4-in-1 ESC brings tons of great features all in a 30.5×30.5mm mounting pattern. The KM50 Pro ESC comes with vibration isolation rubbers to prevent cracks during a crash, comes with large motor pads for easy soldering, and uses aluminum alloy for the heatsink, among other features. Supports Dshot 600/1200 and voltage, RPMS & current telemetry functions. Combined with Blheli_32  firmware to make a smooth ESC.

Features

• Flashed with the latest Blheli_32 firmware
• Highly Efficient ( Low Specific Heat Capacity ) heatsink for better cooling
• Use of Aluminum alloy for heatsink
• Imported The United States MOSFET
• Panasonic ZLH Ultra-Low ESR Capacitor
• PCB uses 3oz Copper which reduces heat and increases system efficiency
• Large motor pads for easy soldering
• Support telemetry functions ( Voltage ,RPMS & Current )
• Inbuild overcurrent protection
• Vibration isolation rubber to prevent cracks during a crash
• Supports custom ESC startup tone

Specifications

• Input voltage : 3-6S LiPo / LiHV
• Firmware: Blheli_32
• Continuous Current : 50A
• Peak Current: 60A (10S)
• Overcurrent Protection: Yes
• ESC Protocol: Dshot 600/1200
• Mounting Hole Pattern : 30.5mm / M3
• BEC: NO
• Product size: 41*46*7.6mm
• Weight: 17g

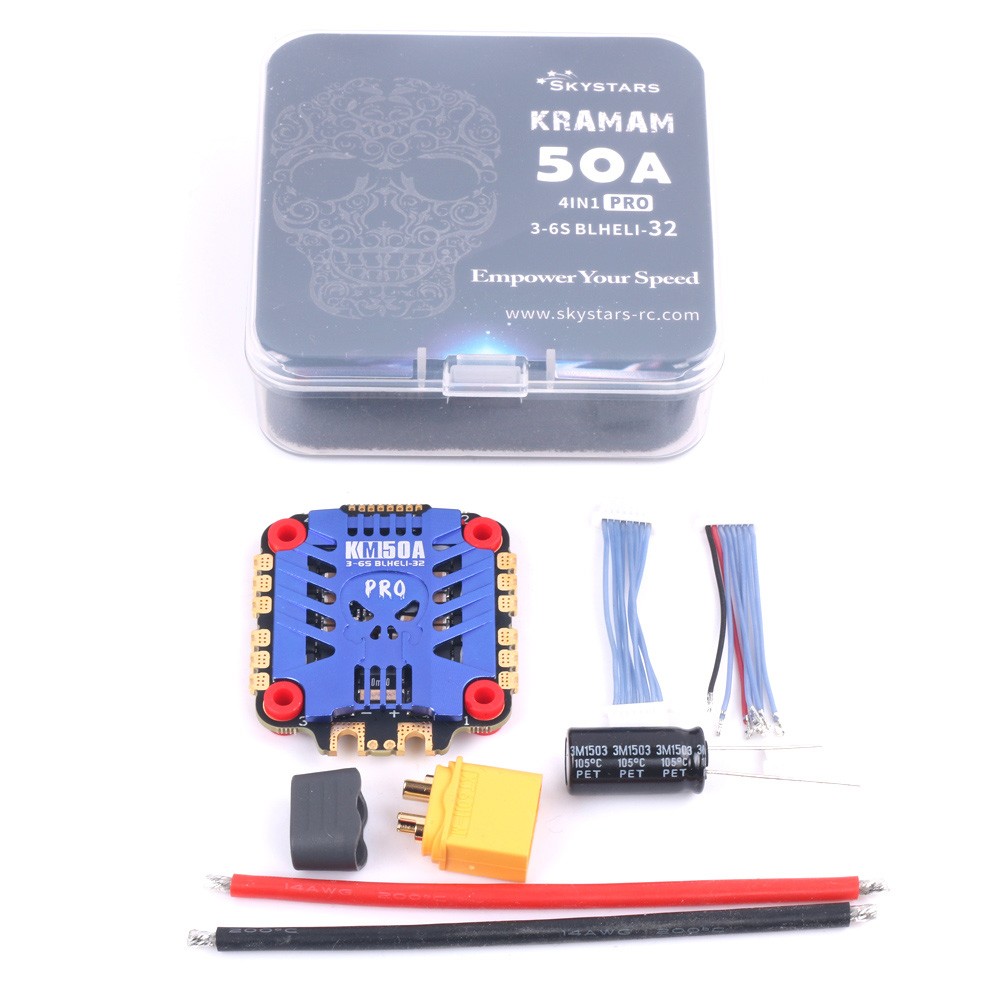

Includes

• 1 x Skystars KM50A Pro 3-6S BLHeli_32 4-in-1 ESC
• 1 x 35v 560uf Capacitor
• 1 x Wiring harness
• 4 x Damping Rubbers
