PandaRC VT5805 25-600mW 5.8GHz FPV VTX

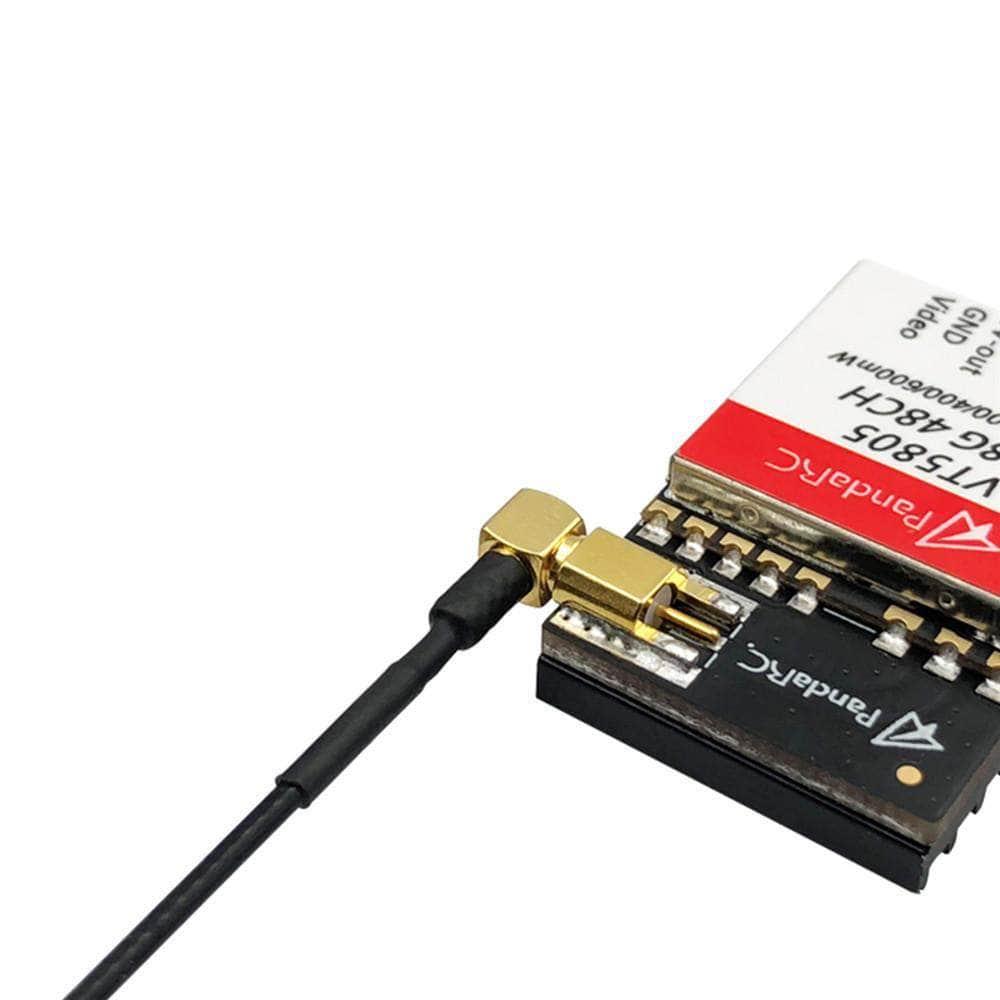

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This version features an updated MMCX connector and a heatsink for more stable transmission power.

Features

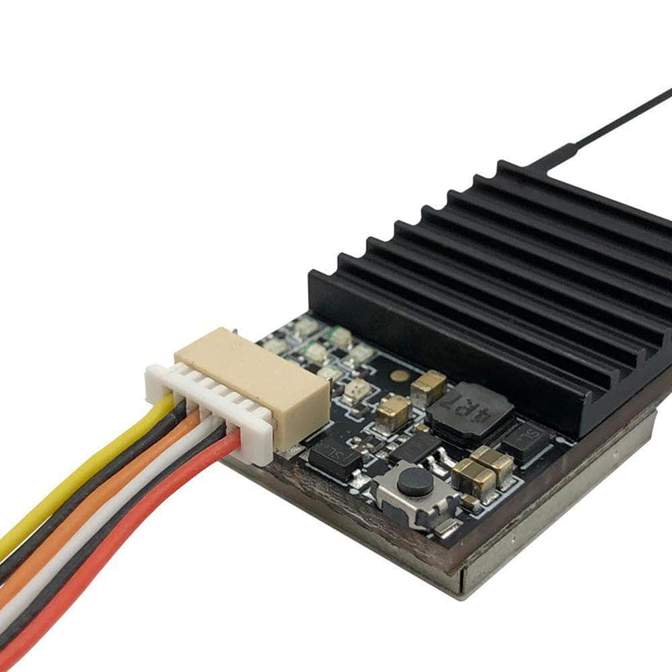

• The pre-installed heat sink on the back for more stable image transmission
• Transmission distance ≥0.5km@25mw, ≥1km@200mw, ≥2km@600mw (original antenna)
• Image transmission supports OSD decoding and tuning
• Key frequency control: short press once, change the channel number CH (CH1-CH8)
• Long press the button for 2 seconds and then press the button to change the frequency group FR (A, b, E, F, r, L)
• Button power control: long press the button for 10 seconds and then press the button to change the power level 25/100/200/400/600mw
• Power indicated by a red LED

Specifications

• Input voltage: 7-24V
• Output Power: 25/100/200/400/600mw switchable
• Frequency: 5.8G 48CH
• Connector: MMCX
• Weight: 8.2g
• Size: 20x31x8mm

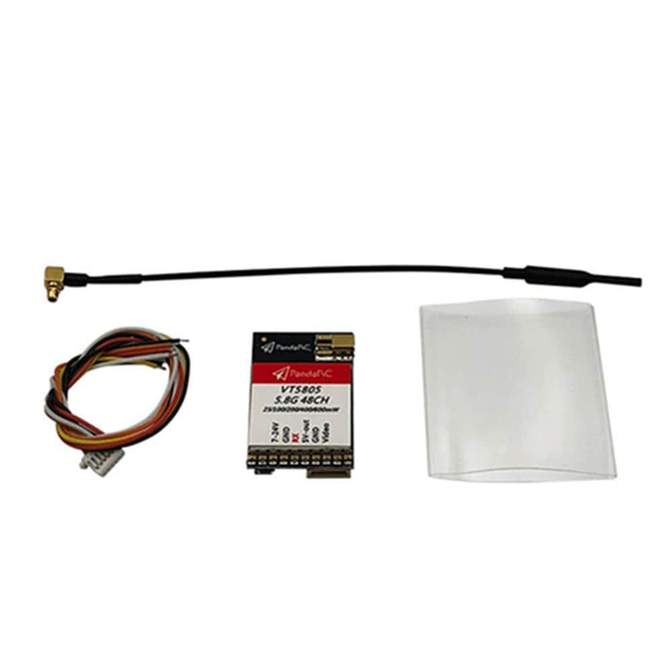

Includes

• 1x PandaRC VT5805 5.8GHz 25-600mW VTX – MMCX
