iFlight SucceX 60A Plus V2.1 2-6S BLHeli_32 Dshot1200 4-in-1 ESC

The SucceX 60A Plus V2.1 32bit BL Dshot 1200 4in1 ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz 3-IN 1 STM32F051 MCU, Metal MOSFET, TDK MLCC Low ESR ceramic capacitors provide high efficiency and better heat dissipation.

Standard 30.5*30.5 Φ3mm  mounting holes; Vibration and impact can be perfectly avoided by adding dampers; Rational layout design with extended solder pads ensures easy fixes or adjustments; Countersunk holes on the soldering pad enable each layer board can be powered.

Excellent hardware, optimized circuit, and high-performance components enable SucceX 60A V2.1 Plus 4in1 ESC to respond efficiently. All in all, it brings faster-responding speed and smoother flying experience!

Features:

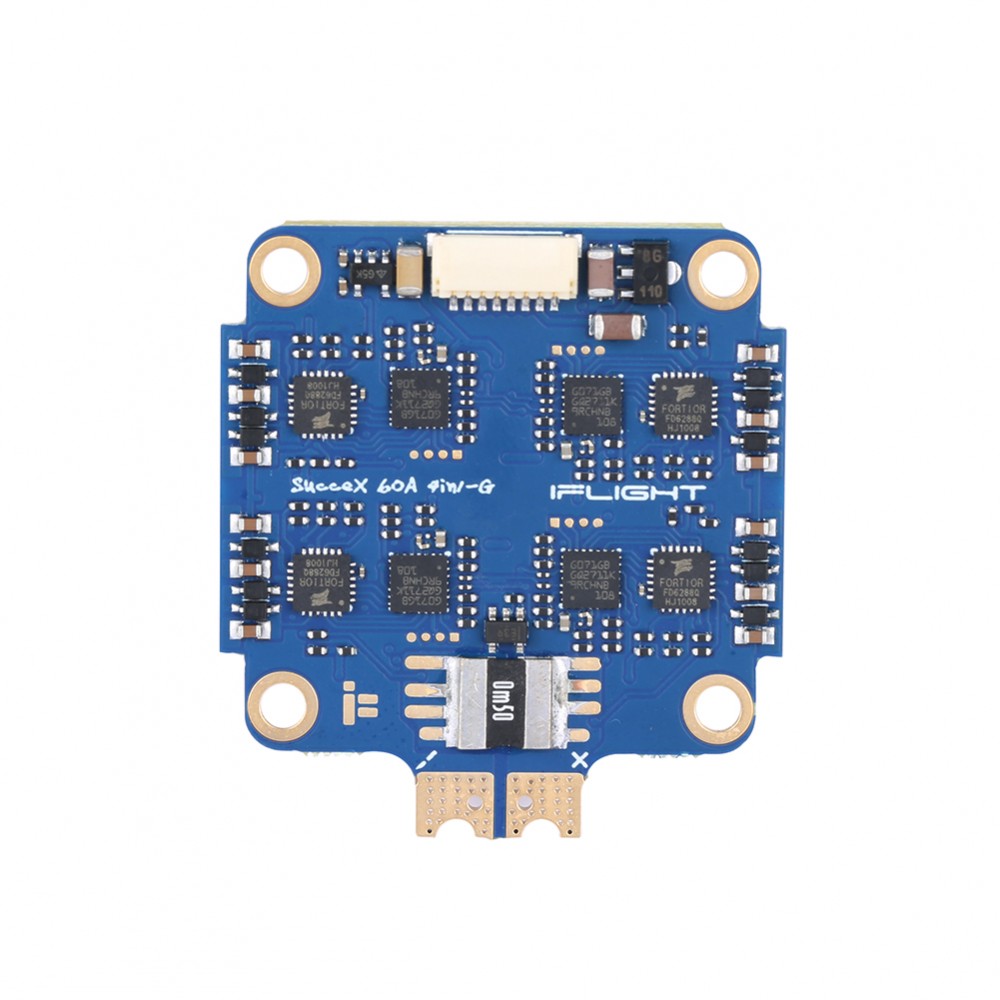

– 8 layers single-board stacking PCB board;

– 4oz 1.6mm thick power board(0.9mm copper ratio),better operating load capacity;

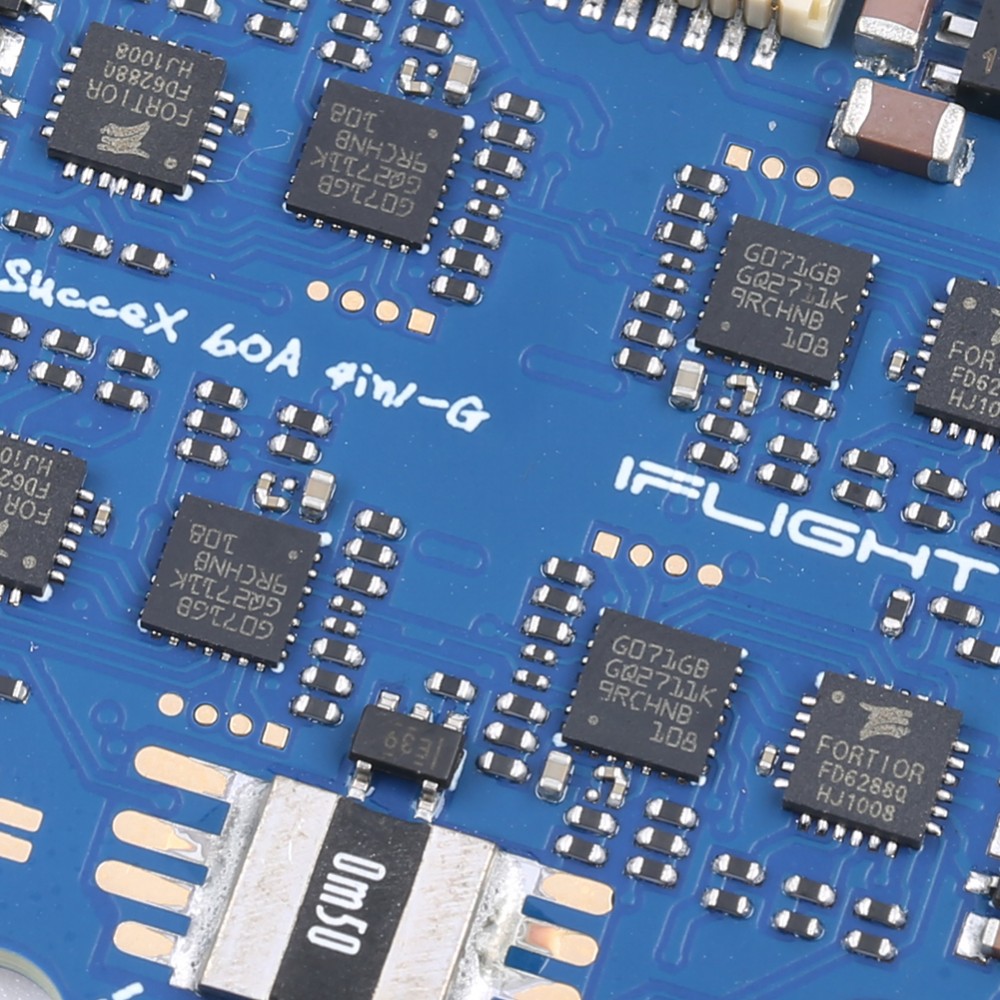

– 32bit G071 MCU,48mHz running speed;

– TDK MLCC Low ESR ceramic capacitors;

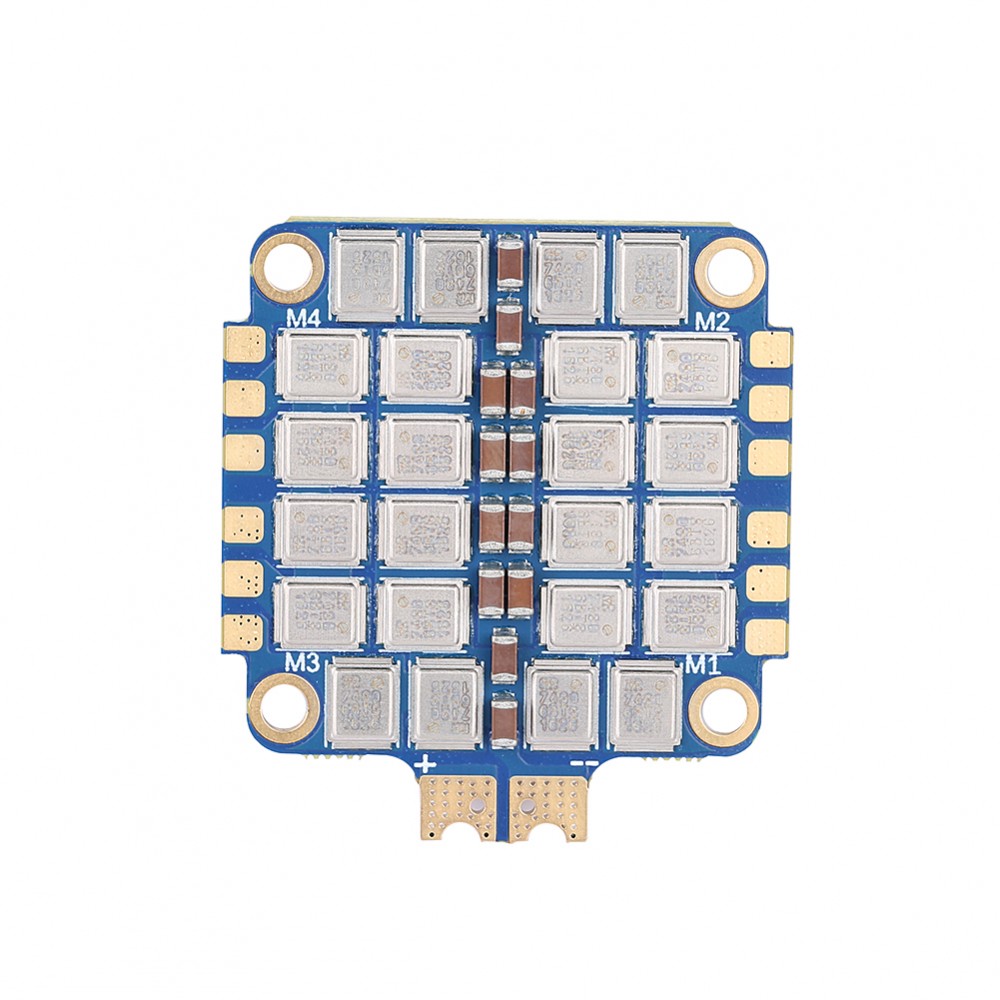

– Top grade metal MOSFET;

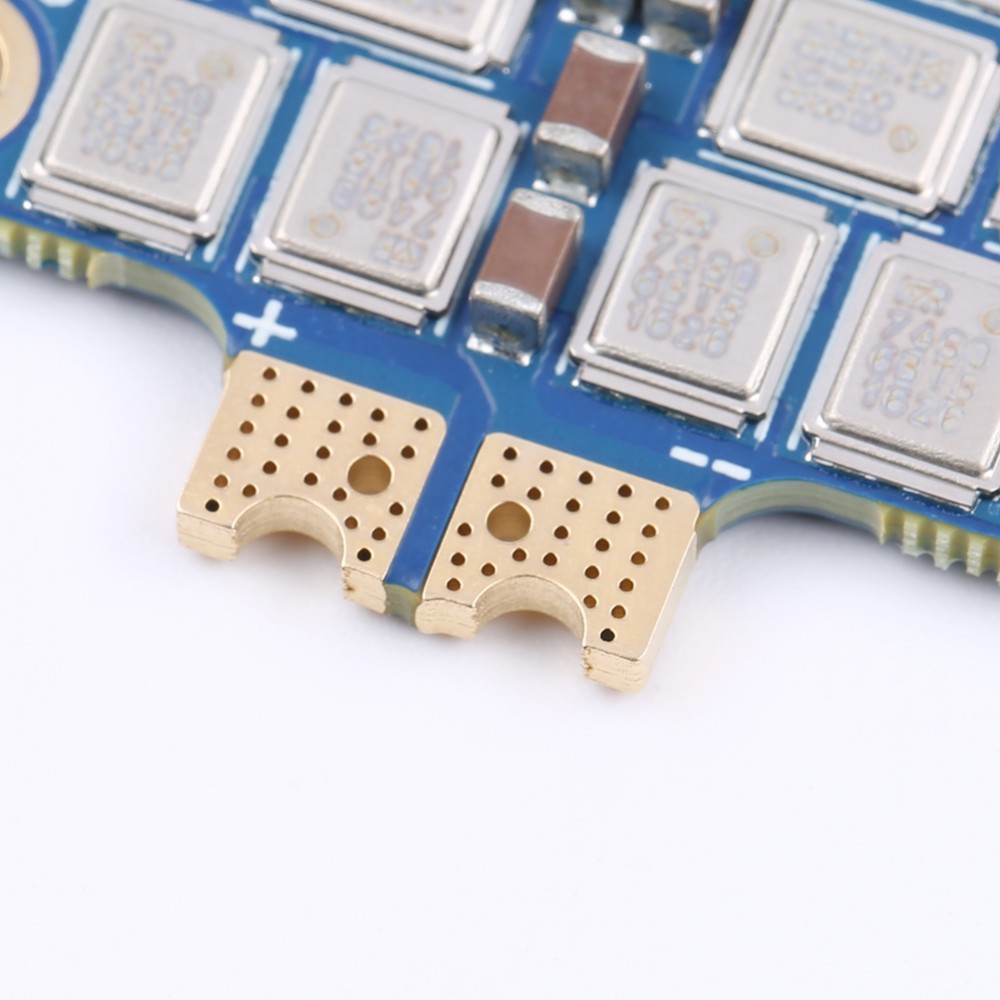

– Rational layout, countersunk holes on extended motor soldering pad enable each layer board can be powered.

Changelog:

V2.0 – V2.1:

Before MCU F051 changed to G071

Specification:

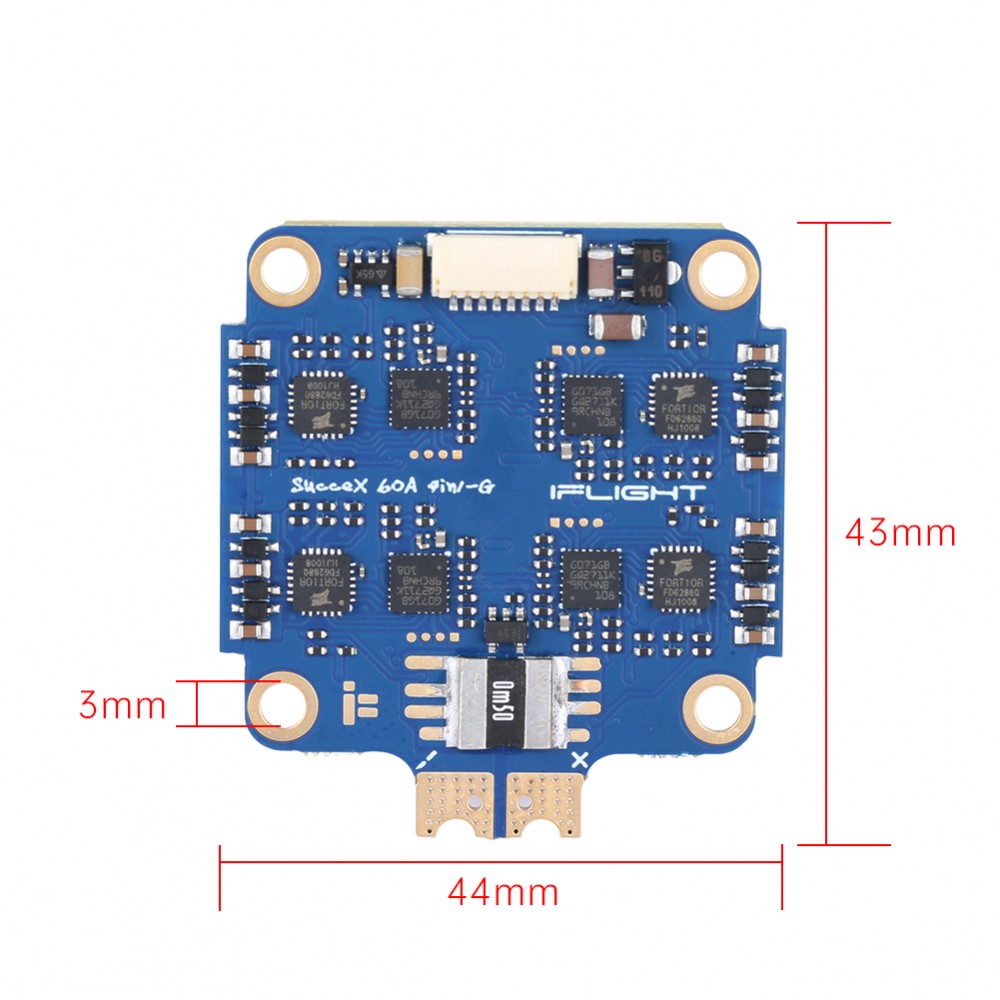

– Dimension:43x39mm

– Mounting Holes: 30.5*30.5mm/Φ3mm

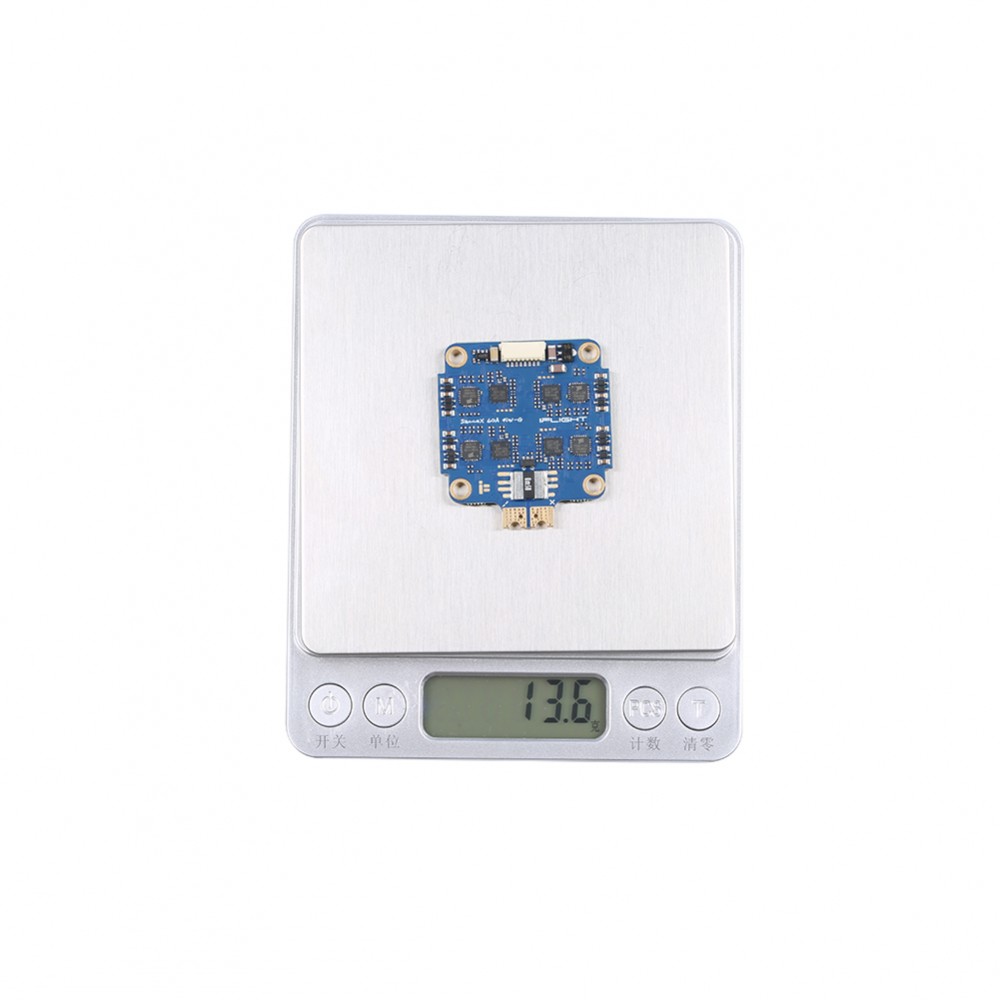

– Weight: 14.3g

– Supports 2-6S lipo input

– Constant: 60 Amps

– Burst: 65 Amps

– STM32G071

– Current sensor: Yes

– Current sensor scale: 100 (1/10th mV/A)

– BEC: No

– Supports: DShot DShot150/300/600/1200/MultiShot/ OneShot etc.

– Target: iFlight_G071_4in1

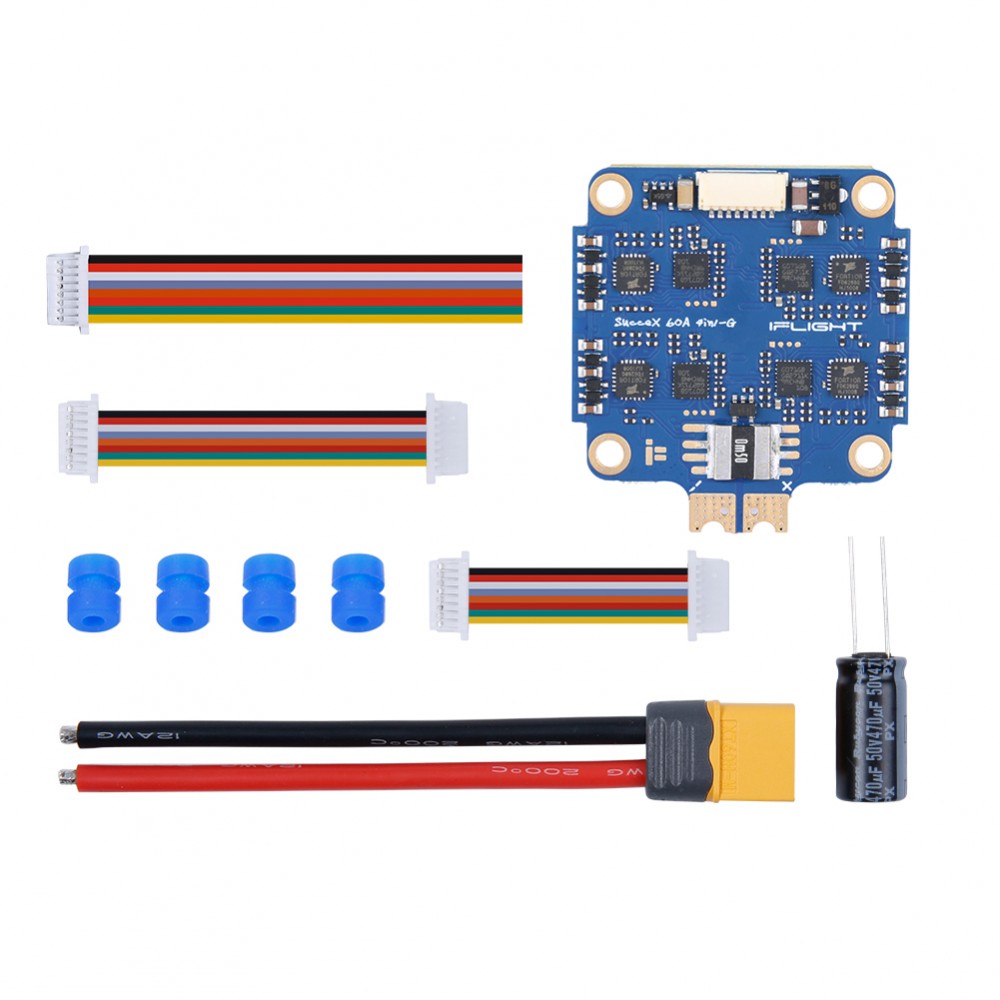

Package Included:

– SucceX 60A V2.1 4-in-1 ESC  * 1pc

– Power cables & ESC signal wires * 1set
