About this product

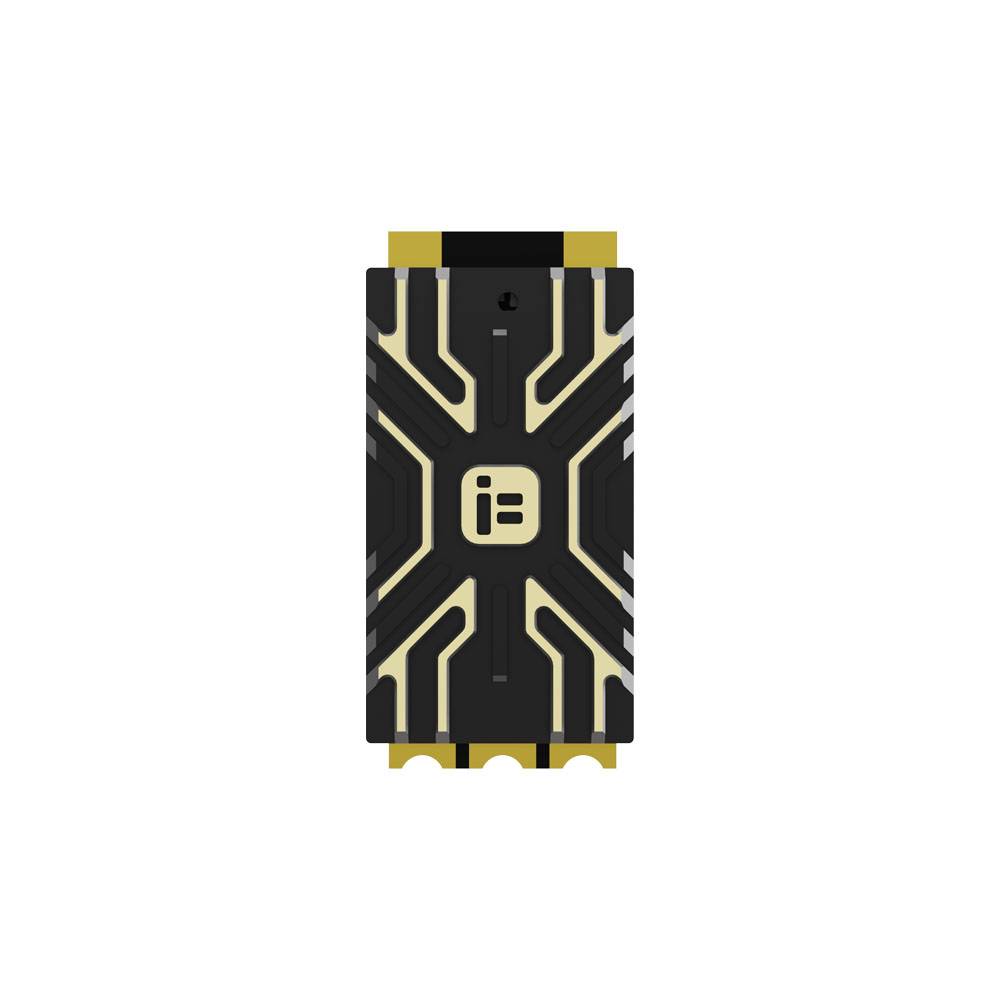

The iFlight Blitz E80 80A 2-8S BLHeli_32 Single ESC was designed to give your motors smooth power with great stability and durability. The 32bit 48mHz G071 MCU and 11 pieces TDK MLCC total 240UF Low ESR capacitors bring faster-responding speed and a smoother flying experience.
Features
- Rational layout: large soldering pad, countersinks, and semicircle orifices enable each layer to be energized after power-on.
- 80A 8 layers 4OZ copper PCB, better operating load capacity
- 11 pcs TDK MLCC 420uF low ESR capacitors, lower ripple and more stable
- Stable and reliable MOSFET
- 3528 LED for power- on display
- Telemetry output
- Current Sensor
- Brake on Stop
- Motor Timing
Specifications
- Supports: DShot DShot150/300/600/MultiShot/OneShot PWM Drive
- STM32G071 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Capacitance: total 240UF Low ESR
- Target: IFLIGHT_BLITZ_G2
- Supports 2-8S lipo input
- Dimension: 40*17*10mm
- Weight: 9.5g(±2g)
- Telemetry: Supported
- Firmware: BLHeli32
- Current Sensor: Yes
- BEC: No
Links
Includes
- 1x iFlight Blitz E80 80A 2-8S BLHeli_32 Single ESC
- 1x Power cables & ESC signal wires
- 1x 50V 470UF capacitor
