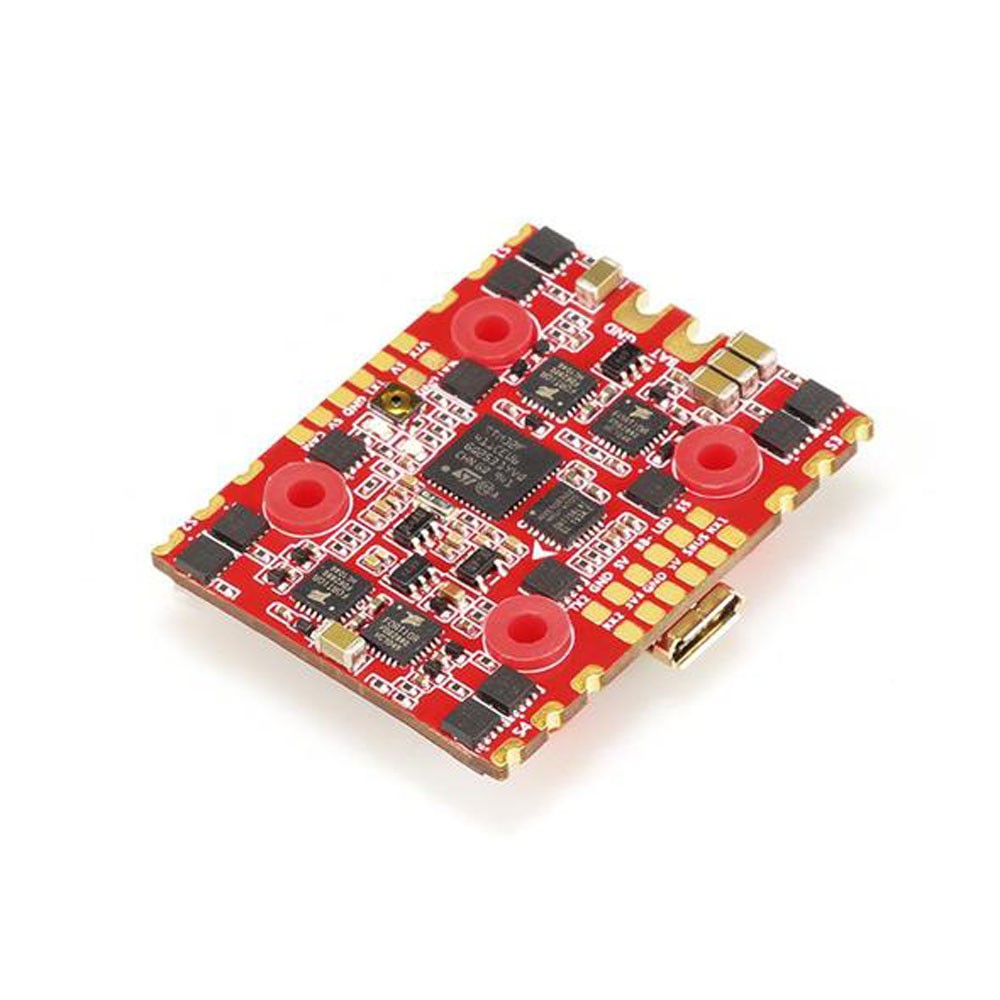

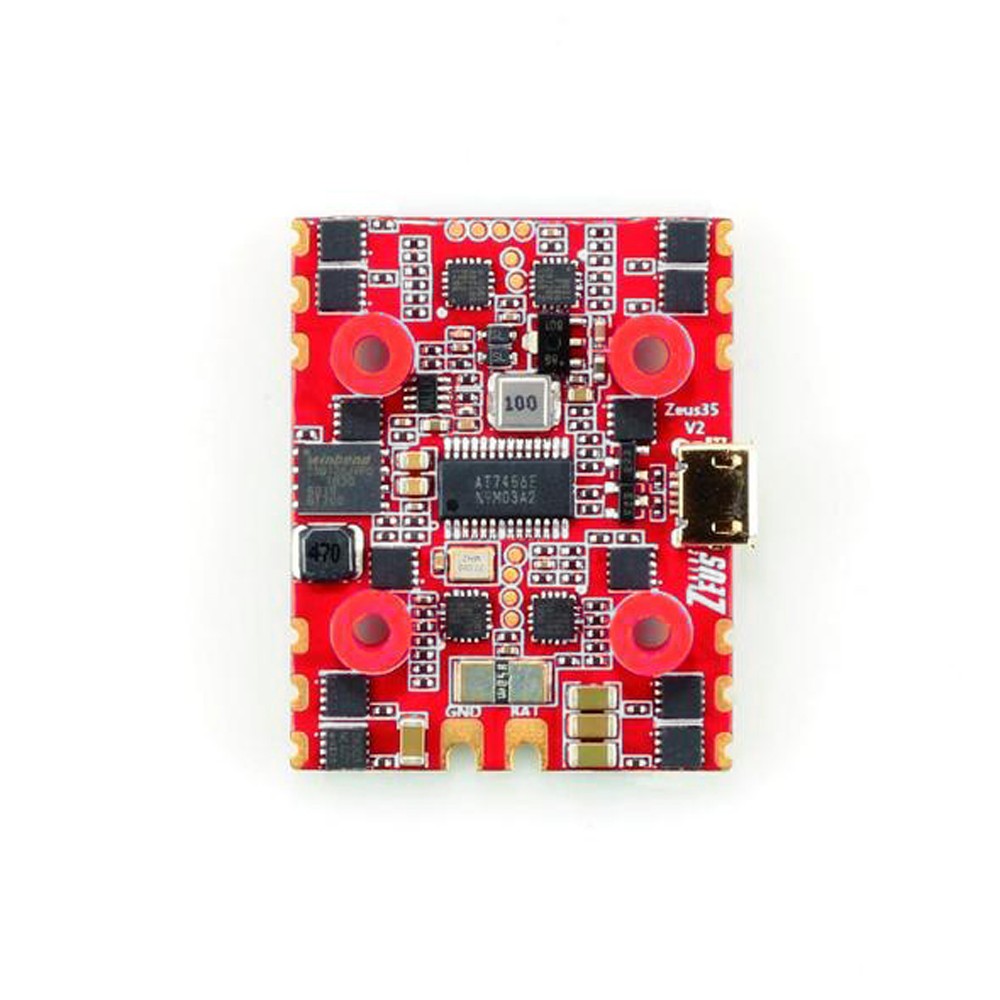

The HGLRC Zeus35 AIO supports up to 6S and features an F4 FC, 35A BLS 3-6S 4-in-1 ESC, HGLRCF411 firmware, STM32F411 CPU, MPU6000, two UARTS, and many other cool features!
Note: The red version supports both M2 and M3 screws
Specifications
- Usage:for 100mm-250mm Frame Kit
- FC Firmware:BF HGLRCF411(HGLRC)
- Installing Hole:20X20mm.M2/M3
F411 FC + 35A BLS ESC
- Input Voltage:3-6S
- FC Firmware:BF HGLRCF411(HGLRC)
- ESC Firmware: BLS
- Installing Hole:20x20mm/M2/M3

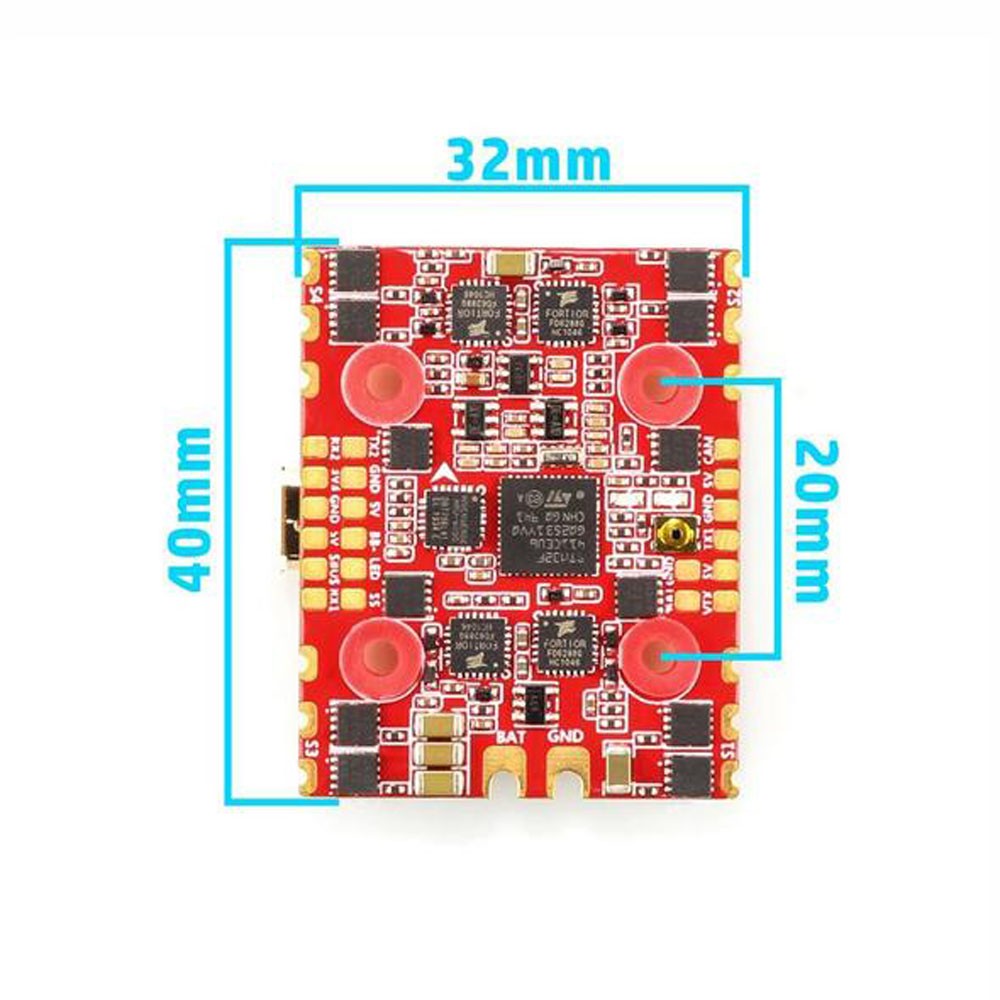

- Dimensioms:40x32mm

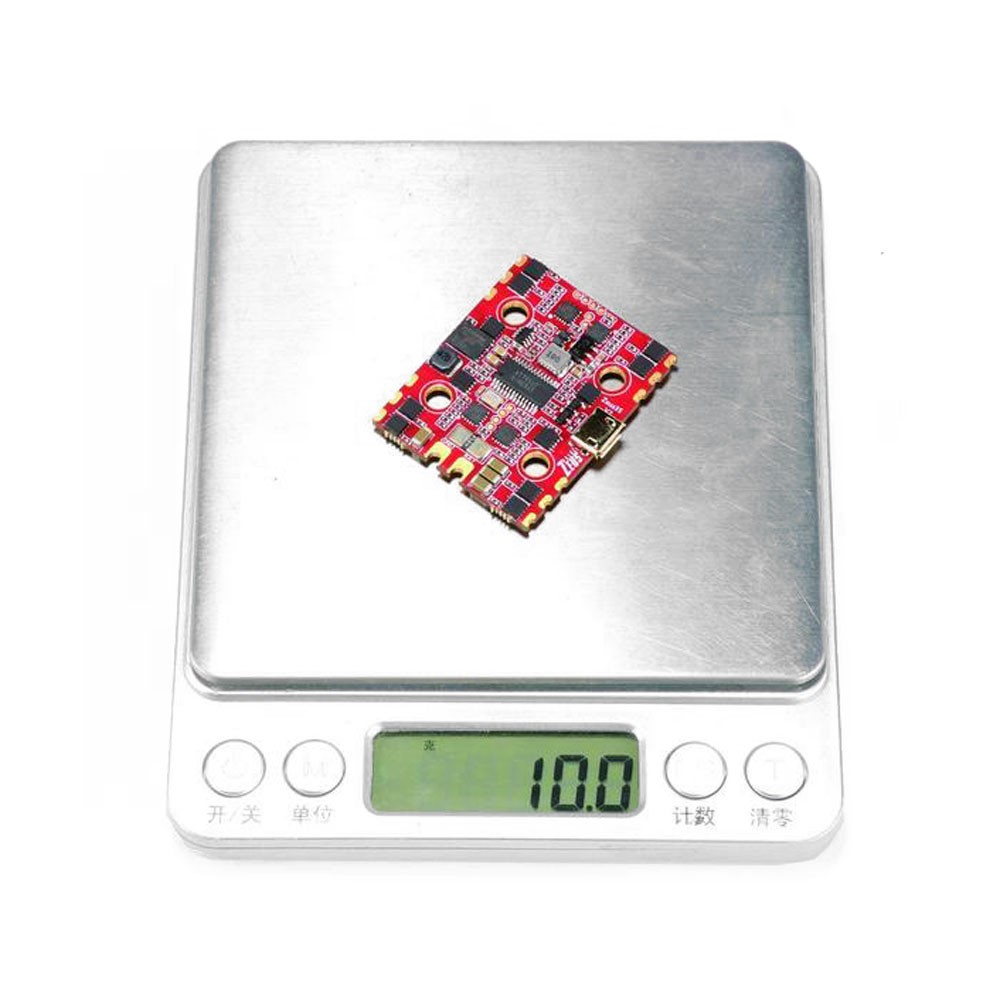

- Weight:10g
F411 Flight Controller
- CPU:STM32F411
- MPU: MPU6000
- OSD: Support
- BEC:5V/2A
- LED: Support
- BlackBox:16M
- UARTS:2
- UART1:uses the VTX/DJI
- UART2:uses the Receiver
35A BLS 4in1 ESC
- Current Sensor: Support
- Constant Current:35A
- Peak Current:40A(10s)
Recommended Parts (Not Included)
- Motor:1408/1407/1306/1106
- Propeller:2-5 Inch

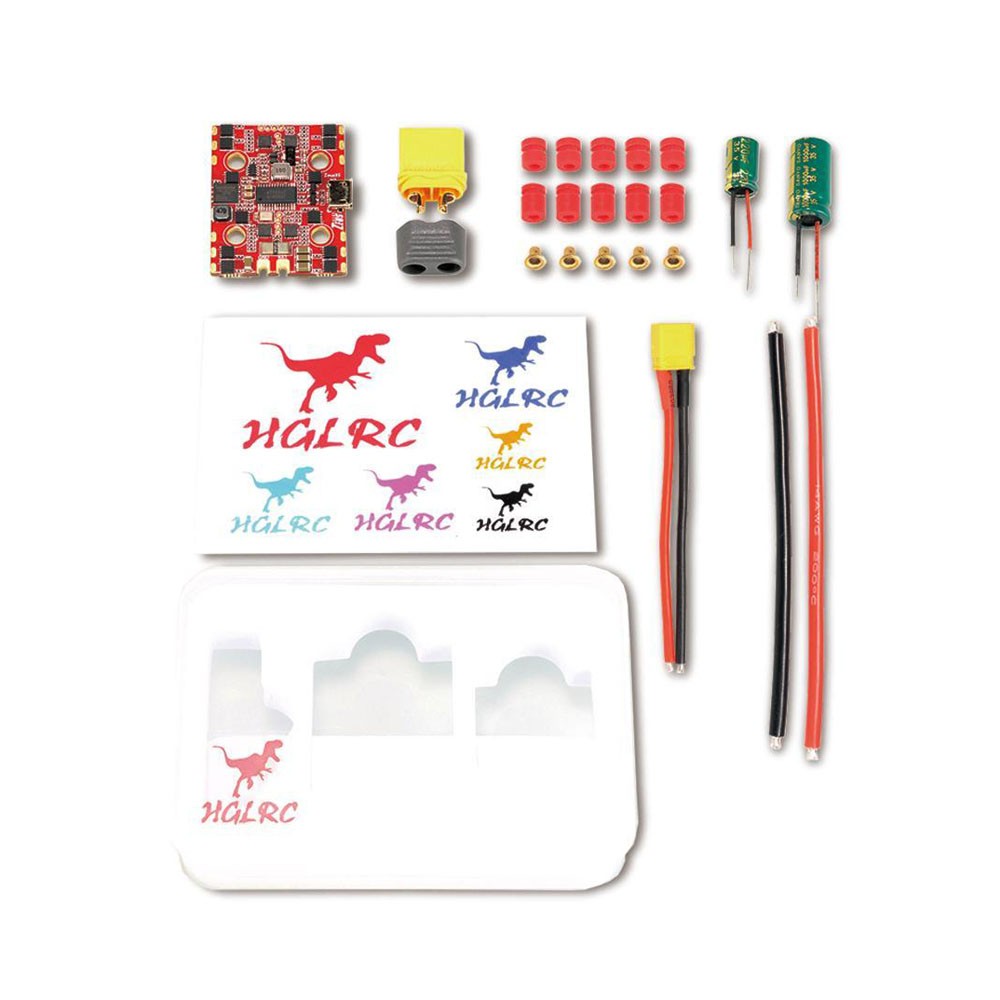

Includes
- 1 x Zeus35 AIO Flight Controller
How to use GPS on FD411 FC and Zeus35 AIO board with receiver and VTX by using soft serial
