Sector 150 frame Cinewhoop biuld from Rotorbuilds
HGLRC Sector150 Freestyle Frame Kit
Material:3K Carbon Fiber
Model:Sector150
Wheelbase:150mm
Type:3 Inch Freestyle Frame
Bottom Plate Thickness:3mm
Standoff Height:28mm

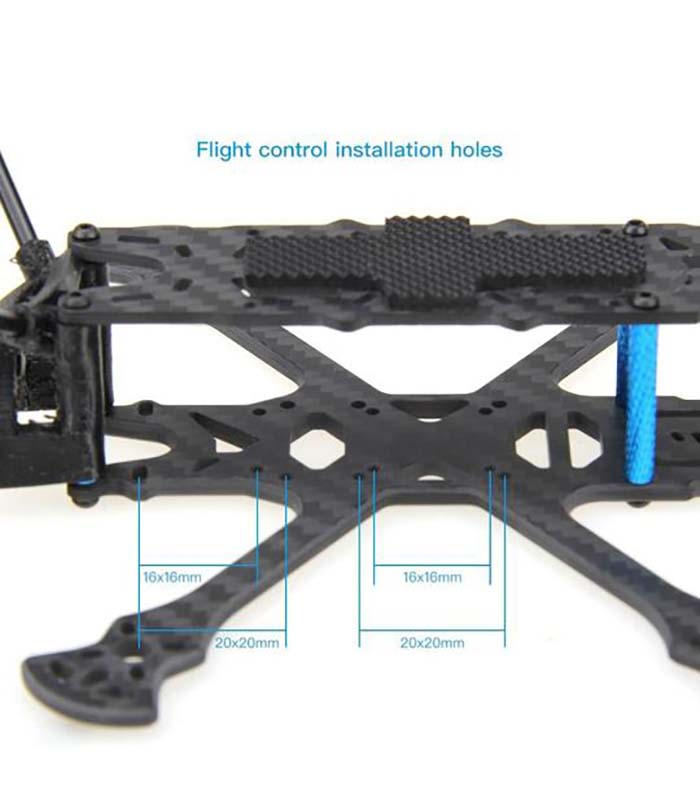

Flight Control Installation Holes:16X16/20X20mm
Support Camera:14X14/19X19mm
Overall Size:210*183mm
Weight:79g
Features:
TPU Gopro Mount
TPU Sector AIR UNIT
TPU Sector SMA Mount
Propeller Protective Guard
TPU Sector Camera Mount
Camera mounting size support:14X14/19x19mm
Flight control installation size support:16X16/20X20mm

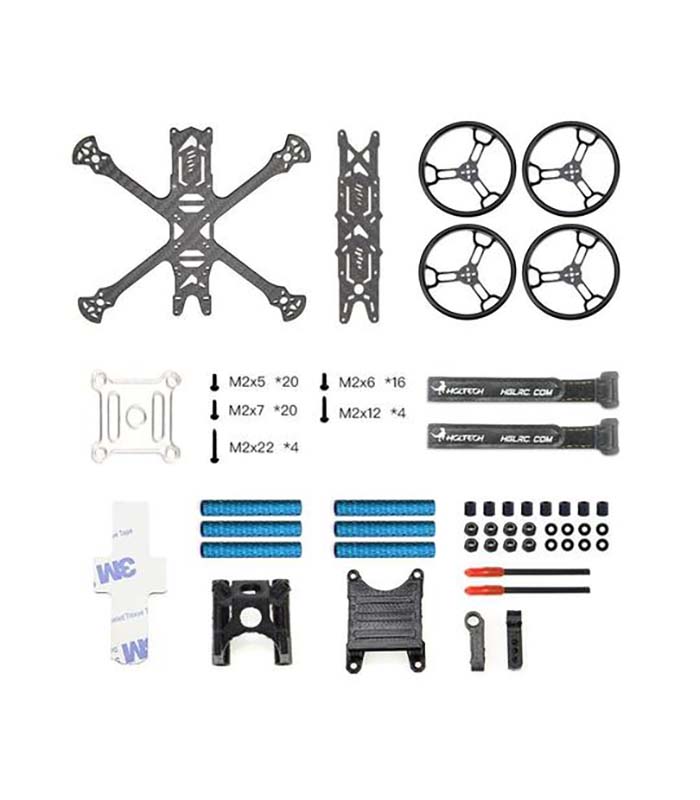

Hardware:
4 x 3 Inch Propeller Protective Guard
1 x 2mm Top Plate
1 x 3mm Bottom Plate
6 x M2*28mm Aluminum Column
4 x Round head screw M2*22
4 x Round head screw M2*12
24 x Round head screw M2*7
15 x Round head screw M2*6
20 x Round head screw M2*5
8 x Damping rubber column M2X6
8 x M2 damping O-ring
12 x M2 black Relax nut
1 x Acrylic sheet 16X16
2 x Battery cable tie
1 x Battery Anti-slip tape
2 x TPU Sector Camera Mount
1 x TPU Sector SMA
1 x TPU Gopro Mount
1 x TPU Sector AIR UNIT
Recommended hardware (not included):
FC:
HGLRC Zues35 AIO
HGLRC HD Zeus F722 mini 2-6S F7 Flight Controller Betaflight | Emuflight | iNav
ESC:
HGLRC 35A 4in1 ESC
VTX:
MT VTX mini 600mW 20*20
