FEATURES
- Flight control installation damping system
- Gopro Universal Mount
- Gopro fixied bracket
- Gopro Mount
- Gopro lens protector
- Motor protector Mount
- T shaped antenna Mount
- GPS Mount
- SMA antenna Mount
- DJI ANT antenna Mount
- Base plate protector Mount
- DJI Air Unit Mount
- DJI FPV camera lens protector
- Power cord fixed Mount
- Capacitor mounting slot
SPECIFICATION
- Brand Name:HGLRC

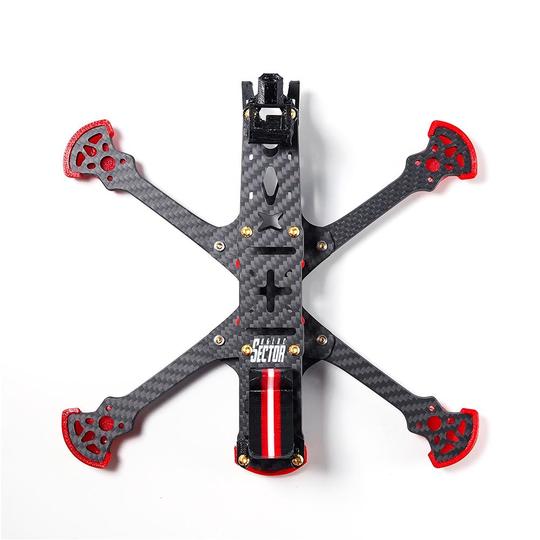

- Model:Sector 7 V3 Frame Kit
- Material:3K Carbon Fiber
- Top plate thickness:2mm
- Bottom plocte thickness:2mm
- Middle plate thickness2mm
- Camera side panel thickness:2mm
- Arm Thickness:5mm
- Top and middle plate spacing:25mm
- Installation holes:20×20/30.5×30.5mm
- Support camera:19×19/22x22mm
- Type: 7″ frame
- Wheelbase: 290mm
PACKAGE INCLUDED:
- 1x 2mm top plate
- 1x 2mm bottom plate
- 1x 2mm middle plate
- 4x 5mm arm
- 2x 2mm side plate
- 2x M3*32mm black aluminum column
- 6x M3*25mm black aluminum column
- 3x M3*23mm black aluminum column
- 5x round head screw M3*25
- 4x round head screw M3*16
- 4x round head screw M3*12
- 12x round head screw M3*8
- 2x round head screw M3*6
- 1x round head screw M2*30
- 4x round head screw M2*25
- 4x round head screw M2*12
- 2x round head screw M2*6
- 2x round head screw M2*4
- 4x M2*5 black nylon column
- 6x M3 Self-tightening nut
- 10x M2 Self-tightening nut
- 4x antenna protection tube
- 12x M3*6.6 shock absorber ball
- 8x M2*6 shock absorber ball
- 2x Battery cable tie 20x200mm
- 2x Battery cable tie 20x250mm
- 1x Battery Anti-slip tape
- 1x Gopro Universal Mount
- 1x Gopro lens protector
- 1x Motor protector Mount
- 1x T shaped antenna Mount
- 1x GPS Mount
- 1x SMA antenna Mount
- 1x Base plate protector
- 1x DJI Air Unit Mount
- 1x DJI FPV camera lens protector
- 1x DJI ANT antenna Mount
- 1x Power cord fixed Mount
