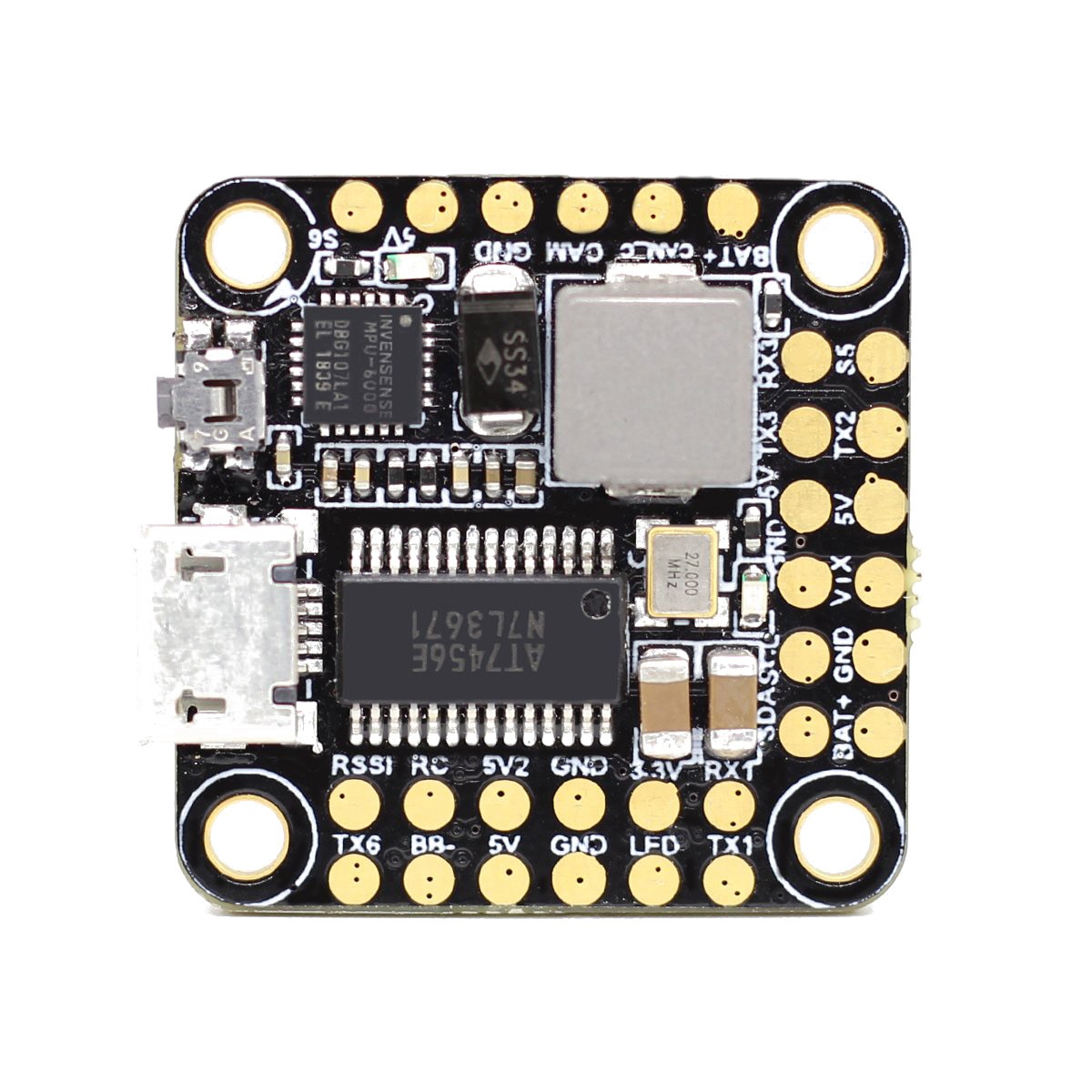

HGLRC Forward F4 Mini 20×20 Flight Controller

The HGLRC Forward F4 is a 20×20 flight controller that houses an MPU6000-SPI gyro, F4 processing, and 2-6S direct lipo support. Other features such as onboard 5v/3A regulators, SBUS, 5x UART ports, and a dedicated LED pad make this 20×20 FC full of uses.

Pairs perfectly with the HGLRC Forward 45A 20×20 ESC.

Or get the HGLRC Forward combo with both ESC and FC here.

Specifications

• Model: Forward F4 MINI Flight Control
• CPU: STM32F405R6T6
• MPU: MPU6000-SPI
• Input Voltage: 2-6S Lipo
• Firmware: Betaflight OMNIBUSF4V6
• Built-in Betaflight OSD to adjust PID
• BEC Output: 5V@3A
• Size: 25.0×25.0mm board
• Installing Hole:20x20mm,M2
• Weight:4.7g

Package Includes

• 1x Forward F4 MINI Flight Controller
• 1x SH1.0 8PIN 60.0MM Cable

(User Manual)
