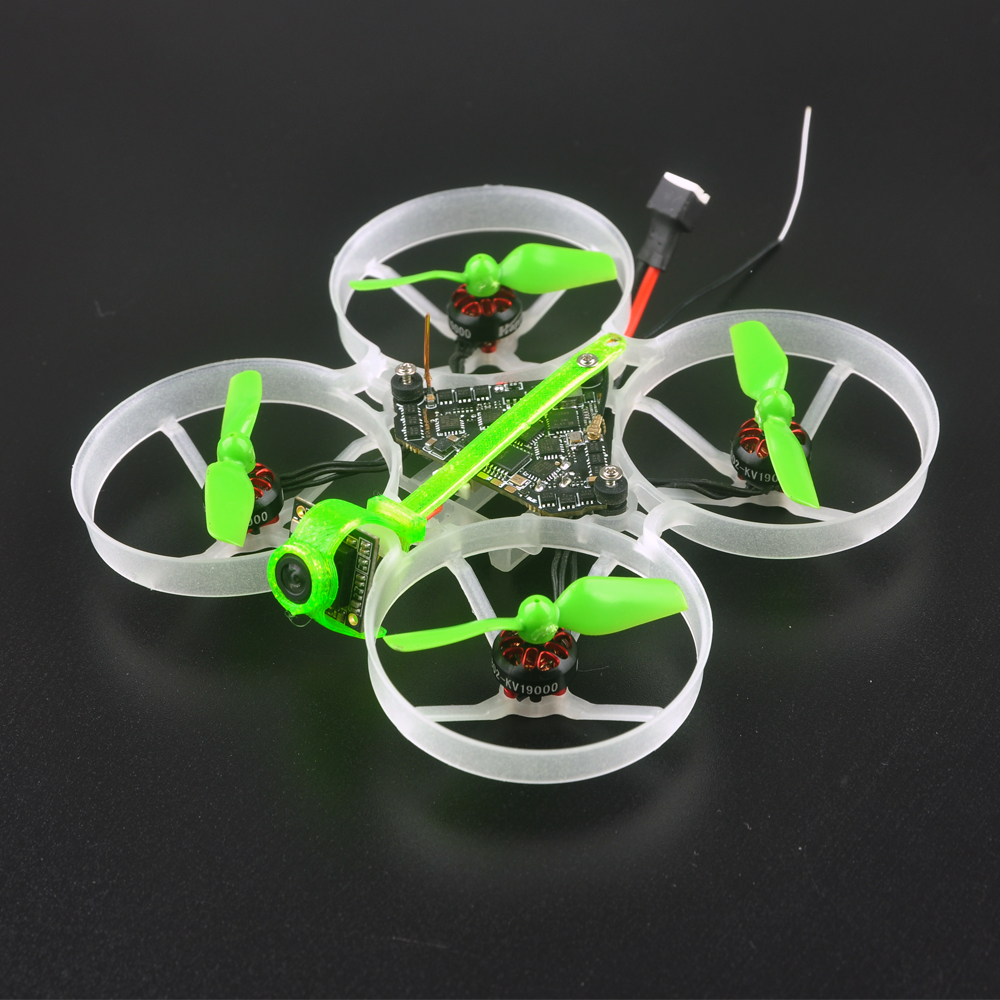

Happymodel Moblite7 Ultralight 1S 75mm Brushless Whoop – SPI Frsky

Introducing the Moblite7 Ultralight FPV Brushless Whoop! Made in collaboration with FPV pilot “Mr Shutterbug,” this whoop is one of the lightest 75mm drone in the market! The Moblite7 features the RunCam Nano3, Onboard SPI Frsky D8 Receiver, DiamondF4 FR FC, 5A BLheli_S 4-in-1 ESC, 5.8GHz VTX, and more! This mini and lightweight whoop (75mm) will take you to hard-to-get places!

Features

• The lightest 1s 75mm brushless whoop
• Powerful and efficiency
• The lightest 1s AIO 5IN1 F4 flight controller
• New Unibell EX0802 brushless motors
• VTX power switchable 25mw~200mw
• Low profile Canopy design

Specifications

• Brand Name: Happymodel
• Item Name: Moblite7 1S 75mm ultra-light brushless whoop
• Wheelbase: 75mm
• Size: 97mm*97mm*25mm

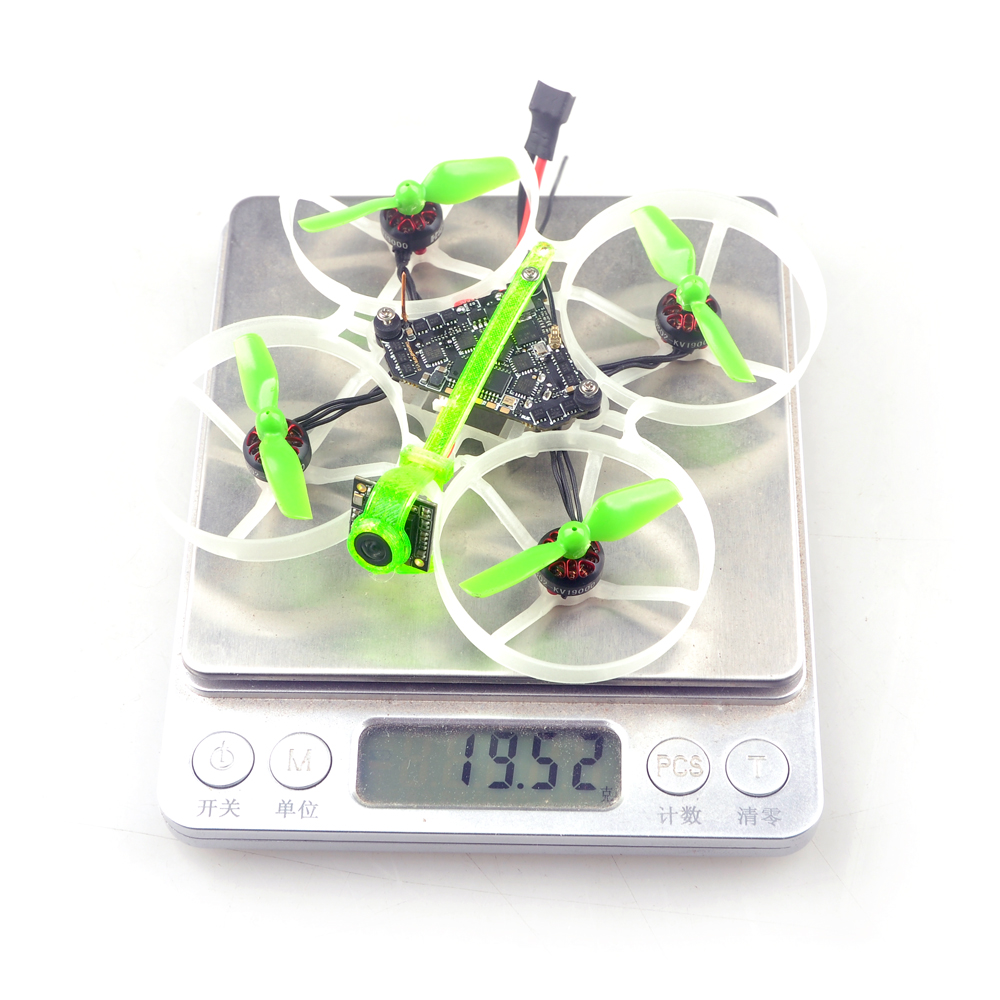

• Weight: 19.5g (without battery)
• Weight:36g(with Original 1s 650mah Lipo battery )

Motor

• Mode: EX0802 19000KV
• Configu-ration:9N12P
• Stator Diamter:8mm
• Stator Length:2mm
• Shaft Diameter:Φ1mm
• Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
• Weight(g):1.7g
• No.of Cells(Lipo):1S only

Flight Controller

• (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4F
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Sensor: MPU-6000(SPI connection)
• Original whoop size compatible
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G VTX
• Built-in SPI Frsky/Flysky receiver
• Built-in 5V 1A BEC

Onboard 4-in-1 ESC

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HV
• Current: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_50_REV16_8.HEX
• Default protocol: DSHOT600

Onboard Frsky SPI D8 Receiver Version

• SPI BUS receiver Frsky D8 compatible
• Compatible Non-EU transmitter D8 model
• Channels: 8ch
• Failsafe support
• No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard 5.8GHz VTX

• Output power: 25mw~200mw switchable
• Frequency: 40CH
• Input voltage: 3.3V 5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 5bands 40 channels(include Race band)
• Smart audio ready

Runcam Nano3

• Model: RunCam Nano 3
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• Lens : 2.3mm(M6.5) FOV 140°
• Signal System: PAL/NTSC Non-Switchable
• S/N Ratio: >50dB
• Electronic Shutter Speed: Auto
• Auto Gain Control (AGC): Auto
• Min. Illumination: 0.01Lux@1.2F
• D-WDR: Auto
• Day/Night: Color
• Power: DC 3-5.5V
• Current: 110mA@5V 120mA@3.3V
• Housing Material: ABS
• Net Weight: 1.2g
• Dimensions: L14mm*W14mm*H9mm

Lipo Battery

• Capacity:650mAh
• Voltage:3.8v
• Continuous Discharge Rate: 30C
• Instantaneous discharge rate: 60C
• Size: 60mmx18mmx8mm
• Weight: 16g
• Connector: PH2.0

Includes

• 1 x 75mm Frame (Mobula7 frame)
• 1 x Option1: DiamondF4 FR built-in SPI Frsky receiver
• 4 x EX0802 KV19000 Unibell brushless motor
• 1 x HQPROP 40MMX2 propeller(4cw+4ccw)
• 1 x Runcam Nano3
• 1 x Built-in 5.8G 40ch 25mw-200mw VTX
• 2 x 1s 650mah Lipo battery
• 1 x Propeller disassemble tool
• 1 x Screwdriver

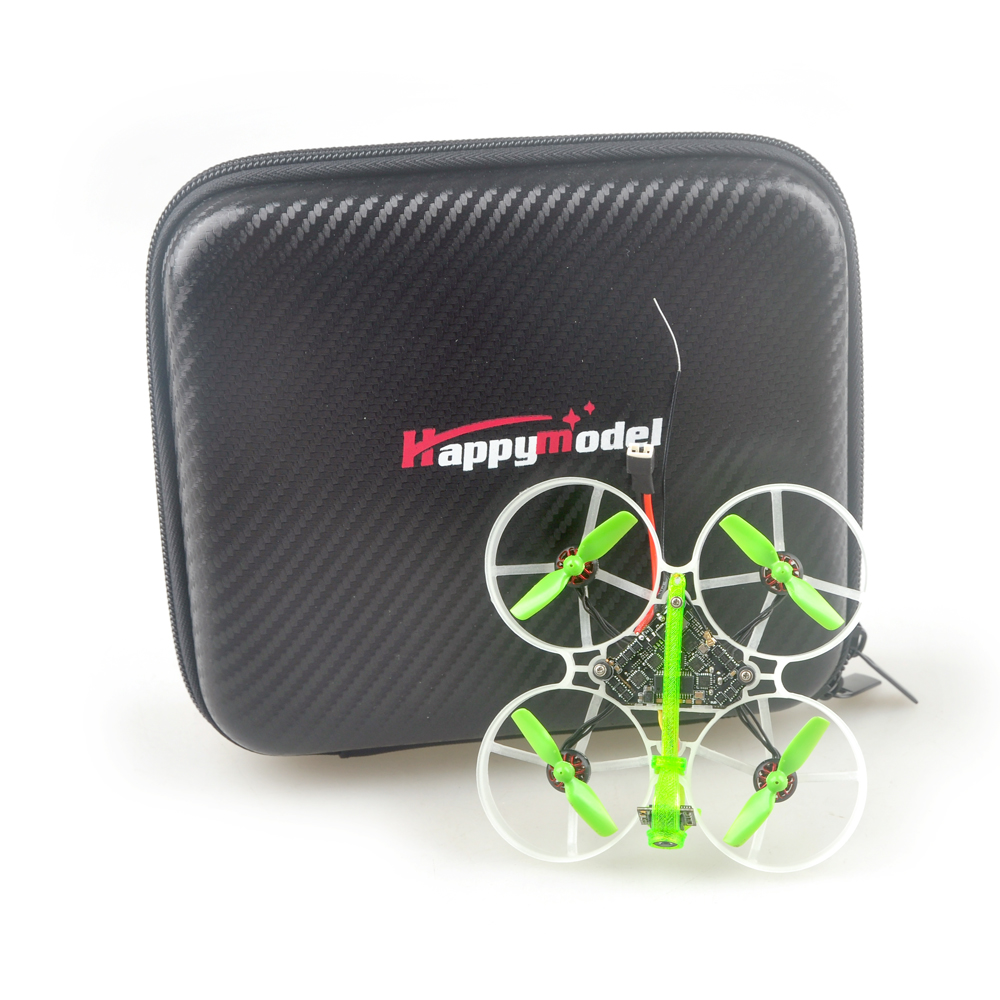

• 1 x Happymodel Carry case
