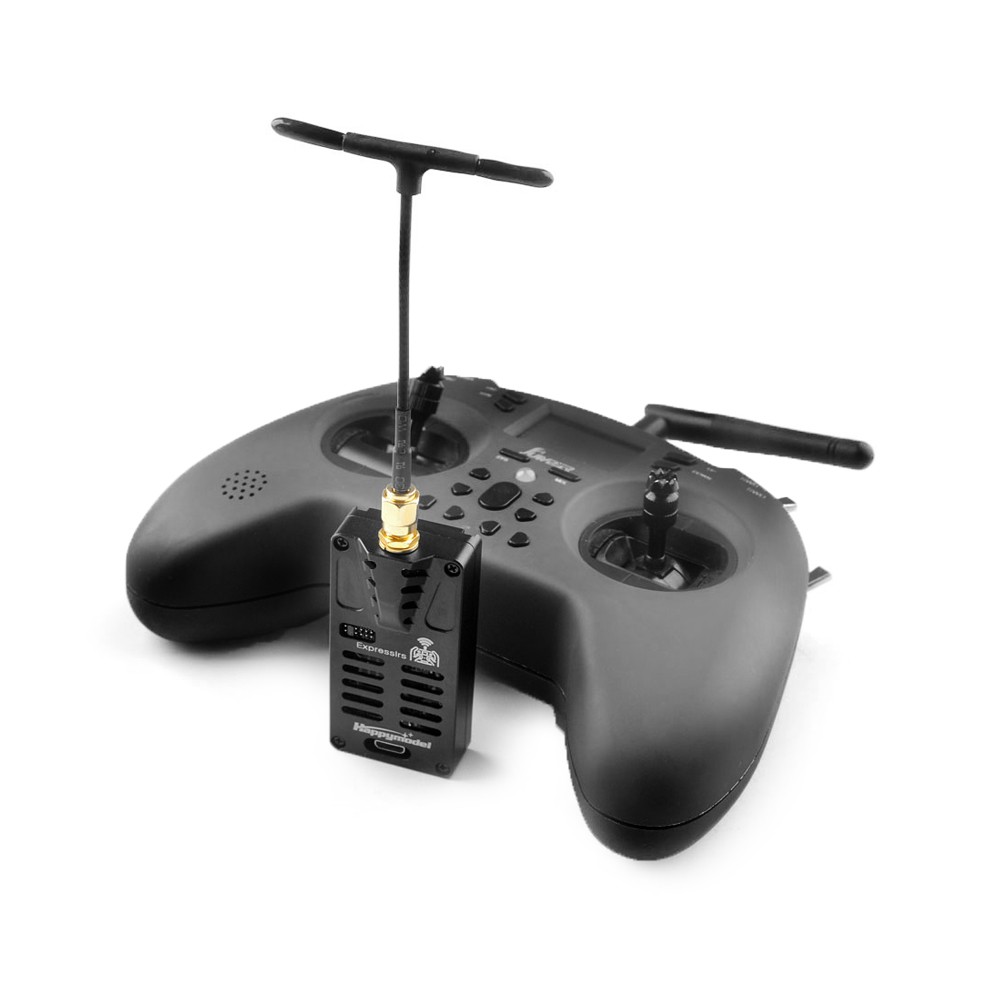

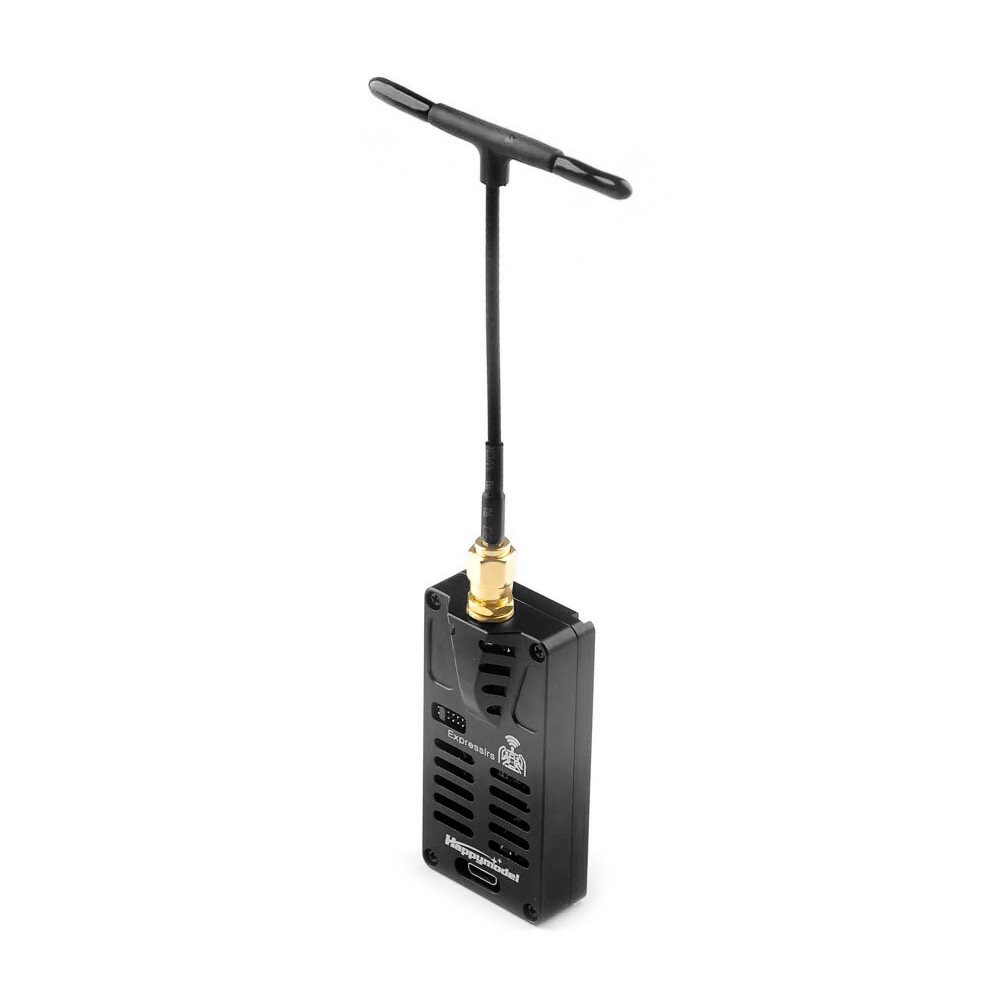

This Lite TX module is designed by Happymodel and based on the open-source ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing. This module works with the Jumper T-Lite. Its main hardware architecture is ESP32, ESP8285, and the SX1280 RF chip. The ES24TX-Lite module is a complete solution that is plug-and-play and already pre-loaded with Expresslrs firmware. Now equipped with a power module to ensure stability in high-powered conditions.

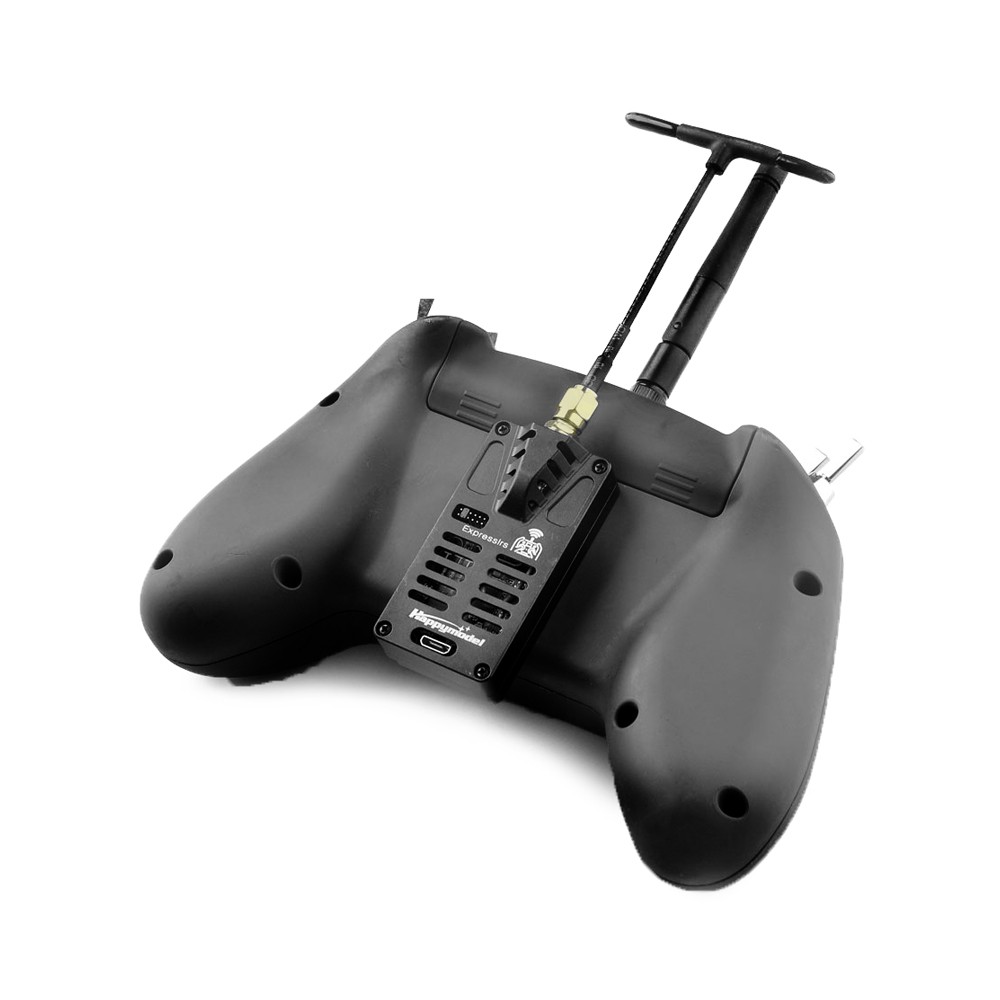

VIDEO: Jumper T-Lite installation HappyModel ExpressLRS ES24TX SLIM
Features
- Power module for stable high power conditions
- CNC Aluminium Alloy Case
- ExpressLRS Firmware
- Plug and Play
- Low Latency
Specifications
- MCU:ESP32(main),ESP8285 (aux, as espbackpack)
- Dimension: 57x27x12mm (Without CNC Case)
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- RF Output Power: 10dBm~24dBm
- Weight: 7.5g (without antenna and case)
- Power supply voltage: 3v~4.5v
- Regulatory Domain: ISM2400
- RF chip:SX1280IMLTRT
- JR standard 5pin socket
- Antenna gain:1.87dBi
Firmware
Since the official ExpressLRS perfect program has not been released yet, the pre-installed program is a beta version. You can download the out of factory firmware from the website. There are two kinds out of factory firmware of ES24TX, one is to match Happymodel PP RX receiver (program version identification code 6cb8152d) and the other is to match Happymodel EP1 and EP2 RX receivers (program version identification code aec8ad82), The default factory firmware is aec8ad82 which matching EP1 and EP2 RX
You can download the firmware from the website, and then update the firmware via connect the Wifi hot spot of the ES24TX, visit “10.0.0.1” by browser (password:expresslrs)
Includes
- 1x Happymodel EX24TX-Lite module

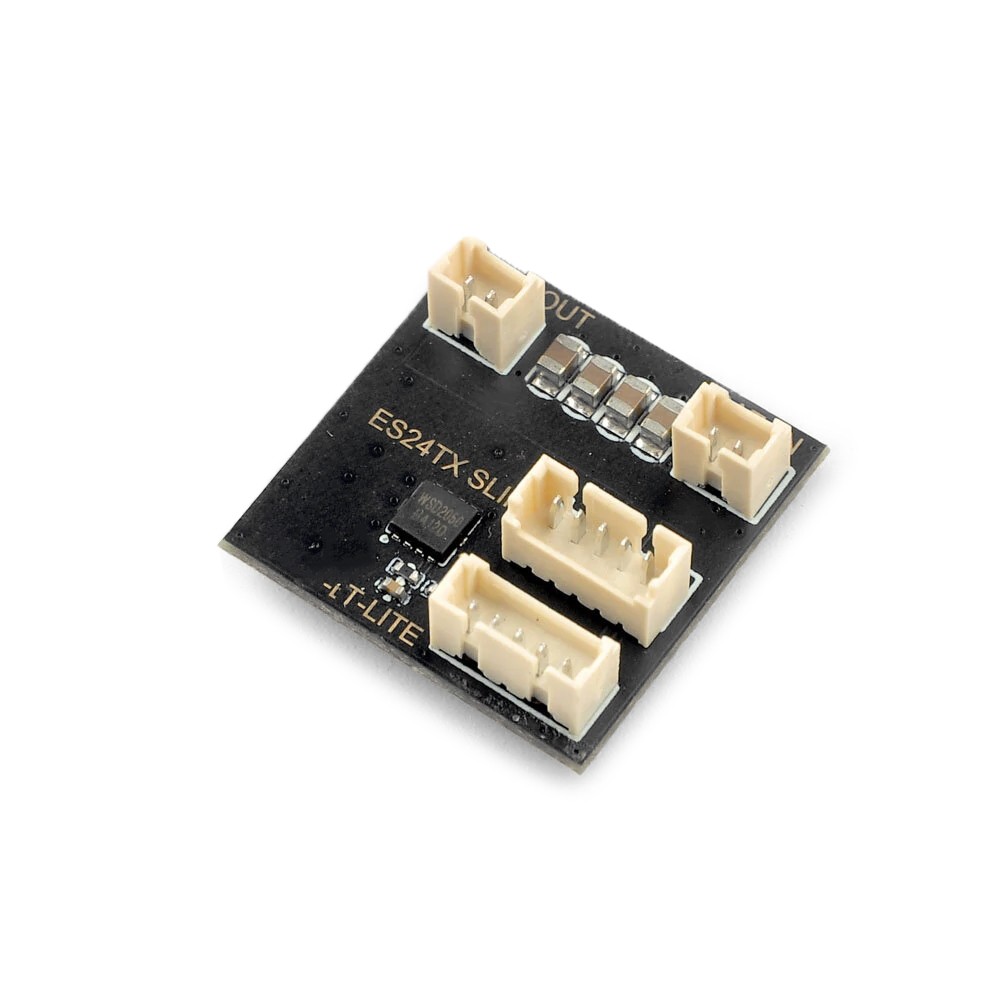

- 1x T-Lite EXTCONV power module
- 1x CNC Aluminum alloy case
- 1x Antenna adapter cable
- 1x 24TX80 antenna
- 1x Connection wire
