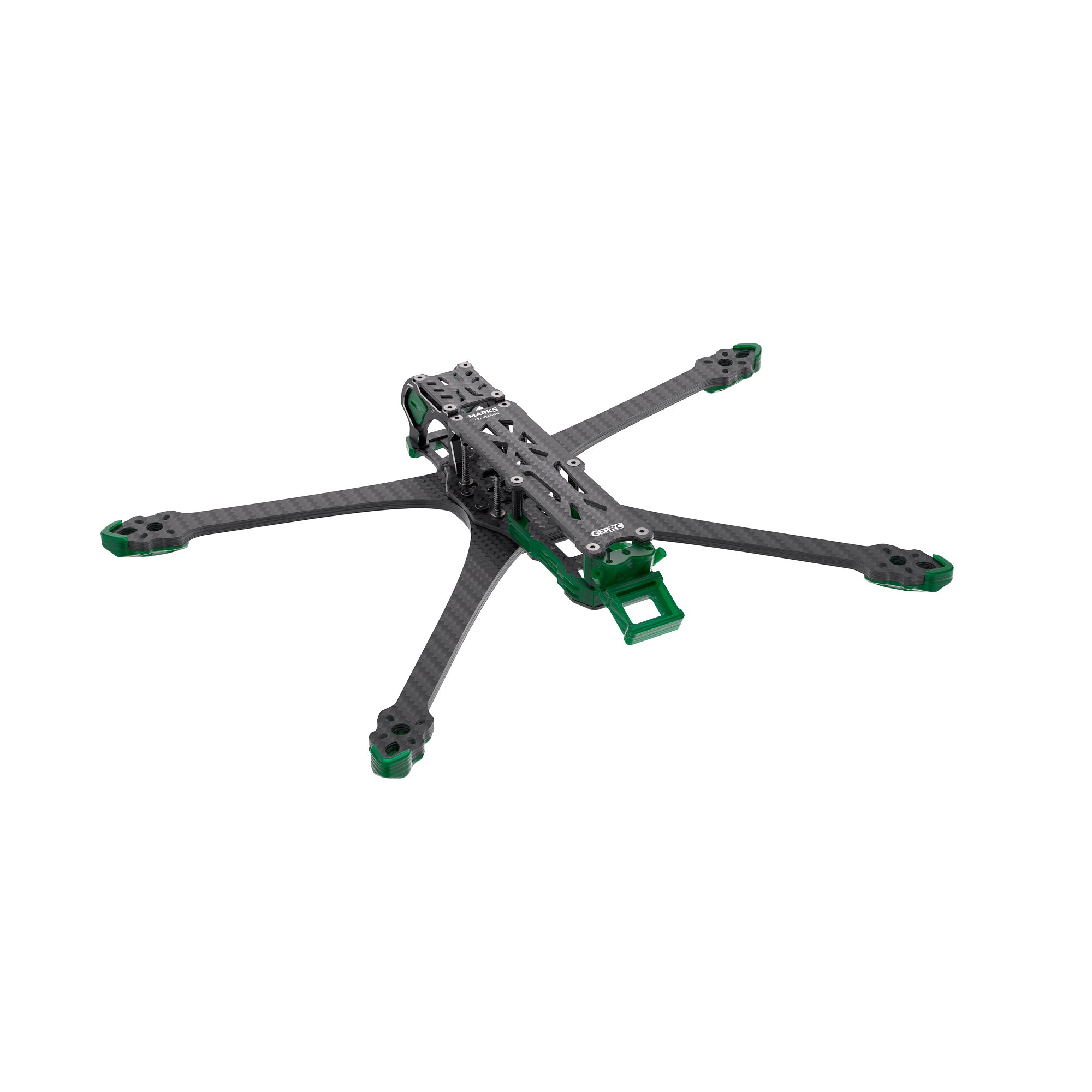

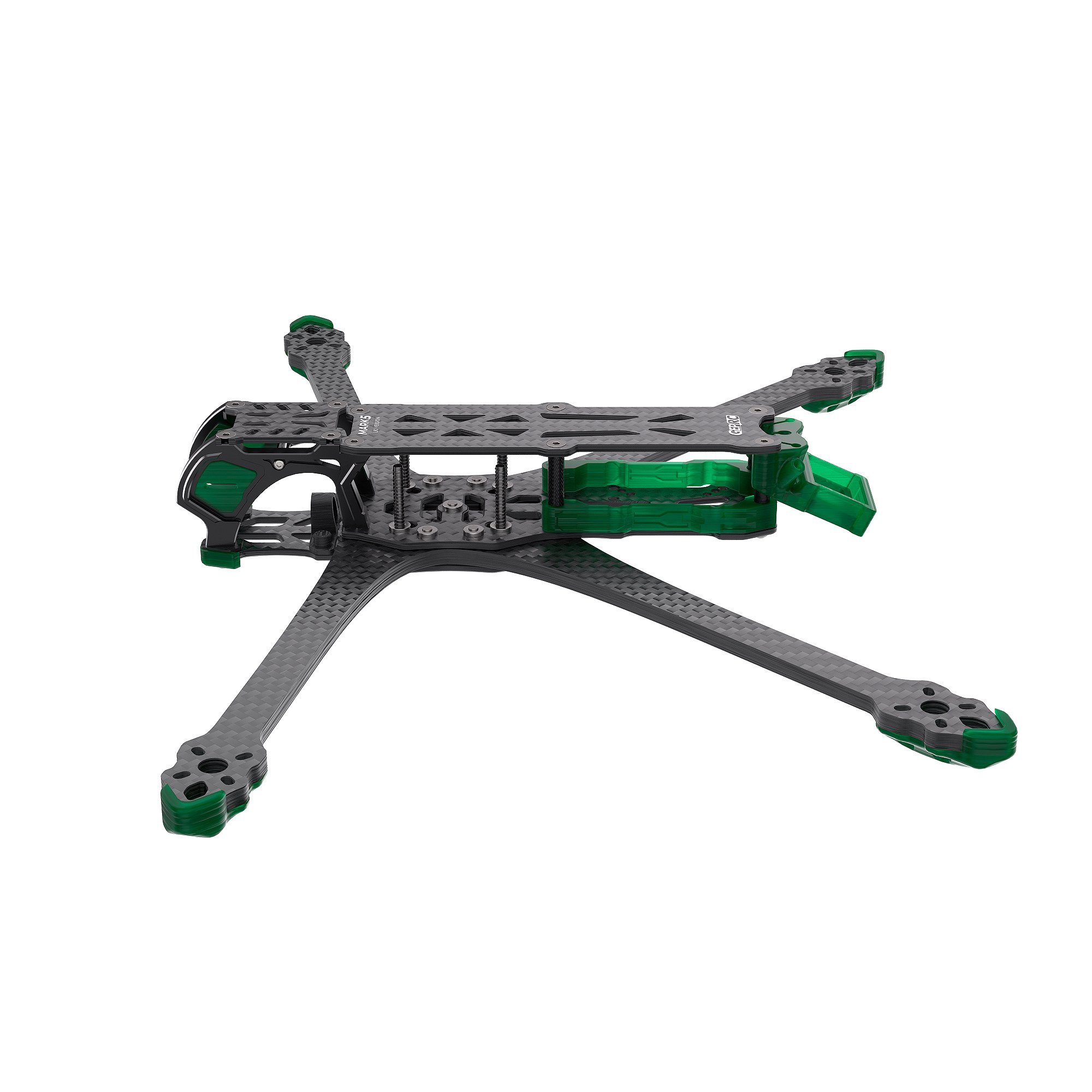

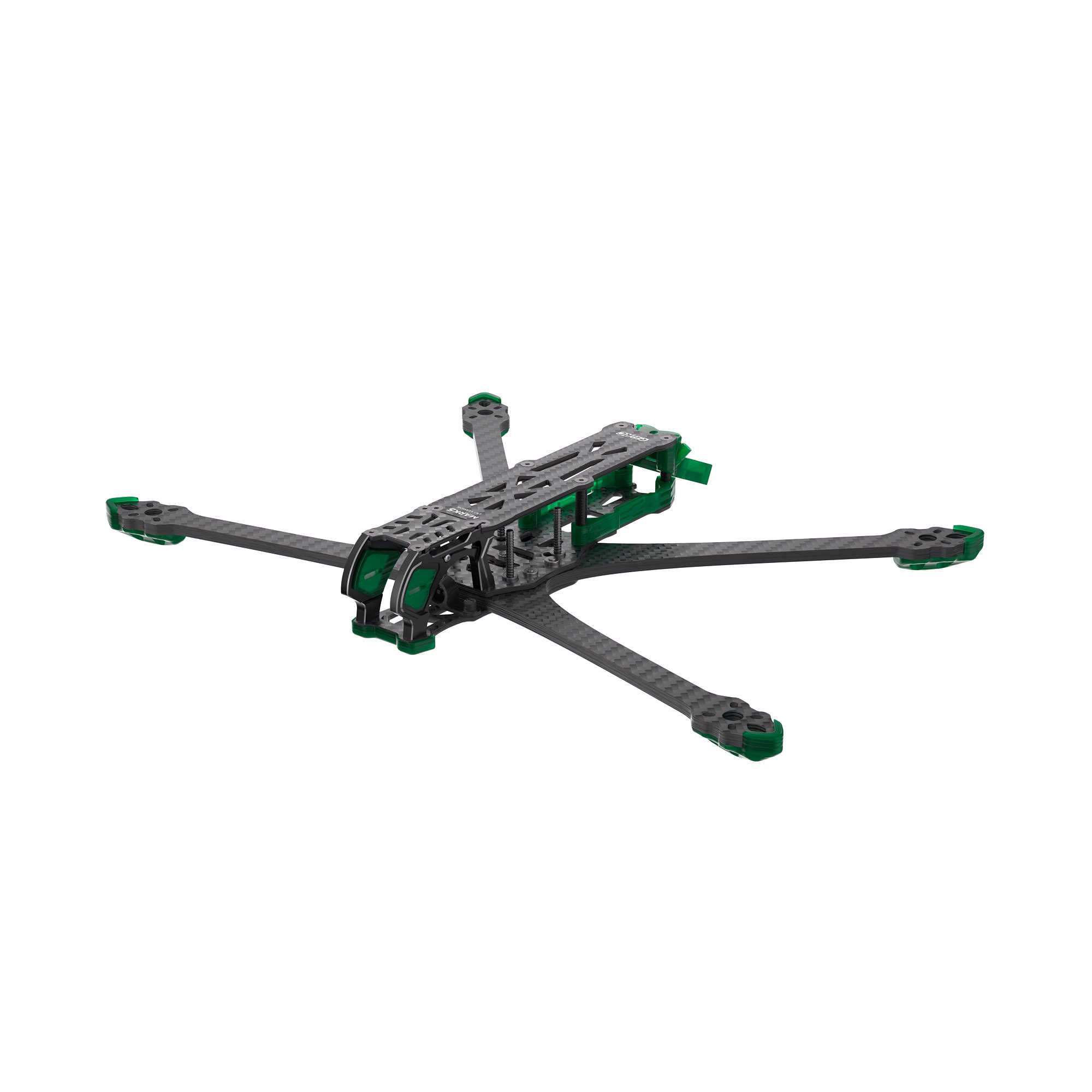

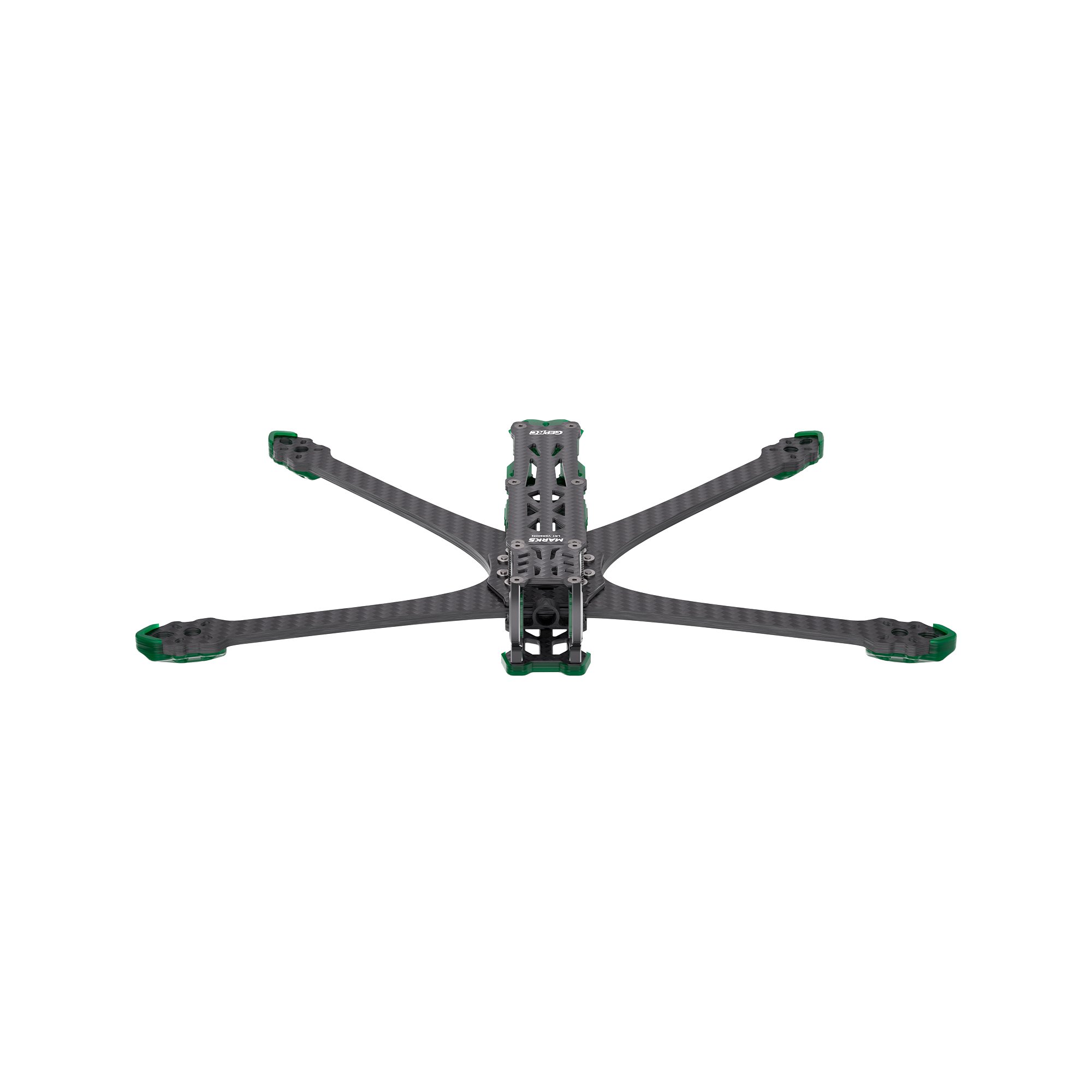

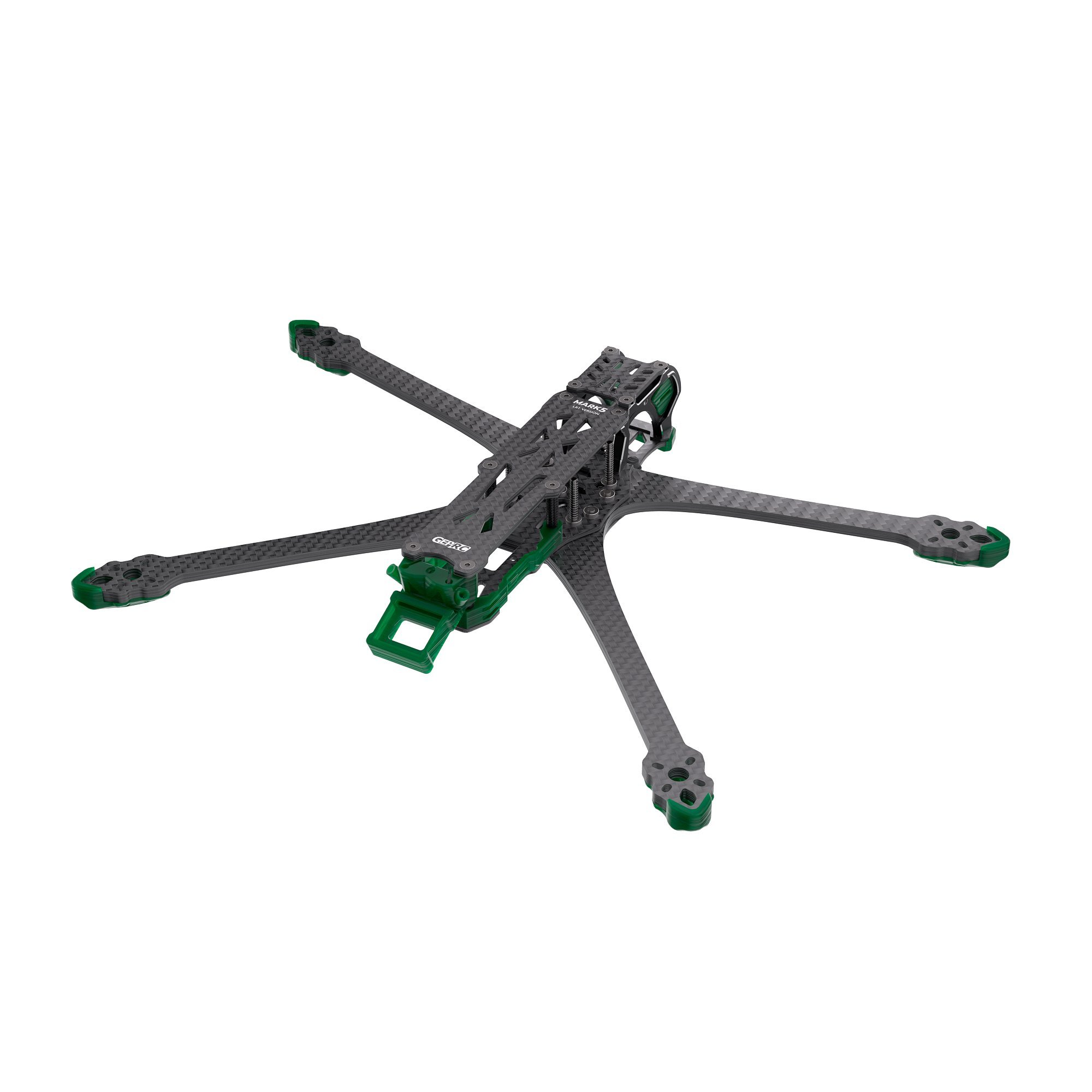

GEPRC GEP-MK5D-LR7 Frame

Summary

MK5D-LR7 is a 7-inch model upgraded on the basis of the MARK5.The strength of the arm structure is optimized, without losing the original design style, while the strength is higher, and the flight fault tolerance rate is improved.

When flying with DC structure, the viewing angle is wide and unobstructed, which is suitable for O3 onboard recording. We also specially designed TPU fixing parts for the O3 video transmission, and provided air intake and heat dissipation vents, which is conducive to sufficient heat dissipation of the air terminal. MK5D-LR7 is shipped with two different camera printing bases, which can be installed with a full range of GoPro action cameras, as well as Naked GoPro 8 10, Insta 360 GO2 and Caddx Peanut, etc., to record beautiful moments for your flight.

This time MK5D-LR7 will take you to see the law of all things and travel between mountains and rivers.

Specifications

• Frame: GEP-MK5D-LR7
• Dimensions: 230mm×350mm×43mm
• Wheelbase: 335mm
• Top plate: 2.5mm
• Bottom plate: 2.5mm
• Arm plate: 6.0mm
• FC mounting hole: 30.5mm x 30.5mm/25.5mm x 25.5mm
• VTX mounting hole: 30.5mm×30.5mm/25.5mm×25.5mm/20.5mm×20.5mm
• Camera mounting hole: 19mm-20mm
• Propeller: 7 inch propeller
• Weight: 230.0g

Features

1. The lens uses aluminum alloy side plate, which are durable and more visually impactful.
2. The strength of the arm is upgraded, without losing the original style and at the same time stronger.
3. DC structure fuselage, more suitable for long-range flight.
4. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
5. With independent capacitor and buzzer cabin, the operating environment of the whole machine is extremely stable, without shaking or jittering.
6. Design two kinds of 3D printing bases, which can be installed with a full range of GoPro cameras, as well as Naked Camera 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear.
7. Support the installation of 16x16mm and 19x19mm motor mounting holes

Includes

1 x GEP-MK5D-LR7 Frame
