FlySky FS-RX2A Pro 2.4Ghz Receiver

The FS-RX2A is an AFHDS 2A compatible receiver in a minuscule form factor. Weighing only 1g, this receiver is perfect for micro builds.

The FS-RX2A Pro Radio Receiver Mini Receiver is built for use in multi-rotor drones and is a 1-way receiver (no telemetry).

It uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 10 channels.

In the world of racing drones, the requirements are for small and lightweight components. The FS-A8S receiver fits these requirements superbly, being only 12 x 15 mm and 1.0g.

Compatible Transmitter: All AFHDS 2A Transmitter, for example, FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 etc.

Binding Procedure

• Press and hold the Binding button, and supply power to the receiver, green LED blinks fast means entering the binding mode.
• Make the transmitter enter BIND mode.
• The LED indicator slowly blinking means the binding succeeded.
• Make the transmitter quit BIND mode, the receiver LED indicator will stay on, meaning its receiving signal.

Specifications

• Item name: FS-RX2A receiver
• Channel: 10(IBUS), 8(PPM)
• RF Range: 2.408-2.475GHZ
• Number of bands: 135
• RX Sensitivity: -92dBm
• 2.4GHz protocol: AFHDS 2A
• Signal output: IBUS, PPM
• Antenne length: 33mm
• Power input: 3.3-5V
• Control distance: 400m+
• Current: 30MA

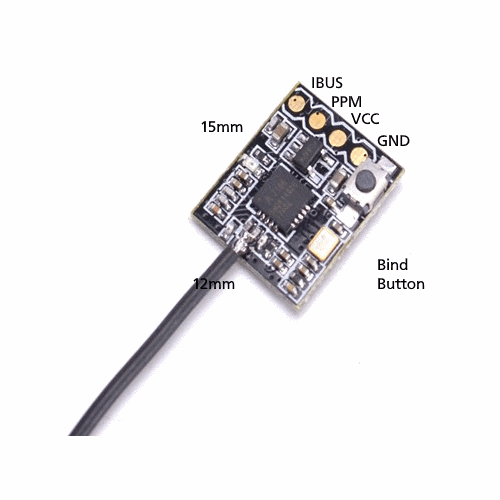

• Size: 12*15mm
• Weight: 1g
• Compatible Transmitter: All AFHDS 2A Transmitter, FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10.

Includes

• 1x FlySky FS-RX2A 2.4Ghz Receiver
