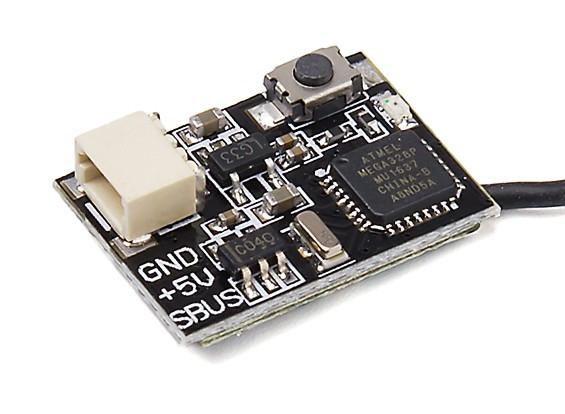

- Item Name: FD800 Tiny Frsky Receiver
- Work mode: D8 Mode
- Output: PPM/SBUS (can be choose)
- Number of channels: 8
- Working voltage: 5V
- Range: Approx 500m
- Weight: 1g
- Dimensions: 17x12x5mm
- Compatible with FRSKY ACCST
- Compatible with X9D(Plus)DJT/DFT/DHT
- Small and light weight
- With Bind button, easy operation

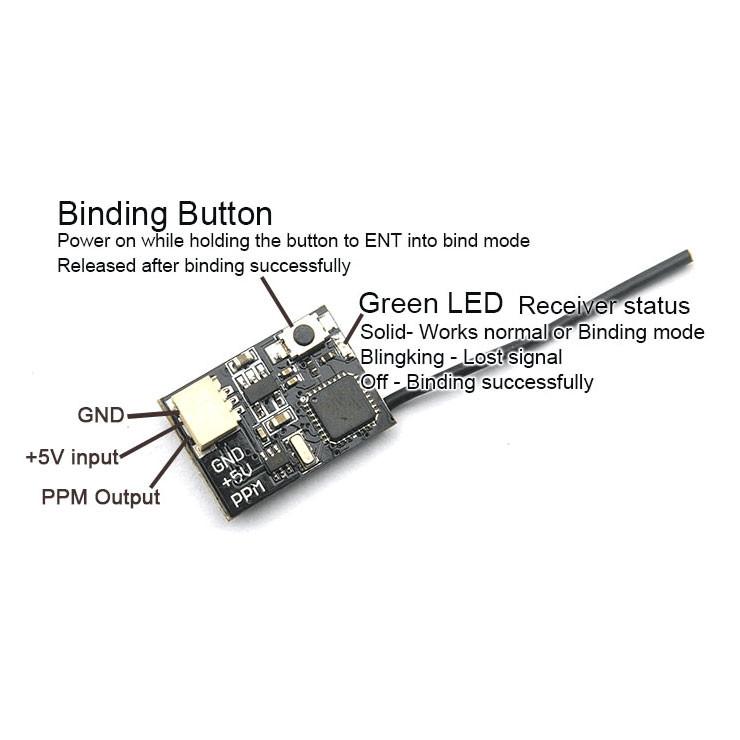

Bind with the transmitter:
- Turn on the transmitter, select D8 mode.
- Power for the Receiver (You can power from a 5V battery or connect to the flight controller with +5v output) while holding the binding button, the Green LED goes solid, this indicates the receiver get into the binding mode.
- Go to the Receiver [Bind] option, and [ENT] to Bind with the receiver, The transmitter beeps, and the green LED on the receiver will turn off, this indicates that the bind process was successful. Reconnect the battery, the GREEN Led on the receiver should go solid.

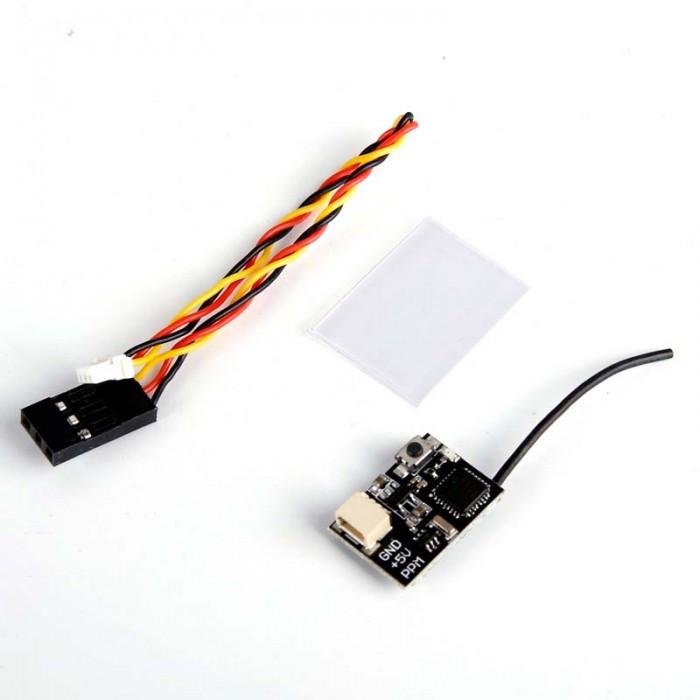

- 1 x FD800 Tiny Frsky Receiver
- 1 x Cable
