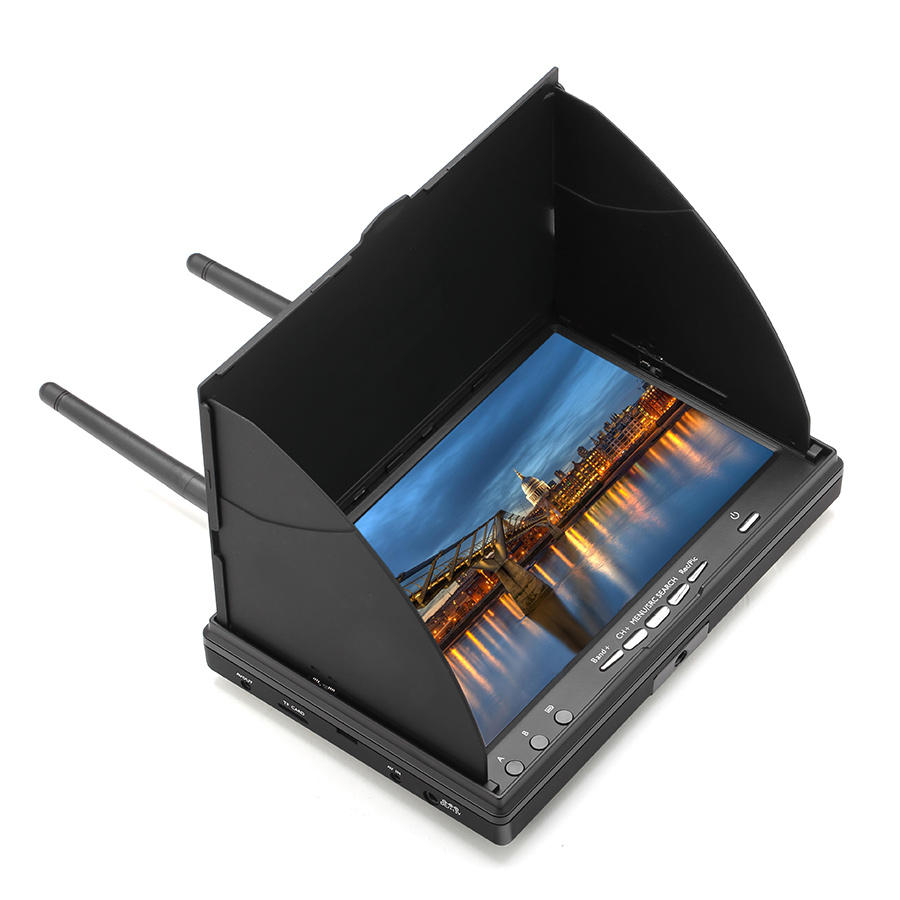

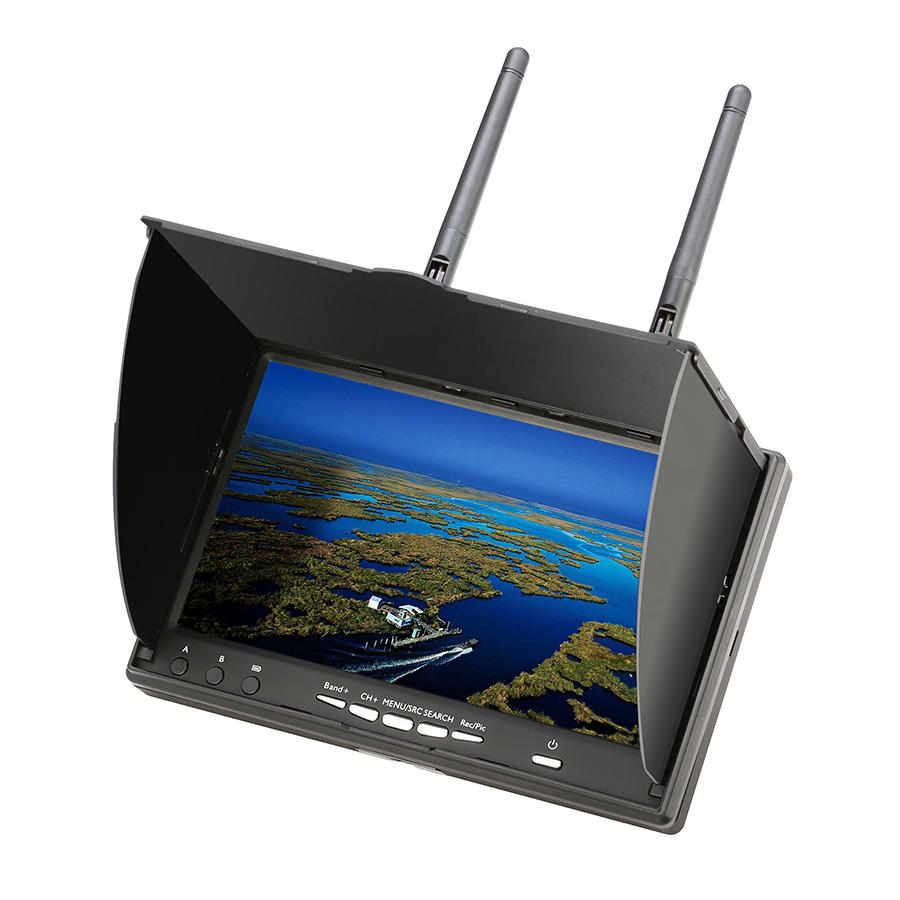

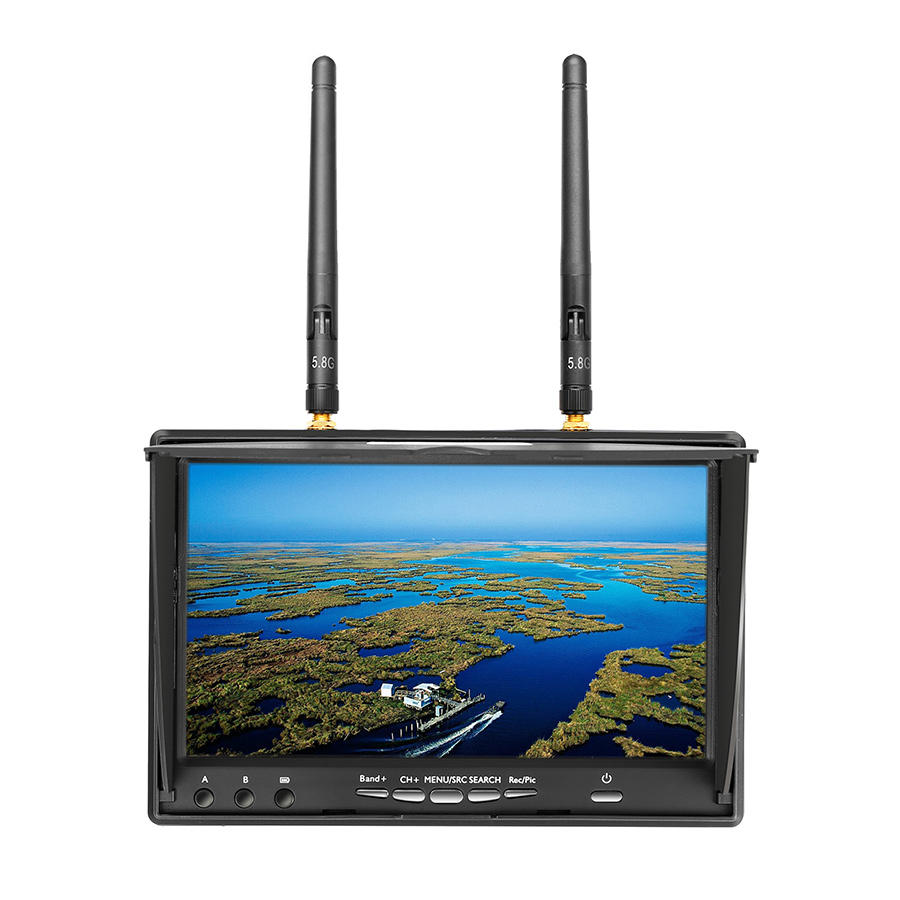

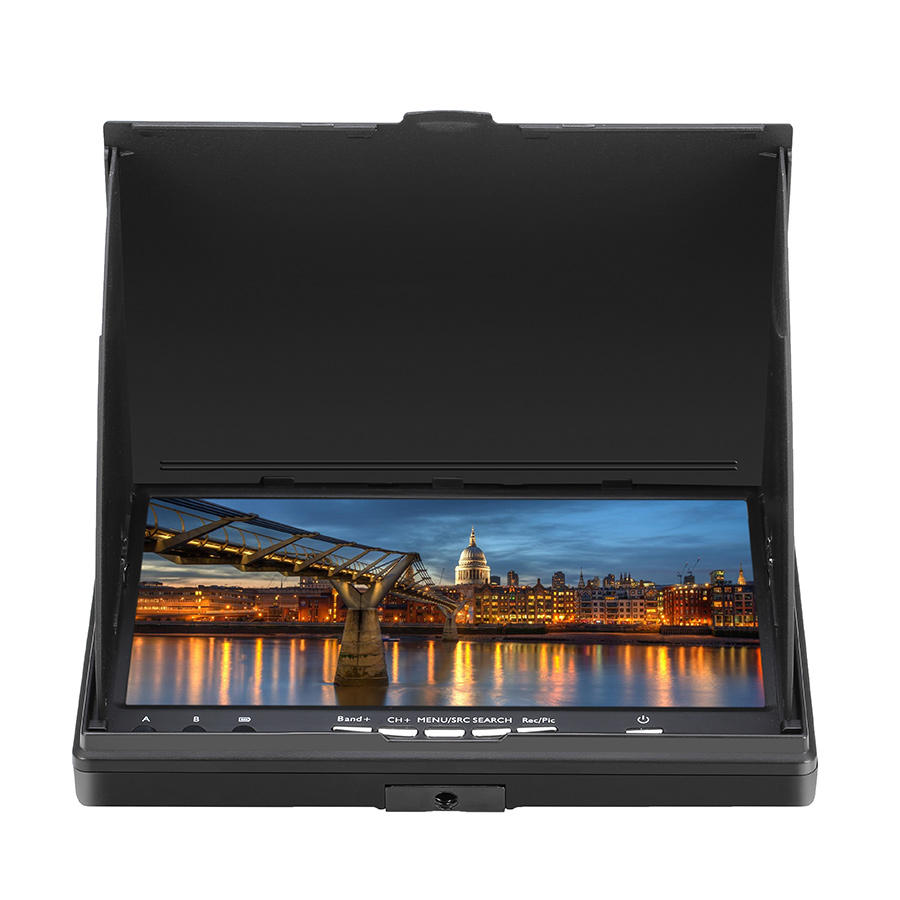

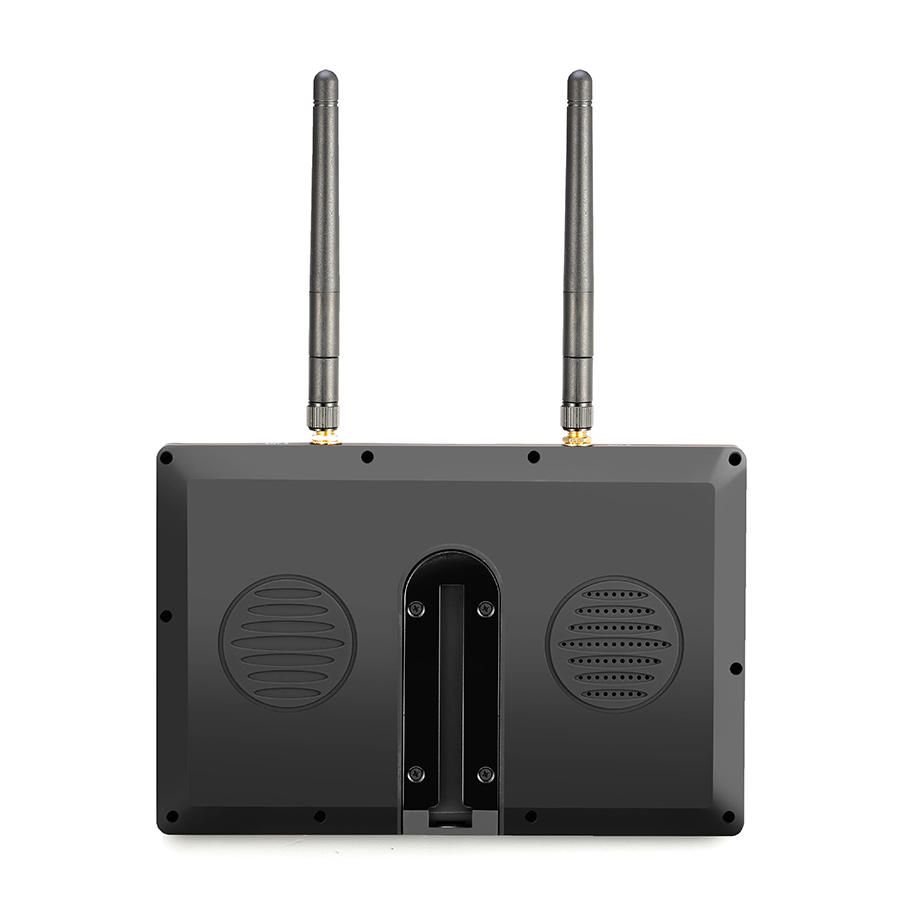

LCD5802D 5802 5.8G 40CH 7 Inch FPV Monitor with DVR Diversity Receiver Build-in Battery
Notice: If the monitor can’t record the PAL format video or the image is not complete, please update it as follow:
1. Download the file: Upgraded File and put it in Root of TF card
2. Turn on the monitor, it will auto update as the video shows.
Review by Jim T(Administrator of RCgroups.com) : http://www.rcgroups.com/forums/showthread.php?t=2679041
There is a lot to like about this unit. If your going to have an LCD like this you have to have diversity. The ability to utilize those two receivers when using your goggles is great. The built in lipo is also very handy and I really like that I can plug in an external lipo if needed. With a battery life of around 3 hours it lasted as long as I personally needed it and then some. The micro SD slot is accessible and visible, so it’s easy to get in and out and know you have one in there. I also really like the hard plastic hood. The speakers are also great if wearing headphones bothers you. Finally, the most important thing for me is the DVR. It’s super simple to turn on and off.
The only issue I had was the screen would not turn off for me at one point. If this happens to you be aware that there is a reset button on the left side of the unit near the AV out port. It is the type you need to press in with a needle or toothpick.
Other than that I had no issues with this unit. It is now my number one LCD/DVR unit that will use to record FPV videos with. I think it’s a pretty great deal at $119!
Notice: Before you use it, you should format your SD card to FAT32. There is a screen protector with H on screen, you can remove it.
Description: User Manual
Brand Name: Eachine
Item Name: LCD5802D Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Format: JPEG, AVI
Screen type:TFT LCD Screen/long life, LED backlight
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 25mm(Note:Sunshield height:110mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors:RP-SMA female(outer needle)
Antennas Connectors:RP-SMA male (inner hole)
Support up to 32G , C10 SD Card.
With DVR function
Built-in Dual Receiver for best reception
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can’t receive 2 different channels at the same time
Band and Channel selection
|CH||CH 1||CH 2||CH 3||CH 4||CH 5||CH 6||CH 7||CH 8|
|A||5865 MHZ||5845 MHZ||5825 MHZ||5805 MHZ||5785 MHZ||5765 MHZ||5745 MHZ||5725 MHZ|
|B||5733 MHZ||5752 MHZ||5771 MHZ||5790 MHZ||5809 MHZ||5828 MHZ||5847 MHZ||5866 MHZ|
|C||5705 MHZ||5685 MHZ||5665 MHZ||5645 MHZ||5885 MHZ||5905 MHZ||5925 MHZ||5945 MHZ|
|D||5740 MHZ||5760 MHZ||5780 MHZ||5800 MHZ||5820 MHZ||5840 MHZ||5860 MHZ||5880 MHZ|
|R||5658 MHZ||5695 MHZ||5732 MHZ||5769 MHZ||5806 MHZ||5843 MHZ||5880 MHZ||5917 MHZ|
1 x 7″ LCD Screen Receiver Monitor with built in Rechargable Battery
2 x 5.8G Antenna
1 x AV Cable
1 x Charger
